Loop to Loop
w rings, crimps s/s

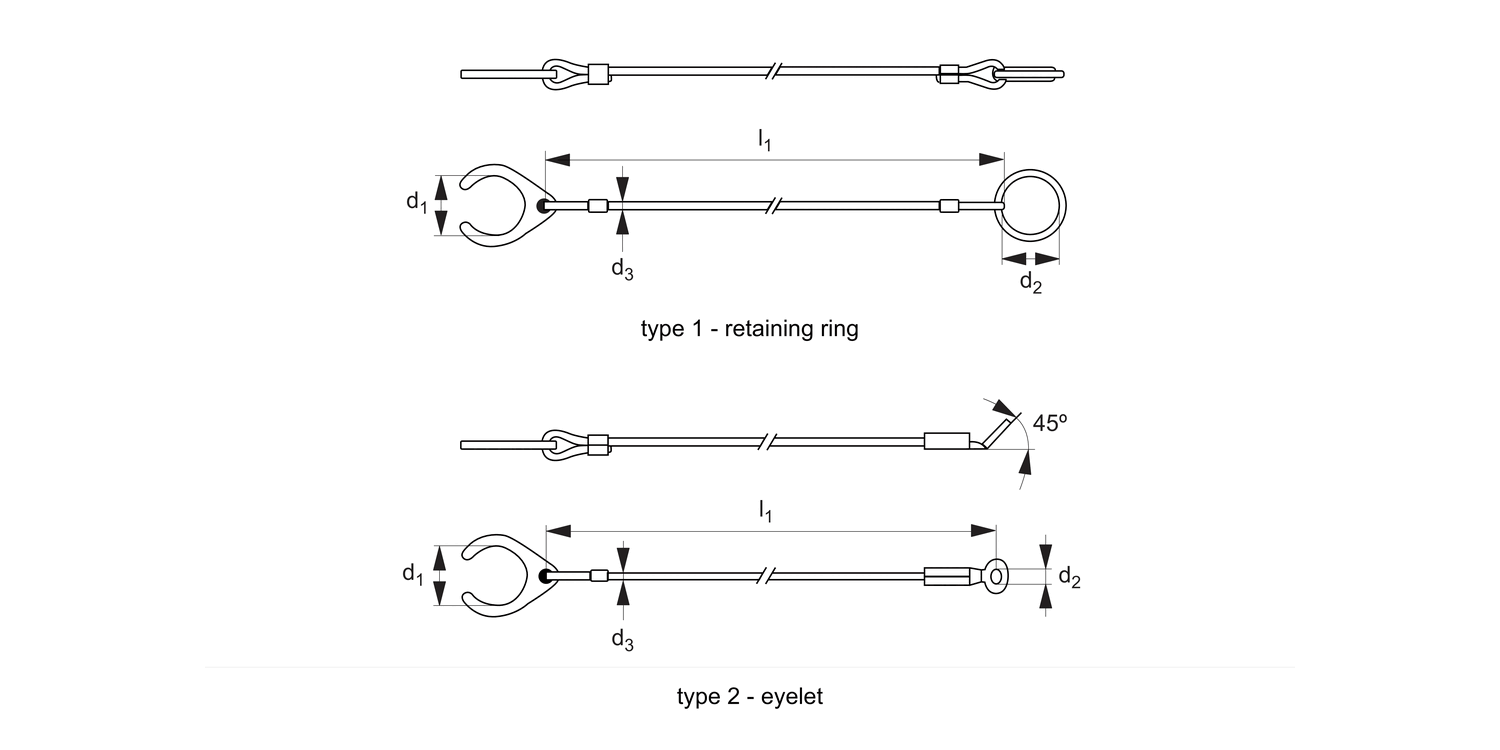

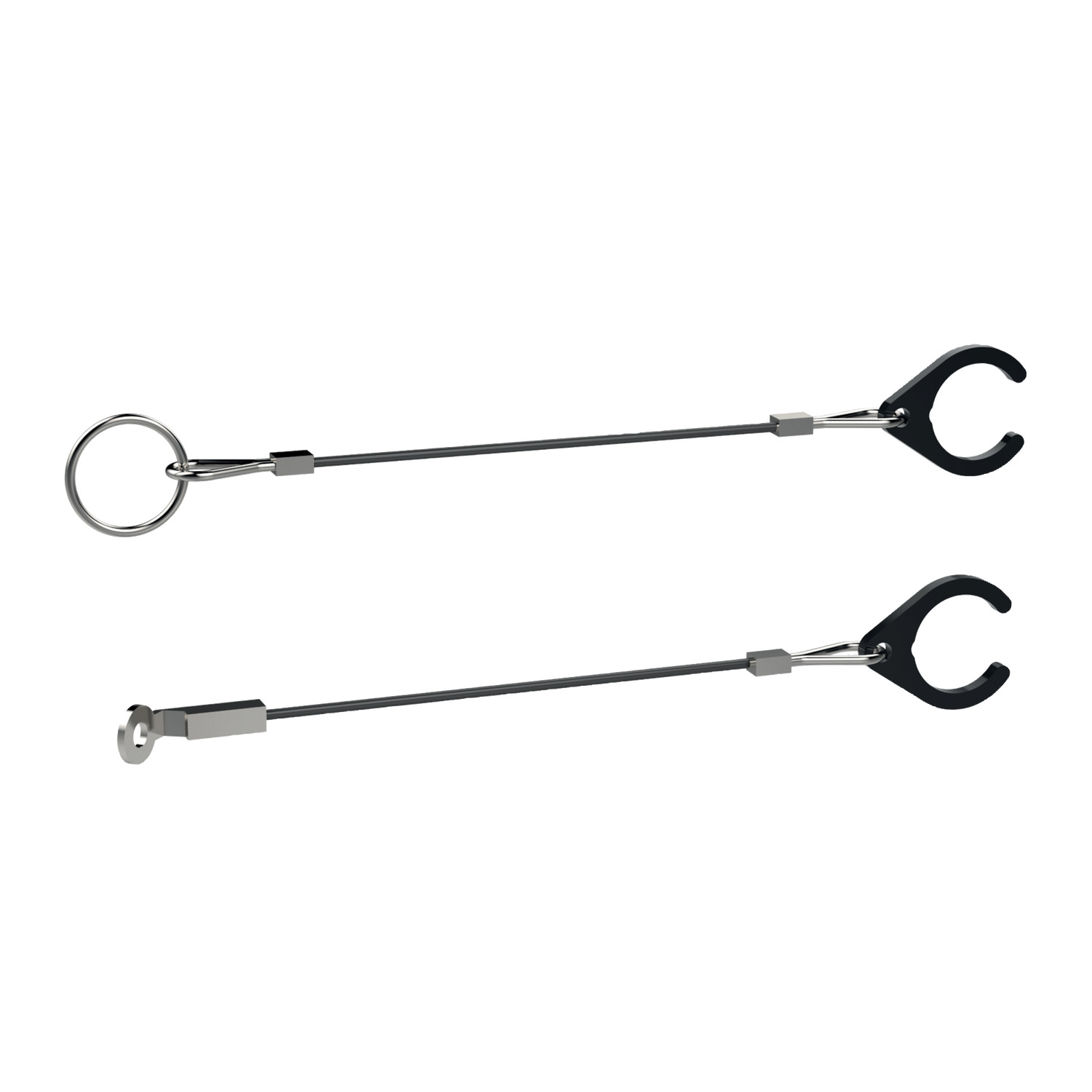

33268 Retaining Cable
with holding clip for no. 33331, material: stainless steel
Order No.
33268.W6013
Type
2
d1
20.3
l1
300
d2
4.8
d3 wire coated
2
To suit lock pin 33331
M 8 to M16
Weight
g
8
£ 11.91 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 11.91 | 0% |
| 10-19 | £ 10.72 | 10% |
| 20-49 | £ 10.12 | 15% |
| 50-99 | £ 9.53 | 20% |
| 100+ | £ 8.34 | 30% |
Technical & Application
Material
Split ring or eyelet: stainless steel.
Holding circlip: thermoplastic PA 6, black.
Wire rope: stainless steel.
Coating: thermoplastic PA 6, black.
Technical Notes
Retaining cables designed specifically for use with threaded lock pin no. 33331. Lanyard prevents accidental loss of pin from application.
Product Datasheets
Application images
