Loop to Loop
w rings, crimps s/s

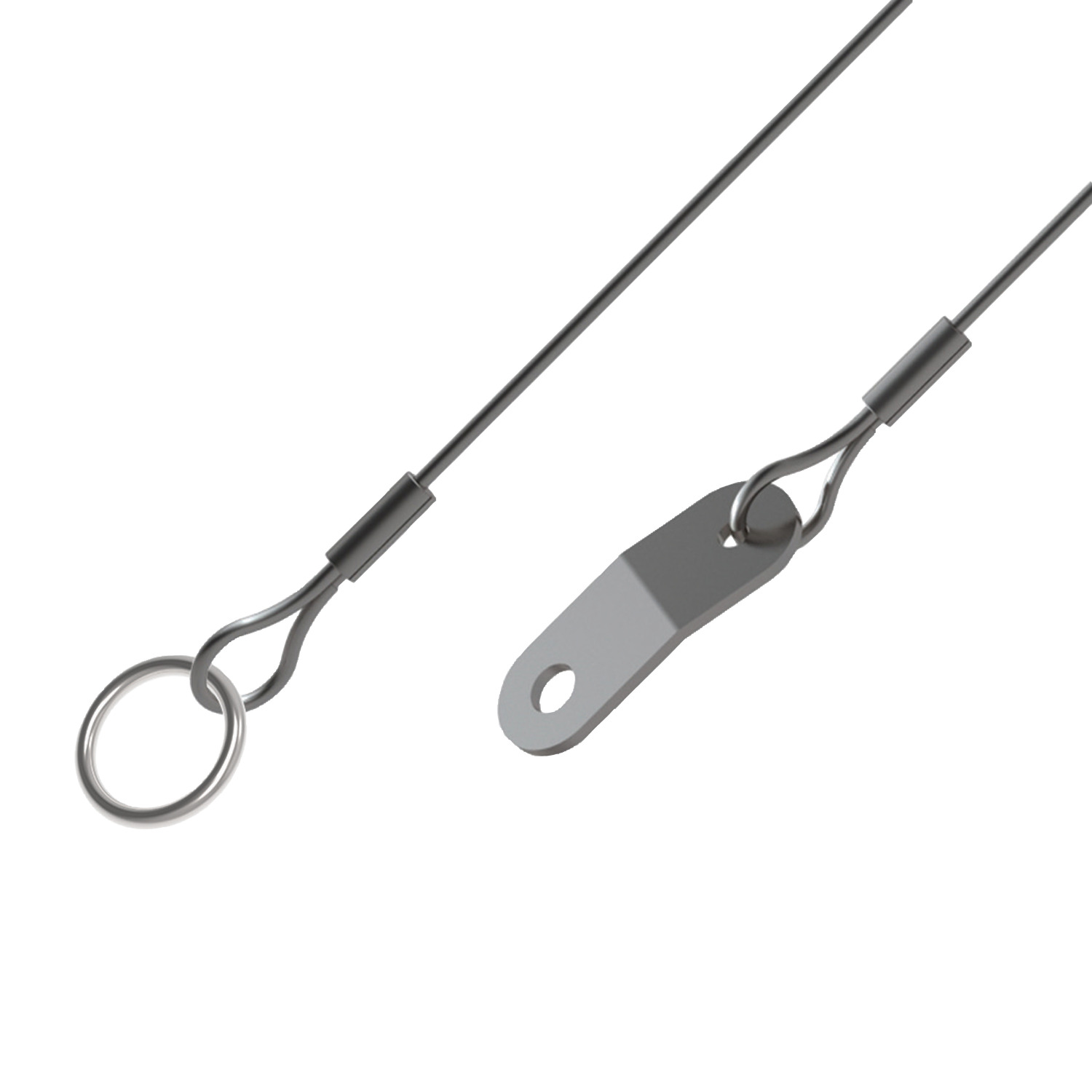

33252 Lanyard - Split Ring to Rectangle Tab
crimps brass, tab stainless steel, material: Stainless steel
Alternative products you may wish to consider
Coating
Green

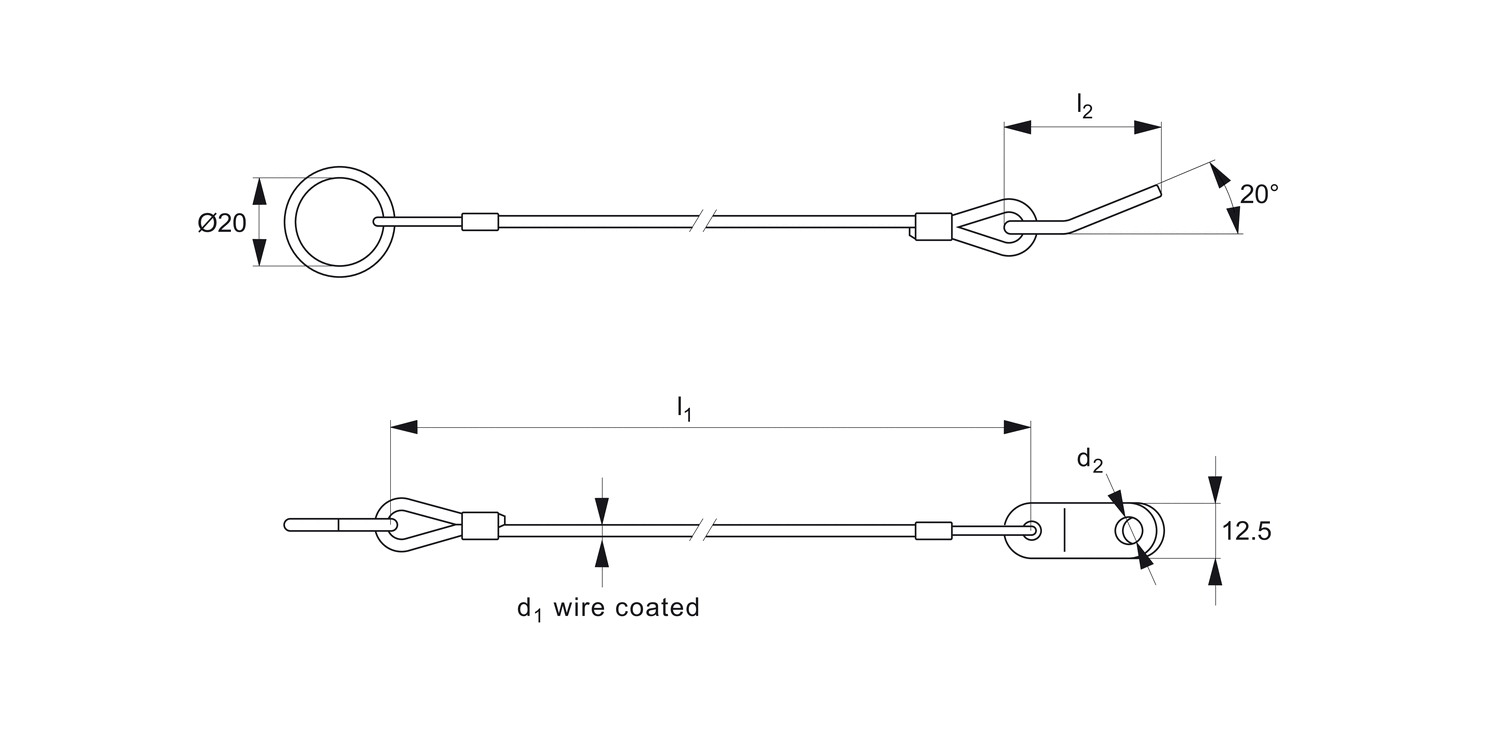

d1 wire coated
2.4
l1
150
d2
294.9
l2
29
Weight
g
13
£ 12.71 per unit (click for quantity discounts)
Coating
Green
d1 wire coated
2.4
l1
200
d2
4.9
l2
29
Weight
g
14
£ 12.71 per unit (click for quantity discounts)
Coating
Green
d1 wire coated
2.4
l1
300
d2
4.9
l2
29
Weight
g
16
£ 13.09 per unit (click for quantity discounts)
Coating
d1 wire coated
l1
d2
l2
Weight
g
| Price & Availability | Article | Coating | d1 wire coated | l1 | d2 | l2 | Weight g | ||||||||||||||||||
| 33252.W1301 | Green | 2.4 | 150 | 294.9 | 29 | 13 | |||||||||||||||||||
£ 12.71 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coating Green d1 wire coated 2.4 l1 150 d2 294.9 l2 29 Weight
g 13 | |||||||||||||||||||||||||
| 33252.W1302 | Green | 2.4 | 200 | 4.9 | 29 | 14 | |||||||||||||||||||
£ 12.71 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coating Green d1 wire coated 2.4 l1 200 d2 4.9 l2 29 Weight
g 14 | |||||||||||||||||||||||||
| 33252.W1303 | Green | 2.4 | 300 | 4.9 | 29 | 16 | |||||||||||||||||||
£ 13.09 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coating Green d1 wire coated 2.4 l1 300 d2 4.9 l2 29 Weight
g 16 | |||||||||||||||||||||||||
Technical & Application
Material
Wire rope: stainless steel.
Coating: thermoplastic, PVC, green transparent
Crimps: brass, zinc plated.
Tabs: stainless steel
Split ring: stainless steel.
Technical Notes
Temperature range up to 80°C.
Tips
For use in securing components to assemblies, or to avoid items being misplaced. For our wide range of quick release pins nos.33060 through 33226.
Important Notes
Conform to military spec MIL-DTL-83420 specification
