34500 Grub Screws

Name: 34500.W0162
Brand: WC
SKU: 34500.W0162
Price: 6.74 EUR
Availability: InStock

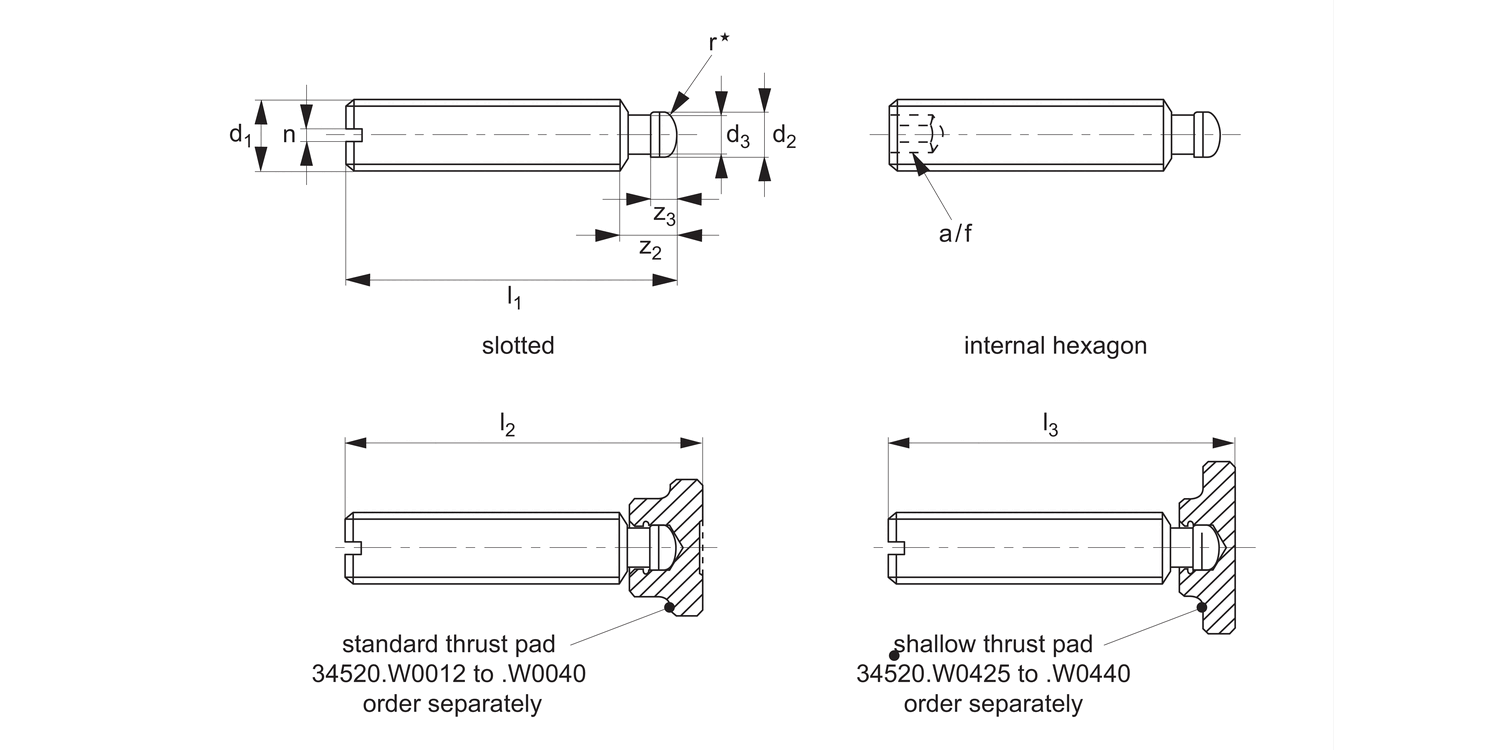

with slot or hex end, and thrust point - form S - DIN 6332, material: Steel

Article properties

Order No.

34500.W0162

Type

Slotted

d₁

M16

d₂ tol. h11

12.0

d₃

11.0

l₁

100

l₂ ≈

105.4

l₃ ≈

102.9

2.5

z₂

12.0

z₃

5.0

A/F

Weight g

126.0

See full product selection

£ 6.74 per unit (click for quantity discounts)

Ready to despatch 29
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 6.74	0%
20-49	£ 6.07	10%
50-99	£ 5.73	15%
100-499	£ 5.06	25%
500+	£ 4.38	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body: steel to quality 5.8, thrust point hardened, blackened.

Technical Notes

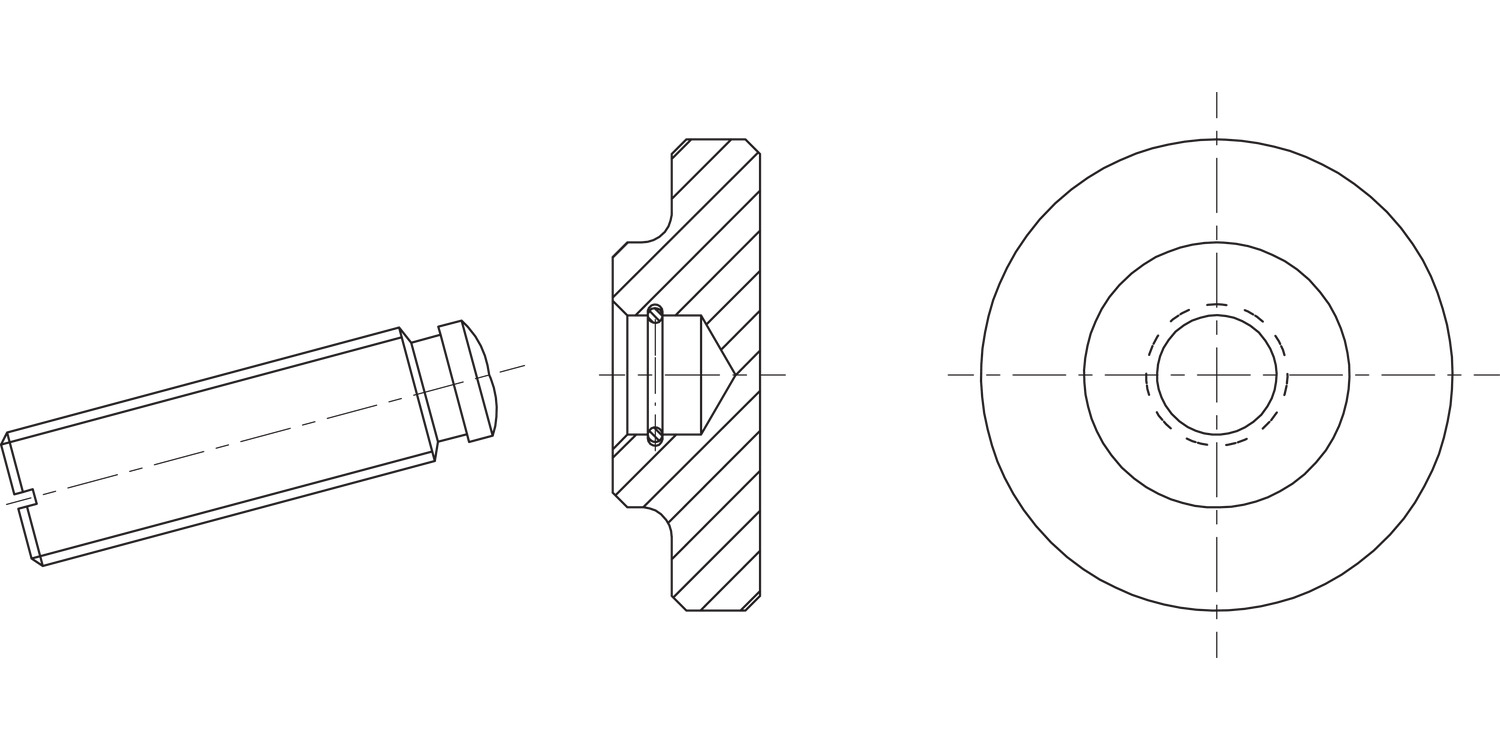

The grub screws can be used with thrust pads no. 34520(not found) standard or shallow type.
To ease assembly, DIN specification has been amended by addition of radius r*.
