34602 Compact Levelling Fulcrum Screw

Name: 34602.W0012
Brand: WC
SKU: 34602.W0012
Price: 36.16 EUR
Availability: OutOfStock

material: Heat treated steel

Article properties

Order No.

34602.W0012

Finish

Steel

d₁

M24

d₂

M12

l₁ ±0.5

39.9

l₂

l₃ min.

9.0

A/F₁

A/F₂

A/F₃

Static load max. kN

Weight g

See full product selection

£ 36.16 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 36.16	0%
5-14	£ 32.54	10%
15-24	£ 30.74	15%
25+	£ 28.93	20%

Download product datasheet

Download FREE CAD

Technical & Application

Material

steel type:
Body: heat treated steel, tempered, blackened.
Ball: free cutting steel, induction hardened.
Stainless steel type: Body and ball: stainless steel 1.4305 (AISI 1303)

Technical Notes

Can be used as foot or thrust pad.

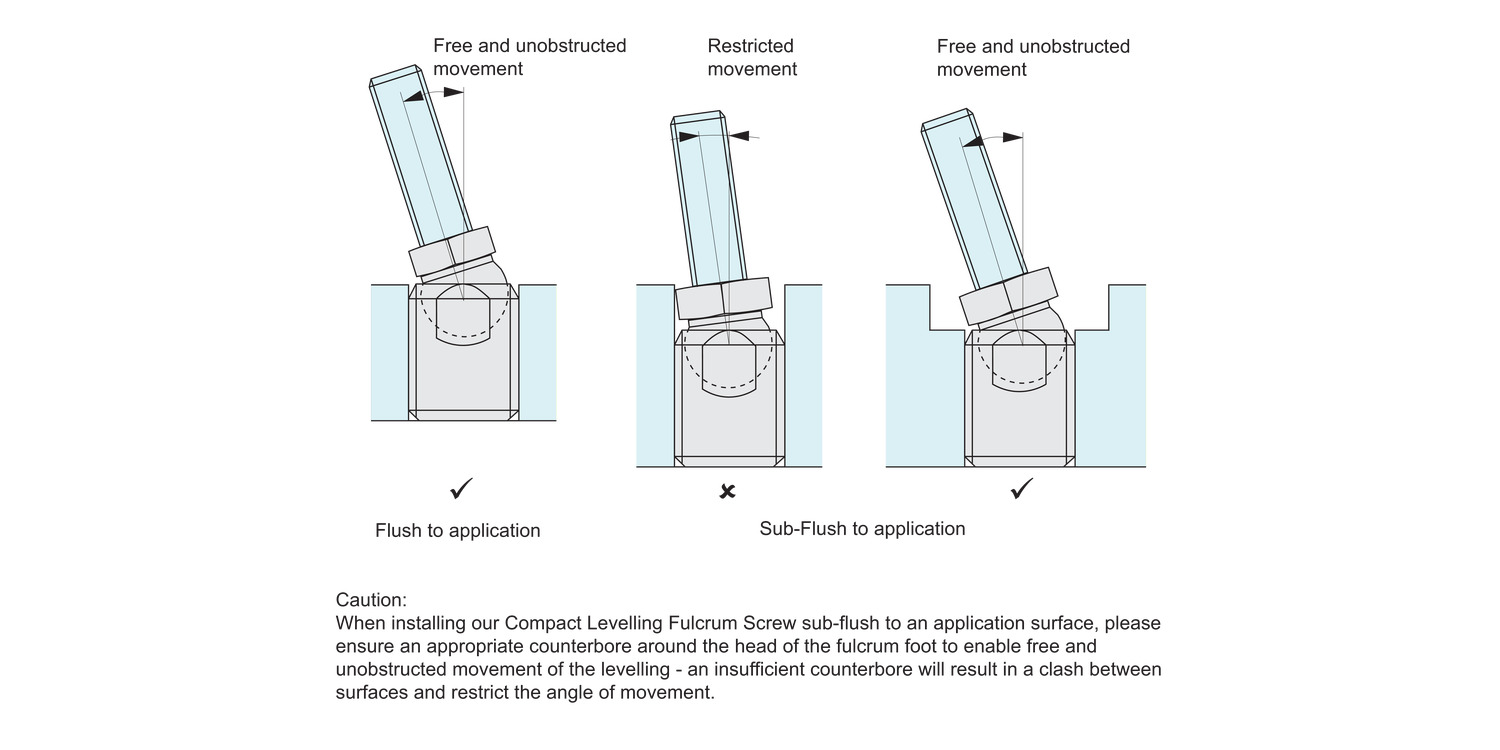

Compact design for simple levelling by means of the spanner flat at the bushing or preferably by means of a hexagon socket.
Should only be used for static loads
