34631 Mini Levelling Feet

Name: 34631.W1001
Brand: WC
SKU: 34631.W1001
Price: 1.23 EUR
Availability: InStock

steel with plastic base, material: Steel

Article properties

Order No.

34631.W1001

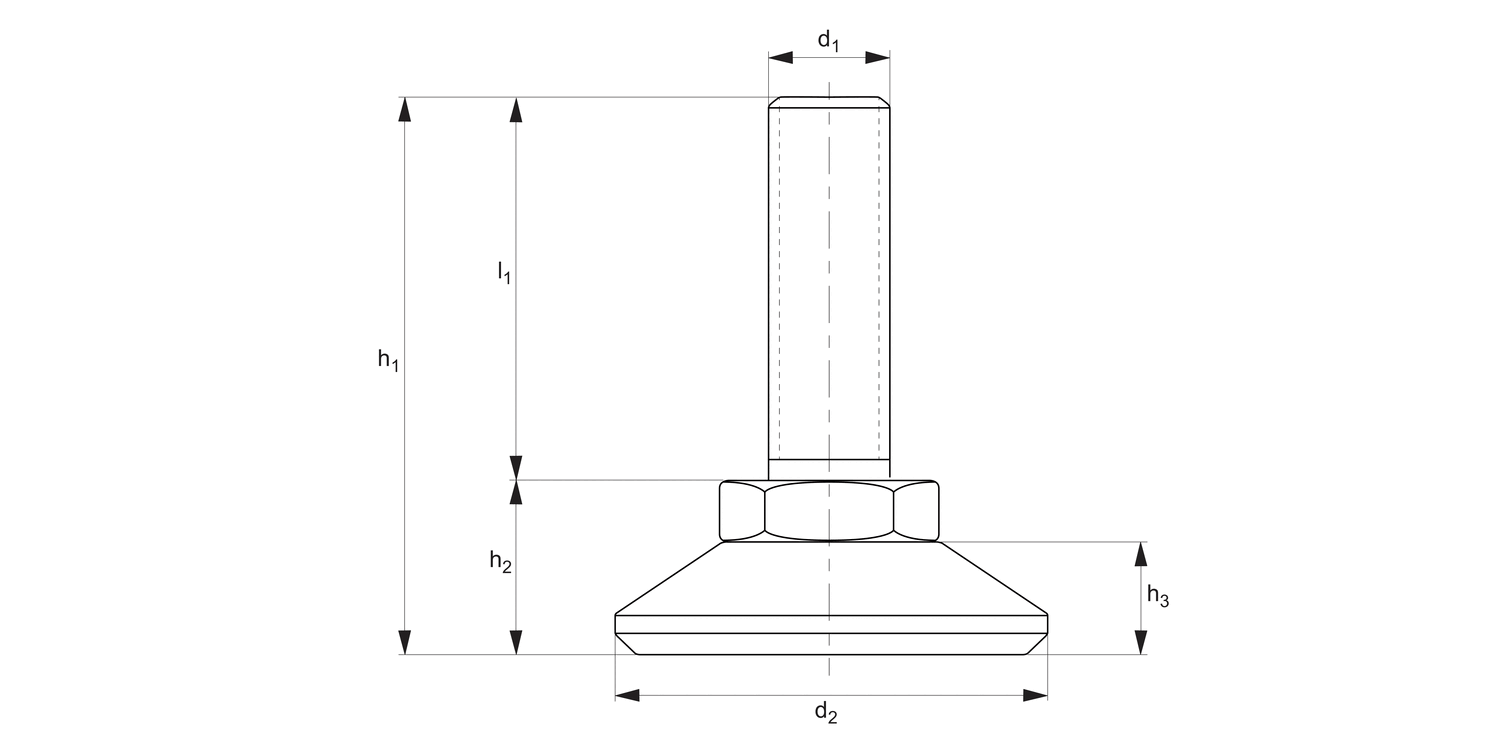

d₁

M10

d₂

l₁

h₁

36.5

h₂

16.5

h₃

11.5

Static load N

1500

See full product selection

£ 1.23 per unit (click for quantity discounts)

Ready to despatch 2
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 1.23	0%
20-49	£ 1.11	10%
50-99	£ 0.98	20%
100-499	£ 0.92	25%
500+	£ 0.80	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Galvanised steel stud with plastic base.

Technical Notes

Load values shown are for static loads calculated at the half of the screw length.
In the presence of vibrations or dynamic loads these values should be reduced.

Product Datasheets

34631 Mini Levelling FeetJune 24, 2025, 3:45 PM / 934.12 kB

Mini FeetJune 24, 2025, 3:34 PM / 1.95 MB

Levelling FeetJune 24, 2025, 3:31 PM / 2.64 MB

Levelling Feet, Mounts & AdjustersJune 24, 2025, 3:32 PM / 4.66 MB

Design ElementsJune 24, 2025, 3:33 PM / 69.38 MB

CAD files

34631 AcisApril 17, 2024, 9:33 AM / 361.04 kB

34631 IGESApril 17, 2024, 9:33 AM / 581.16 kB

34631 ParasolidApril 17, 2024, 9:33 AM / 149.06 kB

34631 ProEApril 17, 2024, 9:33 AM / 1.47 MB

34631 SolidWorksApril 17, 2024, 9:33 AM / 1016.14 kB

34631 StepApril 17, 2024, 9:33 AM / 364.37 kB
