Locating Feet
threaded shank

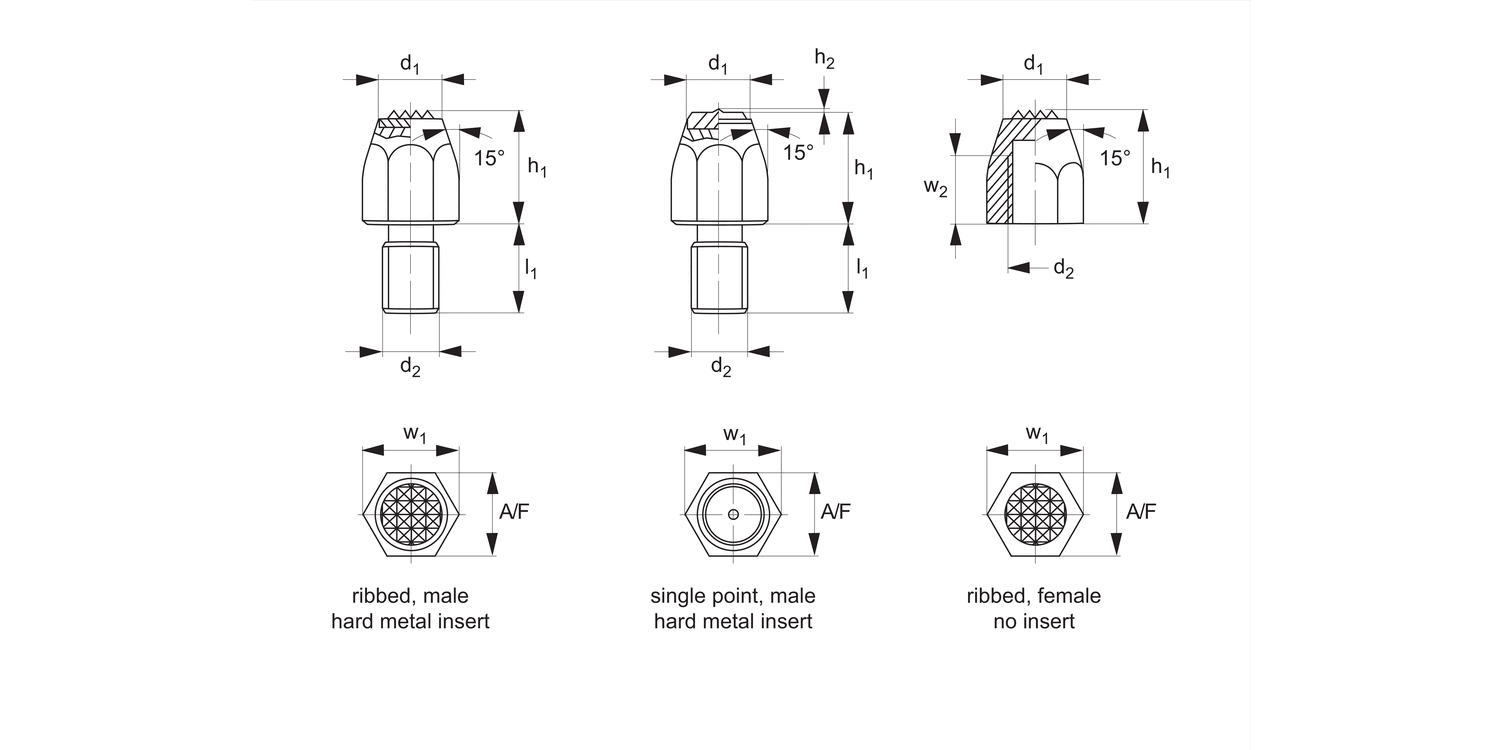

36200 Locating Pins
with and without hard metal insert, material: Heat-treated steel
Order No.
36200.W0142
Type
Ribbed, Female
Insert material
W/O Insert
d1
9.0
l1
-
d2
M 8
h1
20
h2
-
w1
15.0
w2
10
A/F
13
Torque to
max.
Nm
18
Weight
g
14
£ 13.23 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 13.23 | 0% |
| 10-19 | £ 11.91 | 10% |
| 20-49 | £ 11.25 | 15% |
| 50-99 | £ 10.58 | 20% |
| 100+ | £ 9.26 | 30% |
Technical & Application
Material
With hard metal insert:
Body: heat-treated steel, tempered, blackened.
Insert: hard metal, brazed-in.
Without hard metal insert:
Body: free-cutting steel, case-hardened, blackened.
Technical Notes
For workpieces having a rough surface. The single pointed type is ideal for cast parts.
