36210 Locating Pins

Name: 36210.W0626
Brand: WC
SKU: 36210.W0626
Price: 20.46 GBP
Availability: OutOfStock

adjustable, material: Steel

Article properties

Order No.

36210.W0626

Finish

Ribbed Surface

M 6

l₁ ±1.5

l₂ ±1.5

23.5

l₃ min.

19.0

11.5

A/F

Weight g

6.7

See full product selection

£ 20.46 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 20.46	0%
10-19	£ 18.41	10%
20-49	£ 17.39	15%
50-99	£ 16.37	20%
100+	£ 14.32	30%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Body and nut: heat treated steel, tempered, blackened and support induction hardened, quality 10,9.

Technical Notes

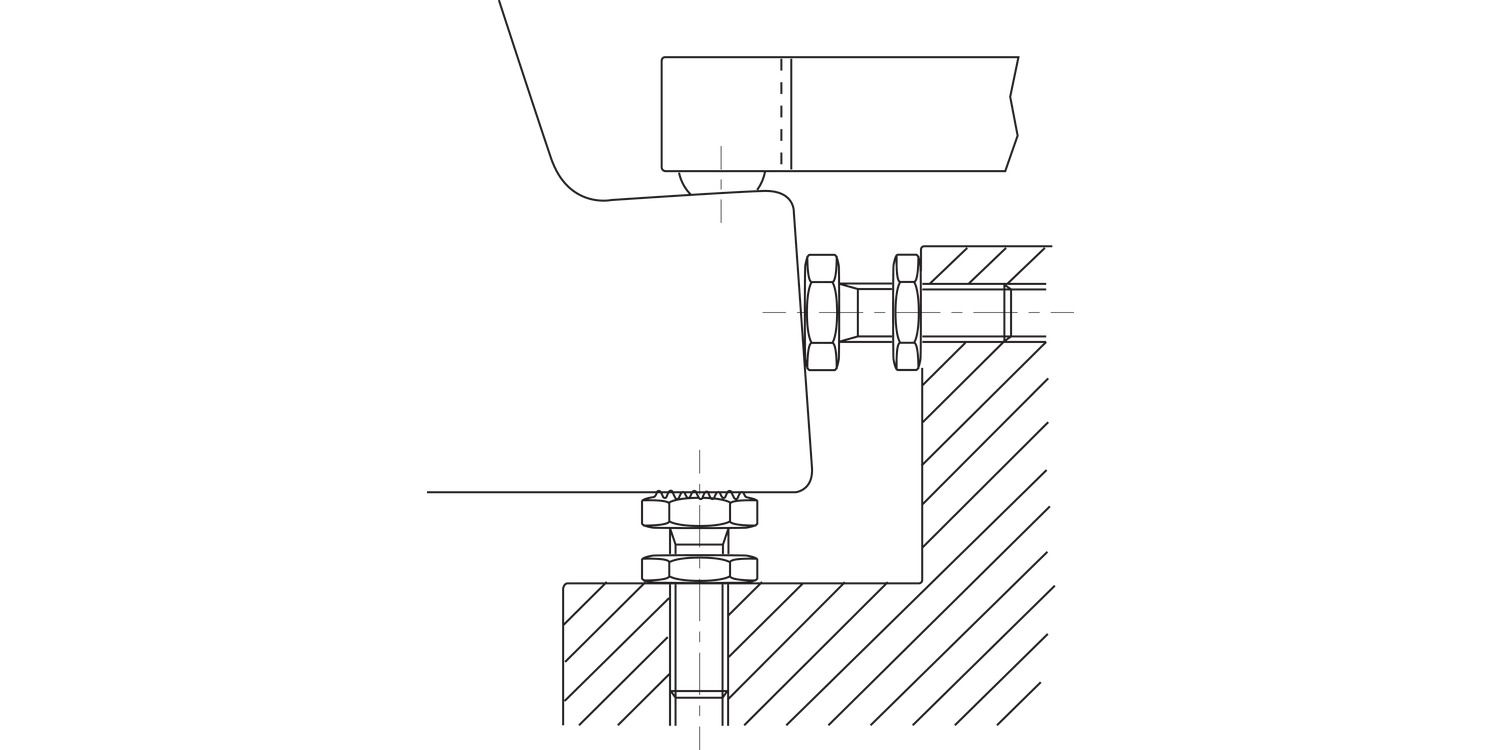

Ideal for use as seats and stops.
