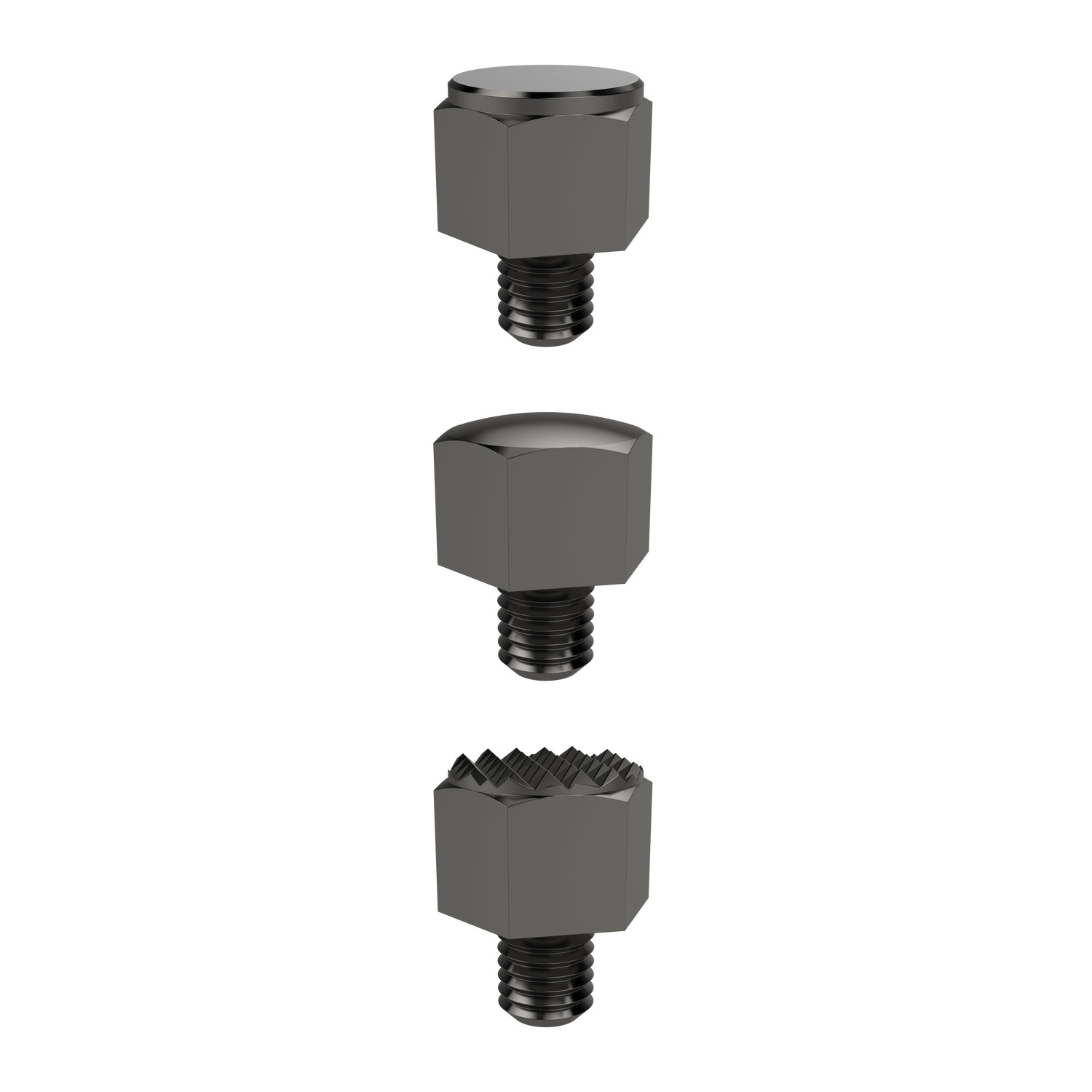

36401 Threaded Rest Buttons

Name: 36401.W0001
Brand: WC
SKU: 36401.W0001
Price: 23.87 EUR
Availability: InStock

male thread, material: Steel

Article properties

Order No.

36401.W0001

Type

Flat Face

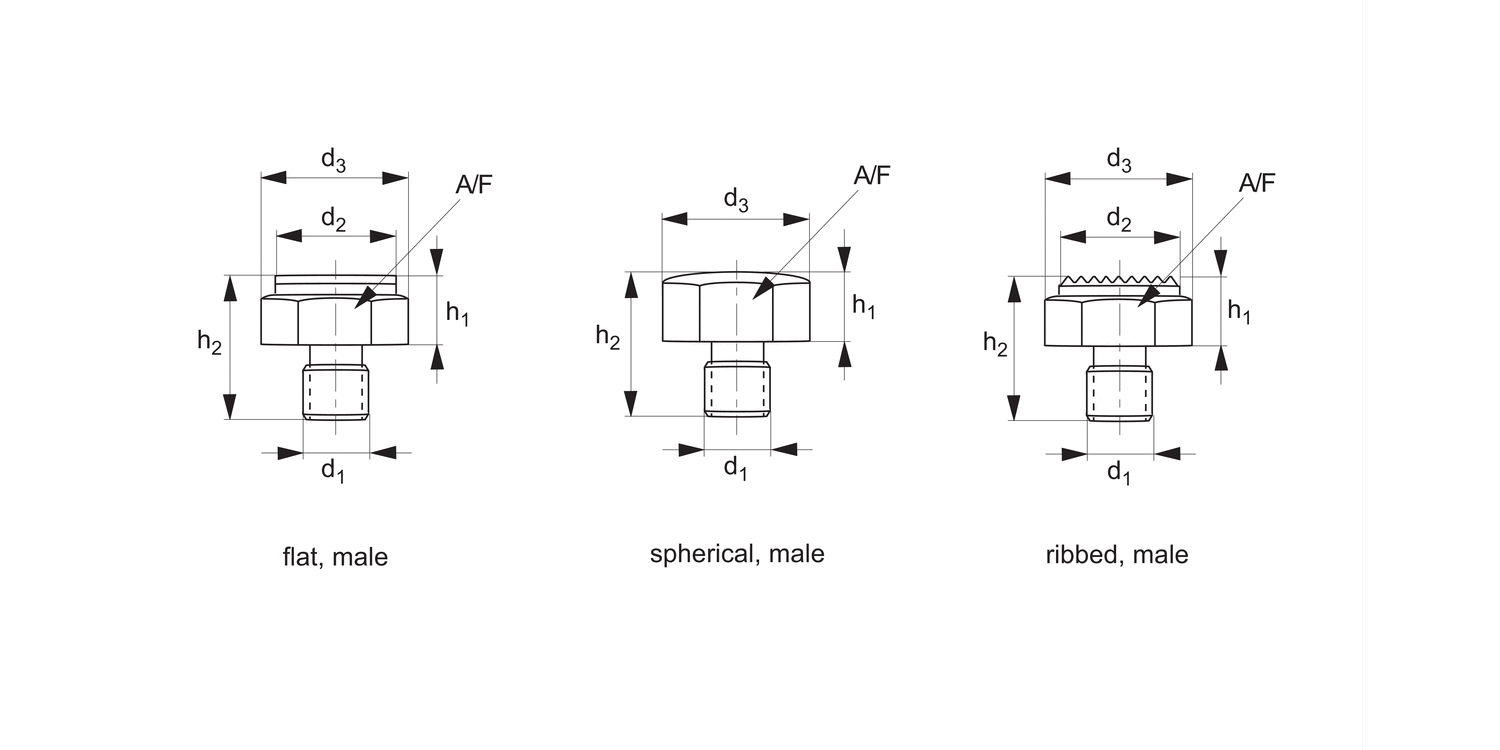

d₁

M12

d₂

d₃

25.2

h₁

h₂

A/F

Torque to max. Nm

Weight g

See full product selection

£ 23.87 per unit (click for quantity discounts)

Ready to despatch 5
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 23.87	0%
5-9	£ 22.68	5%
10-19	£ 21.48	10%
20-49	£ 20.29	15%
50+	£ 17.90	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Free-cutting steel, case-hardened and blackened. Thread not hardened.

Technical Notes

The buttons are used as seats, stops and thrust pads in jigs and fixtures as well as machine and equipment design. Dimension h1 tolerance of ±0,01 for flat face type only, other types have h1 tolerance of ±0,1. Stated starting torque for female thread is based on use of bolt of strength class 8 or greater and with full engagement of female thread.
