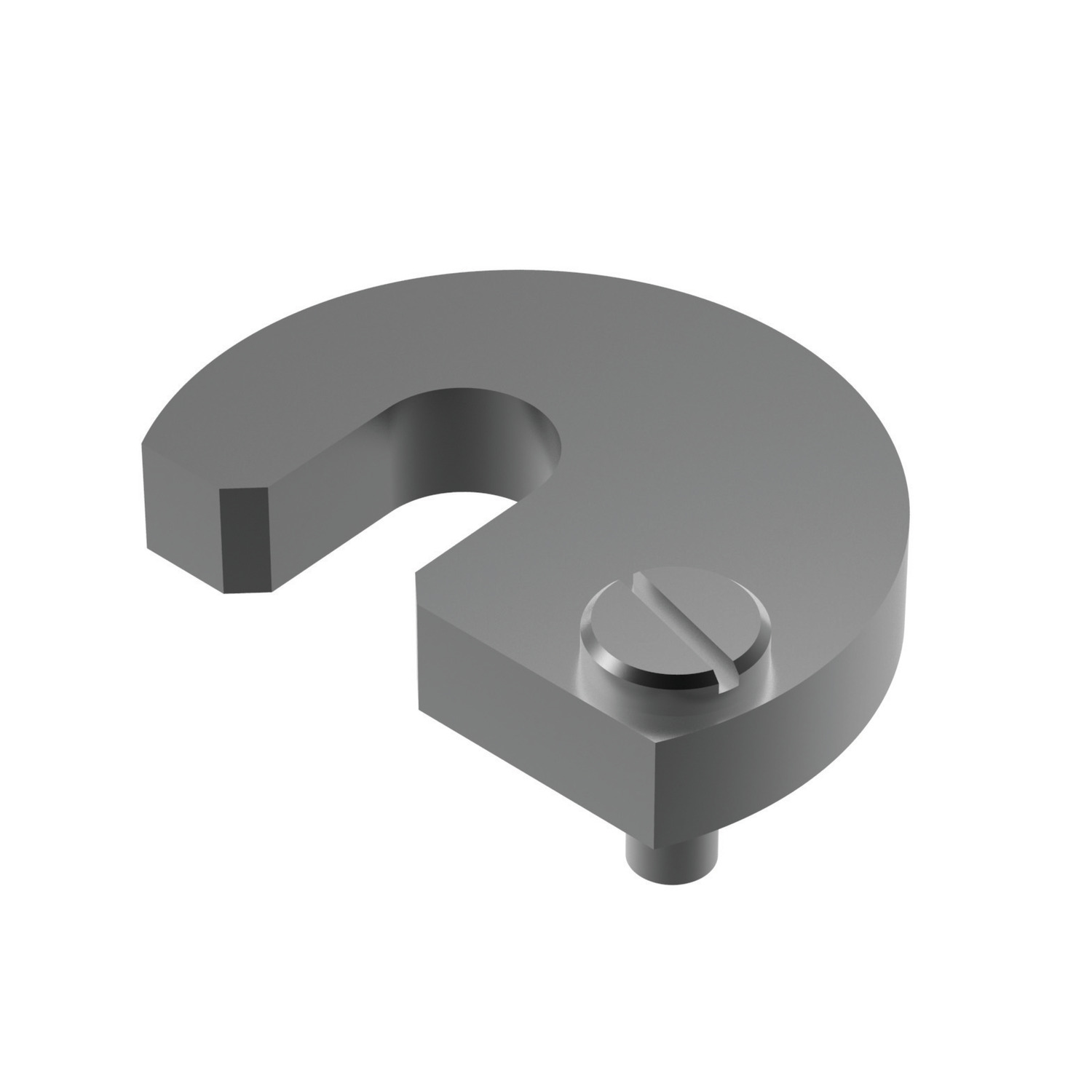

36620 Captive C Washers

Name: 36620.W0012
Brand: WC
SKU: 36620.W0012
Price: 46.36 EUR
Availability: InStock

shoulder bolt, material: Heat-treated steel

Article properties

Order No.

36620.W0012

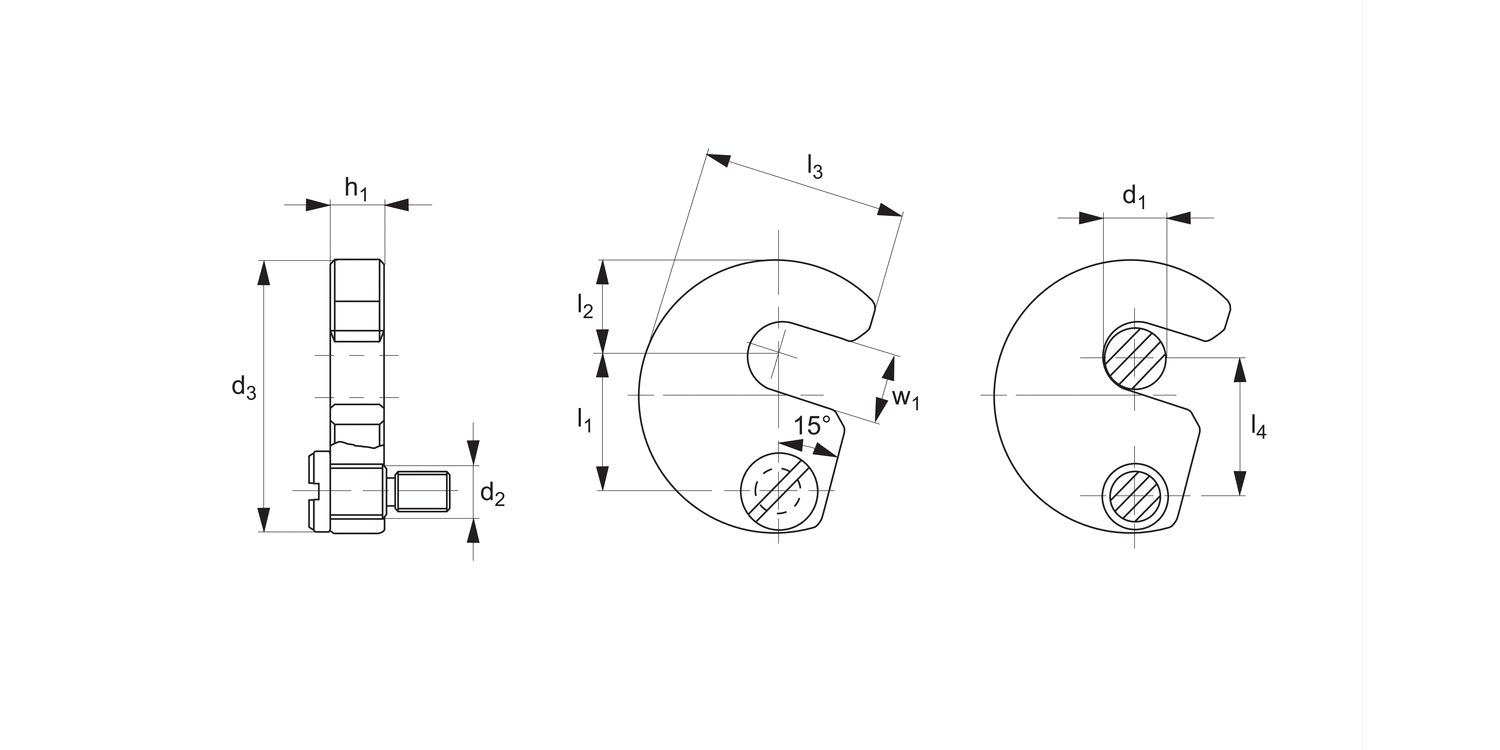

Size

d₁

d₂

d₃

h₁ -0.2

11.8

l₁

29.6

l₂

l₃

45.0

l₄

w₁

13.5

Matching screw DIN 923

M 8x12

Weight g

194

See full product selection

£ 46.36 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 46.36	0%
5-9	£ 44.04	5%
10-19	£ 41.72	10%
20-49	£ 39.41	15%
50+	£ 34.77	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Heat-treated steel (DIN 6371), blackened and tempered.
Shoulder bolt: steel, strength class 5.8, blackened.

Technical Notes

Shoulder bolt no. 36700 (DIN 923) provided.

Product Datasheets

36620 Captive C WashersJune 24, 2025, 3:44 PM / 773.83 kB

Washers - SteelJune 24, 2025, 3:30 PM / 749.53 kB

WashersJune 24, 2025, 3:31 PM / 881.78 kB

Fixing Elements, Inserts & GaugesJune 24, 2025, 3:32 PM / 9.54 MB

Work HoldingJune 24, 2025, 3:33 PM / 61.81 MB

CAD files

36620 AcisApril 17, 2024, 9:39 AM / 128.66 kB

36620 IGESApril 17, 2024, 9:39 AM / 288.74 kB

36620 ParasolidApril 17, 2024, 9:39 AM / 93.89 kB

36620 ProEApril 17, 2024, 9:39 AM / 293.16 kB

36620 SolidWorksApril 17, 2024, 9:39 AM / 586.10 kB

36620 StepApril 17, 2024, 9:39 AM / 134.40 kB
