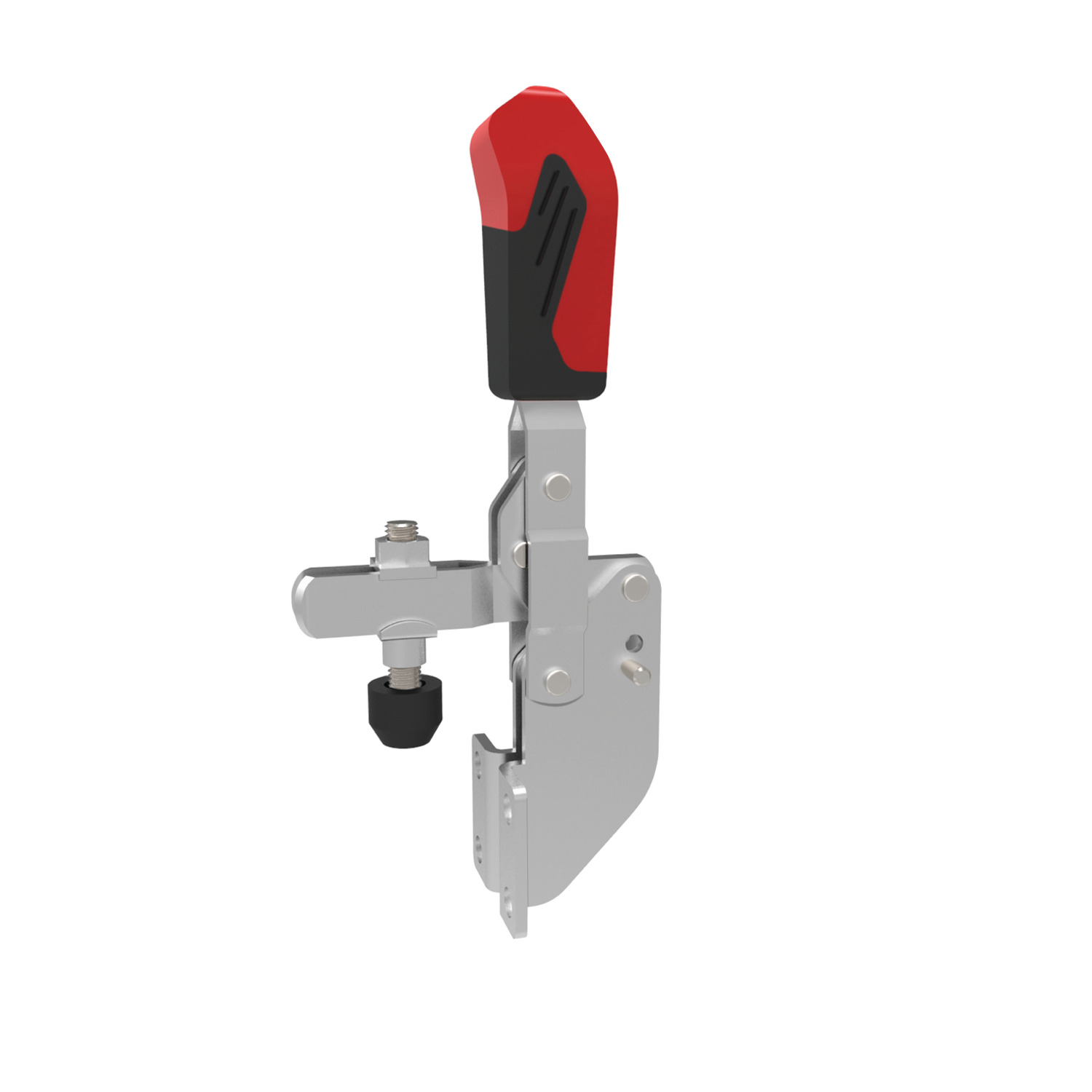

40100.1 Vertical Acting Toggle Clamps

Name: 40100.W0004
Brand: WC
SKU: 40100.W0004
Price: 64.22 EUR
Availability: OutOfStock

angle base, material: Steel, zinc plated

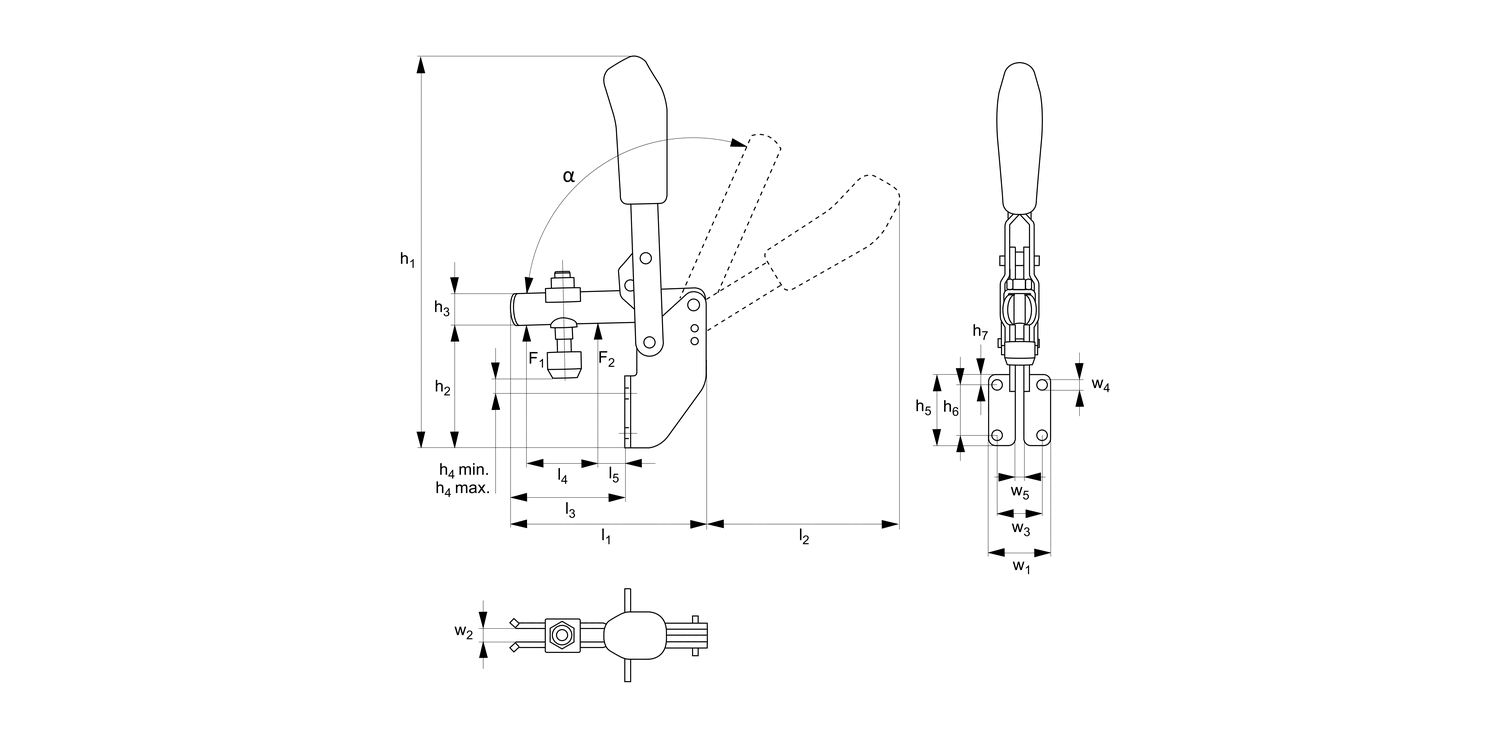

Article properties

Order No.

40100.W0004

Size

F₁ kN

2.0

F₂ kN

3.0

Clamping screw

M 8x65

h₁

280.0

h₂

101.5

h₃

h₄ min.

11.0

h₄ max.

39.5

h₅

h₆

h₇

Weight g

650

l₁

141

l₂

129

l₃

83.0

l₄

l₅

w₁

52.0

w₂

w₃

32.0

w₄

8.5

w₅

105°

α*

60°

See full product selection

£ 64.22 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 64.22	0%
5-14	£ 57.80	10%
15-24	£ 54.59	15%
25+	£ 51.38	20%

Download product datasheet

Technical & Application

Material

Body: steel, zinc plated.
Rivets: stainless steel running in hardened bushes (sizes 2-3). Pre-lubricated bearings (grease suitable for food industry use).
Ergonomic, soft feel, oil-resistant handle with large grip area.
Supplied complete with clamping screw (with rubber pad).

Technical Notes

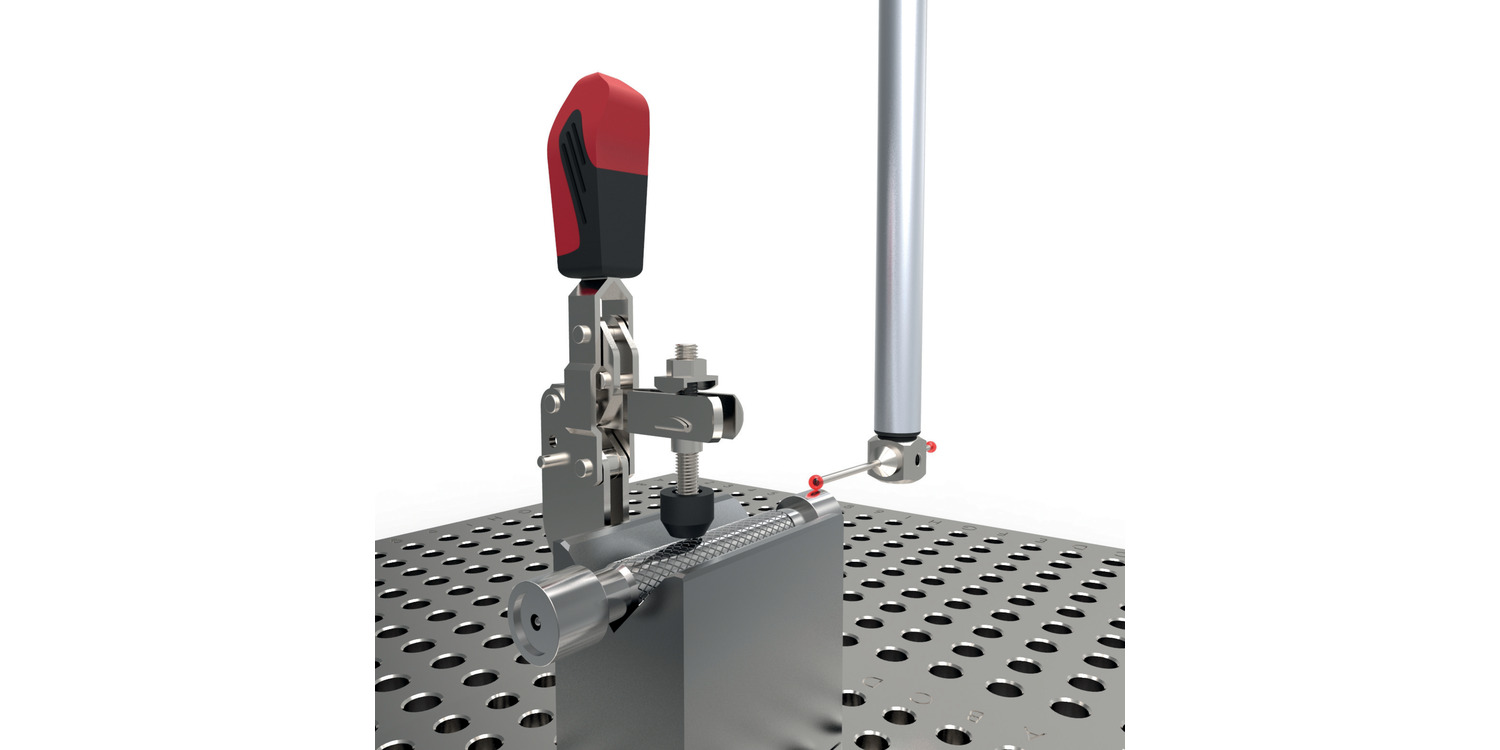

For fastening to mounting plates, etc.
Opening angle (symbola/symbolsymbola/symbol*) can be changed by pressing in a stop pin on the clamp body.
Lock washer for the thrust bolt at the end of the clamping arm.
Temperature range -10°C to +80°C.
