Toggle Clamps
latch type - horizontal

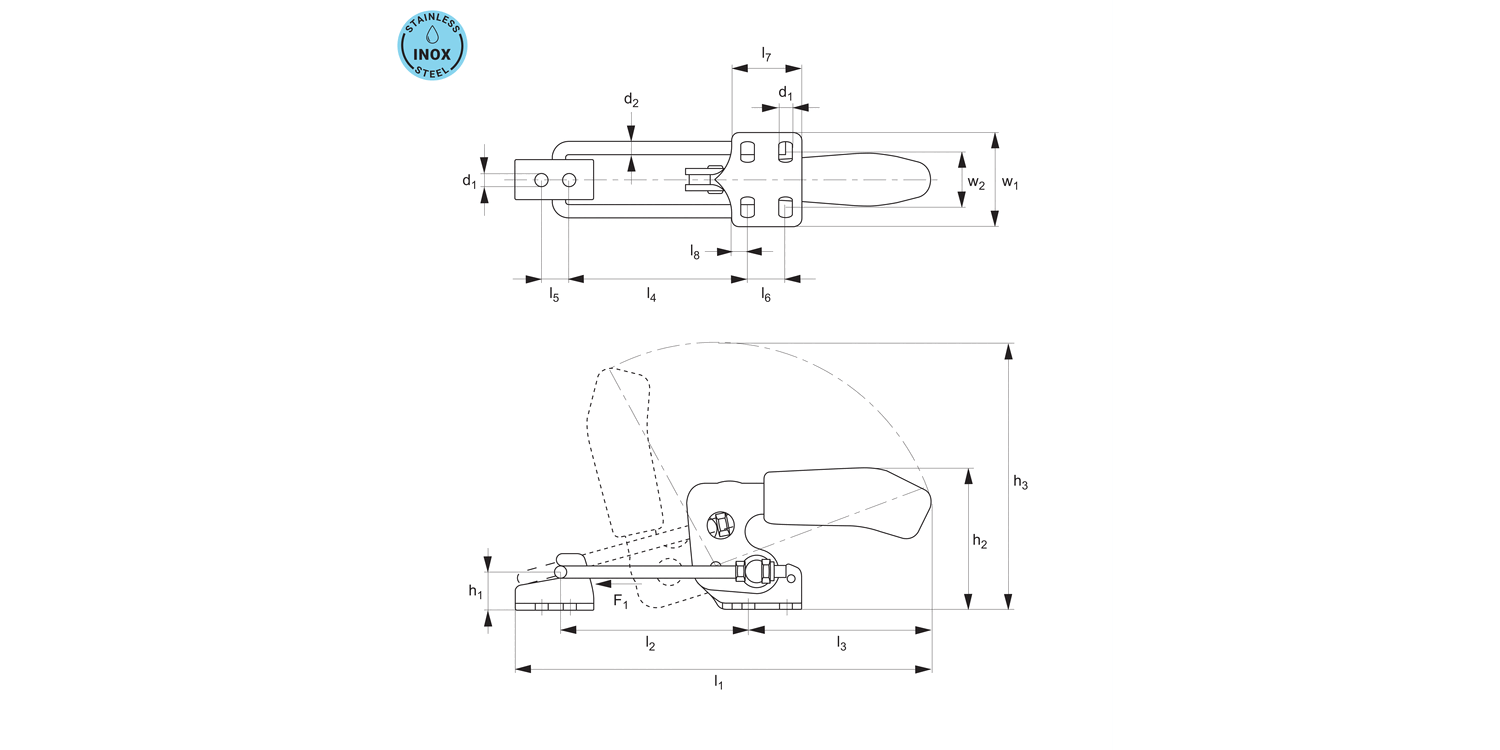

41801.4 Latch Type Toggle Clamps
stainless steel - horizontal acting, material: Stainless steel
Order No.
41801.W0303
Size
3
F1
kN
3.2
h1
19
h2
71.0
h3
137
l1
min.
170
l1
max.
217
l2
min.
53.5
l2
max.
101
Weight
g
330
l3
94
l4
min.
48.5
l4
max.
96
l5
14
l6
19
l7
35.0
l8
8.0
w1
48.0
w2
24,5-32,5
d1
6.5
d2
6
£ 114.98 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 114.98 | 0% |
| 10-14 | £ 103.48 | 10% |
| 15-24 | £ 97.73 | 15% |
| 25-49 | £ 91.98 | 20% |
| 50+ | £ 80.49 | 30% |
Technical & Application
Material
Body: stainless steel (AISI 304, 1.4301). Rivets: stainless steel running in hardened bushes. Pre-lubricated bearings.
Ergonomic soft feel oil-resistant handle with large grip area.
Technical Notes
Complete with counter strike, see part no. 41811.W0312 - .W0314.
Temperature range -10°C to +80°C.
