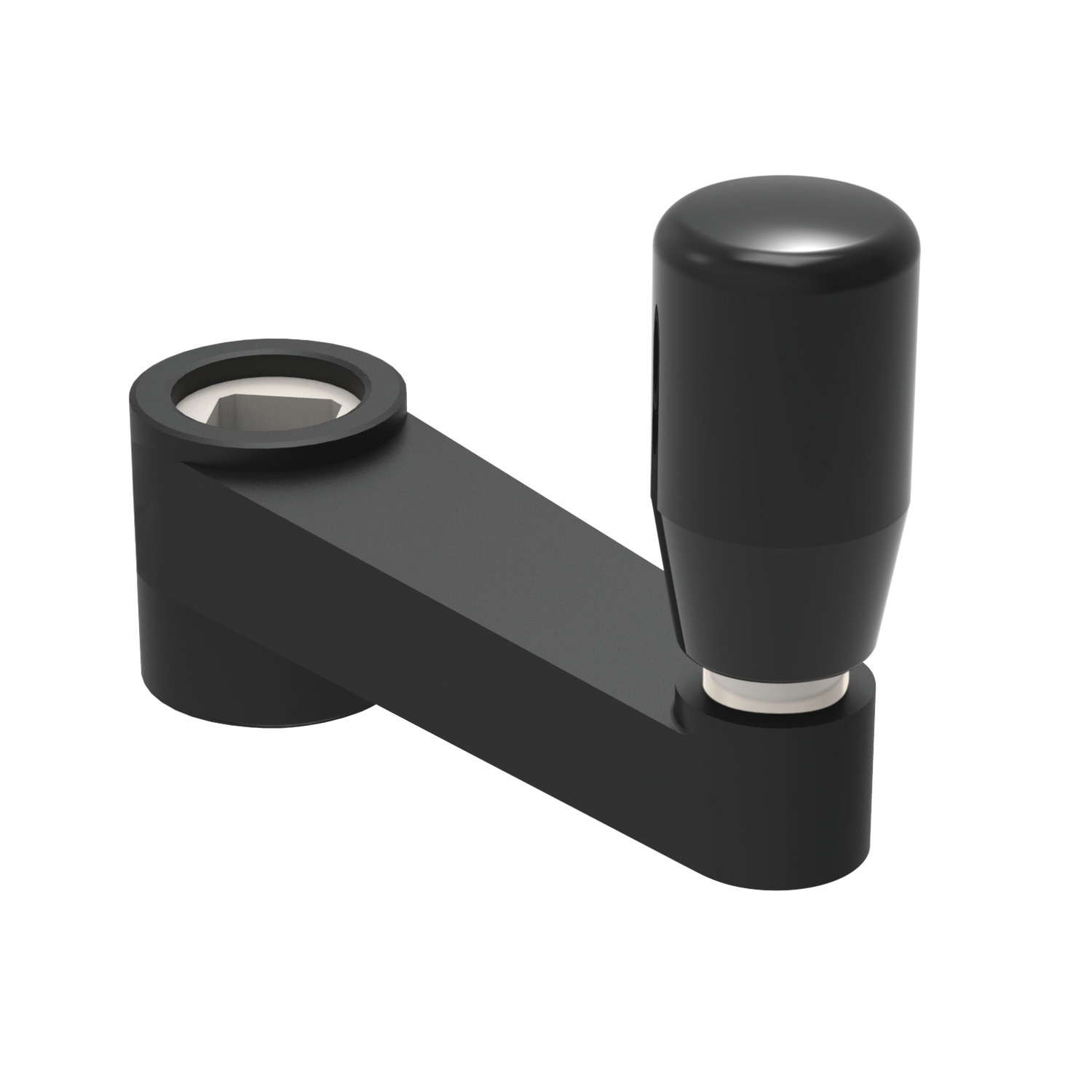

75340 Cranked Handles

Name: 75340.W0160
Brand: WC
SKU: 75340.W0160
Price: 26.54 EUR
Availability: OutOfStock

with rotating grip, material: Thermoplastic

Article properties

Order No.

75340.W0160

d₁

d₂

M10

d₃

d₄

d₅

h₁

h₂

h₃

l₁

196

l₂

160

s₁

17x17

Weight g

367

See full product selection

£ 26.54 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 26.54	0%
5-9	£ 25.21	5%
10-19	£ 23.89	10%
20-49	£ 22.56	15%
50+	£ 19.91	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Thermoplastic, black, matt. Glass fibre reinforced. Revolving handle.
Revolving grip and handle arm: thermoplastic, black matte.

Technical Notes

Special inch and metric bores, keyways, set screw holes etc. available upon request.
