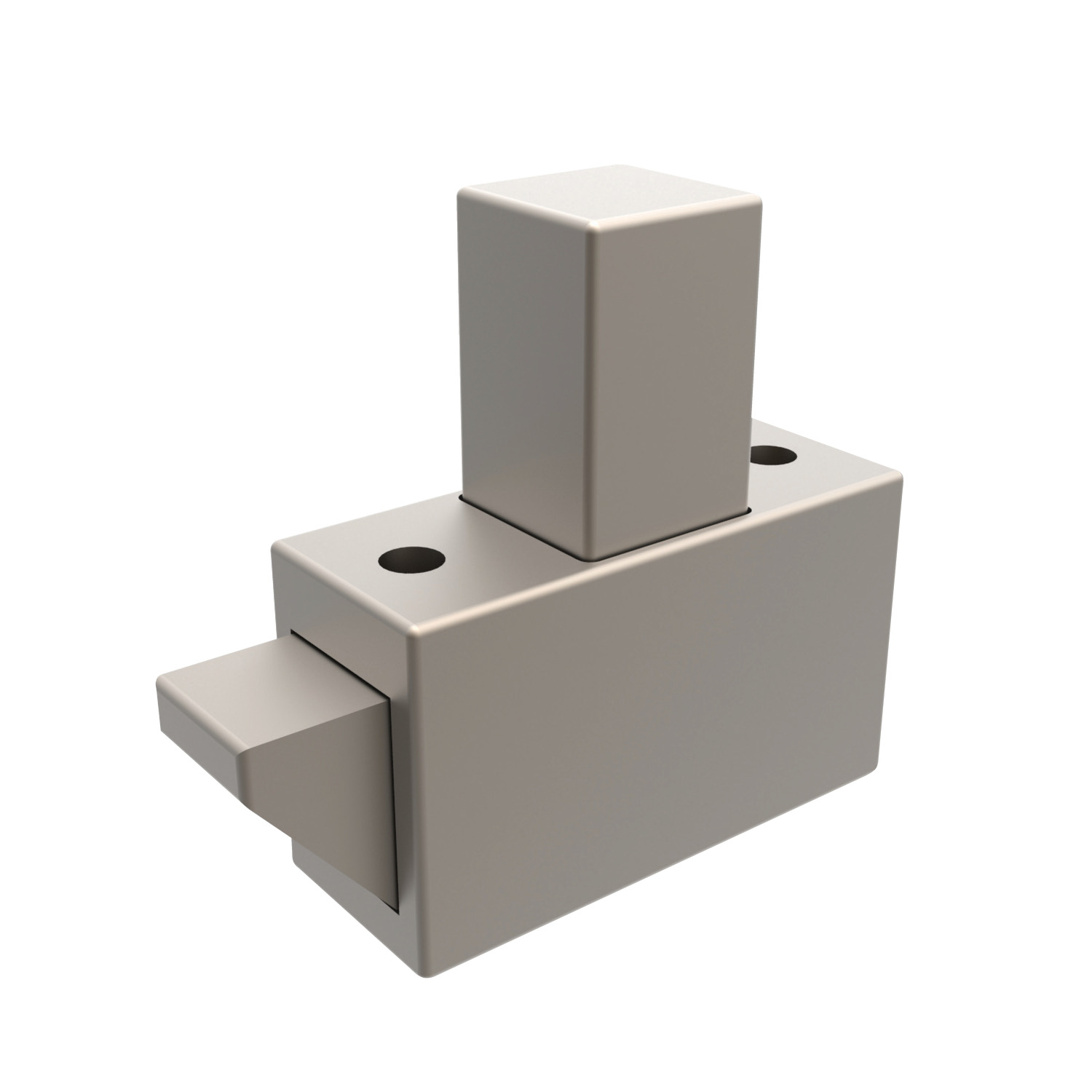

E1670 Push Latch - Spring Loaded Cam

Name: E1670.AW0010
Brand: WC
SKU: E1670.AW0010
Price: 10.78 EUR
Availability: InStock

zinc, material: Zinc

Article properties

Order No.

E1670.AW0010

l₁

l₂

l₃

l₄

h₁

32.6

h₂

h₃

17.6

h₄

w₁

w₂

w₃

See full product selection

£ 10.78 per unit (click for quantity discounts)

Ready to despatch 6
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-19	£ 10.78	0%
20-49	£ 9.70	10%
50-99	£ 9.16	15%
100-499	£ 8.09	25%
500+	£ 7.01	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Housing & Button: die cast zinc, nickel plated. IP54 rated.

Technical Notes

Mounted under panel surface so only button exposed. Mount with 2 x M 3 screws.
Depress button to retract catch and open panel. Catch has stroke of approx. 7mm.
