Push-to-Close Latches
HomeProductsAccess ComponentsCatches & Draw LatchesCatches & LatchesPush-to-Close LatchesE1670

E1670 Push Latch - Spring Loaded Cam

zinc, material: Zinc
E1670 Push Latch - Spring Loaded Cam
E1670 Push Latch - Spring Loaded Cam
Download product datasheet
Download FREE CAD

Alternative products you may wish to consider

E0300 - Push Knobs
Push Knobs
no latch
E0800 - Push Knobs
Push Knobs
with latch - for inset doors
E1400 - Push Knobs
Push Knobs
with latch - for overlay doors
E1600 - Push Lock - Spring Loaded Cam
Push Lock
spring loaded cam
E1602 - Push Lock - Spring Loaded Cam - Push Button
Push Lock
spring loaded cam - push
E1604 - Push Lock - Spring Loaded Cam
Push Lock
spring loaded cam
E1670 - Push Latch - Spring Loaded Cam
Push Latch
spring loaded cam

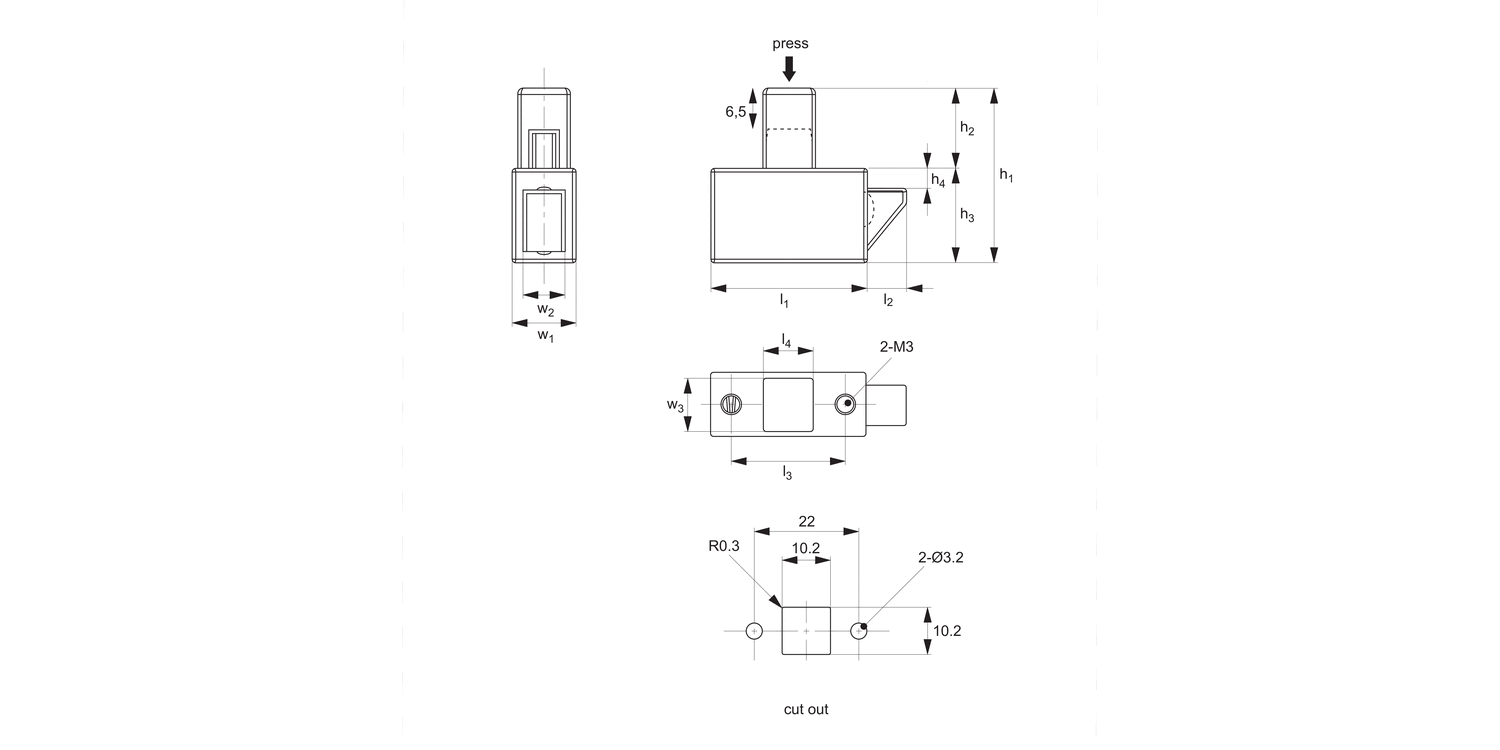

E1670.AW0010 Push Latch spring loaded cam
Push Latch spring loaded cam

E1670.AW0010

l1
30
l2
7
l3
22
l4
10
h1
32.6
h2
15
h3
17.6
h4
4
w1
12
w2
8
w3
10
£ 10.78 per unit (click for quantity discounts)
E1670.AW0010 Push Latch spring loaded cam
Push Latch spring loaded cam

E1670.AW0010

l1
30
l2
7
l3
22
l4
10
h1
32.6
h2
15
h3
17.6
h4
4
w1
12
w2
8
w3
10
£ 10.78 per unit (click for quantity discounts)

l1
l2
l3
l4
h1
h2
h3
h4
w1
w2
w3
Price & AvailabilityArticlel1l2l3l4h1h2h3h4w1w2w3
E1670.AW0010307221032.61517.6412810

Technical & Application

Material

Housing & Button: die cast zinc, nickel plated. IP54 rated.

Technical Notes

Mounted under panel surface so only button exposed. Mount with 2 x M 3 screws.
Depress button to retract catch and open panel. Catch has stroke of approx. 7mm.

Product Datasheets

E1670 Push Latch - Spring Loaded CamJanuary 3, 2025, 3:23 PM / 66.25 kB
Push-to-Close LatchesJanuary 3, 2025, 3:35 PM / 491.71 kB
Catches & LatchesJanuary 3, 2025, 3:35 PM / 3.04 MB
Catches & Draw LatchesJanuary 3, 2025, 3:35 PM / 5.24 MB
Access ComponentsJanuary 3, 2025, 3:35 PM / 32.63 MB

CAD files

E1670 AcisApril 17, 2024, 10:16 AM / 31.46 kB
E1670 IGESApril 17, 2024, 10:16 AM / 79.08 kB
E1670 ParasolidApril 17, 2024, 10:16 AM / 39.38 kB
E1670 ProEApril 17, 2024, 10:16 AM / 124.07 kB
E1670 SolidWorksApril 17, 2024, 10:16 AM / 192.87 kB
E1670 StepApril 17, 2024, 10:16 AM / 50.63 kB
