Push Knobs
no latch
E0300 Push Knobs
no latch, material: Zinc alloy/plastic
Alternative products you may wish to consider
£ 23.62 per unit (click for quantity discounts)
£ 18.58 per unit (click for quantity discounts)
Finish
Weight
g
| Price & Availability | Article | Finish | Weight g | ||||||||||||||||||
| E0300.AC0030 | Gold | 67 | |||||||||||||||||||
£ 23.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.

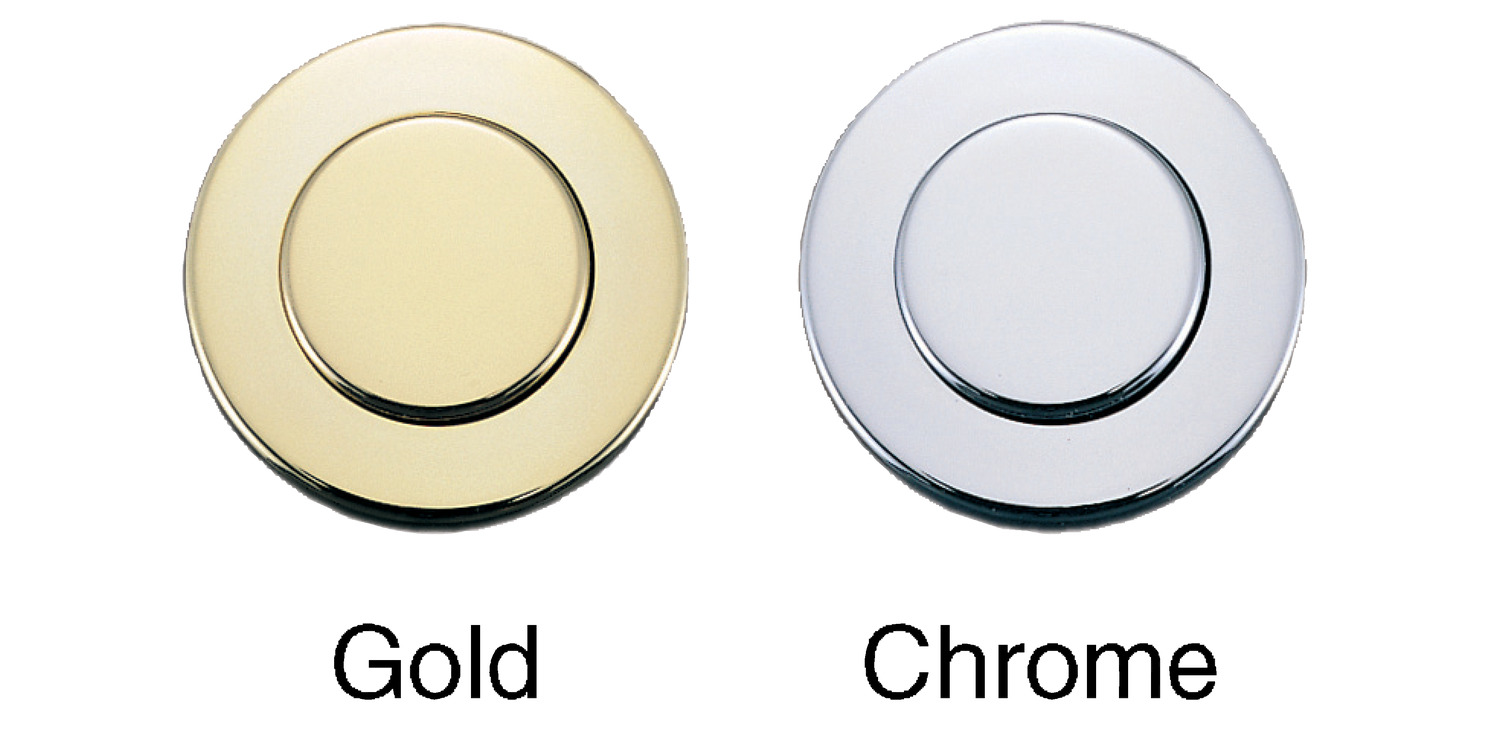

Finish Gold Weight
g 67 | |||||||||||||||||||||
| E0300.AC0040 | Chrome | 67 | |||||||||||||||||||
£ 18.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Finish Chrome Weight
g 67 | |||||||||||||||||||||
Technical & Application
Material
Push knob: zinc alloy, plated gold or chrome.
Body: ABS plastic, black.
Technical Notes
Suitable for door/wall thicknesses 15 to 35mm.
When installed push knob is near flush with surface, raised only 4mm.
Supplied with screws (M 3x20).

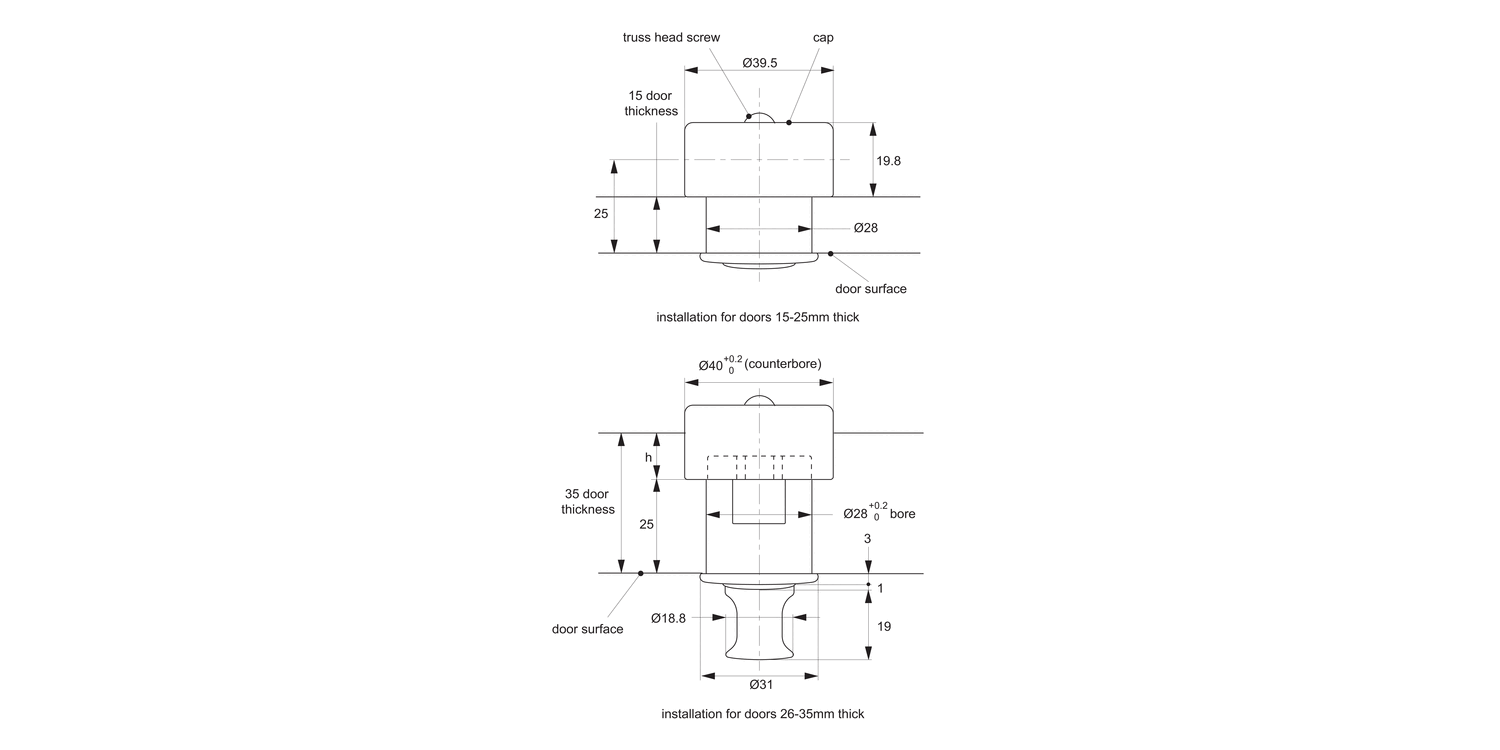

Tips
For surfaces 15 to 25mm thick no counter bore is required.
For surfaces 26 to 35mm thick, 40mm dia. counter bore of depth "h" is required.
h = door thickness - 25mm.
