Toggle Latches
adj. with secondary lock, s/s

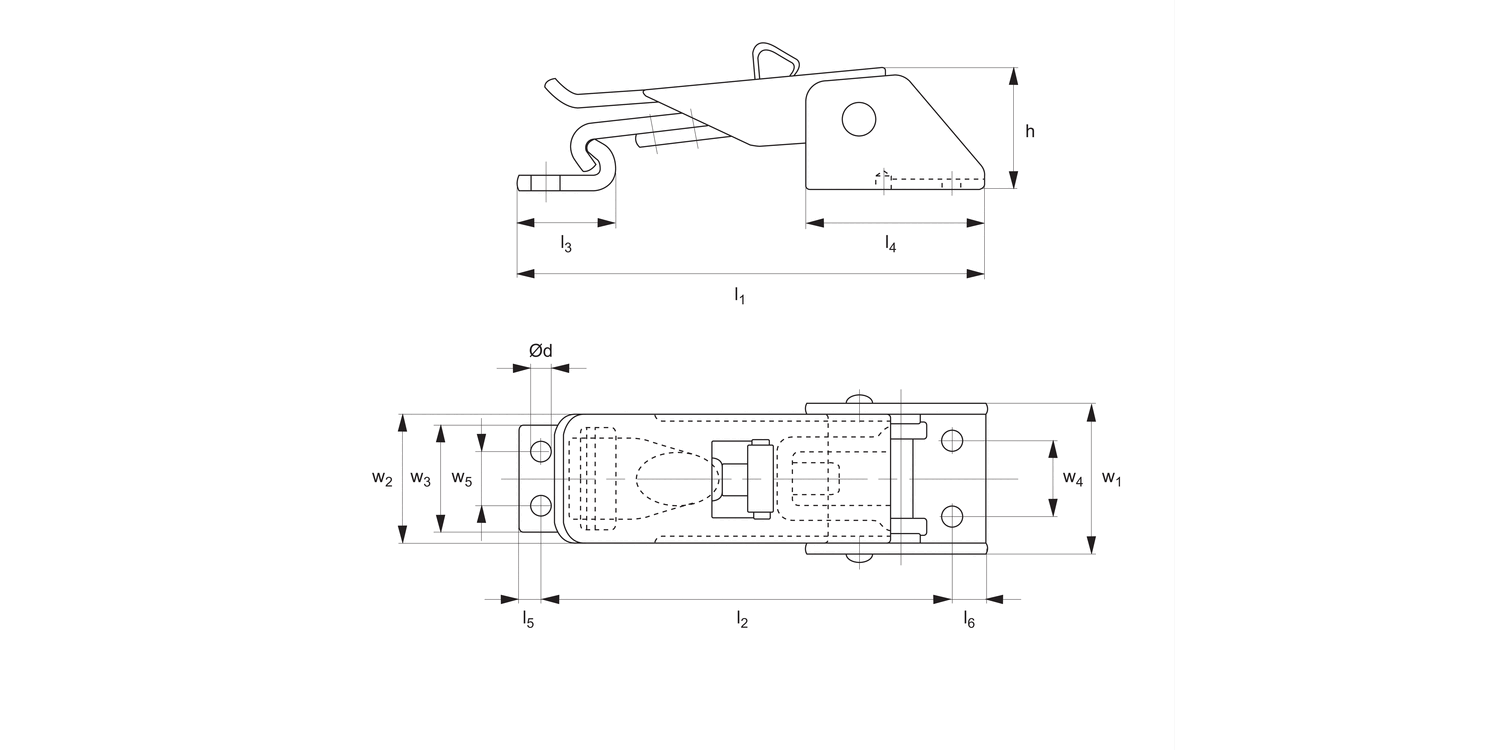

J0582 Toggle Latches
adjustable with secondary lock, material: Zinc plated steel
Order No.
J0582.AC0004
Finish
Zinc Plated Steel
l1
82-94
h
22
w1
27
Ø d
3.6
l2
72 to 84
l3
17.5
l4
33
Weight
g
90
l5
4
l6
6
w2
24
w3
19
w4
14
w5
10
Load
max.
N
1000
Tension
max.
N
2000
£ 4.94 per unit (click for quantity discounts)
Ready to despatch 39
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 4.94 | 0% |
| 20-49 | £ 4.20 | 15% |
| 50-99 | £ 3.71 | 25% |
| 100-199 | £ 3.21 | 35% |
| 200-499 | £ 2.96 | 40% |
| 500+ | £ 2.47 | 50% |
Technical & Application
Material
Steel, Fe P02 + P12, UNI5866, zinc plated.
Technical Notes
Supplied with counter strike.
Draw length adjustable through turns of threaded draw rod, giving 12mm length of adjustment.
