Torque Dampers
uni-directional - 115°
Q0400 Torque Dampers
uni-directional - 115° operating angle, material: Stainless steel
Order No.
Q0400.AC0010
Type
Anti-Clockwise
Shaft colour
White
Operating angle
°
115°
Torque
kgf/cm
15 - 25
Torque colour marking
Blue
Weight
g
38
£ 7.08 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 7.08 | 0% |
| 20-49 | £ 6.37 | 10% |
| 50-99 | £ 6.02 | 15% |
| 100-499 | £ 5.31 | 25% |
| 500+ | £ 4.60 | 35% |
Technical & Application
Material
Body: stainless steel, AISI 304.
Shaft: PBT plastic. White for anti-clockwise version, grey for clockwise version. Different torque forces marked by colour coded dot on shaft.
Technical Notes

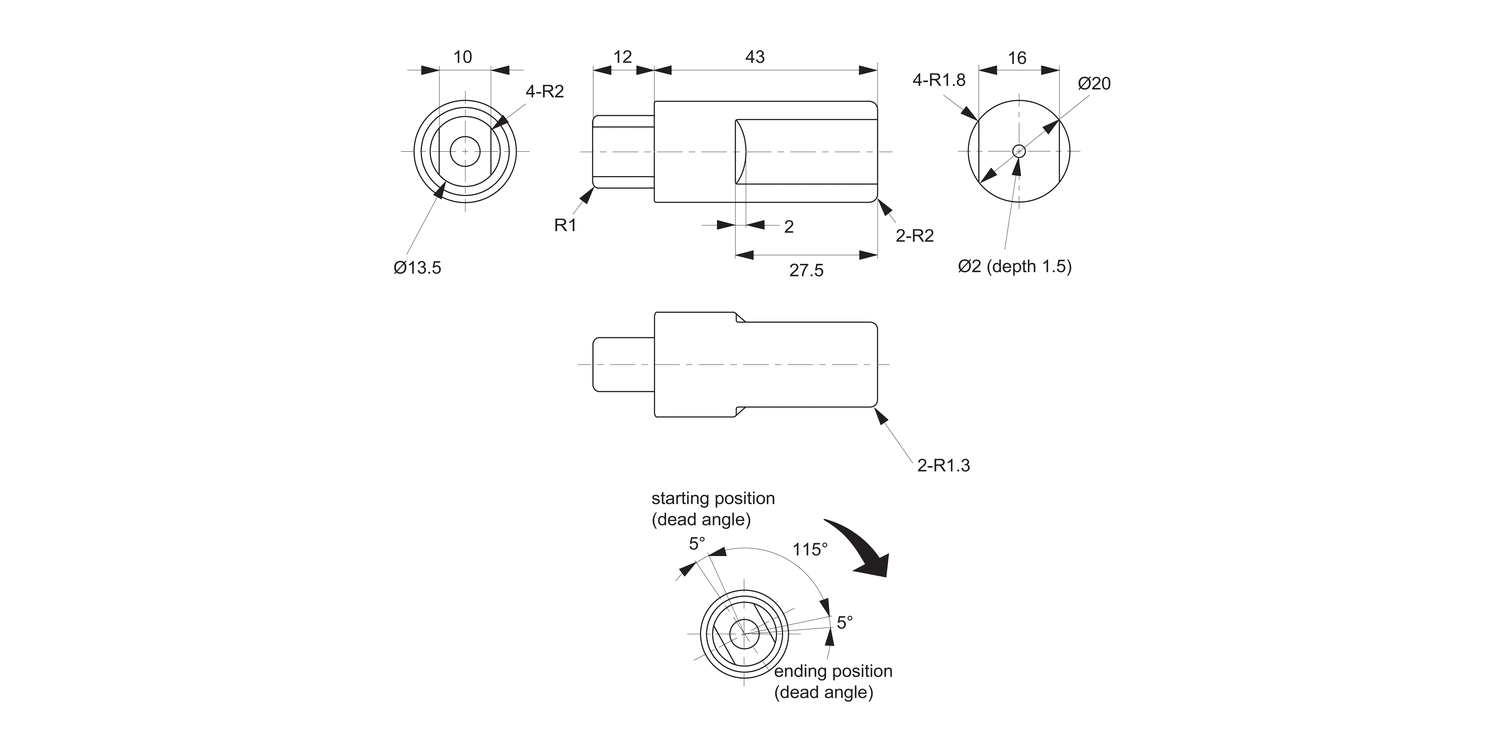

115° operating angle, additional 5° dead angle at start/end position.
Tested to over 100,000 cycles.
Temperature range 0° to 40°C.
Tips
Provide smooth and quiet motion of lids, covers etc. Ideal for special purpose machines, air conditioning units etc.
Important Notes

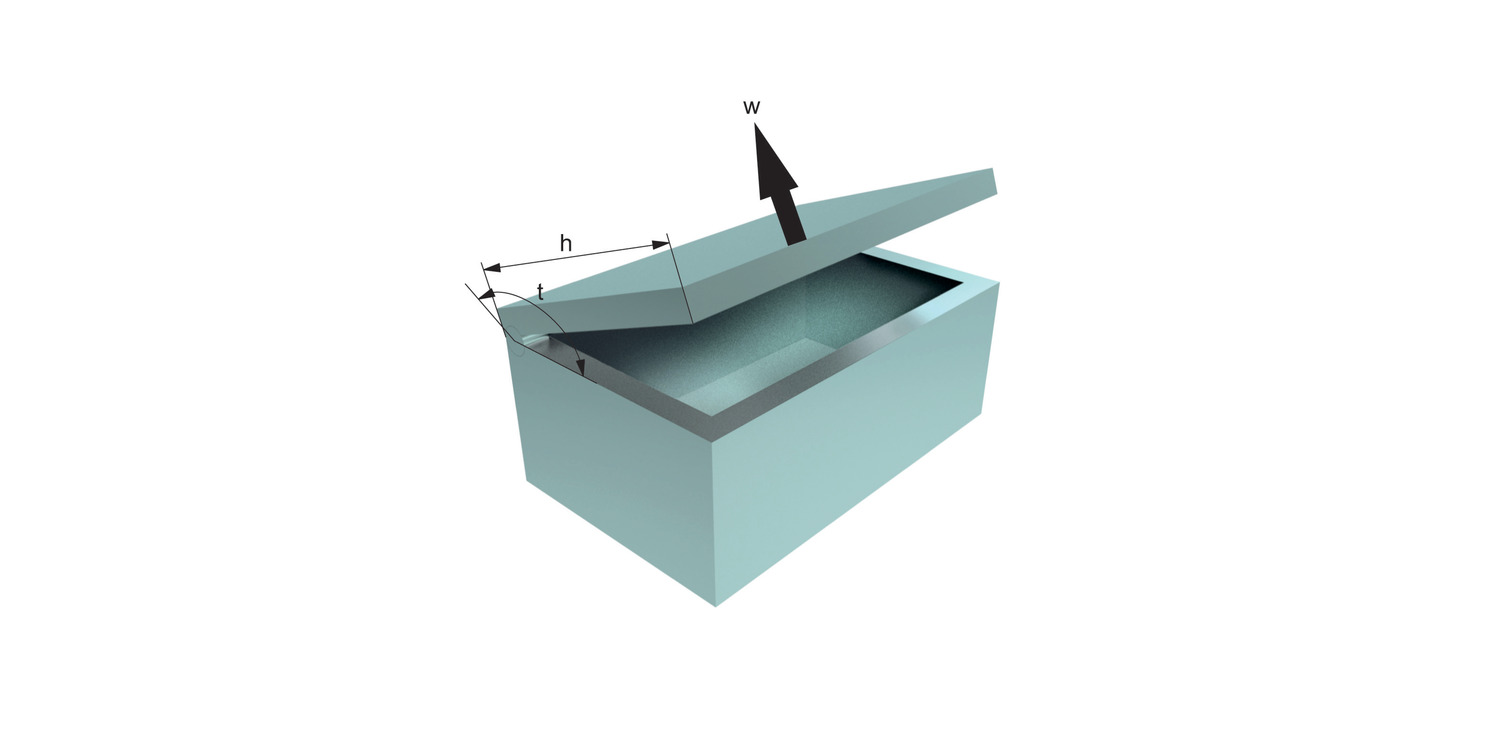

Torque calculation:
T (Kgf.cm) = W (Kg) X 0.5 x H (cm).
W (Kg) is weight of cover/lid, H (cm) is distance between fulcrum and cover/lid's opening edge.
