Torque Dampers
uni-directional - 115°

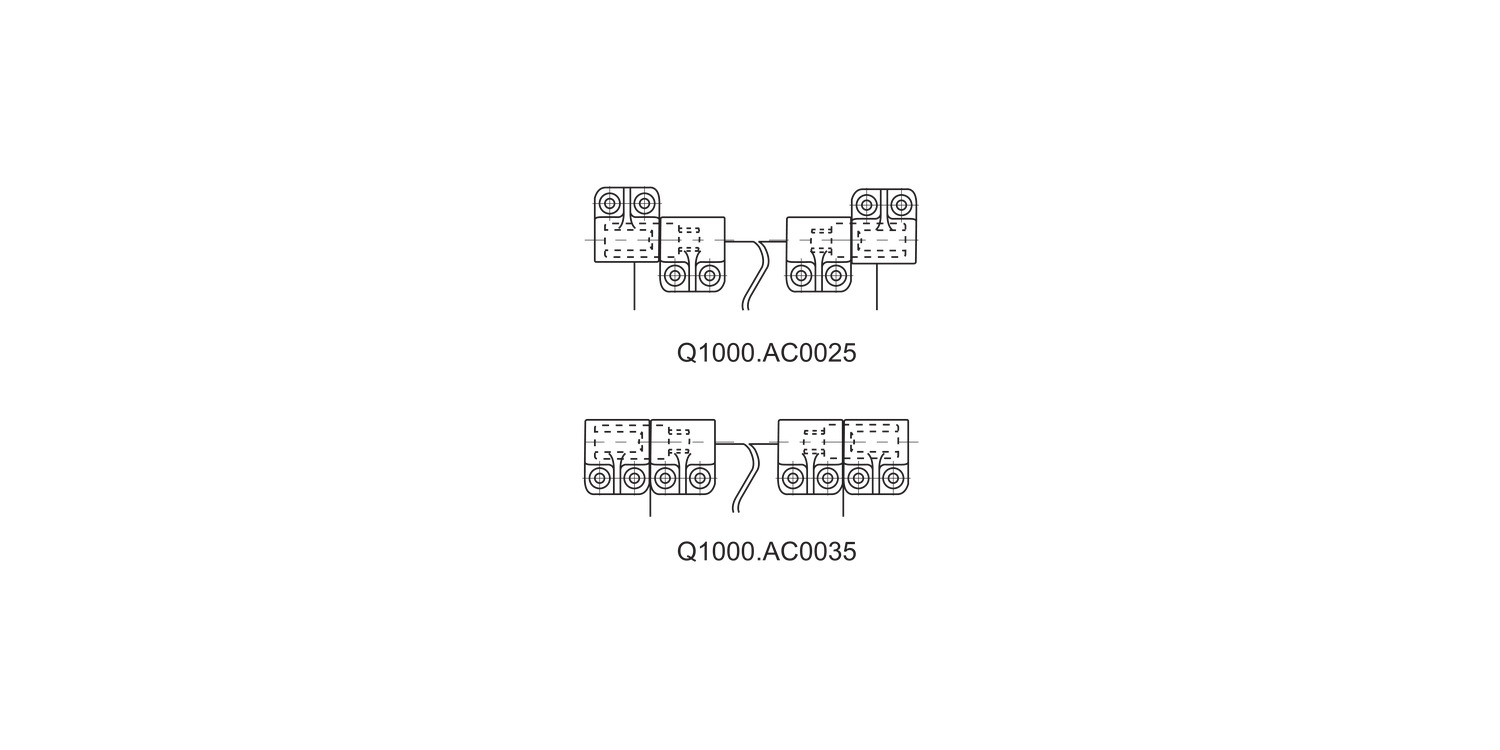

Q1000 Soft Closing Hinge Set - Complete
with torque dampers - 115° operating angle, material: Stainless steel
Order No.
Q1000.AC0025
Damping direction
1 x Clockwise 1 x Anti-Clockwise
Contains damper
1 off Q0400.AC0010 & Q0400.AC0110
Operating angle
°
115°
Torque/pair
kgf/cm
30 - 50
£ 29.50 per unit (click for quantity discounts)
Ready to despatch 4
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 29.50 | 0% |
| 5-9 | £ 28.03 | 5% |
| 10-19 | £ 26.55 | 10% |
| 20-49 | £ 25.08 | 15% |
| 50+ | £ 22.13 | 25% |
Technical & Application
Material
Body: stainless steel, AISI 304.
Pin: PBT plastic. Bracket: PBT plastic with polypropylene cap.
Technical Notes
115° operating angle, additional 5° dead angle at start/end position.
Tested to over 100,000 cycles.
Temperature range -20° to 60°C.
Tips
Provide smooth and quiet motion of lids, covers etc. Ideal for special purpose machines, air conditioning units etc.
For further details of torque damper used in hinge refer to part Q0400.
Sold as a matching pair (left/right).
Important Notes
Torque calculation:
T (Kgf.cm) = W (Kg) X 0.5 x H (cm).
W (Kg) is weight of cover/lid, H (cm) is distance between fulcrum and cover/lid's opening edge.
Product Datasheets
Application images
