Torque Dampers
uni-directional - 115°

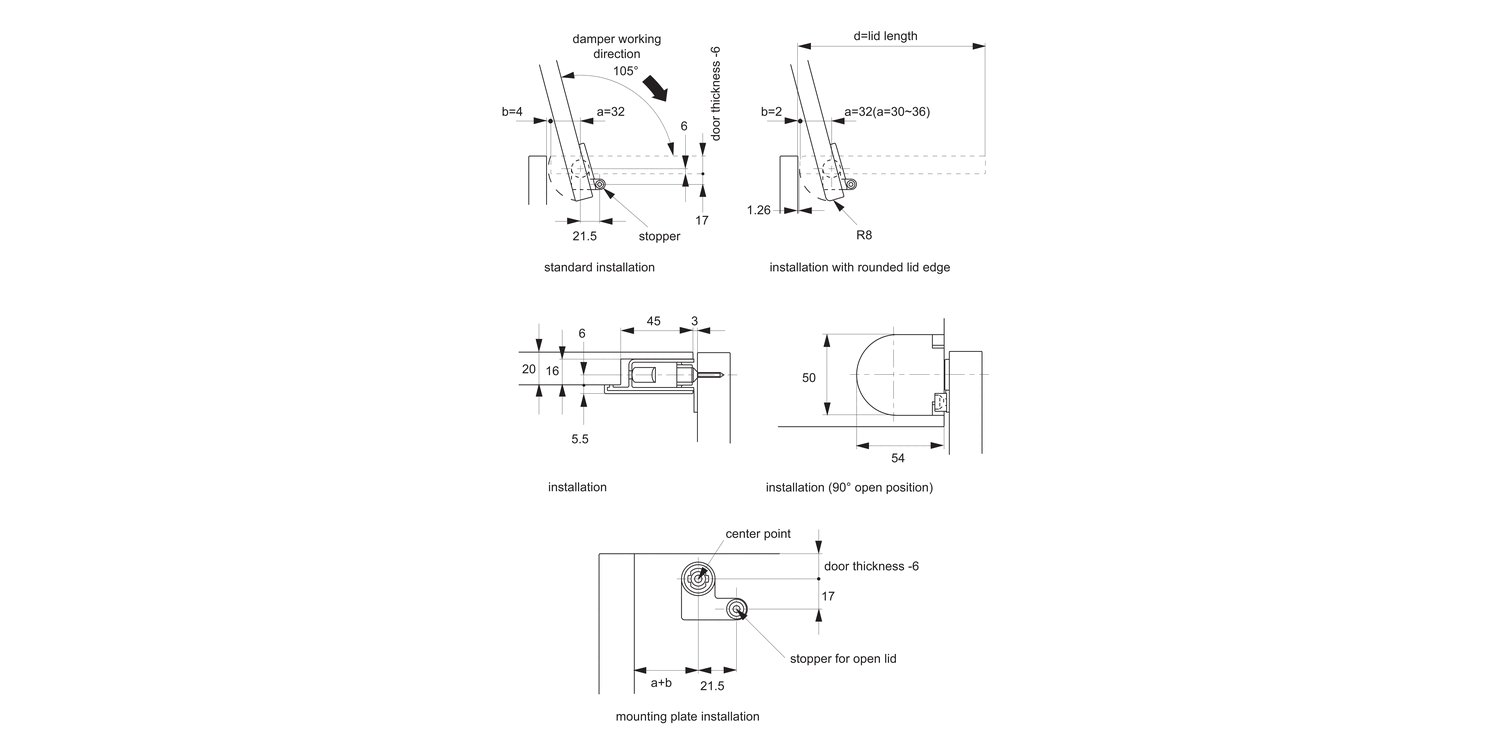

Q1050 Soft Closing Hinge Set - Complete
with torque dampers - 115° operating angle, material: Aluminium
Order No.
Q1050.AC0035
Type
Hinge
Contains damper
1 off Q0420.AC0010 & Q420.AC0110
Finish
Black
Torque/pair
kgf/cm
20 - 34
£ 31.44 per unit (click for quantity discounts)
Ready to despatch 17
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 31.44 | 0% |
| 5-9 | £ 29.87 | 5% |
| 10-19 | £ 28.30 | 10% |
| 20-49 | £ 26.72 | 15% |
| 50+ | £ 23.58 | 25% |
Technical & Application
Material
Hinge mounting plate: aluminium, black.
Hinge bracket: polyacetal, black.
Face plate: ABS plastic, black or white finish.
Technical Notes
Soft closing damper hinge prevents lids from slamming shut. 115° operating angle, additional 5° dead angle at start/end position. Temperature range 0° to 40°C.
Tips
For further details of torque damper used in hinge refer to part Q0420.
Sold as matching pair (left/right).
Important Notes
Torque calculation:
T (Kgf.cm) = W (Kg) X 0.5 x H (cm).
W (Kg) is weight of cover/lid, H (cm) is distance between fulcrum and cover/lid's opening edge.
Product Datasheets
Application images
