Q1060 Soft Closing Hinge Set - Complete

Name: Q1060.AC0180
Brand: WC
SKU: Q1060.AC0180
Price: 38.55 EUR
Availability: OutOfStock

with torque dampers - 115° operating angle, material: Aluminium

Article properties

Order No.

Q1060.AC0180

Type

Hinge

Contains damper

1 off Q0420.AC0010 & Q0420.AC0110

Finish

White

Torque/pair kgf/cm

61 - 81

See full product selection

£ 38.55 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Please call us.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 38.55	0%
5-9	£ 36.62	5%
10-19	£ 34.70	10%
20-49	£ 32.77	15%
50+	£ 28.91	25%

Download product datasheet

Technical & Application

Material

Hinge mounting plate: aluminium, black.
Hinge bracket: polyacetal, black.
Face plate: ABS plastic, black or white finish.

Technical Notes

Soft closing damper hinge prevents lids from slamming shut. 115° operating angle, additional 5° dead angle at start/end position. Temperature range 0° to 40°C.
Please note the hinge itself is black for both models. The cover plate is either black or white.

Tips

For further details of torque damper used in hinge refer to part Q0420.
Sold as matching pair (left/right).

Important Notes

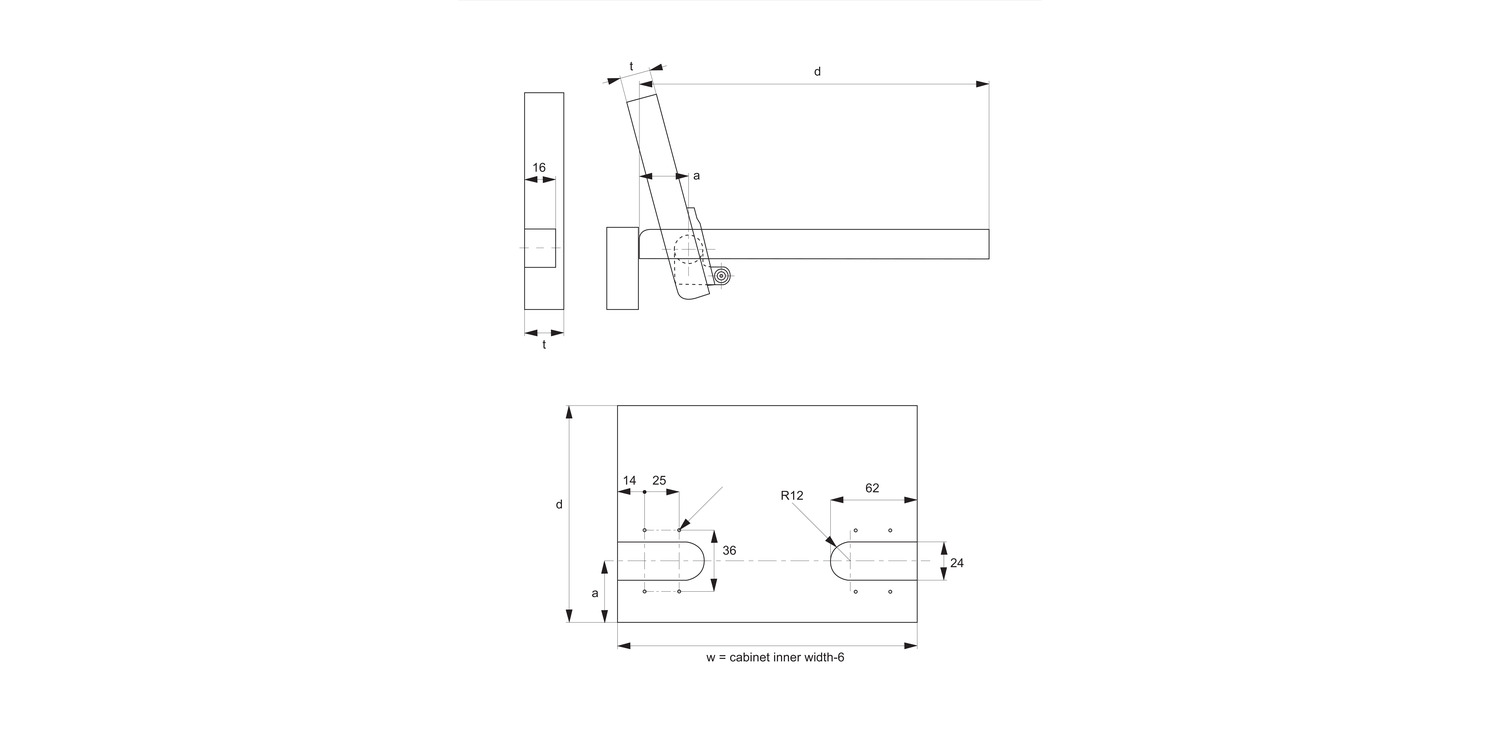

Torque calculation:
T (Kgf.cm) = W (Kg) X 0.5 x H (cm).
W (Kg) is weight of cover/lid, H (cm) is distance between fulcrum and cover/lid's opening edge.
