Cam Lock - fixed grip
clip fixing
A2392 Mini Cam Locks
wing handle - fixed grip - zinc, material: Zinc
Order No.
A2392.AW0020
Key type
Keyed Alike
a
25.0
Body finish
Black Coated
b
13
lh
24
£ 5.56 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Please call us.
Need more? Please call us.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 5.56 | 0% |
| 20-49 | £ 5.00 | 10% |
| 50-99 | £ 4.73 | 15% |
| 100-499 | £ 4.17 | 25% |
| 500+ | £ 3.61 | 35% |
Technical & Application
Material
Body & handle: die cast zinc, black coated.
Supplied With: Keys: two per lock.
Not supplied: Cam: order separately.
Technical Notes
Order cam separately.
Cams: see suitable cam A0203, A0224 and A0240. Select "without projection" cam type.

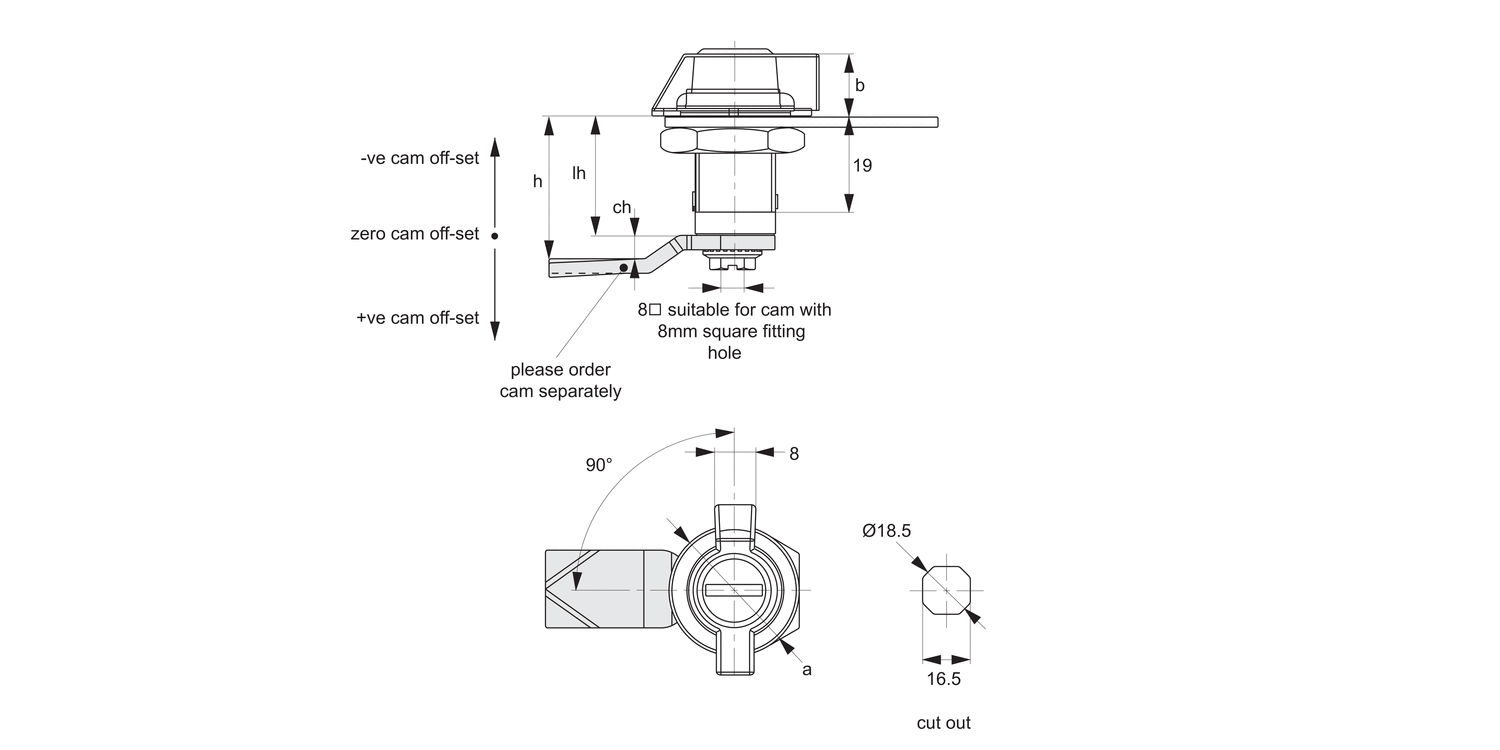

Dimensions ch and cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
Rods & Guides: to achieve 3-point latching - A0303, A0321, A0325.
