Cam Lock - fixed grip
clip fixing
A2324 Cam Lock - Clip Fixing
fixed grip - zinc, material: Zinc
Alternative products you may wish to consider
Key type
Keyed Alike
a
19.5
b
3.5
lh
11.5
ts
1,5-5
£ 2.63 per unit (click for quantity discounts)
Key type
a
b
lh
ts
| Price & Availability | Article | Key type | a | b | lh | ts | ||||||||||||||||||
| A2324.AW0010 | Keyed Alike | 19.5 | 3.5 | 11.5 | 1,5-5 | |||||||||||||||||||
£ 2.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Key type Keyed Alike a 19.5 b 3.5 lh 11.5 ts 1,5-5 | ||||||||||||||||||||||||
Technical & Application
Material
Body & insert: die cast zinc, pocked black powder coated.
Supplied with: Keys: two per lock.
Cam: zinc plated steel.
Technical Notes

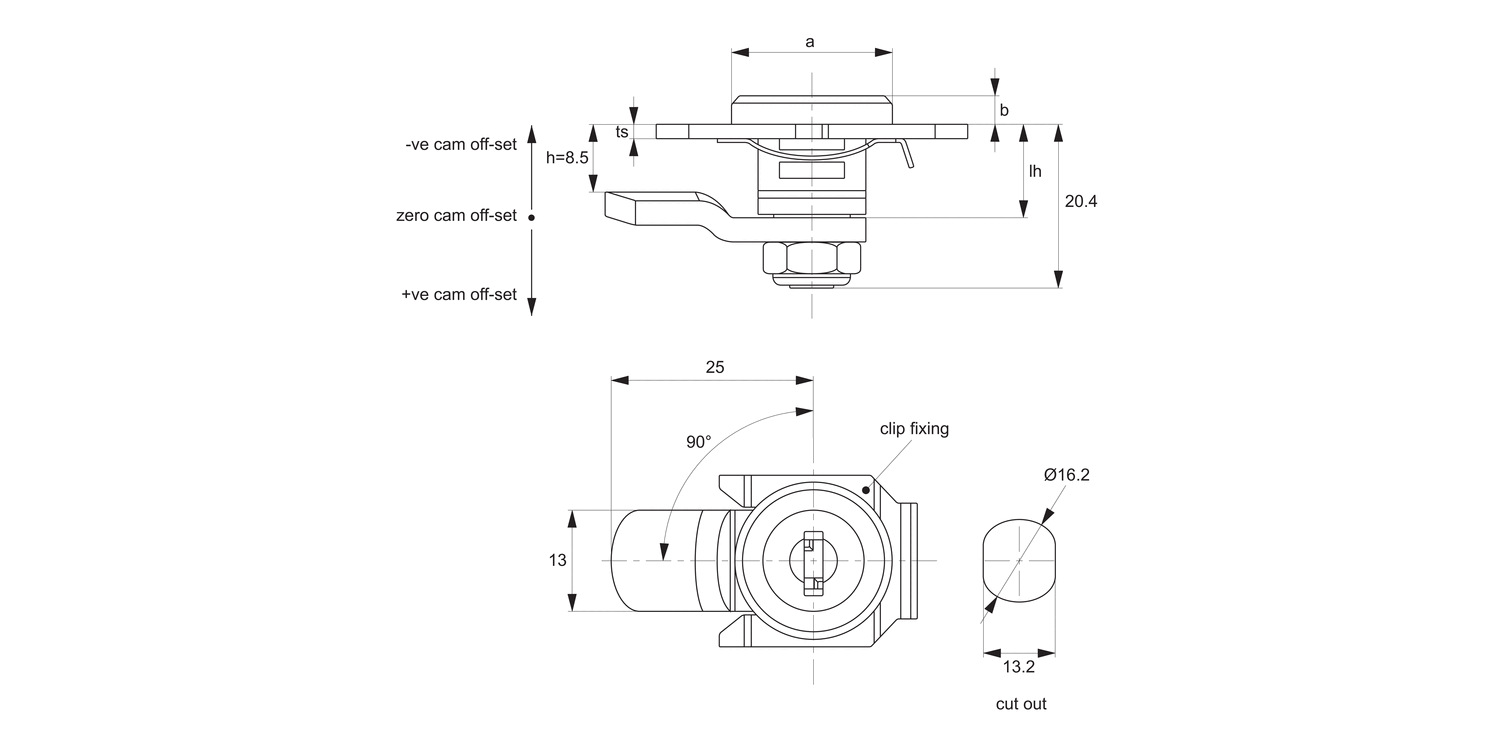

For panel thickness 1.5-5mm. Dimensions ch & cl relate to cam. Use formula to calculate ch (required cam off-set), and refer to cam selection chart;
ch = h - lh where;
ch = required cam off-set/ height.
h = grip length (distance between inside of latch face and front of cam).
lh = body length of cam latch/lock to be used (see product table below).
