Friction Torque Hinges
screw mount - s/s
S4032 Constant Torque Hinge
dual axis fringe - screw mount - stainless, material: Stainless steel
Alternative products you may wish to consider

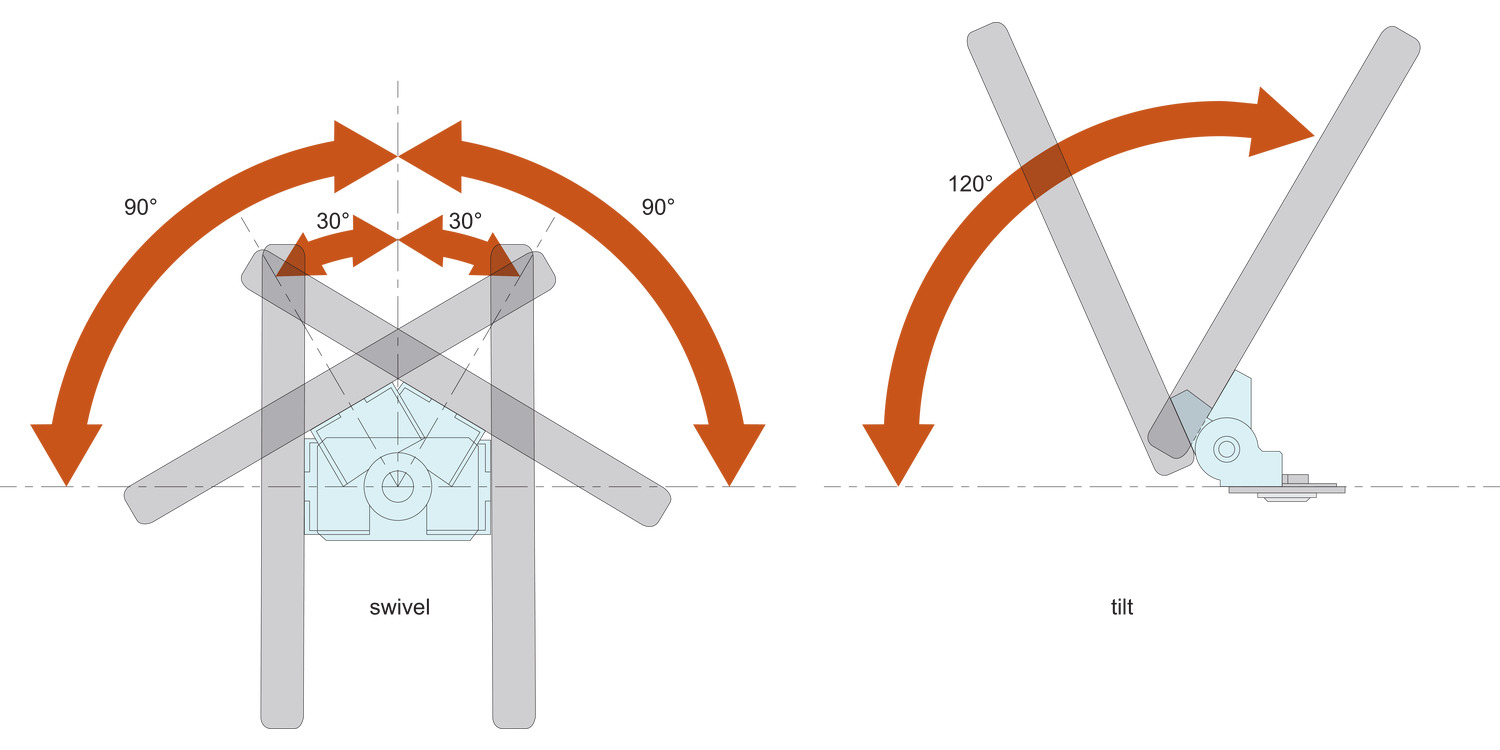

Swivel angle
30°/90°
Swivelling torque
±20%
kgf/cm
30.5
Tilting angle
120°
Tilting torque
±15%
kgf/cm
71.5
£ 80.97 per unit (click for quantity discounts)
Swivel angle
Swivelling torque
±20%
kgf/cm
Tilting angle
Tilting torque
±15%
kgf/cm
| Price & Availability | Article | Swivel angle | Swivelling torque ±20% kgf/cm | Tilting angle | Tilting torque ±15% kgf/cm | ||||||||||||||||||
| S4032.AC0030 | 30°/90° | 30.5 | 120° | 71.5 | |||||||||||||||||||
£ 80.97 per unit (click for quantity discounts) Ready to despatch 29 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Swivel angle 30°/90° Swivelling torque
±20%
kgf/cm 30.5 Tilting angle 120° Tilting torque
±15%
kgf/cm 71.5 | |||||||||||||||||||||||
Technical & Application
Material
Body and base: stainless steel, AISI 430.
Technical Notes

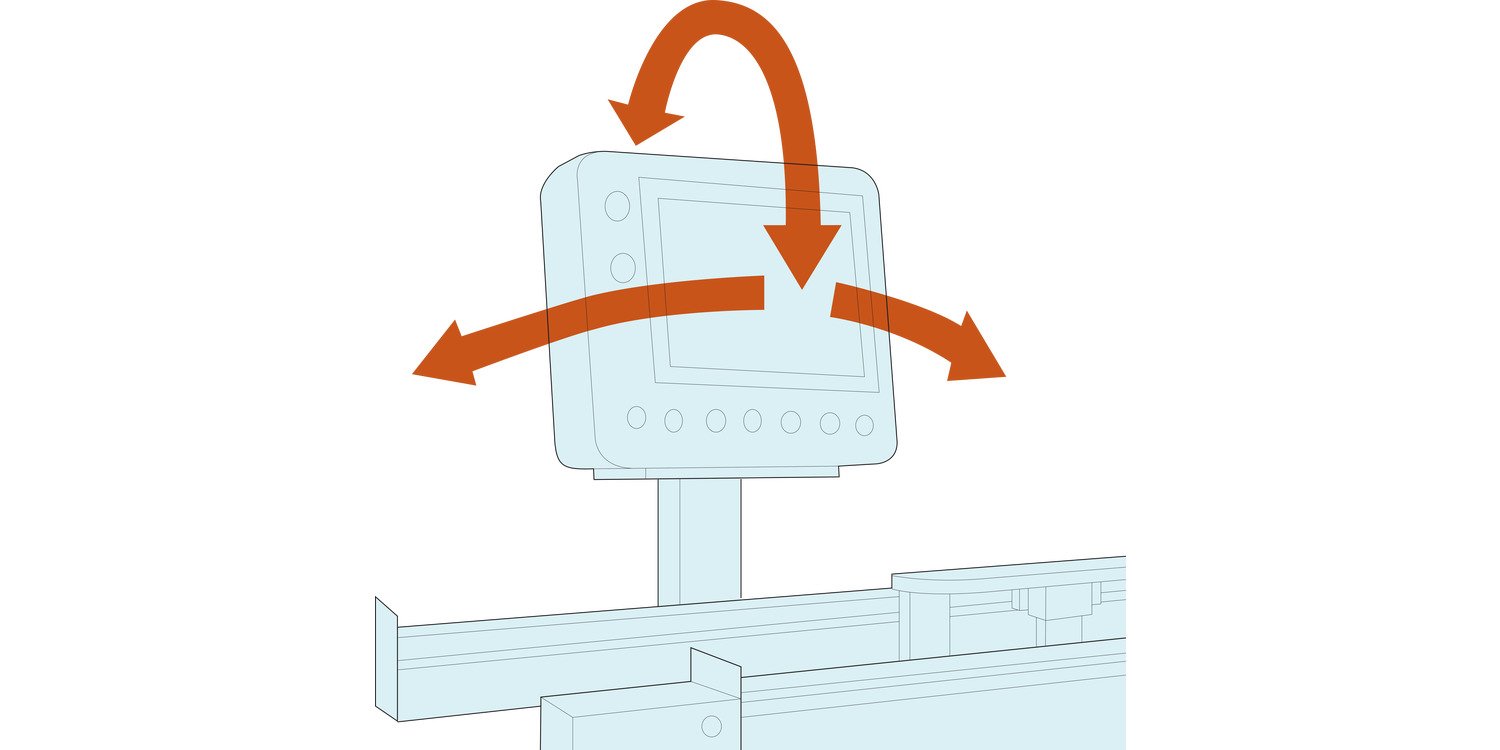

Dual axis torque hinge with stability in both axis. Ideal for mounting of monitor screens. Angle of swivel axis can be limited via use of pin/screw (not supplied).
Product Datasheets

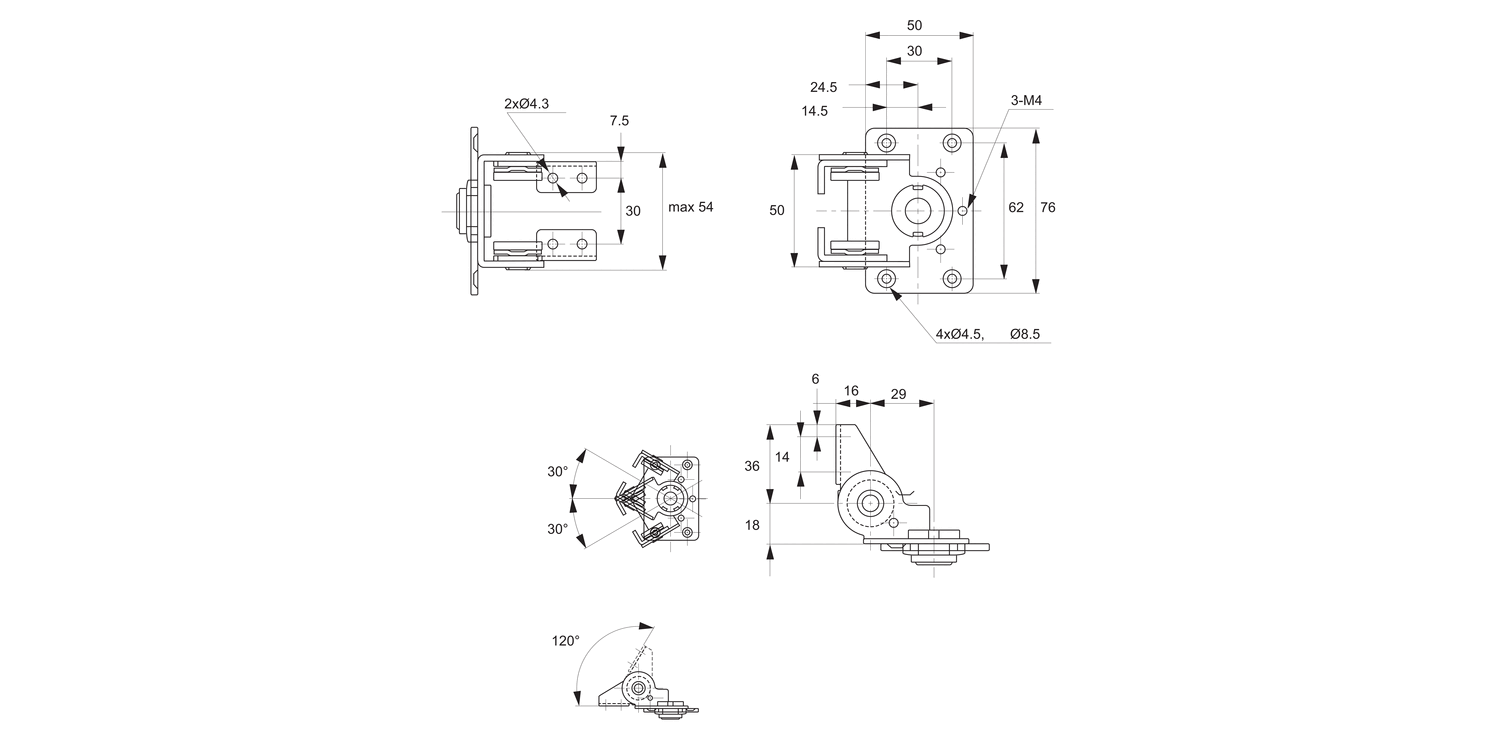

CAD files
Application images
