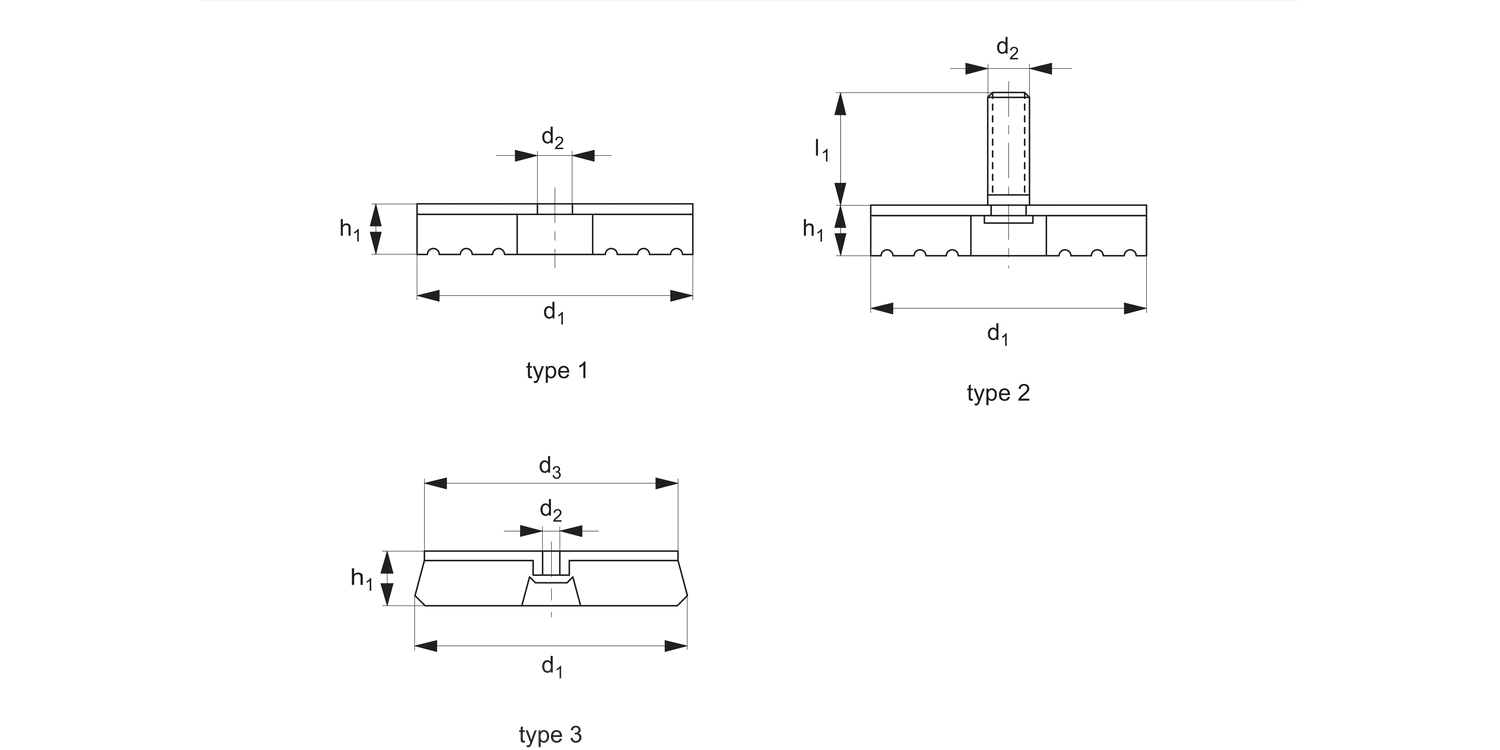

61350 Anti-vibration Mounts

ribbed pads, material: Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

A-V Mounts
Steel

A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Ribbed A-V pads

61350.W0105

Type

Type 1

d₁

50

l₁

-

d₂

10.5

d₃

-

h₁

15

Compression max.

2.2

Static load max. kgf

180

£ 14.66 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0108

Type

Type 1

d₁

85

l₁

-

d₂

10.5

d₃

-

h₁

15

Compression max.

1.6

Static load max. kgf

450

£ 12.40 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0205

Type

Type 2

d₁

55

l₁

25

d₂

M12

d₃

-

h₁

16

Compression max.

2.2

Static load max. kgf

180

£ 10.08 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0208

Type

Type 2

d₁

85

l₁

25

d₂

M12

d₃

-

h₁

16

Compression max.

1.6

Static load max. kgf

450

£ 13.90 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0212

Type

Type 2

d₁

125

l₁

25

d₂

M12

d₃

-

h₁

16

Compression max.

2.2

Static load max. kgf

800

£ 24.76 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0305

Type

Type 3

d₁

50

l₁

-

d₂

6.0

d₃

45

h₁

18

Compression max.

2

Static load max. kgf

50

£ 10.15 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0309

Type

Type 3

d₁

91

l₁

-

d₂

6.5

d₃

86

h₁

18

Compression max.

2

Static load max. kgf

350

£ 22.70 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0313

Type

Type 3

d₁

138

l₁

-

d₂

10.5

d₃

130

h₁

25

Compression max.

2.6

Static load max. kgf

900

£ 41.58 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0105

Type

Type 1

d₁

50

l₁

-

d₂

10.5

d₃

-

h₁

15

Compression max.

2.2

Static load max. kgf

180

£ 14.66 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0108

Type

Type 1

d₁

85

l₁

-

d₂

10.5

d₃

-

h₁

15

Compression max.

1.6

Static load max. kgf

450

£ 12.40 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0205

Type

Type 2

d₁

55

l₁

25

d₂

M12

d₃

-

h₁

16

Compression max.

2.2

Static load max. kgf

180

£ 10.08 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0208

Type

Type 2

d₁

85

l₁

25

d₂

M12

d₃

-

h₁

16

Compression max.

1.6

Static load max. kgf

450

£ 13.90 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0212

Type

Type 2

d₁

125

l₁

25

d₂

M12

d₃

-

h₁

16

Compression max.

2.2

Static load max. kgf

800

£ 24.76 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0305

Type

Type 3

d₁

50

l₁

-

d₂

6.0

d₃

45

h₁

18

Compression max.

2

Static load max. kgf

50

£ 10.15 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0309

Type

Type 3

d₁

91

l₁

-

d₂

6.5

d₃

86

h₁

18

Compression max.

2

Static load max. kgf

350

£ 22.70 per unit (click for quantity discounts)

Ribbed A-V pads

61350.W0313

Type

Type 3

d₁

138

l₁

-

d₂

10.5

d₃

130

h₁

25

Compression max.

2.6

Static load max. kgf

900

£ 41.58 per unit (click for quantity discounts)



Select all

Type

d₁

l₁

d₂

d₃

h₁

Compression max.

Static load max. kgf

Price & Availability	Article	Type	d1	l1	d2	d3	h1	Compression max.	Static load max. kgf
	61350.W0105	Type 1	50	-	10.5	-	15	2.2	180
£ 14.66 per unit (click for quantity discounts) Ready to despatch 26 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 14.66 0% 5-19 £ 13.19 10% 20-39 £ 11.73 20% 40-99 £ 10.26 30% 100+ £ 8.80 40% Type Type 1 d1 50 l1 - d2 10.5 d3 - h1 15 Compression max. 2.2 Static load max. kgf 180 more info »
	61350.W0108	Type 1	85	-	10.5	-	15	1.6	450
£ 12.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 12.40 0% 5-19 £ 11.16 10% 20-39 £ 9.92 20% 40-99 £ 8.68 30% 100+ £ 7.44 40% Type Type 1 d1 85 l1 - d2 10.5 d3 - h1 15 Compression max. 1.6 Static load max. kgf 450 more info »
	61350.W0205	Type 2	55	25	M12	-	16	2.2	180
£ 10.08 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 10.08 0% 5-19 £ 9.07 10% 20-39 £ 8.06 20% 40-99 £ 7.06 30% 100+ £ 6.05 40% Type Type 2 d1 55 l1 25 d2 M12 d3 - h1 16 Compression max. 2.2 Static load max. kgf 180 more info »
	61350.W0208	Type 2	85	25	M12	-	16	1.6	450
£ 13.90 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 13.90 0% 5-19 £ 12.51 10% 20-39 £ 11.12 20% 40-99 £ 9.73 30% 100+ £ 8.34 40% Type Type 2 d1 85 l1 25 d2 M12 d3 - h1 16 Compression max. 1.6 Static load max. kgf 450 more info »
	61350.W0212	Type 2	125	25	M12	-	16	2.2	800
£ 24.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 24.76 0% 5-19 £ 22.28 10% 20-39 £ 19.81 20% 40-99 £ 17.33 30% 100+ £ 14.86 40% Type Type 2 d1 125 l1 25 d2 M12 d3 - h1 16 Compression max. 2.2 Static load max. kgf 800 more info »
	61350.W0305	Type 3	50	-	6.0	45	18	2	50
£ 10.15 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 10.15 0% 5-19 £ 9.14 10% 20-39 £ 8.12 20% 40-99 £ 7.11 30% 100+ £ 6.09 40% Type Type 3 d1 50 l1 - d2 6.0 d3 45 h1 18 Compression max. 2 Static load max. kgf 50 more info »
	61350.W0309	Type 3	91	-	6.5	86	18	2	350
£ 22.70 per unit (click for quantity discounts) Ready to despatch 7 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.70 0% 5-19 £ 20.43 10% 20-39 £ 18.16 20% 40-99 £ 15.89 30% 100+ £ 13.62 40% Type Type 3 d1 91 l1 - d2 6.5 d3 86 h1 18 Compression max. 2 Static load max. kgf 350 more info »
	61350.W0313	Type 3	138	-	10.5	130	25	2.6	900
£ 41.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 41.58 0% 5-19 £ 37.42 10% 20-39 £ 33.26 20% 40-99 £ 29.11 30% 100+ £ 24.95 40% Type Type 3 d1 138 l1 - d2 10.5 d3 130 h1 25 Compression max. 2.6 Static load max. kgf 900 more info »
