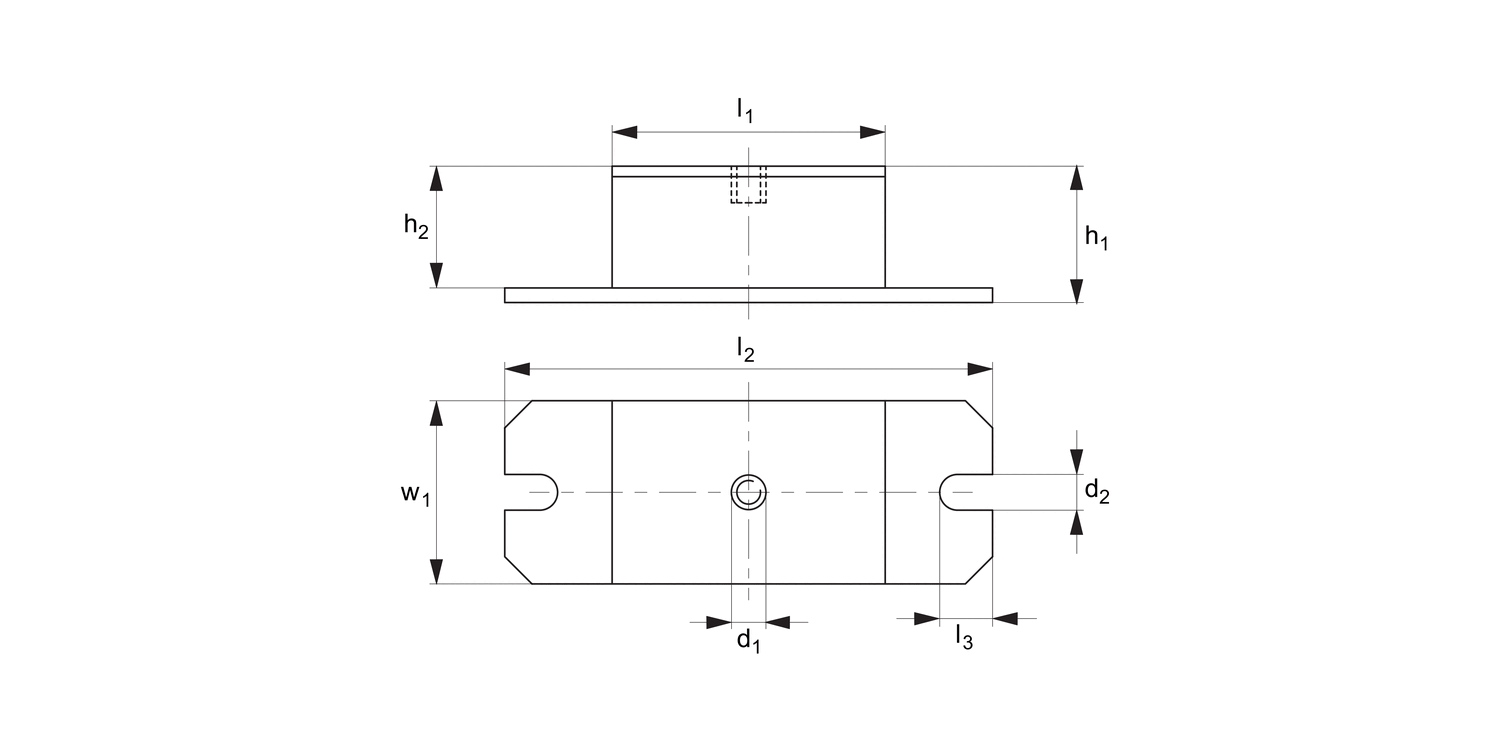

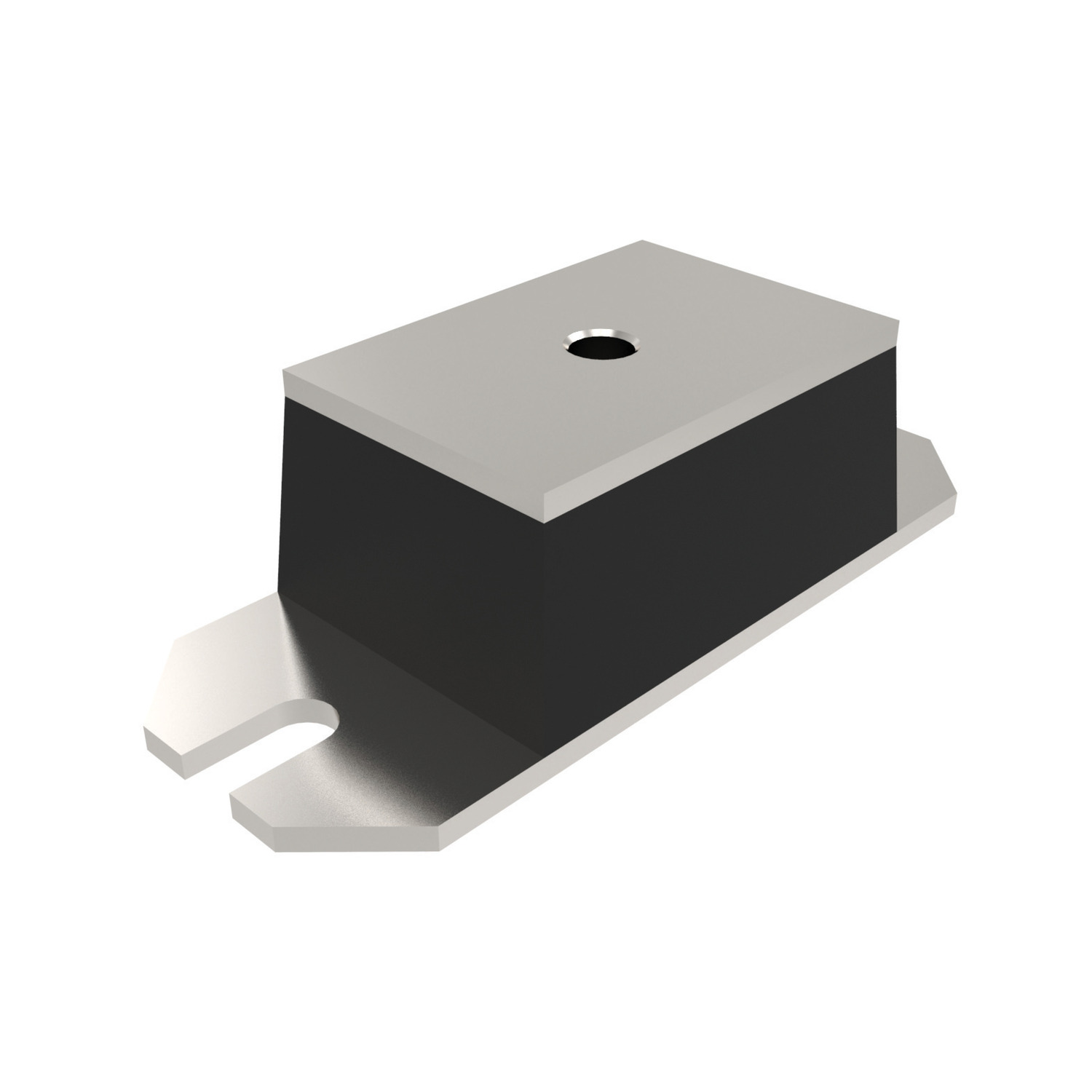

61500 Anti-vibration Mounts

rectangular, material: Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

A-V Mounts
Steel

A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Metal-rubber impact plates

61500.W0070

Shore hardness

70 A

d₁

M12

l₁

100

d₂

13

h₁

50

h₂

45

l₂

180

l₃

25

w₁

70

Load max. kgf

1000

£ 37.47 per unit (click for quantity discounts)

Metal-rubber impact plates

61500.W0055

Shore hardness

55 A

d₁

M12

l₁

100

d₂

13

h₁

50

h₂

45

l₂

180

l₃

25

w₁

70

Load max. kgf

500

£ 37.49 per unit (click for quantity discounts)

Metal-rubber impact plates

61500.W0080

Shore hardness

80 A

d₁

M12

l₁

100

d₂

13

h₁

50

h₂

45

l₂

180

l₃

25

w₁

70

Load max. kgf

1200

£ 52.61 per unit (click for quantity discounts)

Metal-rubber impact plates

61500.W0070

Shore hardness

70 A

d₁

M12

l₁

100

d₂

13

h₁

50

h₂

45

l₂

180

l₃

25

w₁

70

Load max. kgf

1000

£ 37.47 per unit (click for quantity discounts)

Metal-rubber impact plates

61500.W0055

Shore hardness

55 A

d₁

M12

l₁

100

d₂

13

h₁

50

h₂

45

l₂

180

l₃

25

w₁

70

Load max. kgf

500

£ 37.49 per unit (click for quantity discounts)

Metal-rubber impact plates

61500.W0080

Shore hardness

80 A

d₁

M12

l₁

100

d₂

13

h₁

50

h₂

45

l₂

180

l₃

25

w₁

70

Load max. kgf

1200

£ 52.61 per unit (click for quantity discounts)



Select all

Shore hardness

d₁

l₁

d₂

h₁

h₂

l₂

l₃

w₁

Load max. kgf

Price & Availability	Article	Shore hardness	d1	l1	d2	h1	h2	l2	l3	w1	Load max. kgf
	61500.W0070	70 A	M12	100	13	50	45	180	25	70	1000
£ 37.47 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 37.47 0% 5-19 £ 33.72 10% 20-39 £ 29.98 20% 40-99 £ 26.23 30% 100+ £ 22.48 40% Shore hardness 70 A d1 M12 l1 100 d2 13 h1 50 h2 45 l2 180 l3 25 w1 70 Load max. kgf 1000 more info »
	61500.W0055	55 A	M12	100	13	50	45	180	25	70	500
£ 37.49 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 37.49 0% 5-19 £ 33.74 10% 20-39 £ 29.99 20% 40-99 £ 26.24 30% 100+ £ 22.49 40% Shore hardness 55 A d1 M12 l1 100 d2 13 h1 50 h2 45 l2 180 l3 25 w1 70 Load max. kgf 500 more info »
	61500.W0080	80 A	M12	100	13	50	45	180	25	70	1200
£ 52.61 per unit (click for quantity discounts) Ready to despatch 8 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 52.61 0% 5-19 £ 47.35 10% 20-39 £ 42.09 20% 40-99 £ 36.83 30% 100+ £ 31.57 40% Shore hardness 80 A d1 M12 l1 100 d2 13 h1 50 h2 45 l2 180 l3 25 w1 70 Load max. kgf 1200 more info »
