61470 Anti-vibration Mounts

rectangular, material: Steel

Download product datasheet

Alternative products you may wish to consider

A-V Mounts
Steel

A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

Rectangular A-V Mounts
Steel

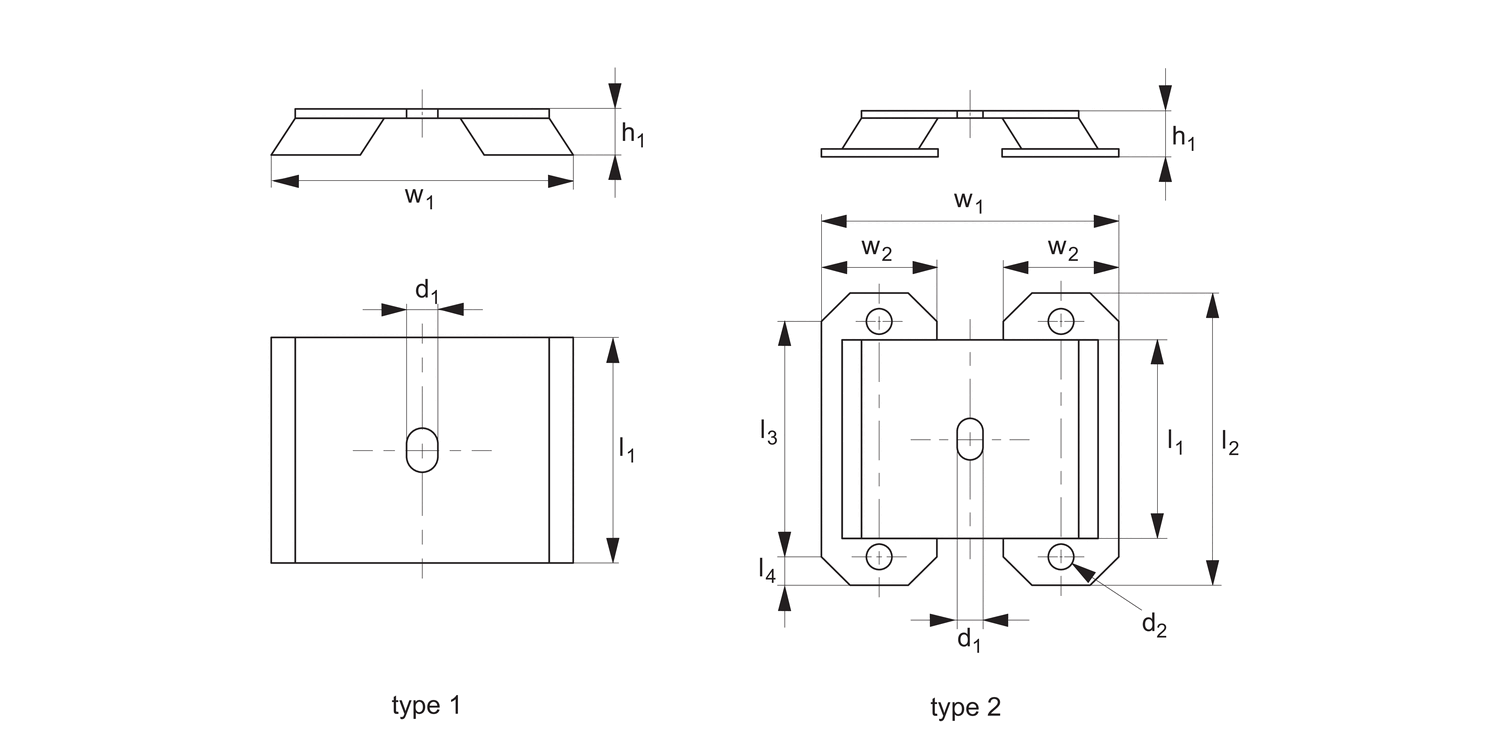

A-V rectangular mounts

61470.W0100

Type

Type 1

d₁

13

l₁

100

h₁

20

l₂

-

l₃

-

l₄

-

w₁

130

w₂

-

Compression max.

2

Static load max. kgf

850

£ 43.50 per unit (click for quantity discounts)

A-V rectangular mounts

61470.W0150

Type

Type 2

d₁

13

l₁

150

h₁

23

l₂

215

l₃

185

l₄

15

w₁

145

w₂

60

Compression max.

2

Static load max. kgf

1300

£ 61.75 per unit (click for quantity discounts)

A-V rectangular mounts

61470.W0200

Type

Type 2

d₁

13

l₁

200

h₁

23

l₂

265

l₃

235

l₄

15

w₁

145

w₂

60

Compression max.

2

Static load max. kgf

1700

£ 55.66 per unit (click for quantity discounts)

A-V rectangular mounts

61470.W0100

Type

Type 1

d₁

13

l₁

100

h₁

20

l₂

-

l₃

-

l₄

-

w₁

130

w₂

-

Compression max.

2

Static load max. kgf

850

£ 43.50 per unit (click for quantity discounts)

A-V rectangular mounts

61470.W0150

Type

Type 2

d₁

13

l₁

150

h₁

23

l₂

215

l₃

185

l₄

15

w₁

145

w₂

60

Compression max.

2

Static load max. kgf

1300

£ 61.75 per unit (click for quantity discounts)

A-V rectangular mounts

61470.W0200

Type

Type 2

d₁

13

l₁

200

h₁

23

l₂

265

l₃

235

l₄

15

w₁

145

w₂

60

Compression max.

2

Static load max. kgf

1700

£ 55.66 per unit (click for quantity discounts)



Select all

Type

d₁

l₁

h₁

l₂

l₃

l₄

w₁

w₂

Compression max.

Static load max. kgf

Price & Availability	Article	Type	d1	l1	h1	l2	l3	l4	w1	w2	Compression max.	Static load max. kgf
	61470.W0100	Type 1	13	100	20	-	-	-	130	-	2	850
£ 43.50 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 43.50 0% 5-19 £ 39.15 10% 20-39 £ 34.80 20% 40-99 £ 30.45 30% 100+ £ 26.10 40% Type Type 1 d1 13 l1 100 h1 20 l2 - l3 - l4 - w1 130 w2 - Compression max. 2 Static load max. kgf 850 more info »
	61470.W0150	Type 2	13	150	23	215	185	15	145	60	2	1300
£ 61.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 61.75 0% 5-19 £ 55.58 10% 20-39 £ 49.40 20% 40-99 £ 43.23 30% 100+ £ 37.05 40% Type Type 2 d1 13 l1 150 h1 23 l2 215 l3 185 l4 15 w1 145 w2 60 Compression max. 2 Static load max. kgf 1300 more info »
	61470.W0200	Type 2	13	200	23	265	235	15	145	60	2	1700
£ 55.66 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 55.66 0% 5-19 £ 50.09 10% 20-39 £ 44.53 20% 40-99 £ 38.96 30% 100+ £ 33.40 40% Type Type 2 d1 13 l1 200 h1 23 l2 265 l3 235 l4 15 w1 145 w2 60 Compression max. 2 Static load max. kgf 1700 more info »
