70162 Star Grips

male, stainless steel, material: Stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Palm Grips
cast iron

Palm Grips
cast iron, plastic coated

Palm Grips
aluminium

Palm Grips
die-cast s/s - DIN 6335

Palm Grips
plastic

Palm Grips
with grub screw

Star Grips
cast iron

Star Grips
aluminium

Star Grips
die-cast s/s - DIN 6336

Star Grips
plastic

Star Grips
female, s/s

Star Grips
male, s/s

Star Grips
s/s

Star Grips
hygienic line

Star Grips
with grub screw

Star Grips
with s/s bush

Star Grips
with s/s grub screw

Star Grips - SS. 40 - M 8 - 20 - 14

70162.W0140

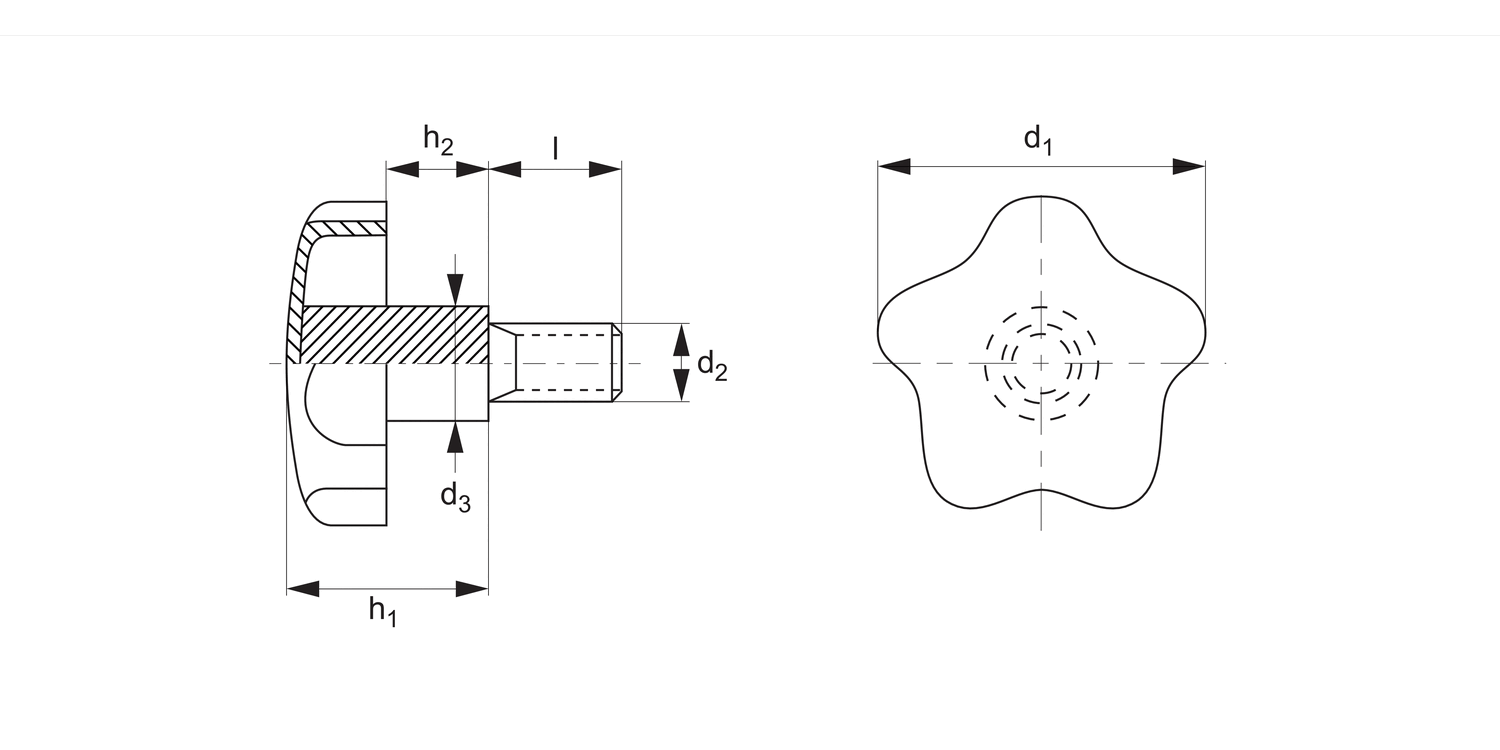

d₁

40

d₂

M 8

d₃

14

h₁ ≈

24.0

h₂ ≈

12.0

l

20

Weight g

50

£ 19.06 per unit (click for quantity discounts)

Star Grips - SS. 40 - M 8 - 30 - 14

70162.W0142

d₁

40

d₂

M 8

d₃

14

h₁ ≈

24.0

h₂ ≈

12.0

l

30

Weight g

55

£ 19.27 per unit (click for quantity discounts)

Star Grips - SS. 40 - M 8 - 40 - 14

70162.W0144

d₁

40

d₂

M 8

d₃

14

h₁ ≈

24.0

h₂ ≈

12.0

l

40

Weight g

56

£ 20.08 per unit (click for quantity discounts)

Star Grips - SS. 50 - M10 - 20 - 18

70162.W0150

d₁

50

d₂

M10

d₃

18

h₁ ≈

30.0

h₂ ≈

16.5

l

20

Weight g

95

£ 21.91 per unit (click for quantity discounts)

Star Grips - SS. 50 - M10 - 30 - 18

70162.W0152

d₁

50

d₂

M10

d₃

18

h₁ ≈

30.0

h₂ ≈

16.5

l

30

Weight g

97

£ 22.75 per unit (click for quantity discounts)

Star Grips - SS. 50 - M10 - 40 - 18

70162.W0154

d₁

50

d₂

M10

d₃

18

h₁ ≈

30.0

h₂ ≈

16.5

l

40

Weight g

100

£ 23.76 per unit (click for quantity discounts)

Star Grips - SS. 60 - M12 - 30 - 20

70162.W0160

d₁

60

d₂

M12

d₃

20

h₁ ≈

37.5

h₂ ≈

20.0

l

30

Weight g

155

£ 26.14 per unit (click for quantity discounts)

Star Grips - SS. 60 - M12 - 40 - 20

70162.W0162

d₁

60

d₂

M12

d₃

20

h₁ ≈

37.5

h₂ ≈

20.0

l

40

Weight g

162

£ 27.17 per unit (click for quantity discounts)

Star Grips - SS. 60 - M12 - 50 - 20

70162.W0164

d₁

60

d₂

M12

d₃

20

h₁ ≈

37.5

h₂ ≈

20.0

l

50

Weight g

169

£ 28.00 per unit (click for quantity discounts)

Star Grips - SS. 40 - M 8 - 20 - 14

70162.W0140

d₁

40

d₂

M 8

d₃

14

h₁ ≈

24.0

h₂ ≈

12.0

l

20

Weight g

50

£ 19.06 per unit (click for quantity discounts)

Star Grips - SS. 40 - M 8 - 30 - 14

70162.W0142

d₁

40

d₂

M 8

d₃

14

h₁ ≈

24.0

h₂ ≈

12.0

l

30

Weight g

55

£ 19.27 per unit (click for quantity discounts)

Star Grips - SS. 40 - M 8 - 40 - 14

70162.W0144

d₁

40

d₂

M 8

d₃

14

h₁ ≈

24.0

h₂ ≈

12.0

l

40

Weight g

56

£ 20.08 per unit (click for quantity discounts)

Star Grips - SS. 50 - M10 - 20 - 18

70162.W0150

d₁

50

d₂

M10

d₃

18

h₁ ≈

30.0

h₂ ≈

16.5

l

20

Weight g

95

£ 21.91 per unit (click for quantity discounts)

Star Grips - SS. 50 - M10 - 30 - 18

70162.W0152

d₁

50

d₂

M10

d₃

18

h₁ ≈

30.0

h₂ ≈

16.5

l

30

Weight g

97

£ 22.75 per unit (click for quantity discounts)

Star Grips - SS. 50 - M10 - 40 - 18

70162.W0154

d₁

50

d₂

M10

d₃

18

h₁ ≈

30.0

h₂ ≈

16.5

l

40

Weight g

100

£ 23.76 per unit (click for quantity discounts)

Star Grips - SS. 60 - M12 - 30 - 20

70162.W0160

d₁

60

d₂

M12

d₃

20

h₁ ≈

37.5

h₂ ≈

20.0

l

30

Weight g

155

£ 26.14 per unit (click for quantity discounts)

Star Grips - SS. 60 - M12 - 40 - 20

70162.W0162

d₁

60

d₂

M12

d₃

20

h₁ ≈

37.5

h₂ ≈

20.0

l

40

Weight g

162

£ 27.17 per unit (click for quantity discounts)

Star Grips - SS. 60 - M12 - 50 - 20

70162.W0164

d₁

60

d₂

M12

d₃

20

h₁ ≈

37.5

h₂ ≈

20.0

l

50

Weight g

169

£ 28.00 per unit (click for quantity discounts)



Select all

d₁

d₂

d₃

h₁ ≈

h₂ ≈

l

Weight g

Price & Availability	Article	d1	d2	d3	h1 ≈	h2 ≈	l	Weight g
	70162.W0140	40	M 8	14	24.0	12.0	20	50
£ 19.06 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 19.06 0% 10-19 £ 17.15 10% 20-49 £ 16.20 15% 50-99 £ 15.25 20% 100+ £ 13.34 30% d1 40 d2 M 8 d3 14 h1 ≈ 24.0 h2 ≈ 12.0 l 20 Weight g 50 more info »
	70162.W0142	40	M 8	14	24.0	12.0	30	55
£ 19.27 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 19.27 0% 10-19 £ 17.34 10% 20-49 £ 16.38 15% 50-99 £ 15.42 20% 100+ £ 13.49 30% d1 40 d2 M 8 d3 14 h1 ≈ 24.0 h2 ≈ 12.0 l 30 Weight g 55 more info »
	70162.W0144	40	M 8	14	24.0	12.0	40	56
£ 20.08 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 20.08 0% 10-19 £ 18.07 10% 20-49 £ 17.07 15% 50-99 £ 16.06 20% 100+ £ 14.06 30% d1 40 d2 M 8 d3 14 h1 ≈ 24.0 h2 ≈ 12.0 l 40 Weight g 56 more info »
	70162.W0150	50	M10	18	30.0	16.5	20	95
£ 21.91 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 21.91 0% 10-19 £ 19.72 10% 20-49 £ 18.62 15% 50-99 £ 17.53 20% 100+ £ 15.34 30% d1 50 d2 M10 d3 18 h1 ≈ 30.0 h2 ≈ 16.5 l 20 Weight g 95 more info »
	70162.W0152	50	M10	18	30.0	16.5	30	97
£ 22.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 22.75 0% 10-19 £ 20.48 10% 20-49 £ 19.34 15% 50-99 £ 18.20 20% 100+ £ 15.93 30% d1 50 d2 M10 d3 18 h1 ≈ 30.0 h2 ≈ 16.5 l 30 Weight g 97 more info »
	70162.W0154	50	M10	18	30.0	16.5	40	100
£ 23.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 23.76 0% 10-19 £ 21.38 10% 20-49 £ 20.20 15% 50-99 £ 19.01 20% 100+ £ 16.63 30% d1 50 d2 M10 d3 18 h1 ≈ 30.0 h2 ≈ 16.5 l 40 Weight g 100 more info »
	70162.W0160	60	M12	20	37.5	20.0	30	155
£ 26.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 26.14 0% 10-19 £ 23.53 10% 20-49 £ 22.22 15% 50-99 £ 20.91 20% 100+ £ 18.30 30% d1 60 d2 M12 d3 20 h1 ≈ 37.5 h2 ≈ 20.0 l 30 Weight g 155 more info »
	70162.W0162	60	M12	20	37.5	20.0	40	162
£ 27.17 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 27.17 0% 10-19 £ 24.45 10% 20-49 £ 23.09 15% 50-99 £ 21.74 20% 100+ £ 19.02 30% d1 60 d2 M12 d3 20 h1 ≈ 37.5 h2 ≈ 20.0 l 40 Weight g 162 more info »
	70162.W0164	60	M12	20	37.5	20.0	50	169
£ 28.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-9 £ 28.00 0% 10-19 £ 25.20 10% 20-49 £ 23.80 15% 50-99 £ 22.40 20% 100+ £ 19.60 30% d1 60 d2 M12 d3 20 h1 ≈ 37.5 h2 ≈ 20.0 l 50 Weight g 169 more info »
