Door Catches
73900 Retaining Catches
one-sided, material: Die cast zinc
Alternative products you may wish to consider
Colour
Silver

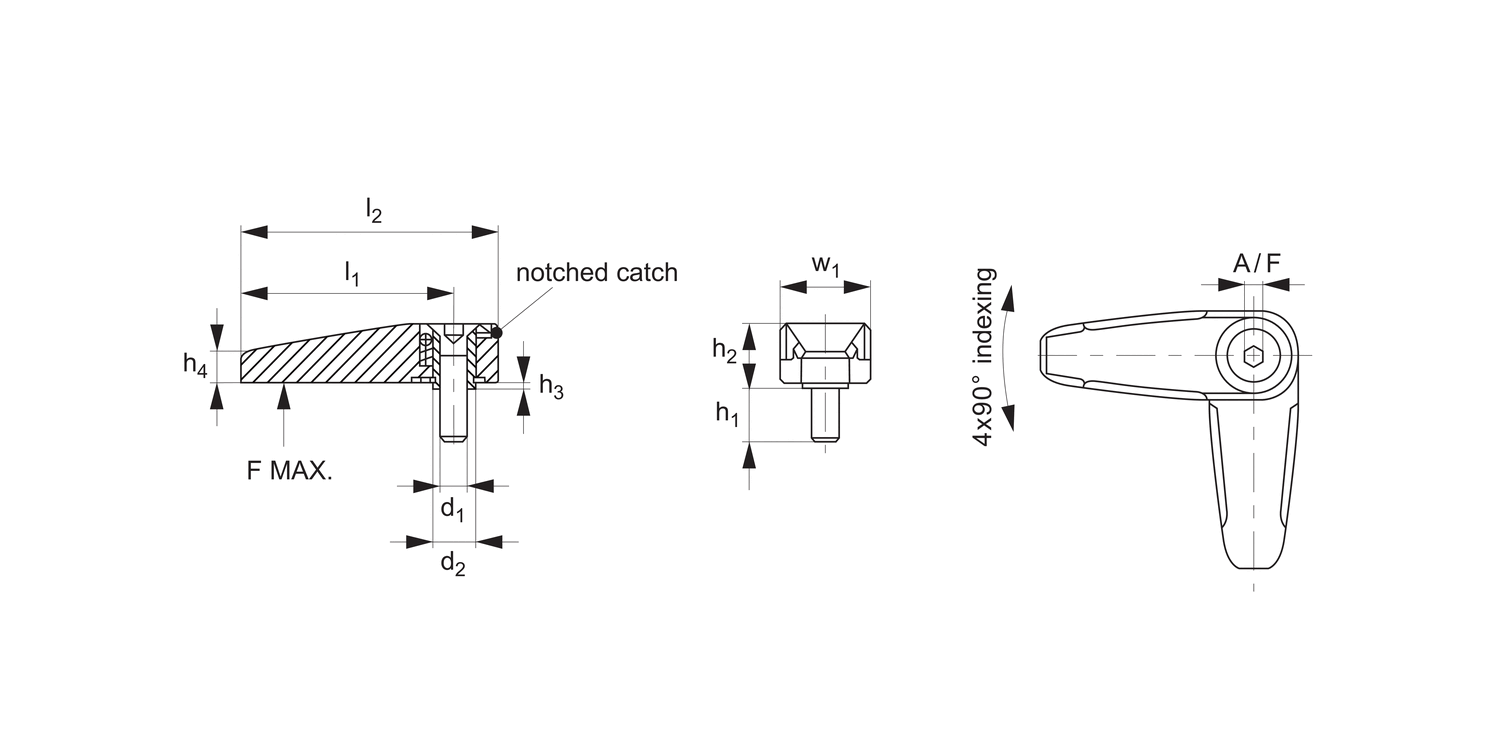

d1
M 6
d2
9
l1
45
l2
55
h1
12
h2
13.3
h3
0.8
h4
6.5
Load F
max.
N
500
w1
19.0
A/F
4
Weight
g
59
£ 22.02 per unit (click for quantity discounts)
Colour
Black
d1
M 6
d2
9
l1
45
l2
55
h1
12
h2
13.3
h3
0.8
h4
6.5
Load F
max.
N
500
w1
19.0
A/F
4
Weight
g
59
£ 22.02 per unit (click for quantity discounts)
Colour
Silver
d1
M 8
d2
14
l1
65
l2
78
h1
14
h2
15.8
h3
0.8
h4
9.0
Load F
max.
N
1000
w1
25.2
A/F
5
Weight
g
136
£ 27.55 per unit (click for quantity discounts)
Colour
Black
d1
M 8
d2
14
l1
65
l2
78
h1
14
h2
15.8
h3
0.8
h4
9.0
Load F
max.
N
1000
w1
25.2
A/F
5
Weight
g
136
£ 27.55 per unit (click for quantity discounts)
Colour
d1
d2
l1
l2
h1
h2
h3
h4
Load F
max.
N
w1
A/F
Weight
g
| Price & Availability | Article | Colour | d1 | d2 | l1 | l2 | h1 | h2 | h3 | h4 | Load F max. N | w1 | A/F | Weight g | ||||||||||||||||||
| 73900.W0101 | Silver | M 6 | 9 | 45 | 55 | 12 | 13.3 | 0.8 | 6.5 | 500 | 19.0 | 4 | 59 | |||||||||||||||||||
£ 22.02 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Colour Silver d1 M 6 d2 9 l1 45 l2 55 h1 12 h2 13.3 h3 0.8 h4 6.5 Load F
max.
N 500 w1 19.0 A/F 4 Weight
g 59 | ||||||||||||||||||||||||||||||||
| 73900.W0102 | Black | M 6 | 9 | 45 | 55 | 12 | 13.3 | 0.8 | 6.5 | 500 | 19.0 | 4 | 59 | |||||||||||||||||||
£ 22.02 per unit (click for quantity discounts) Ready to despatch 19 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Colour Black d1 M 6 d2 9 l1 45 l2 55 h1 12 h2 13.3 h3 0.8 h4 6.5 Load F
max.
N 500 w1 19.0 A/F 4 Weight
g 59 | ||||||||||||||||||||||||||||||||
| 73900.W0151 | Silver | M 8 | 14 | 65 | 78 | 14 | 15.8 | 0.8 | 9.0 | 1000 | 25.2 | 5 | 136 | |||||||||||||||||||
£ 27.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Colour Silver d1 M 8 d2 14 l1 65 l2 78 h1 14 h2 15.8 h3 0.8 h4 9.0 Load F
max.
N 1000 w1 25.2 A/F 5 Weight
g 136 | ||||||||||||||||||||||||||||||||
| 73900.W0152 | Black | M 8 | 14 | 65 | 78 | 14 | 15.8 | 0.8 | 9.0 | 1000 | 25.2 | 5 | 136 | |||||||||||||||||||
£ 27.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Colour Black d1 M 8 d2 14 l1 65 l2 78 h1 14 h2 15.8 h3 0.8 h4 9.0 Load F
max.
N 1000 w1 25.2 A/F 5 Weight
g 136 | ||||||||||||||||||||||||||||||||
Technical & Application
Material
Body: die cast zinc, black coated to RAL 9005 or silver coated to RAL 9006.
Fixing screw: stainless steel A2.
Inner parts: dry powdered metal.
Technical Notes

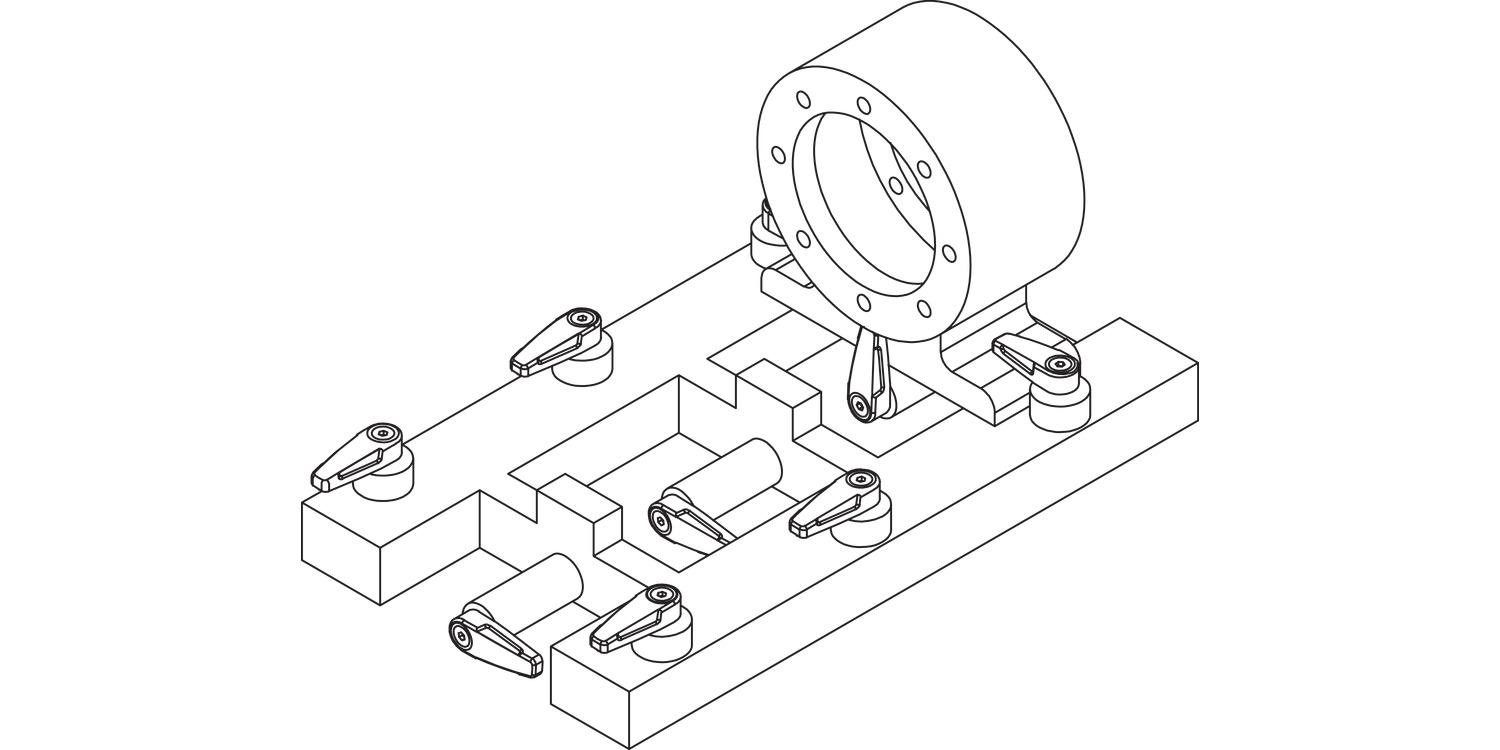

Quick retaining catch with positive indexing. Ideal for retaining doors, panels as well as for retaining parts during transportation.
Retaining catch is indexed 4x90°.
