Gripping Pads - Diamond Serration
round - steel body - carbide tipped
35340 Grippers - Carbide Tipped
steel body - square - rear fixing, material: Steel body
Alternative products you may wish to consider
Tooth pattern
Fine
l1
12.0
l2
10.32
h1
10.00
d2
M 5x0,8
w1
3,175x90°
£ 53.04 per unit (click for quantity discounts)
Tooth pattern
Fine
l1
12.0
l2
10.32
h1
12.00
d2
M 5x0,8
w1
3,175x90°
£ 36.54 per unit (click for quantity discounts)
Tooth pattern
Ex-fine
l1
12.7
l2
10.32
h1
9.53
d2
M 6x1,0
w1
2,387x90°
£ 36.54 per unit (click for quantity discounts)
Tooth pattern
l1
l2
h1
d2
w1
| Price & Availability | Article | Tooth pattern | l1 | l2 | h1 | d2 | w1 | ||||||||||||||||||
| 35340.W0001 | Fine | 12.0 | 10.32 | 10.00 | M 5x0,8 | 3,175x90° | |||||||||||||||||||
£ 53.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Please call us.
Tooth pattern Fine l1 12.0 l2 10.32 h1 10.00 d2 M 5x0,8 w1 3,175x90° | |||||||||||||||||||||||||
| 35340.W0002 | Fine | 12.0 | 10.32 | 12.00 | M 5x0,8 | 3,175x90° | |||||||||||||||||||
£ 36.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine l1 12.0 l2 10.32 h1 12.00 d2 M 5x0,8 w1 3,175x90° | |||||||||||||||||||||||||
| 35340.W0003 | Ex-fine | 12.7 | 10.32 | 9.53 | M 6x1,0 | 2,387x90° | |||||||||||||||||||
£ 36.54 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Ex-fine l1 12.7 l2 10.32 h1 9.53 d2 M 6x1,0 w1 2,387x90° | |||||||||||||||||||||||||
Technical & Application
Material
Solid carbide tipped grippers, in steel body.
Technical Notes
These carbide tipped gripping pads press down onto the surface of the component to give safe holding without distortion. Especially suitable in chucks, vices and robotic grippers for extra grip.
Tips

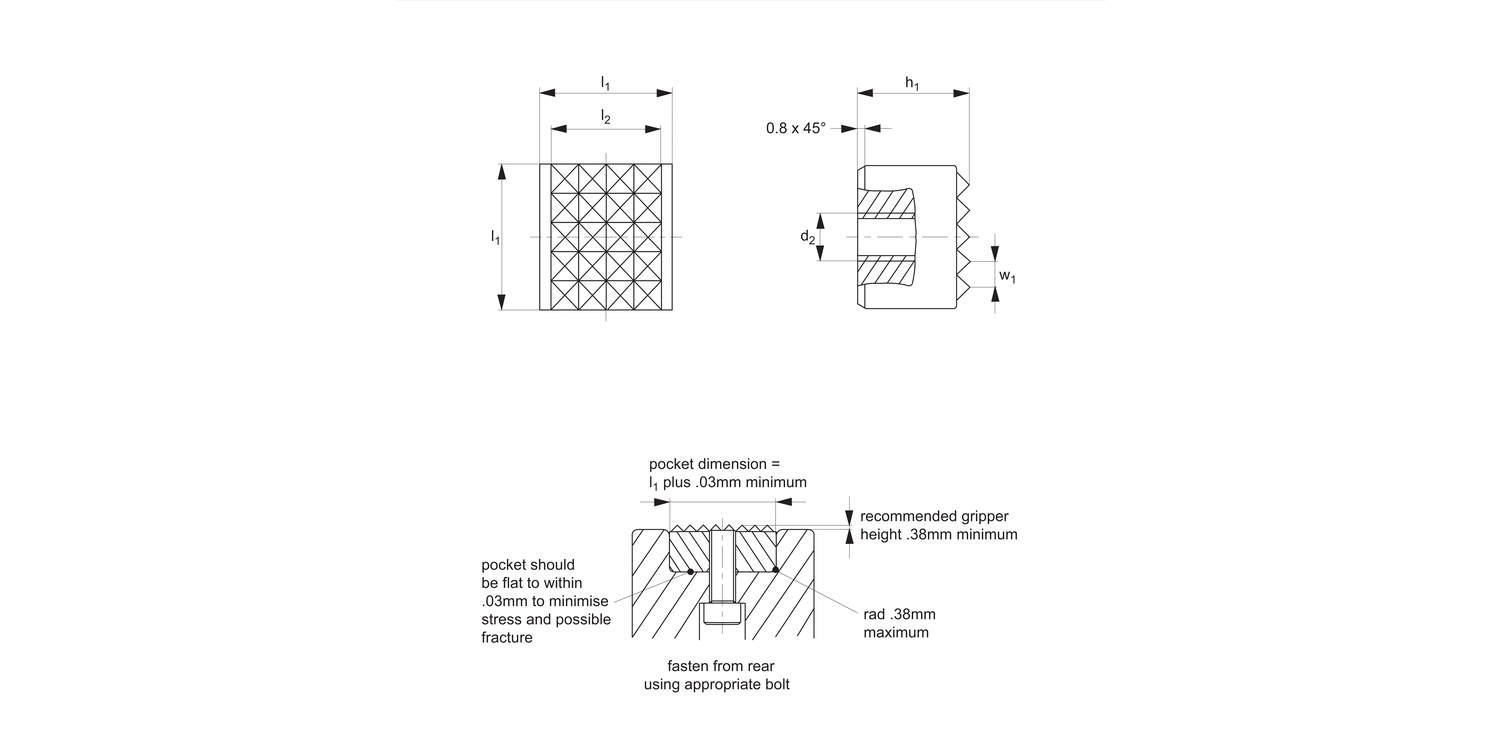

Can be fastened from rear using appropriate bolt. Note installation recommendations in technical diagram.
