Gripping Pads - Diamond Serration
round - steel body - carbide tipped
35350 Grippers - Carbide Tipped
steel body - angled - rear fixing, material: Steel body
Alternative products you may wish to consider
Tooth pattern
4 Point
d1
15
l1
+0.000|-0.002
14.29
l2
11.9
h1
+0.000|-0.005
9.5
d2
M 5x0,8
w1
+0.000|-0.010
16.5
w2
3,4x90°
£ 36.61 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
15
l1
+0.000|-0.002
14.29
l2
11.9
h1
+0.000|-0.005
9.5
d2
M 5x0,8
w1
+0.000|-0.010
16.5
w2
2,9x90°
£ 38.08 per unit (click for quantity discounts)
Tooth pattern
Straight
d1
15
l1
+0.000|-0.002
14.29
l2
11.9
h1
+0.000|-0.005
9.5
d2
M 5x0,8
w1
+0.000|-0.010
16.5
w2
2,9x90°
£ 38.08 per unit (click for quantity discounts)
Tooth pattern
Angular
d1
15
l1
+0.000|-0.002
14.29
l2
11.9
h1
+0.000|-0.005
9.5
d2
M 5x0,8
w1
+0.000|-0.010
16.5
w2
2,9x90°
£ 38.08 per unit (click for quantity discounts)
Tooth pattern
d1
l1
+0.000|-0.002
l2
h1
+0.000|-0.005
d2
w1
+0.000|-0.010
w2
| Price & Availability | Article | Tooth pattern | d1 | l1 +0.000|-0.002 | l2 | h1 +0.000|-0.005 | d2 | w1 +0.000|-0.010 | w2 | ||||||||||||||||||
| 35350.W0001 | 4 Point | 15 | 14.29 | 11.9 | 9.5 | M 5x0,8 | 16.5 | 3,4x90° | |||||||||||||||||||
£ 36.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 15 l1
+0.000|-0.002 14.29 l2 11.9 h1
+0.000|-0.005 9.5 d2 M 5x0,8 w1
+0.000|-0.010 16.5 w2 3,4x90° | |||||||||||||||||||||||||||
| 35350.W0002 | Fine | 15 | 14.29 | 11.9 | 9.5 | M 5x0,8 | 16.5 | 2,9x90° | |||||||||||||||||||
£ 38.08 per unit (click for quantity discounts) Ready to despatch 52 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 15 l1
+0.000|-0.002 14.29 l2 11.9 h1
+0.000|-0.005 9.5 d2 M 5x0,8 w1
+0.000|-0.010 16.5 w2 2,9x90° | |||||||||||||||||||||||||||
| 35350.W0003 | Straight | 15 | 14.29 | 11.9 | 9.5 | M 5x0,8 | 16.5 | 2,9x90° | |||||||||||||||||||
£ 38.08 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Straight d1 15 l1
+0.000|-0.002 14.29 l2 11.9 h1
+0.000|-0.005 9.5 d2 M 5x0,8 w1
+0.000|-0.010 16.5 w2 2,9x90° | |||||||||||||||||||||||||||
| 35350.W0004 | Angular | 15 | 14.29 | 11.9 | 9.5 | M 5x0,8 | 16.5 | 2,9x90° | |||||||||||||||||||
£ 38.08 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Angular d1 15 l1
+0.000|-0.002 14.29 l2 11.9 h1
+0.000|-0.005 9.5 d2 M 5x0,8 w1
+0.000|-0.010 16.5 w2 2,9x90° | |||||||||||||||||||||||||||
Technical & Application
Material
Steel, heat-treated with brazed on carbide pad.
Technical Notes
Also available with imperial threads on request. These angle gripper inserts press down on the surface of the clamped workpiece to give safe holding without distortion. They can be built into clamps, stops and fixtures, as well as chucks, vices and robotic grippers for extra grip.
Tips

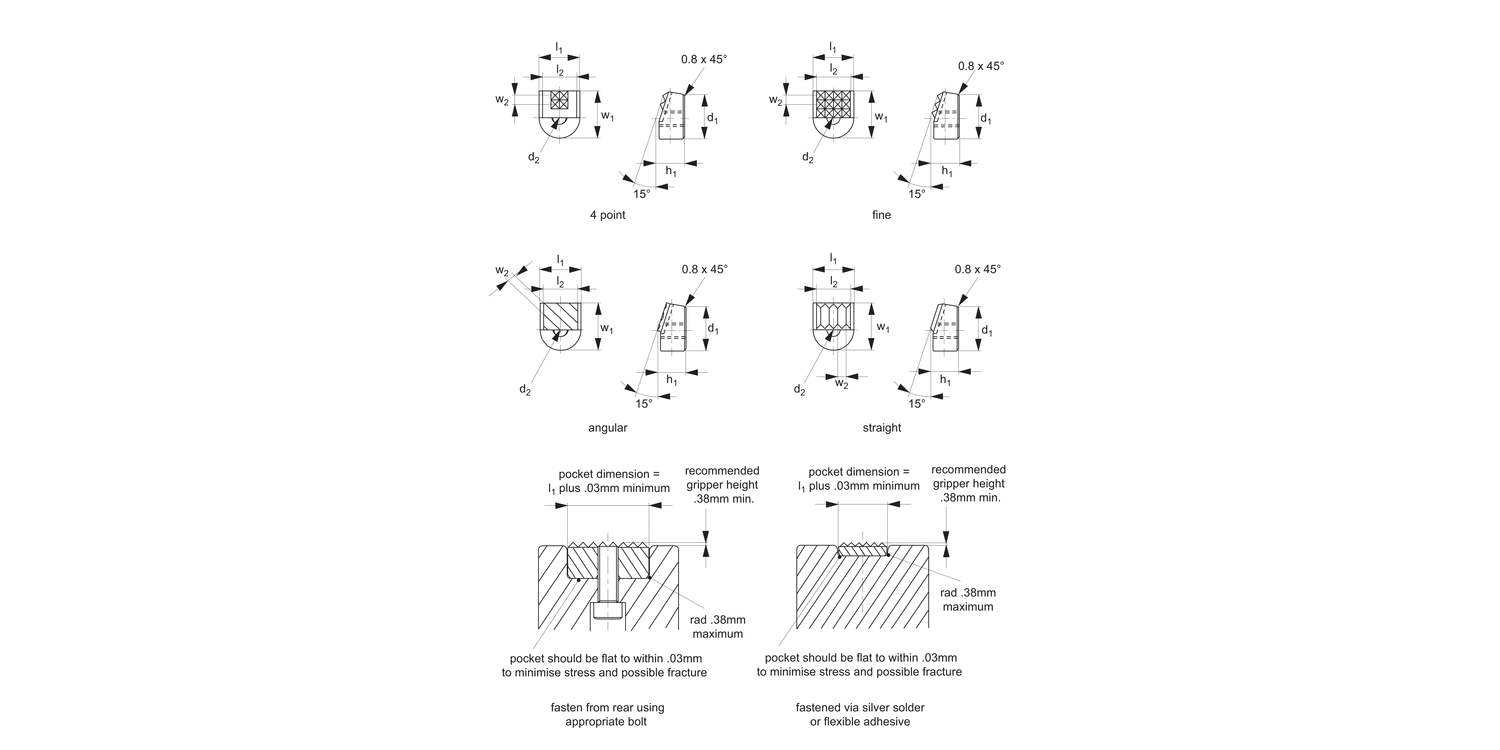

Can be fastened from rear using appropriate bolt. Note installation recommendations in technical diagram.
