Gripping Pads - Diamond Serration
round - steel body - carbide tipped
35410 Grippers - Carbide Tipped
set screw, material: Steel
Alternative products you may wish to consider

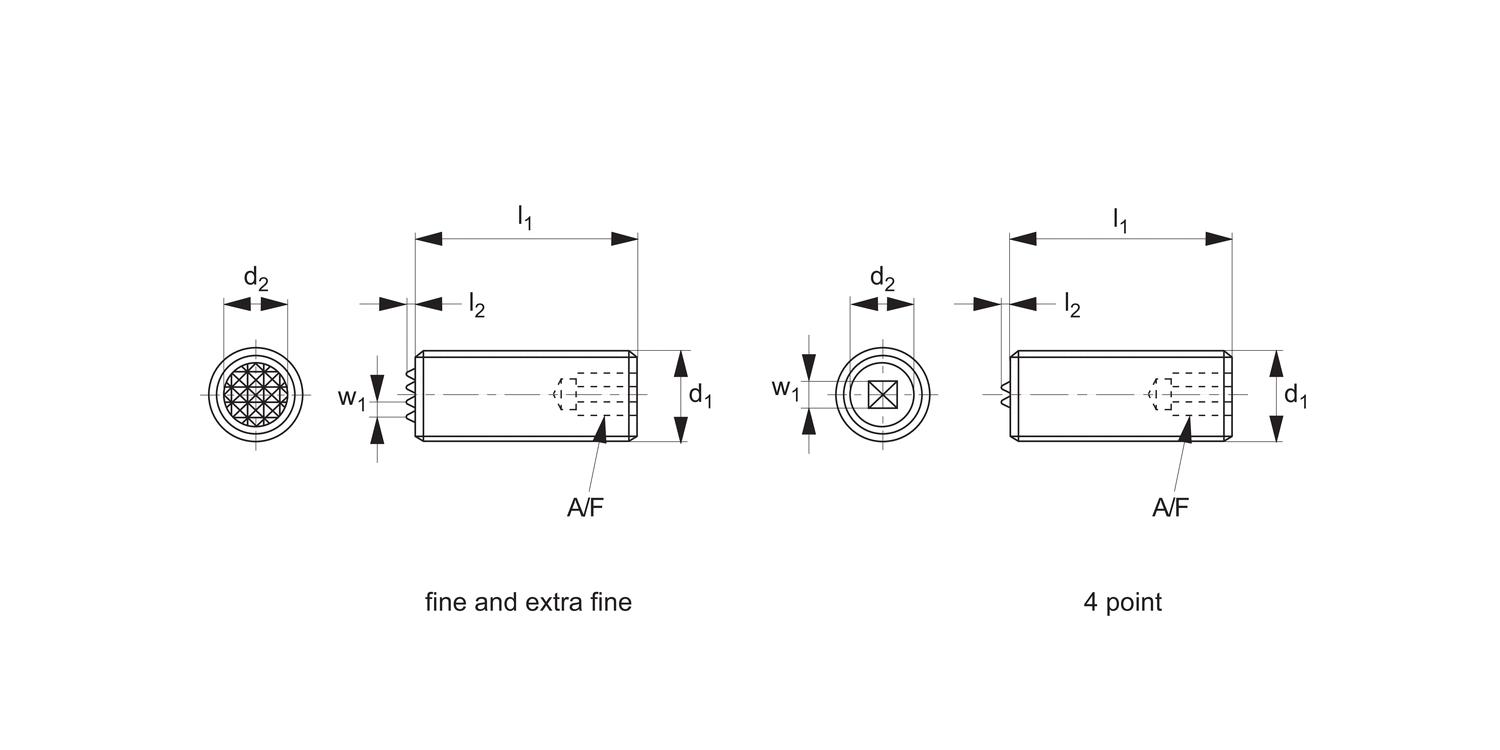

Tooth pattern
Extra Fine
d1
M10x1,5
l1
25
l2
1.3
d2
6.4
w1
2,4x90°
A/F
5
£ 27.22 per unit (click for quantity discounts)
Tooth pattern
Extra Fine
d1
M10x1,5
l1
50
l2
1.3
d2
6.4
w1
2,4x90°
A/F
5
£ 28.03 per unit (click for quantity discounts)
Tooth pattern
Extra Fine
d1
M12x1,75
l1
25
l2
1.3
d2
7.9
w1
2,4x90°
A/F
6
£ 32.41 per unit (click for quantity discounts)
Tooth pattern
Extra Fine
d1
M12x1,75
l1
50
l2
1.3
d2
7.9
w1
2,4x90°
A/F
6
£ 33.40 per unit (click for quantity discounts)
Tooth pattern
Extra Fine
d1
M20x2,5
l1
50
l2
1.3
d2
12.7
w1
2,4x90°
A/F
10
£ 54.78 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
M16x2,0
l1
25
l2
1.3
d2
11.1
w1
3,2x90°
A/F
8
£ 39.16 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
M16x2,0
l1
50
l2
1.3
d2
11.1
w1
3,2x90°
A/F
8
£ 43.06 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
M20x2,5
l1
25
l2
1.3
d2
12.7
w1
3,2x90°
A/F
10
£ 49.76 per unit (click for quantity discounts)
Tooth pattern
4 Point
d1
M12x1,75
l1
25
l2
1.3
d2
7.9
w1
3,9x90°
A/F
6
£ 33.72 per unit (click for quantity discounts)
Tooth pattern
4 Point
d1
M12x1,75
l1
50
l2
1.3
d2
7.9
w1
3,9x90°
A/F
6
£ 34.75 per unit (click for quantity discounts)
Tooth pattern
4 Point
d1
M16x2,0
l1
25
l2
1.3
d2
11.1
w1
3,9x90°
A/F
8
£ 40.70 per unit (click for quantity discounts)
Tooth pattern
4 Point
d1
M16x2,0
l1
50
l2
1.3
d2
11.1
w1
3,9x90°
A/F
8
£ 42.73 per unit (click for quantity discounts)
Tooth pattern
4 Point
d1
M20x2,5
l1
25
l2
1.3
d2
12.7
w1
3,9x90°
A/F
10
£ 51.77 per unit (click for quantity discounts)
Tooth pattern
4 Point
d1
M20x2,5
l1
50
l2
1.3
d2
12.7
w1
3,9x90°
A/F
10
£ 54.35 per unit (click for quantity discounts)
Tooth pattern
d1
l1
l2
d2
w1
A/F
| Price & Availability | Article | Tooth pattern | d1 | l1 | l2 | d2 | w1 | A/F | ||||||||||||||||||
| 35410.W0001 | Extra Fine | M10x1,5 | 25 | 1.3 | 6.4 | 2,4x90° | 5 | |||||||||||||||||||
£ 27.22 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Extra Fine d1 M10x1,5 l1 25 l2 1.3 d2 6.4 w1 2,4x90° A/F 5 | ||||||||||||||||||||||||||
| 35410.W0002 | Extra Fine | M10x1,5 | 50 | 1.3 | 6.4 | 2,4x90° | 5 | |||||||||||||||||||
£ 28.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Extra Fine d1 M10x1,5 l1 50 l2 1.3 d2 6.4 w1 2,4x90° A/F 5 | ||||||||||||||||||||||||||
| 35410.W0004 | Extra Fine | M12x1,75 | 25 | 1.3 | 7.9 | 2,4x90° | 6 | |||||||||||||||||||
£ 32.41 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Extra Fine d1 M12x1,75 l1 25 l2 1.3 d2 7.9 w1 2,4x90° A/F 6 | ||||||||||||||||||||||||||
| 35410.W0006 | Extra Fine | M12x1,75 | 50 | 1.3 | 7.9 | 2,4x90° | 6 | |||||||||||||||||||
£ 33.40 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Extra Fine d1 M12x1,75 l1 50 l2 1.3 d2 7.9 w1 2,4x90° A/F 6 | ||||||||||||||||||||||||||
| 35410.W0014 | Extra Fine | M20x2,5 | 50 | 1.3 | 12.7 | 2,4x90° | 10 | |||||||||||||||||||
£ 54.78 per unit (click for quantity discounts) Ready to despatch 6 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Extra Fine d1 M20x2,5 l1 50 l2 1.3 d2 12.7 w1 2,4x90° A/F 10 | ||||||||||||||||||||||||||
| 35410.W0008 | Fine | M16x2,0 | 25 | 1.3 | 11.1 | 3,2x90° | 8 | |||||||||||||||||||
£ 39.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 M16x2,0 l1 25 l2 1.3 d2 11.1 w1 3,2x90° A/F 8 | ||||||||||||||||||||||||||
| 35410.W0010 | Fine | M16x2,0 | 50 | 1.3 | 11.1 | 3,2x90° | 8 | |||||||||||||||||||
£ 43.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 M16x2,0 l1 50 l2 1.3 d2 11.1 w1 3,2x90° A/F 8 | ||||||||||||||||||||||||||
| 35410.W0012 | Fine | M20x2,5 | 25 | 1.3 | 12.7 | 3,2x90° | 10 | |||||||||||||||||||
£ 49.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 M20x2,5 l1 25 l2 1.3 d2 12.7 w1 3,2x90° A/F 10 | ||||||||||||||||||||||||||
| 35410.W0003 | 4 Point | M12x1,75 | 25 | 1.3 | 7.9 | 3,9x90° | 6 | |||||||||||||||||||
£ 33.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 M12x1,75 l1 25 l2 1.3 d2 7.9 w1 3,9x90° A/F 6 | ||||||||||||||||||||||||||
| 35410.W0005 | 4 Point | M12x1,75 | 50 | 1.3 | 7.9 | 3,9x90° | 6 | |||||||||||||||||||
£ 34.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 M12x1,75 l1 50 l2 1.3 d2 7.9 w1 3,9x90° A/F 6 | ||||||||||||||||||||||||||
| 35410.W0007 | 4 Point | M16x2,0 | 25 | 1.3 | 11.1 | 3,9x90° | 8 | |||||||||||||||||||
£ 40.70 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 M16x2,0 l1 25 l2 1.3 d2 11.1 w1 3,9x90° A/F 8 | ||||||||||||||||||||||||||
| 35410.W0009 | 4 Point | M16x2,0 | 50 | 1.3 | 11.1 | 3,9x90° | 8 | |||||||||||||||||||
£ 42.73 per unit (click for quantity discounts) Ready to despatch 3 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 M16x2,0 l1 50 l2 1.3 d2 11.1 w1 3,9x90° A/F 8 | ||||||||||||||||||||||||||
| 35410.W0011 | 4 Point | M20x2,5 | 25 | 1.3 | 12.7 | 3,9x90° | 10 | |||||||||||||||||||
£ 51.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 M20x2,5 l1 25 l2 1.3 d2 12.7 w1 3,9x90° A/F 10 | ||||||||||||||||||||||||||
| 35410.W0013 | 4 Point | M20x2,5 | 50 | 1.3 | 12.7 | 3,9x90° | 10 | |||||||||||||||||||
£ 54.35 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern 4 Point d1 M20x2,5 l1 50 l2 1.3 d2 12.7 w1 3,9x90° A/F 10 | ||||||||||||||||||||||||||
Technical & Application
Material
Steel set screw with hex socket and solid carbide tipped insert.
Technical Notes
Adjustable carbide tipped grippers are used in jigs and fixtures, modular fixtures and tooling. They are especially suitable for holding castings and other components. Adjustment can be made by using the hex key in socket, and can be adjusted within the thread length. Use a DIN 439B hex nut for adjustment and securing.
