Gripping Pads - Diamond Serration
round - steel body - carbide tipped
35400 Grippers - Carbide Tipped
threaded bolt, material: Steel
Alternative products you may wish to consider

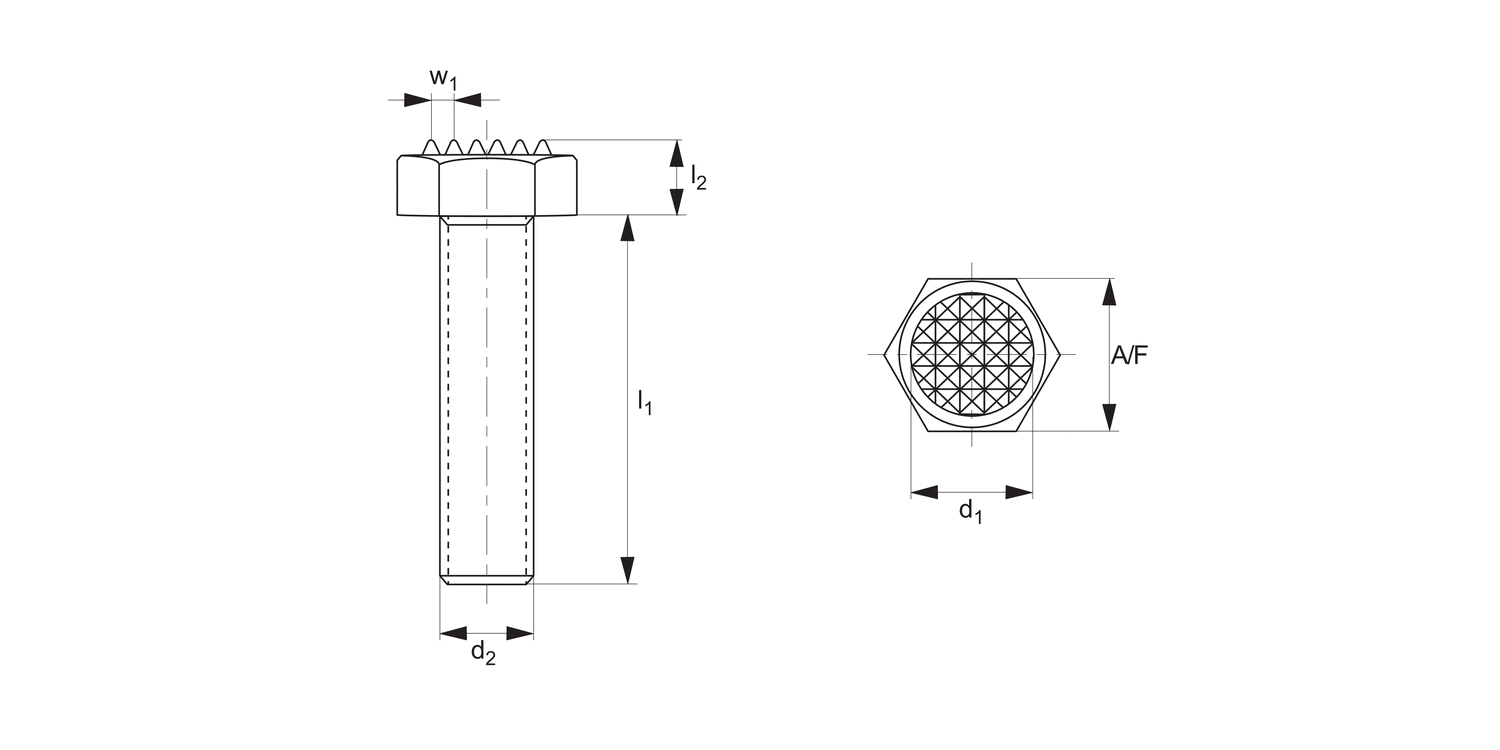

Tooth pattern
Ex-fine
d1
7.94
l1
12
l2
5.0
d2
M 6x1,00
w1
2,387x90°
A/F
10
£ 19.94 per unit (click for quantity discounts)
Tooth pattern
Ex-fine
d1
7.94
l1
25
l2
5.0
d2
M 6x1,00
w1
2,387x90°
A/F
10
£ 19.16 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
9.53
l1
12
l2
6.4
d2
M 8x1,25
w1
3,175x90°
A/F
13
£ 19.36 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
9.53
l1
25
l2
6.4
d2
M 8x1,25
w1
3,175x90°
A/F
13
£ 20.14 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
9.53
l1
35
l2
6.4
d2
M 8x1,25
w1
3,175x90°
A/F
13
£ 20.83 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
12.70
l1
12
l2
7.5
d2
M10x1,50
w1
3,175x90°
A/F
17
£ 24.88 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
12.70
l1
25
l2
7.5
d2
M10x1,50
w1
3,175x90°
A/F
17
£ 26.36 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
12.70
l1
40
l2
7.5
d2
M10x1,50
w1
3,175x90°
A/F
17
£ 26.36 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
15.88
l1
25
l2
8.7
d2
M12x1,75
w1
3,175x90°
A/F
19
£ 30.12 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
15.88
l1
40
l2
8.7
d2
M12x1,75
w1
3,175x90°
A/F
19
£ 31.93 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
19.05
l1
35
l2
11.0
d2
M16x2,00
w1
3,175x90°
A/F
24
£ 47.87 per unit (click for quantity discounts)
Tooth pattern
Fine
d1
19.05
l1
50
l2
11.0
d2
M16x2,00
w1
3,175x90°
A/F
24
£ 50.75 per unit (click for quantity discounts)
Tooth pattern
Ex-fine
d1
25.40
l1
40
l2
13.7
d2
M20x2,50
w1
2,387x90°
A/F
30
£ 69.05 per unit (click for quantity discounts)
Tooth pattern
Ex-fine
d1
25.40
l1
60
l2
13.7
d2
M20x2,50
w1
2,387x90°
A/F
30
£ 73.21 per unit (click for quantity discounts)
Tooth pattern
d1
l1
l2
d2
w1
A/F
| Price & Availability | Article | Tooth pattern | d1 | l1 | l2 | d2 | w1 | A/F | ||||||||||||||||||
| 35400.W0001 | Ex-fine | 7.94 | 12 | 5.0 | M 6x1,00 | 2,387x90° | 10 | |||||||||||||||||||
£ 19.94 per unit (click for quantity discounts) Ready to despatch 16 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Ex-fine d1 7.94 l1 12 l2 5.0 d2 M 6x1,00 w1 2,387x90° A/F 10 | ||||||||||||||||||||||||||
| 35400.W0002 | Ex-fine | 7.94 | 25 | 5.0 | M 6x1,00 | 2,387x90° | 10 | |||||||||||||||||||
£ 19.16 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Ex-fine d1 7.94 l1 25 l2 5.0 d2 M 6x1,00 w1 2,387x90° A/F 10 | ||||||||||||||||||||||||||
| 35400.W0003 | Fine | 9.53 | 12 | 6.4 | M 8x1,25 | 3,175x90° | 13 | |||||||||||||||||||
£ 19.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 9.53 l1 12 l2 6.4 d2 M 8x1,25 w1 3,175x90° A/F 13 | ||||||||||||||||||||||||||
| 35400.W0004 | Fine | 9.53 | 25 | 6.4 | M 8x1,25 | 3,175x90° | 13 | |||||||||||||||||||
£ 20.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 9.53 l1 25 l2 6.4 d2 M 8x1,25 w1 3,175x90° A/F 13 | ||||||||||||||||||||||||||
| 35400.W0005 | Fine | 9.53 | 35 | 6.4 | M 8x1,25 | 3,175x90° | 13 | |||||||||||||||||||
£ 20.83 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 9.53 l1 35 l2 6.4 d2 M 8x1,25 w1 3,175x90° A/F 13 | ||||||||||||||||||||||||||
| 35400.W0006 | Fine | 12.70 | 12 | 7.5 | M10x1,50 | 3,175x90° | 17 | |||||||||||||||||||
£ 24.88 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 12.70 l1 12 l2 7.5 d2 M10x1,50 w1 3,175x90° A/F 17 | ||||||||||||||||||||||||||
| 35400.W0007 | Fine | 12.70 | 25 | 7.5 | M10x1,50 | 3,175x90° | 17 | |||||||||||||||||||
£ 26.36 per unit (click for quantity discounts) Ready to despatch 43 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 12.70 l1 25 l2 7.5 d2 M10x1,50 w1 3,175x90° A/F 17 | ||||||||||||||||||||||||||
| 35400.W0008 | Fine | 12.70 | 40 | 7.5 | M10x1,50 | 3,175x90° | 17 | |||||||||||||||||||
£ 26.36 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 12.70 l1 40 l2 7.5 d2 M10x1,50 w1 3,175x90° A/F 17 | ||||||||||||||||||||||||||
| 35400.W0009 | Fine | 15.88 | 25 | 8.7 | M12x1,75 | 3,175x90° | 19 | |||||||||||||||||||
£ 30.12 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 15.88 l1 25 l2 8.7 d2 M12x1,75 w1 3,175x90° A/F 19 | ||||||||||||||||||||||||||
| 35400.W0010 | Fine | 15.88 | 40 | 8.7 | M12x1,75 | 3,175x90° | 19 | |||||||||||||||||||
£ 31.93 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 15.88 l1 40 l2 8.7 d2 M12x1,75 w1 3,175x90° A/F 19 | ||||||||||||||||||||||||||
| 35400.W0011 | Fine | 19.05 | 35 | 11.0 | M16x2,00 | 3,175x90° | 24 | |||||||||||||||||||
£ 47.87 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 19.05 l1 35 l2 11.0 d2 M16x2,00 w1 3,175x90° A/F 24 | ||||||||||||||||||||||||||
| 35400.W0012 | Fine | 19.05 | 50 | 11.0 | M16x2,00 | 3,175x90° | 24 | |||||||||||||||||||
£ 50.75 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Fine d1 19.05 l1 50 l2 11.0 d2 M16x2,00 w1 3,175x90° A/F 24 | ||||||||||||||||||||||||||
| 35400.W0013 | Ex-fine | 25.40 | 40 | 13.7 | M20x2,50 | 2,387x90° | 30 | |||||||||||||||||||
£ 69.05 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Ex-fine d1 25.40 l1 40 l2 13.7 d2 M20x2,50 w1 2,387x90° A/F 30 | ||||||||||||||||||||||||||
| 35400.W0014 | Ex-fine | 25.40 | 60 | 13.7 | M20x2,50 | 2,387x90° | 30 | |||||||||||||||||||
£ 73.21 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Tooth pattern Ex-fine d1 25.40 l1 60 l2 13.7 d2 M20x2,50 w1 2,387x90° A/F 30 | ||||||||||||||||||||||||||
Technical & Application
Material
Hex headed steel bolt with solid carbide tipped insert.
Technical Notes
Adjustable carbide tipped grippers are used in jigs and fixtures, modular fixtures and tooling. They are especially suitable for holding castings and other components. Adjustment can be made within the thread length. Use a DIN 439B hex. nut for adjustment and securing.
