Quick Plug Couplings
radial offset type

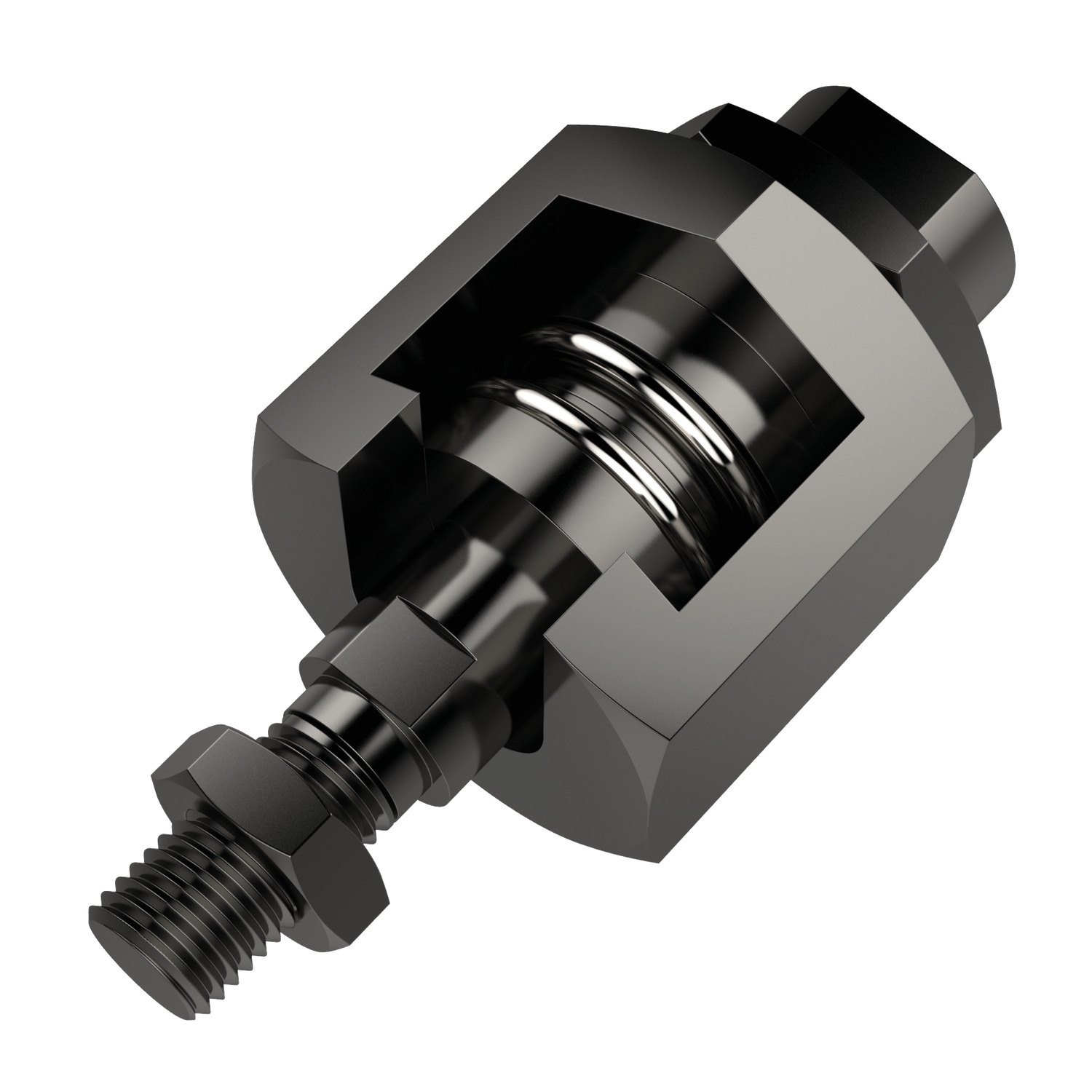

64700 Quick Plug Couplings
with angular radial offset compensation, material: Heat treated steel
Order No.
64700.W0416
d1
M16
d2
60.0
d3
32.0
l1
≈
121
l2
34
l3
26.0
Weight
g
1127
l4
min.
34
l5
62
l6
45.0
Radial offset compensation
max.
1.0
Tensile load
max.
kN
18.0
A/F1
55
A/F2
46
A/F3
27
A/F4
18
£ 165.30 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-2 | £ 165.30 | 0% |
| 3-4 | £ 148.77 | 10% |
| 5-9 | £ 140.51 | 15% |
| 10-19 | £ 132.24 | 20% |
| 20+ | £ 123.98 | 25% |
Technical & Application
Material
Body: steel, heat-treated, tempered, phosphated.
Nut: steel, heat-treated, phosphated.
Spring: stainless steel.
Coupling part: steel, heat-treated, nitrided, blackened.
Lock nut: steel, blackened (ISO 4035/8675).
Technical Notes
Compensates for both radial off-set and angular off-set between the components, making it ideal for applications with non-aligned linear components. Inbuilt adjustment feature of the quick plug coupling means manual adjustment of the coupled units is unnecessary. Coupling via means of a t-slot channel within the coupling nut.
Tips
Solid and compact design, no loose elements. Can be linked to pneumatic and hydraulic lifting cylinders in many different applications.
Important note: suitable for linear movement applications, does not transmit any torque.
