Quick Plug Couplings
radial offset type

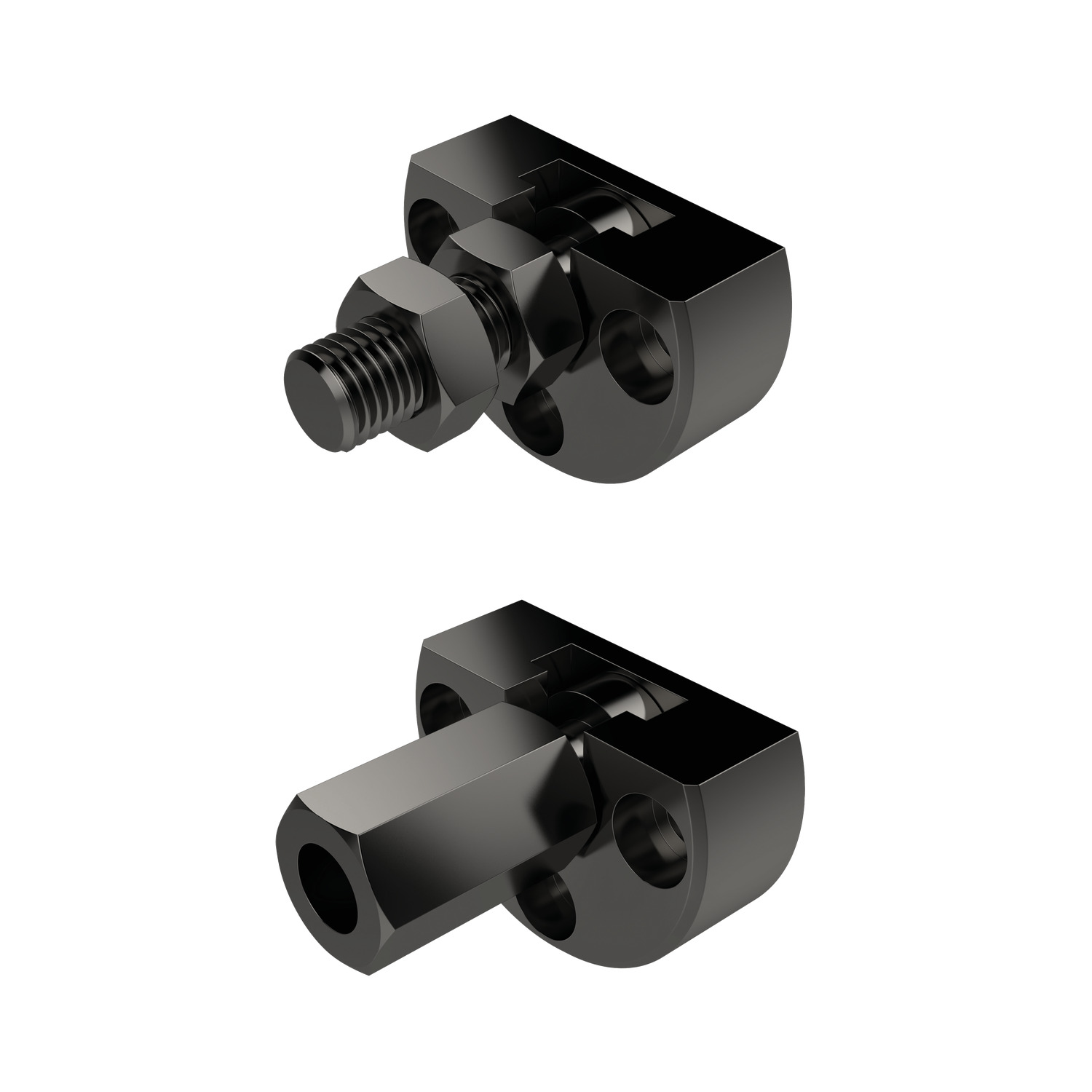

64600 Quick Plug Couplings
with radial offset compensation and screwed flange, material: Heat treated steel
Alternative products you may wish to consider

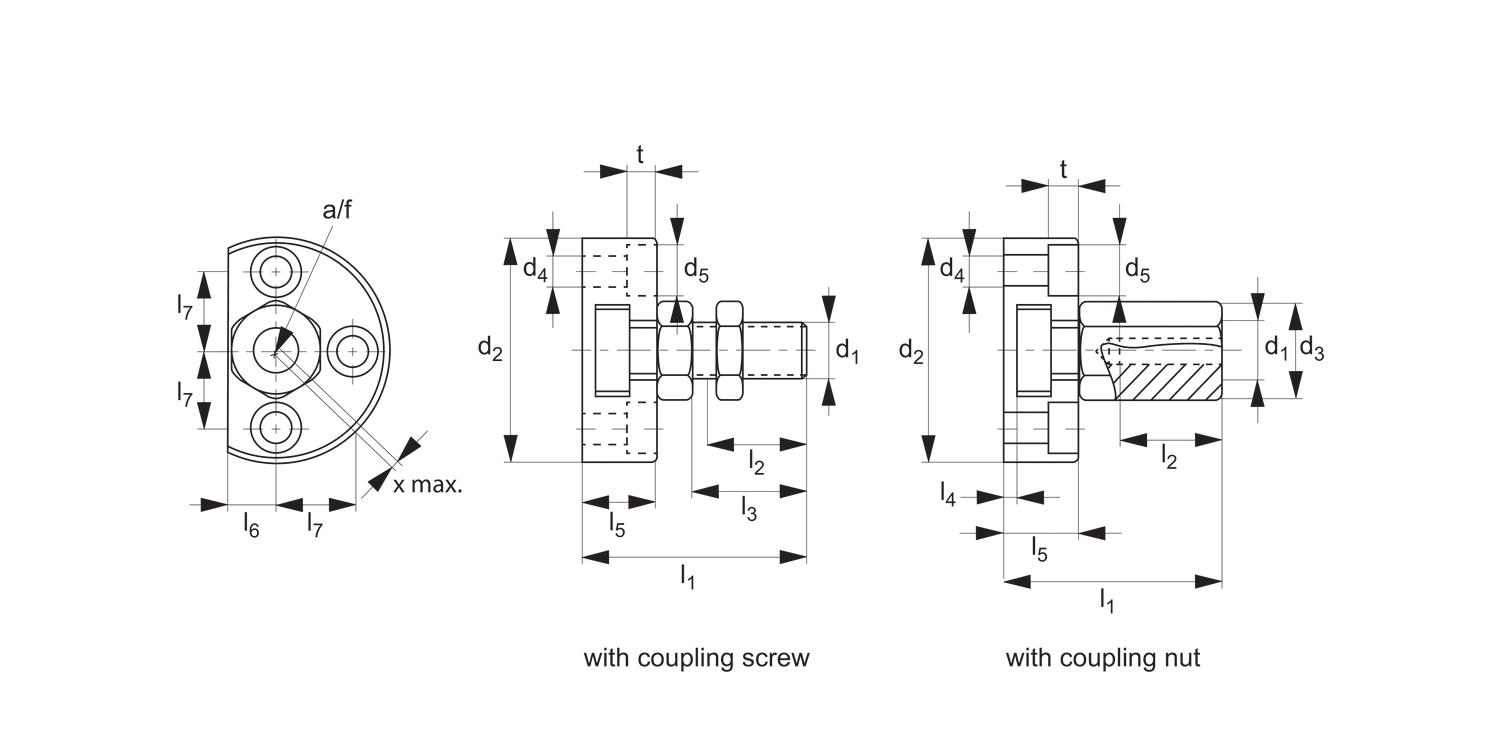

Coupling Type
d1
d2
d3
d4
d5
| Price & Availability | Article | Coupling Type | d1 | d2 | d3 | d4 | d5 | ||||||||||||||||||
| 64600.W0206 | Screw | M_6 | 42 | - | 5.5 | 10 | |||||||||||||||||||
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M_6 d2 42 d3 - d4 5.5 d5 10 | |||||||||||||||||||||||||
| 64600.W0208 | Screw | M_8 | 48 | - | 6.6 | 11 | |||||||||||||||||||
£ 63.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M_8 d2 48 d3 - d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0210 | Screw | M10 | 50 | - | 6.6 | 11 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M10 d2 50 d3 - d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0212 | Screw | M12 | 55 | - | 6.6 | 11 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M12 d2 55 d3 - d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0216 | Screw | M16 | 65 | - | 9.0 | 15 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M16 d2 65 d3 - d4 9.0 d5 15 | |||||||||||||||||||||||||
| 64600.W0220 | Screw | M20 | 80 | - | 11.0 | 18 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M20 d2 80 d3 - d4 11.0 d5 18 | |||||||||||||||||||||||||
| 64600.W0230 | Screw | M10x1,25 | 50 | - | 6.6 | 11 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M10x1,25 d2 50 d3 - d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0232 | Screw | M12x1,25 | 55 | - | 6.6 | 11 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M12x1,25 d2 55 d3 - d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0236 | Screw | M16x1,50 | 65 | - | 9.0 | 15 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M16x1,50 d2 65 d3 - d4 9.0 d5 15 | |||||||||||||||||||||||||
| 64600.W0240 | Screw | M20x1,50 | 80 | - | 11.0 | 18 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Screw d1 M20x1,50 d2 80 d3 - d4 11.0 d5 18 | |||||||||||||||||||||||||
| 64600.W0256 | Nut | M_6 | 42 | 11.0 | 5.5 | 10 | |||||||||||||||||||
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M_6 d2 42 d3 11.0 d4 5.5 d5 10 | |||||||||||||||||||||||||
| 64600.W0258 | Nut | M_8 | 48 | 14.4 | 6.6 | 11 | |||||||||||||||||||
£ 63.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M_8 d2 48 d3 14.4 d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0260 | Nut | M10 | 50 | 19.0 | 6.6 | 11 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 41 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M10 d2 50 d3 19.0 d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0262 | Nut | M12 | 55 | 21.2 | 6.6 | 11 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M12 d2 55 d3 21.2 d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0266 | Nut | M16 | 65 | 27.0 | 9.0 | 15 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M16 d2 65 d3 27.0 d4 9.0 d5 15 | |||||||||||||||||||||||||
| 64600.W0270 | Nut | M20 | 80 | 34.0 | 11.0 | 18 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M20 d2 80 d3 34.0 d4 11.0 d5 18 | |||||||||||||||||||||||||
| 64600.W0280 | Nut | M10x1,25 | 50 | 19.0 | 6.6 | 11 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M10x1,25 d2 50 d3 19.0 d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0282 | Nut | M12x1,25 | 55 | 21.2 | 6.6 | 11 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M12x1,25 d2 55 d3 21.2 d4 6.6 d5 11 | |||||||||||||||||||||||||
| 64600.W0286 | Nut | M16x1,50 | 65 | 27.0 | 9.0 | 15 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M16x1,50 d2 65 d3 27.0 d4 9.0 d5 15 | |||||||||||||||||||||||||
| 64600.W0290 | Nut | M20x1,50 | 80 | 34.0 | 11.0 | 18 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Coupling Type Nut d1 M20x1,50 d2 80 d3 34.0 d4 11.0 d5 18 | |||||||||||||||||||||||||
Weight
g
l1
≈
l2
min.
l3
l4
l5
l6
l7
A/F
t
Axial offset x
max.
kN
max.
kN
| Price & Availability | Article | Weight g | l1 ≈ | l2 min. | l3 | l4 | l5 | l6 | l7 | A/F | t | Axial offset x max. | kN max. kN | ||||||||||||||||||
| 64600.W0206 | 75 | 30.5 | 11.0 | 14 | 3.0 | 11.0 | 7.0 | 14.0 | 10 | 5.4 | 0.6 | 2.5 | |||||||||||||||||||
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 75 l1
≈ 30.5 l2
min. 11.0 l3 14 l4 3.0 l5 11.0 l6 7.0 l7 14.0 A/F 10 t 5.4 Axial offset x
max. 0.6 kN
max.
kN 2.5 | |||||||||||||||||||||||||||||||
| 64600.W0208 | 116 | 35.5 | 13.5 | 17 | 3.0 | 13.0 | 8.0 | 16.0 | 13 | 6.4 | 0.7 | 4.5 | |||||||||||||||||||
£ 63.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 116 l1
≈ 35.5 l2
min. 13.5 l3 17 l4 3.0 l5 13.0 l6 8.0 l7 16.0 A/F 13 t 6.4 Axial offset x
max. 0.7 kN
max.
kN 4.5 | |||||||||||||||||||||||||||||||
| 64600.W0210 | 175 | 43.2 | 16.0 | 20 | 4.2 | 16.0 | 9.0 | 17.0 | 17 | 6.4 | 0.7 | 6.5 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 175 l1
≈ 43.2 l2
min. 16.0 l3 20 l4 4.2 l5 16.0 l6 9.0 l7 17.0 A/F 17 t 6.4 Axial offset x
max. 0.7 kN
max.
kN 6.5 | |||||||||||||||||||||||||||||||
| 64600.W0212 | 281 | 53.2 | 21.0 | 25 | 4.2 | 20.5 | 10.0 | 19.0 | 19 | 6.4 | 0.8 | 10.0 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 281 l1
≈ 53.2 l2
min. 21.0 l3 25 l4 4.2 l5 20.5 l6 10.0 l7 19.0 A/F 19 t 6.4 Axial offset x
max. 0.8 kN
max.
kN 10.0 | |||||||||||||||||||||||||||||||
| 64600.W0216 | 458 | 64.0 | 25.0 | 30 | 5.0 | 23.0 | 12.5 | 22.5 | 24 | 8.5 | 1.0 | 18.0 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 458 l1
≈ 64.0 l2
min. 25.0 l3 30 l4 5.0 l5 23.0 l6 12.5 l7 22.5 A/F 24 t 8.5 Axial offset x
max. 1.0 kN
max.
kN 18.0 | |||||||||||||||||||||||||||||||
| 64600.W0220 | 817 | 74.0 | 29.0 | 35 | 5.0 | 26.0 | 17.0 | 28.0 | 30 | 10.4 | 1.0 | 30.0 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 817 l1
≈ 74.0 l2
min. 29.0 l3 35 l4 5.0 l5 26.0 l6 17.0 l7 28.0 A/F 30 t 10.4 Axial offset x
max. 1.0 kN
max.
kN 30.0 | |||||||||||||||||||||||||||||||
| 64600.W0230 | 176 | 43.2 | 16.0 | 20 | 4.2 | 16.0 | 9.0 | 17.0 | 17 | 6.4 | 0.7 | 6.5 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 176 l1
≈ 43.2 l2
min. 16.0 l3 20 l4 4.2 l5 16.0 l6 9.0 l7 17.0 A/F 17 t 6.4 Axial offset x
max. 0.7 kN
max.
kN 6.5 | |||||||||||||||||||||||||||||||
| 64600.W0232 | 280 | 53.2 | 21.0 | 25 | 4.2 | 20.5 | 10.0 | 19.0 | 19 | 6.4 | 0.8 | 10.0 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 280 l1
≈ 53.2 l2
min. 21.0 l3 25 l4 4.2 l5 20.5 l6 10.0 l7 19.0 A/F 19 t 6.4 Axial offset x
max. 0.8 kN
max.
kN 10.0 | |||||||||||||||||||||||||||||||
| 64600.W0236 | 454 | 64.0 | 25.0 | 30 | 5.0 | 23.0 | 12.5 | 22.5 | 24 | 8.5 | 1.0 | 18.0 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 454 l1
≈ 64.0 l2
min. 25.0 l3 30 l4 5.0 l5 23.0 l6 12.5 l7 22.5 A/F 24 t 8.5 Axial offset x
max. 1.0 kN
max.
kN 18.0 | |||||||||||||||||||||||||||||||
| 64600.W0240 | 850 | 74.0 | 29.0 | 35 | 5.0 | 26.0 | 17.0 | 28.0 | 30 | 10.0 | 1.0 | 30.0 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 850 l1
≈ 74.0 l2
min. 29.0 l3 35 l4 5.0 l5 26.0 l6 17.0 l7 28.0 A/F 30 t 10.0 Axial offset x
max. 1.0 kN
max.
kN 30.0 | |||||||||||||||||||||||||||||||
| 64600.W0256 | 77 | 30.5 | 11.0 | - | 3.0 | 11.0 | 7.0 | 14.0 | 10 | 5.4 | 0.6 | 2.5 | |||||||||||||||||||
£ 52.63 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 77 l1
≈ 30.5 l2
min. 11.0 l3 - l4 3.0 l5 11.0 l6 7.0 l7 14.0 A/F 10 t 5.4 Axial offset x
max. 0.6 kN
max.
kN 2.5 | |||||||||||||||||||||||||||||||
| 64600.W0258 | 123 | 35.5 | 13.5 | - | 3.0 | 13.0 | 8.0 | 16.0 | 13 | 6.4 | 0.7 | 4.5 | |||||||||||||||||||
£ 63.42 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 123 l1
≈ 35.5 l2
min. 13.5 l3 - l4 3.0 l5 13.0 l6 8.0 l7 16.0 A/F 13 t 6.4 Axial offset x
max. 0.7 kN
max.
kN 4.5 | |||||||||||||||||||||||||||||||
| 64600.W0260 | 187 | 43.2 | 15.0 | - | 4.2 | 16.0 | 9.0 | 17.0 | 17 | 6.4 | 0.7 | 6.5 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 41 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 187 l1
≈ 43.2 l2
min. 15.0 l3 - l4 4.2 l5 16.0 l6 9.0 l7 17.0 A/F 17 t 6.4 Axial offset x
max. 0.7 kN
max.
kN 6.5 | |||||||||||||||||||||||||||||||
| 64600.W0262 | 295 | 53.2 | 17.5 | - | 4.2 | 20.5 | 10.0 | 19.0 | 19 | 6.4 | 0.8 | 10.0 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 295 l1
≈ 53.2 l2
min. 17.5 l3 - l4 4.2 l5 20.5 l6 10.0 l7 19.0 A/F 19 t 6.4 Axial offset x
max. 0.8 kN
max.
kN 10.0 | |||||||||||||||||||||||||||||||
| 64600.W0266 | 472 | 64.0 | 22.0 | - | 5.0 | 23.0 | 12.5 | 22.5 | 24 | 8.5 | 1.0 | 18.0 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 472 l1
≈ 64.0 l2
min. 22.0 l3 - l4 5.0 l5 23.0 l6 12.5 l7 22.5 A/F 24 t 8.5 Axial offset x
max. 1.0 kN
max.
kN 18.0 | |||||||||||||||||||||||||||||||
| 64600.W0270 | 849 | 74.0 | 25.0 | - | 5.0 | 26.0 | 17.0 | 28.0 | 30 | 10.0 | 1.0 | 30.0 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 849 l1
≈ 74.0 l2
min. 25.0 l3 - l4 5.0 l5 26.0 l6 17.0 l7 28.0 A/F 30 t 10.0 Axial offset x
max. 1.0 kN
max.
kN 30.0 | |||||||||||||||||||||||||||||||
| 64600.W0280 | 187 | 43.2 | 15.0 | - | 4.2 | 16.0 | 9.0 | 17.0 | 17 | 6.4 | 0.7 | 6.5 | |||||||||||||||||||
£ 67.29 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 187 l1
≈ 43.2 l2
min. 15.0 l3 - l4 4.2 l5 16.0 l6 9.0 l7 17.0 A/F 17 t 6.4 Axial offset x
max. 0.7 kN
max.
kN 6.5 | |||||||||||||||||||||||||||||||
| 64600.W0282 | 298 | 53.2 | 17.5 | - | 4.2 | 20.5 | 10.0 | 19.0 | 19 | 6.4 | 0.8 | 10.0 | |||||||||||||||||||
£ 79.24 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 298 l1
≈ 53.2 l2
min. 17.5 l3 - l4 4.2 l5 20.5 l6 10.0 l7 19.0 A/F 19 t 6.4 Axial offset x
max. 0.8 kN
max.
kN 10.0 | |||||||||||||||||||||||||||||||
| 64600.W0286 | 477 | 64.0 | 22.0 | - | 5.0 | 23.0 | 12.5 | 22.5 | 24 | 8.5 | 1.0 | 18.0 | |||||||||||||||||||
£ 96.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 477 l1
≈ 64.0 l2
min. 22.0 l3 - l4 5.0 l5 23.0 l6 12.5 l7 22.5 A/F 24 t 8.5 Axial offset x
max. 1.0 kN
max.
kN 18.0 | |||||||||||||||||||||||||||||||
| 64600.W0290 | 852 | 74.0 | 25.0 | - | 5.0 | 26.0 | 17.0 | 28.0 | 30 | 10.0 | 1.0 | 30.0 | |||||||||||||||||||
£ 126.00 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Weight
g 852 l1
≈ 74.0 l2
min. 25.0 l3 - l4 5.0 l5 26.0 l6 17.0 l7 28.0 A/F 30 t 10.0 Axial offset x
max. 1.0 kN
max.
kN 30.0 | |||||||||||||||||||||||||||||||
Technical & Application
Material
Body: steel, heat-treated, tempered, phosphated.
Lock nut: steel, blackened (ISO 4035/8675).
Technical Notes

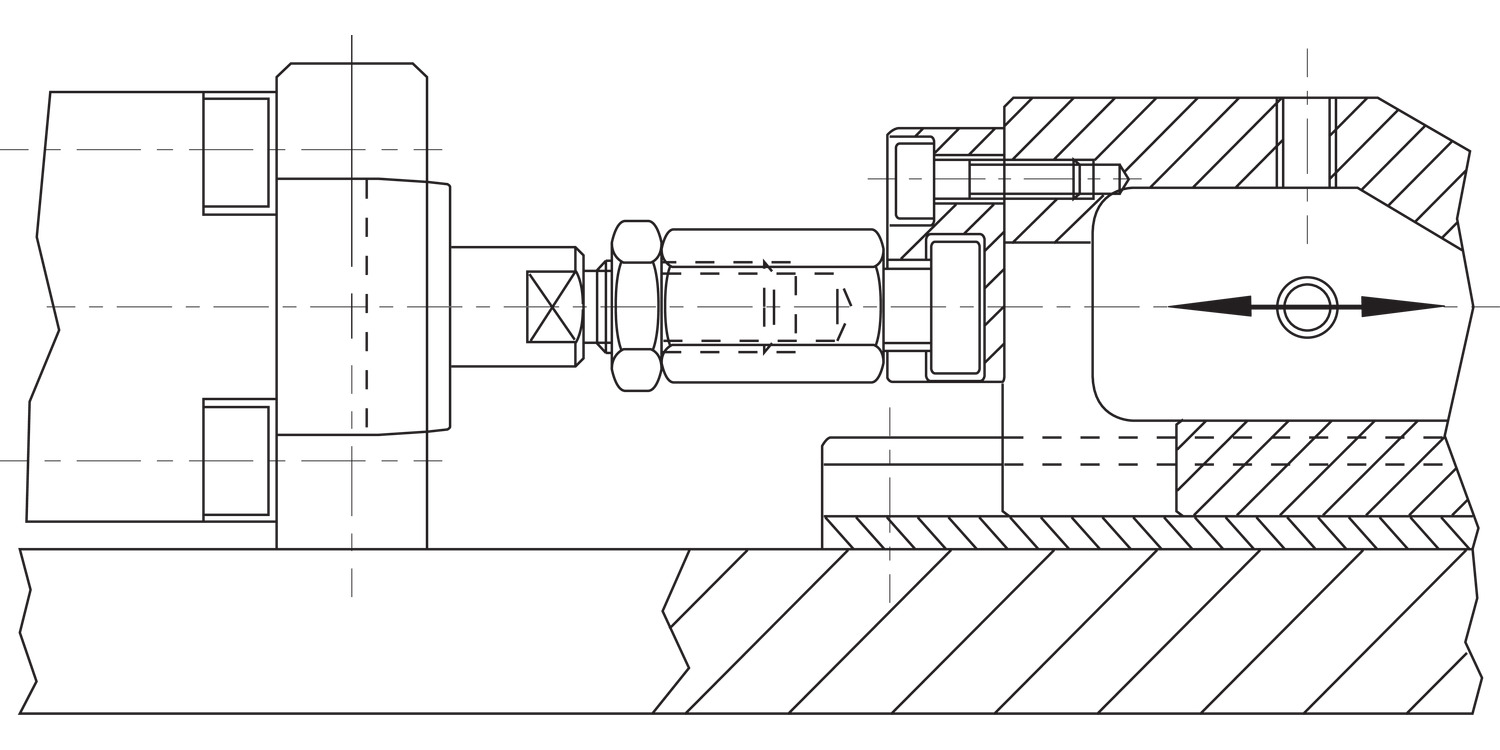

For quick coupling/uncoupling of components within a linear movement application, with the additional advantage of compensating for radial off-set between the components. In built adjustment feature of the quick plug coupling means manual adjustment of the coupled units is unnecessary. Coupling via means of a t-slot channel within the coupling nut.
*kN max is the maximum tensile and compression load.
Tips
Ideal quick coupler where space is limited. Can be linked to pneumatic and hydraulic lifting cylinders in many different applications.
Important note: suitable for linear movement applications, does not transmit any torque.
Product Datasheets
CAD files
Application images
