32680 Index Plungers - Pull Grip

compact - non-locking, material: Free cutting steel or stainless steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Index Plunger
simple, with grip

Index Plunger
with release lock

Index Plunger
with rapid locking head

Index Plunger S/S
simple, with grip

Index Plunger- Compact
hex. collar - w/o, s/s

Index Plunger- Compact
hex. collar - w/o, s/s

Index Plunger- Compact
hex. collar - locking, s/s

Index Plunger
hex. collar - w/o locking, s/s

All Stainless
index plunger s/s

Index Plunger
hex. collar - with locking, s/s

All Stainless
index plunger - locking s/s

Index Plunger
w/o hex. collar - s/s

All S/S Index Plunger
w/o hex. collar

Index Plungers - Pull Grip Steel - With Grip - 4 - 4

32680.W0103

Type

No Lock

Material

Steel

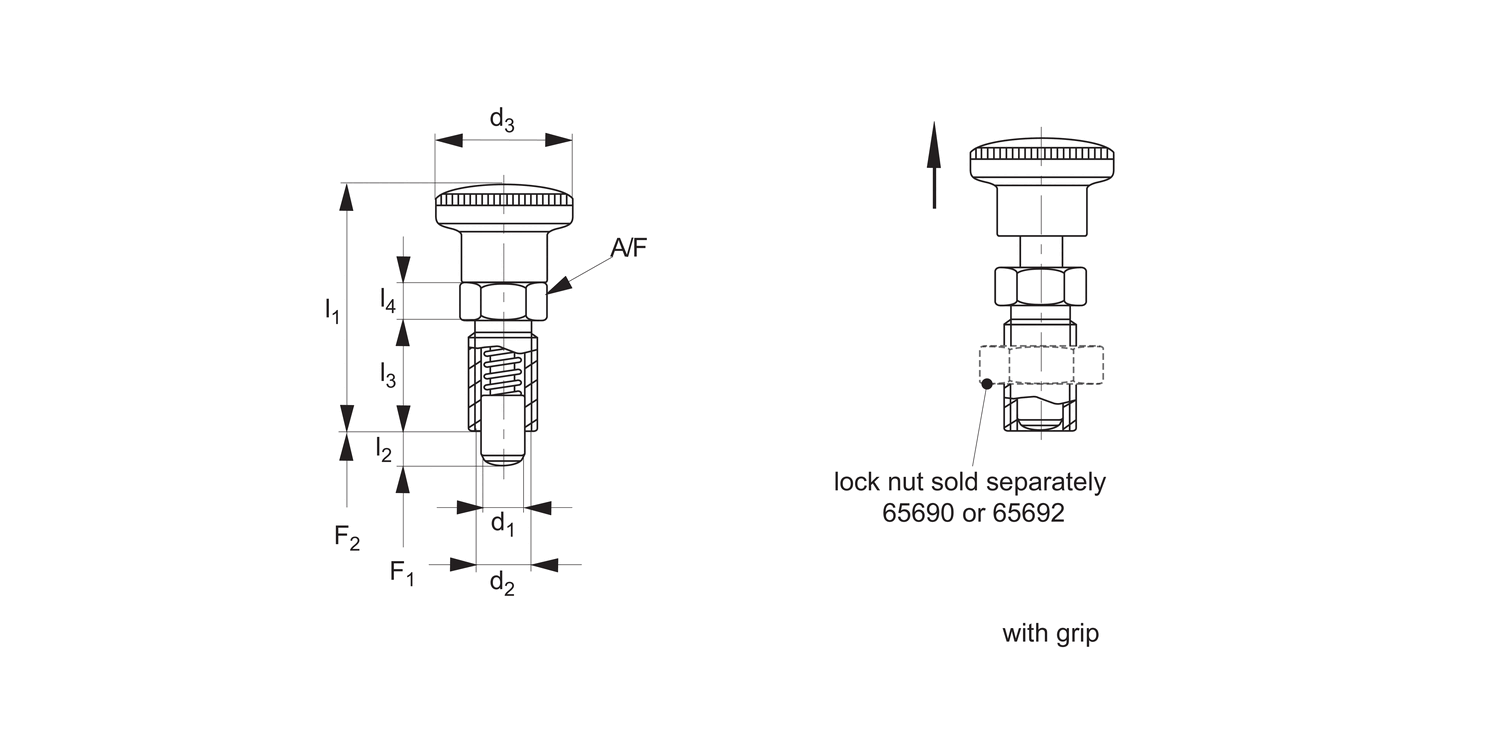

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

10

£ 12.90 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 4 - 6

32680.W0104

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

10

£ 12.34 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 5 - 5

32680.W0106

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.5

Weight g

18

£ 13.05 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 5 - 8

32680.W0107

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

18

£ 13.64 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 6 - 6

32680.W0109

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

29

£ 14.84 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 6 - 9

32680.W0110

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

29

£ 14.20 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 8 - 8

32680.W0112

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

62

£ 19.76 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 8 - 12

32680.W0113

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

62

£ 19.76 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 10 - 12

32680.W0115

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

63

£ 19.76 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 12 - 15

32680.W0116

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67.0

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

117

£ 26.33 per unit (click for quantity discounts)

Index Plungers - Pull Grip

32680.W0117

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

16

d₂

M24x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13.0

Spring load F₂ ≈ N

54.0

Weight g

204

£ 33.20 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 4 - 4

32680.W0203

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

10

£ 20.03 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 4 - 6

32680.W0204

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

10

£ 19.84 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 5 - 5

32680.W0206

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.5

Weight g

18

£ 21.98 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 5 - 8

32680.W0207

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

18

£ 21.98 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 6 - 6

32680.W0209

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

29

£ 24.49 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 6 - 9

32680.W0210

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

29

£ 25.59 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 8 - 8

32680.W0212

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

62

£ 34.59 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 8 - 12

32680.W0213

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

62

£ 33.10 per unit (click for quantity discounts)

aIndex Plungers - Pull Grip Stainless - With Grip - 10 - 12

32680.W0215

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

63

£ 34.59 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 12 - 15

32680.W0216

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67.0

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

117

£ 46.18 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 16 - 20

32680.W0217

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

16

d₂

M24x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13

Spring load F₂ ≈ N

54

Weight g

204

Index Plungers - Pull Grip Steel - With Grip - 4 - 4

32680.W0103

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

10

£ 12.90 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 4 - 6

32680.W0104

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

10

£ 12.34 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 5 - 5

32680.W0106

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.5

Weight g

18

£ 13.05 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 5 - 8

32680.W0107

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

18

£ 13.64 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 6 - 6

32680.W0109

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

29

£ 14.84 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 6 - 9

32680.W0110

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

29

£ 14.20 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 8 - 8

32680.W0112

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

62

£ 19.76 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 8 - 12

32680.W0113

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

62

£ 19.76 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 10 - 12

32680.W0115

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

63

£ 19.76 per unit (click for quantity discounts)

Index Plungers - Pull Grip Steel - With Grip - 12 - 15

32680.W0116

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67.0

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

117

£ 26.33 per unit (click for quantity discounts)

Index Plungers - Pull Grip

32680.W0117

Type

No Lock

Material

Steel

d₁ -0.02|-0.04

16

d₂

M24x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13.0

Spring load F₂ ≈ N

54.0

Weight g

204

£ 33.20 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 4 - 4

32680.W0203

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

10

£ 20.03 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 4 - 6

32680.W0204

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35.0

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

10

£ 19.84 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 5 - 5

32680.W0206

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.5

Weight g

18

£ 21.98 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 5 - 8

32680.W0207

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40.0

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

18

£ 21.98 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 6 - 6

32680.W0209

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

29

£ 24.49 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 6 - 9

32680.W0210

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48.0

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

29

£ 25.59 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 8 - 8

32680.W0212

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

62

£ 34.59 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 8 - 12

32680.W0213

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

62

£ 33.10 per unit (click for quantity discounts)

aIndex Plungers - Pull Grip Stainless - With Grip - 10 - 12

32680.W0215

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58.0

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

63

£ 34.59 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 12 - 15

32680.W0216

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67.0

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

117

£ 46.18 per unit (click for quantity discounts)

Index Plungers - Pull Grip Stainless - With Grip - 16 - 20

32680.W0217

Type

No Lock

Material

Stainless

d₁ -0.02|-0.04

16

d₂

M24x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13

Spring load F₂ ≈ N

54

Weight g

204



Select all

Type

Material

d₁ -0.02|-0.04

d₂

d₃

l₁

l₂ min.

l₃

l₄

A/F

Spring load F₁ ≈ N

Spring load F₂ ≈ N

Weight g

Price & Availability	Article	Type	Material	d1 -0.02|-0.04	d2	d3	l1	l2 min.	l3	l4	A/F	Spring load F1 ≈ N	Spring load F2 ≈ N	Weight g
	32680.W0103	No Lock	Steel	4	M 8x1,0	16	35.0	4	16	5	10	4.5	12.0	10
£ 12.90 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 12.90 0% 5-9 £ 11.61 10% 10-19 £ 10.97 15% 20-49 £ 9.68 25% 50+ £ 8.39 35% Type No Lock Material Steel d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35.0 l2 min. 4 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.5 Spring load F2 ≈ N 12.0 Weight g 10 more info »
	32680.W0104	No Lock	Steel	4	M 8x1,0	16	35.0	6	16	5	10	4.0	12.5	10
£ 12.34 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 12.34 0% 5-9 £ 11.11 10% 10-19 £ 10.49 15% 20-49 £ 9.26 25% 50+ £ 8.02 35% Type No Lock Material Steel d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35.0 l2 min. 6 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.0 Spring load F2 ≈ N 12.5 Weight g 10 more info »
	32680.W0106	No Lock	Steel	5	M10x1,0	19	40.0	5	18	6	12	5.0	15.5	18
£ 13.05 per unit (click for quantity discounts) Ready to despatch 20 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 13.05 0% 5-9 £ 11.75 10% 10-19 £ 11.09 15% 20-49 £ 9.79 25% 50+ £ 8.48 35% Type No Lock Material Steel d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40.0 l2 min. 5 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 15.5 Weight g 18 more info »
	32680.W0107	No Lock	Steel	5	M10x1,0	19	40.0	8	18	6	12	5.0	18.0	18
£ 13.64 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 13.64 0% 5-9 £ 12.28 10% 10-19 £ 11.59 15% 20-49 £ 10.23 25% 50+ £ 8.87 35% Type No Lock Material Steel d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40.0 l2 min. 8 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 18.0 Weight g 18 more info »
	32680.W0109	No Lock	Steel	6	M12x1,5	23	48.0	6	22	6	14	6.5	19.0	29
£ 14.84 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 14.84 0% 5-9 £ 13.36 10% 10-19 £ 12.61 15% 20-49 £ 11.13 25% 50+ £ 9.65 35% Type No Lock Material Steel d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48.0 l2 min. 6 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.5 Spring load F2 ≈ N 19.0 Weight g 29 more info »
	32680.W0110	No Lock	Steel	6	M12x1,5	23	48.0	9	22	6	14	6.0	25.0	29
£ 14.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 14.20 0% 5-9 £ 12.78 10% 10-19 £ 12.07 15% 20-49 £ 10.65 25% 50+ £ 9.23 35% Type No Lock Material Steel d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48.0 l2 min. 9 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.0 Spring load F2 ≈ N 25.0 Weight g 29 more info »
	32680.W0112	No Lock	Steel	8	M16x1,5	28	58.0	8	26	8	17	8.5	26.0	62
£ 19.76 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.76 0% 5-9 £ 17.78 10% 10-19 £ 16.80 15% 20-49 £ 14.82 25% 50+ £ 12.84 35% Type No Lock Material Steel d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58.0 l2 min. 8 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 26.0 Weight g 62 more info »
	32680.W0113	No Lock	Steel	8	M16x1,5	28	58.0	12	26	8	17	8.5	28.0	62
£ 19.76 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.76 0% 5-9 £ 17.78 10% 10-19 £ 16.80 15% 20-49 £ 14.82 25% 50+ £ 12.84 35% Type No Lock Material Steel d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58.0 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 28.0 Weight g 62 more info »
	32680.W0115	No Lock	Steel	10	M16x1,5	28	58.0	12	26	8	17	9.5	38.0	63
£ 19.76 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.76 0% 5-9 £ 17.78 10% 10-19 £ 16.80 15% 20-49 £ 14.82 25% 50+ £ 12.84 35% Type No Lock Material Steel d1 -0.02|-0.04 10 d2 M16x1,5 d3 28 l1 58.0 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 9.5 Spring load F2 ≈ N 38.0 Weight g 63 more info »
	32680.W0116	No Lock	Steel	12	M20x1,5	33	67.0	15	33	10	22	11.5	40.0	117
£ 26.33 per unit (click for quantity discounts) Ready to despatch 119 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 26.33 0% 5-9 £ 23.70 10% 10-19 £ 22.38 15% 20-49 £ 19.75 25% 50+ £ 17.11 35% Type No Lock Material Steel d1 -0.02|-0.04 12 d2 M20x1,5 d3 33 l1 67.0 l2 min. 15 l3 33 l4 10 A/F 22 Spring load F1 ≈ N 11.5 Spring load F2 ≈ N 40.0 Weight g 117 more info »
	32680.W0117	No Lock	Steel	16	M24x 2	33	78.5	20	38	12	27	13.0	54.0	204
£ 33.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 33.20 0% 5-9 £ 29.88 10% 10-19 £ 28.22 15% 20-49 £ 24.90 25% 50+ £ 21.58 35% Type No Lock Material Steel d1 -0.02|-0.04 16 d2 M24x 2 d3 33 l1 78.5 l2 min. 20 l3 38 l4 12 A/F 27 Spring load F1 ≈ N 13.0 Spring load F2 ≈ N 54.0 Weight g 204 more info »
	32680.W0203	No Lock	Stainless	4	M 8x1,0	16	35.0	4	16	5	10	4.5	12.0	10
£ 20.03 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 20.03 0% 5-9 £ 18.03 10% 10-19 £ 17.03 15% 20-49 £ 15.02 25% 50+ £ 13.02 35% Type No Lock Material Stainless d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35.0 l2 min. 4 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.5 Spring load F2 ≈ N 12.0 Weight g 10 more info »
	32680.W0204	No Lock	Stainless	4	M 8x1,0	16	35.0	6	16	5	10	4.0	12.5	10
£ 19.84 per unit (click for quantity discounts) Ready to despatch 5 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 19.84 0% 5-9 £ 17.86 10% 10-19 £ 16.86 15% 20-49 £ 14.88 25% 50+ £ 12.90 35% Type No Lock Material Stainless d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35.0 l2 min. 6 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.0 Spring load F2 ≈ N 12.5 Weight g 10 more info »
	32680.W0206	No Lock	Stainless	5	M10x1,0	19	40.0	5	18	6	12	5.0	15.5	18
£ 21.98 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 21.98 0% 5-9 £ 19.78 10% 10-19 £ 18.68 15% 20-49 £ 16.49 25% 50+ £ 14.29 35% Type No Lock Material Stainless d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40.0 l2 min. 5 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 15.5 Weight g 18 more info »
	32680.W0207	No Lock	Stainless	5	M10x1,0	19	40.0	8	18	6	12	5.0	18.0	18
£ 21.98 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 21.98 0% 5-9 £ 19.78 10% 10-19 £ 18.68 15% 20-49 £ 16.49 25% 50+ £ 14.29 35% Type No Lock Material Stainless d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40.0 l2 min. 8 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 18.0 Weight g 18 more info »
	32680.W0209	No Lock	Stainless	6	M12x1,5	23	48.0	6	22	6	14	6.5	19.0	29
£ 24.49 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 24.49 0% 5-9 £ 22.04 10% 10-19 £ 20.82 15% 20-49 £ 18.37 25% 50+ £ 15.92 35% Type No Lock Material Stainless d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48.0 l2 min. 6 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.5 Spring load F2 ≈ N 19.0 Weight g 29 more info »
	32680.W0210	No Lock	Stainless	6	M12x1,5	23	48.0	9	22	6	14	6.0	25.0	29
£ 25.59 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 25.59 0% 5-9 £ 23.03 10% 10-19 £ 21.75 15% 20-49 £ 19.19 25% 50+ £ 16.63 35% Type No Lock Material Stainless d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48.0 l2 min. 9 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.0 Spring load F2 ≈ N 25.0 Weight g 29 more info »
	32680.W0212	No Lock	Stainless	8	M16x1,5	28	58.0	8	26	8	17	8.5	26.0	62
£ 34.59 per unit (click for quantity discounts) Ready to despatch 10 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 34.59 0% 5-9 £ 31.13 10% 10-19 £ 29.40 15% 20-49 £ 25.94 25% 50+ £ 22.48 35% Type No Lock Material Stainless d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58.0 l2 min. 8 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 26.0 Weight g 62 more info »
	32680.W0213	No Lock	Stainless	8	M16x1,5	28	58.0	12	26	8	17	8.5	28.0	62
£ 33.10 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 33.10 0% 5-9 £ 29.79 10% 10-19 £ 28.14 15% 20-49 £ 24.83 25% 50+ £ 21.52 35% Type No Lock Material Stainless d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58.0 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 28.0 Weight g 62 more info »
	32680.W0215	No Lock	Stainless	10	M16x1,5	28	58.0	12	26	8	17	9.5	38.0	63
£ 34.59 per unit (click for quantity discounts) Ready to despatch 2 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 34.59 0% 5-9 £ 31.13 10% 10-19 £ 29.40 15% 20-49 £ 25.94 25% 50+ £ 22.48 35% Type No Lock Material Stainless d1 -0.02|-0.04 10 d2 M16x1,5 d3 28 l1 58.0 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 9.5 Spring load F2 ≈ N 38.0 Weight g 63 more info »
	32680.W0216	No Lock	Stainless	12	M20x1,5	33	67.0	15	33	10	22	11.5	40.0	117
£ 46.18 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 46.18 0% 5-9 £ 41.56 10% 10-19 £ 39.25 15% 20-49 £ 34.64 25% 50+ £ 30.02 35% Type No Lock Material Stainless d1 -0.02|-0.04 12 d2 M20x1,5 d3 33 l1 67.0 l2 min. 15 l3 33 l4 10 A/F 22 Spring load F1 ≈ N 11.5 Spring load F2 ≈ N 40.0 Weight g 117 more info »
	32680.W0217	No Lock	Stainless	16	M24x 2	33	78.5	20	38	12	27	13	54	204
Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 - 0% 5-9 - 10% 10-19 - 15% 20-49 - 25% 50+ - 35% Type No Lock Material Stainless d1 -0.02|-0.04 16 d2 M24x 2 d3 33 l1 78.5 l2 min. 20 l3 38 l4 12 A/F 27 Spring load F1 ≈ N 13 Spring load F2 ≈ N 54 Weight g 204 more info »
