32690 Index Plungers - Compact

compact -locking, material: Steel or Stainless Steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Index Plunger
simple, with grip

Index Plunger
with release lock

Index Plunger
with rapid locking head

Index Plunger S/S
simple, with grip

Index Plunger- Compact
hex. collar - w/o, s/s

Index Plunger- Compact
hex. collar - w/o, s/s

Index Plunger- Compact
hex. collar - locking, s/s

Index Plunger
hex. collar - w/o locking, s/s

All Stainless
index plunger s/s

Index Plunger
hex. collar - with locking, s/s

All Stainless
index plunger - locking s/s

Index Plunger
w/o hex. collar - s/s

All S/S Index Plunger
w/o hex. collar

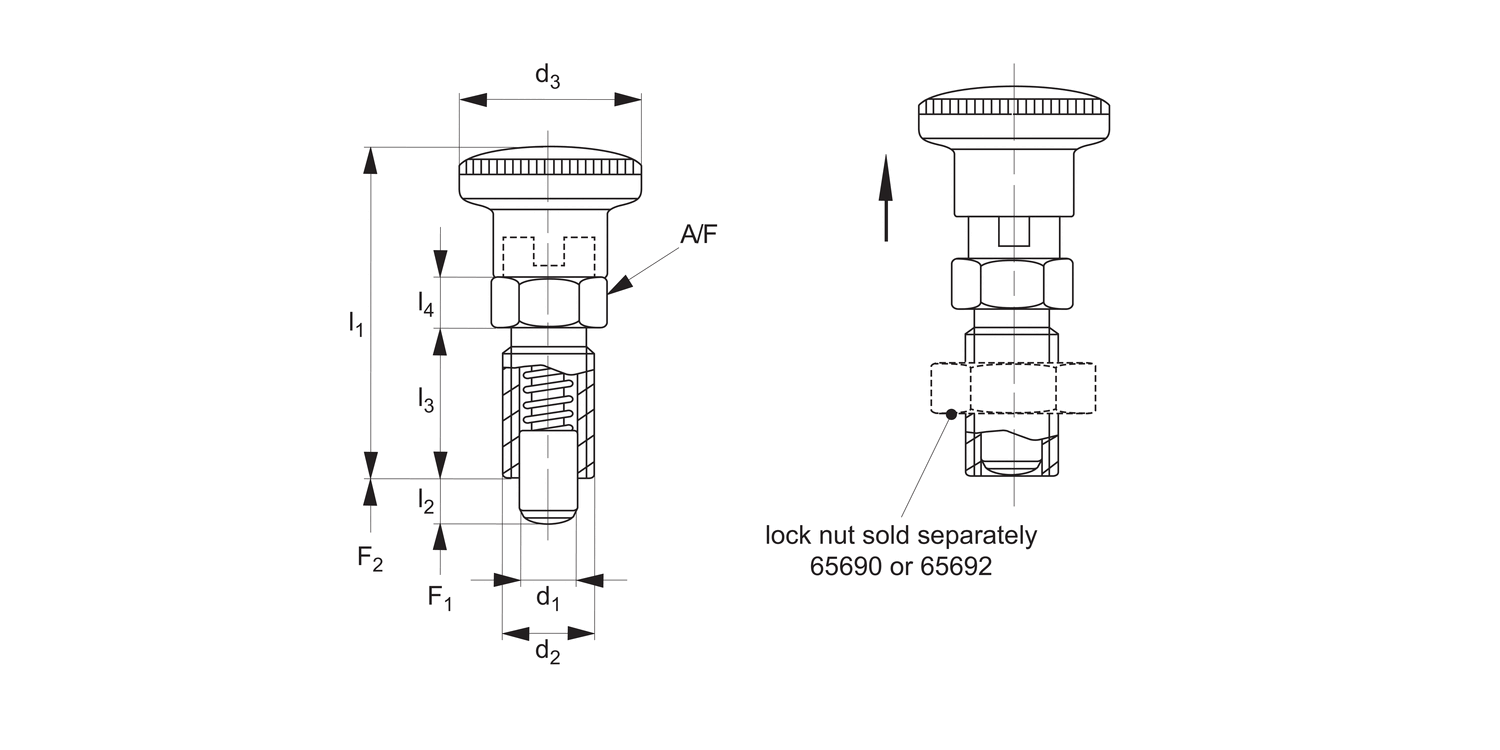

Index Plungers - Compact Steel - Locking - 4 - 4

32690.W0123

Type

Locking

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

12.0

£ 14.92 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 4 - 6

32690.W0124

Type

Locking

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

12.0

£ 14.92 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 5 - 5

32690.W0126

Type

Locking

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.0

Weight g

20.0

£ 16.69 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 5 - 8

32690.W0127

Type

Locking

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

20.0

£ 16.69 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 6 - 6

32690.W0129

Type

Locking

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

31.0

£ 18.74 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 6 - 9

32690.W0130

Type

Locking

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

33.0

£ 18.74 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 8 - 8

32690.W0132

Type

Locking

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

65.0

£ 22.25 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 8 - 12

32690.W0133

Type

Locking

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

68.0

£ 22.25 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 10 - 12

32690.W0135

Type

Locking

Material

Steel

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

69.0

£ 22.25 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 12 - 15

32690.W0136

Type

Locking

Material

Steel

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

125.0

£ 31.81 per unit (click for quantity discounts)

Index Plungers - Compact

32690.W0137

Type

Locking

Material

Steel

d₁ -0.02|-0.04

16

d₂

M24 x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13.0

Spring load F₂ ≈ N

54.0

Weight g

220

£ 42.55 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 4 - 4

32690.W0223

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

12.0

£ 20.14 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 4 - 6

32690.W0224

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

12.0

£ 21.05 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 5 - 5

32690.W0226

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.0

Weight g

20.0

£ 22.72 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 5 - 8

32690.W0227

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

20.0

£ 23.74 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 6 - 6

32690.W0229

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

31.0

£ 27.06 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 6 - 9

32690.W0230

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

33.0

£ 28.28 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 8 - 8

32690.W0232

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

65.0

£ 38.30 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 8 - 12 EC: 20601621

32690.W0233

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

68.0

£ 38.30 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 10 - 12

32690.W0235

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

69.0

£ 38.30 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 12 - 15

32690.W0236

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

125.0

£ 53.14 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 16 - 20

32690.W0237

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

16

d₂

M24 x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13.0

Spring load F₂ ≈ N

54.0

Weight g

220

£ 77.45 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 4 - 4

32690.W0123

Type

Locking

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

12.0

£ 14.92 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 4 - 6

32690.W0124

Type

Locking

Material

Steel

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

12.0

£ 14.92 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 5 - 5

32690.W0126

Type

Locking

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.0

Weight g

20.0

£ 16.69 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 5 - 8

32690.W0127

Type

Locking

Material

Steel

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

20.0

£ 16.69 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 6 - 6

32690.W0129

Type

Locking

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

31.0

£ 18.74 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 6 - 9

32690.W0130

Type

Locking

Material

Steel

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

33.0

£ 18.74 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 8 - 8

32690.W0132

Type

Locking

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

65.0

£ 22.25 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 8 - 12

32690.W0133

Type

Locking

Material

Steel

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

68.0

£ 22.25 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 10 - 12

32690.W0135

Type

Locking

Material

Steel

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

69.0

£ 22.25 per unit (click for quantity discounts)

Index Plungers - Compact Steel - Locking - 12 - 15

32690.W0136

Type

Locking

Material

Steel

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

125.0

£ 31.81 per unit (click for quantity discounts)

Index Plungers - Compact

32690.W0137

Type

Locking

Material

Steel

d₁ -0.02|-0.04

16

d₂

M24 x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13.0

Spring load F₂ ≈ N

54.0

Weight g

220

£ 42.55 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 4 - 4

32690.W0223

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

4

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.5

Spring load F₂ ≈ N

12.0

Weight g

12.0

£ 20.14 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 4 - 6

32690.W0224

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

4

d₂

M 8x1,0

d₃

16

l₁

35

l₂ min.

6

l₃

16

l₄

5

A/F

10

Spring load F₁ ≈ N

4.0

Spring load F₂ ≈ N

12.5

Weight g

12.0

£ 21.05 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 5 - 5

32690.W0226

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

5

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

15.0

Weight g

20.0

£ 22.72 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 5 - 8

32690.W0227

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

5

d₂

M10x1,0

d₃

19

l₁

40

l₂ min.

8

l₃

18

l₄

6

A/F

12

Spring load F₁ ≈ N

5.0

Spring load F₂ ≈ N

18.0

Weight g

20.0

£ 23.74 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 6 - 6

32690.W0229

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

6

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.5

Spring load F₂ ≈ N

19.0

Weight g

31.0

£ 27.06 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 6 - 9

32690.W0230

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

6

d₂

M12x1,5

d₃

23

l₁

48

l₂ min.

9

l₃

22

l₄

6

A/F

14

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

25.0

Weight g

33.0

£ 28.28 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 8 - 8

32690.W0232

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

8

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

26.0

Weight g

65.0

£ 38.30 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 8 - 12 EC: 20601621

32690.W0233

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

8

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

8.5

Spring load F₂ ≈ N

28.0

Weight g

68.0

£ 38.30 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 10 - 12

32690.W0235

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

10

d₂

M16x1,5

d₃

28

l₁

58

l₂ min.

12

l₃

26

l₄

8

A/F

17

Spring load F₁ ≈ N

9.5

Spring load F₂ ≈ N

38.0

Weight g

69.0

£ 38.30 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 12 - 15

32690.W0236

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

12

d₂

M20x1,5

d₃

33

l₁

67

l₂ min.

15

l₃

33

l₄

10

A/F

22

Spring load F₁ ≈ N

11.5

Spring load F₂ ≈ N

40.0

Weight g

125.0

£ 53.14 per unit (click for quantity discounts)

Index Plungers - Compact Stainless - Locking - 16 - 20

32690.W0237

Type

Locking

Material

Stainless

d₁ -0.02|-0.04

16

d₂

M24 x 2

d₃

33

l₁

78.5

l₂ min.

20

l₃

38

l₄

12

A/F

27

Spring load F₁ ≈ N

13.0

Spring load F₂ ≈ N

54.0

Weight g

220

£ 77.45 per unit (click for quantity discounts)



Select all

Type

Material

d₁ -0.02|-0.04

d₂

d₃

l₁

l₂ min.

l₃

l₄

A/F

Spring load F₁ ≈ N

Spring load F₂ ≈ N

Weight g

Price & Availability	Article	Type	Material	d1 -0.02|-0.04	d2	d3	l1	l2 min.	l3	l4	A/F	Spring load F1 ≈ N	Spring load F2 ≈ N	Weight g
	32690.W0123	Locking	Steel	4	M 8x1,0	16	35	4	16	5	10	4.5	12.0	12.0
£ 14.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 14.92 0% 5-9 £ 13.43 10% 10-19 £ 12.68 15% 20-49 £ 11.19 25% 50+ £ 9.70 35% Type Locking Material Steel d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35 l2 min. 4 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.5 Spring load F2 ≈ N 12.0 Weight g 12.0 more info »
	32690.W0124	Locking	Steel	4	M 8x1,0	16	35	6	16	5	10	4.0	12.5	12.0
£ 14.92 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 14.92 0% 5-9 £ 13.43 10% 10-19 £ 12.68 15% 20-49 £ 11.19 25% 50+ £ 9.70 35% Type Locking Material Steel d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35 l2 min. 6 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.0 Spring load F2 ≈ N 12.5 Weight g 12.0 more info »
	32690.W0126	Locking	Steel	5	M10x1,0	19	40	5	18	6	12	5.0	15.0	20.0
£ 16.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 16.69 0% 5-9 £ 15.02 10% 10-19 £ 14.19 15% 20-49 £ 12.52 25% 50+ £ 10.85 35% Type Locking Material Steel d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40 l2 min. 5 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 15.0 Weight g 20.0 more info »
	32690.W0127	Locking	Steel	5	M10x1,0	19	40	8	18	6	12	5.0	18.0	20.0
£ 16.69 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 16.69 0% 5-9 £ 15.02 10% 10-19 £ 14.19 15% 20-49 £ 12.52 25% 50+ £ 10.85 35% Type Locking Material Steel d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40 l2 min. 8 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 18.0 Weight g 20.0 more info »
	32690.W0129	Locking	Steel	6	M12x1,5	23	48	6	22	6	14	6.5	19.0	31.0
£ 18.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 18.74 0% 5-9 £ 16.87 10% 10-19 £ 15.93 15% 20-49 £ 14.06 25% 50+ £ 12.18 35% Type Locking Material Steel d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48 l2 min. 6 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.5 Spring load F2 ≈ N 19.0 Weight g 31.0 more info »
	32690.W0130	Locking	Steel	6	M12x1,5	23	48	9	22	6	14	6.0	25.0	33.0
£ 18.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 18.74 0% 5-9 £ 16.87 10% 10-19 £ 15.93 15% 20-49 £ 14.06 25% 50+ £ 12.18 35% Type Locking Material Steel d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48 l2 min. 9 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.0 Spring load F2 ≈ N 25.0 Weight g 33.0 more info »
	32690.W0132	Locking	Steel	8	M16x1,5	28	58	8	26	8	17	8.5	26.0	65.0
£ 22.25 per unit (click for quantity discounts) Ready to despatch 65 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.25 0% 5-9 £ 20.03 10% 10-19 £ 18.91 15% 20-49 £ 16.69 25% 50+ £ 14.46 35% Type Locking Material Steel d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58 l2 min. 8 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 26.0 Weight g 65.0 more info »
	32690.W0133	Locking	Steel	8	M16x1,5	28	58	12	26	8	17	8.5	28.0	68.0
£ 22.25 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.25 0% 5-9 £ 20.03 10% 10-19 £ 18.91 15% 20-49 £ 16.69 25% 50+ £ 14.46 35% Type Locking Material Steel d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 28.0 Weight g 68.0 more info »
	32690.W0135	Locking	Steel	10	M16x1,5	28	58	12	26	8	17	9.5	38.0	69.0
£ 22.25 per unit (click for quantity discounts) Ready to despatch 15 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.25 0% 5-9 £ 20.03 10% 10-19 £ 18.91 15% 20-49 £ 16.69 25% 50+ £ 14.46 35% Type Locking Material Steel d1 -0.02|-0.04 10 d2 M16x1,5 d3 28 l1 58 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 9.5 Spring load F2 ≈ N 38.0 Weight g 69.0 more info »
	32690.W0136	Locking	Steel	12	M20x1,5	33	67	15	33	10	22	11.5	40.0	125.0
£ 31.81 per unit (click for quantity discounts) Ready to despatch 49 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 31.81 0% 5-9 £ 28.63 10% 10-19 £ 27.04 15% 20-49 £ 23.86 25% 50+ £ 20.68 35% Type Locking Material Steel d1 -0.02|-0.04 12 d2 M20x1,5 d3 33 l1 67 l2 min. 15 l3 33 l4 10 A/F 22 Spring load F1 ≈ N 11.5 Spring load F2 ≈ N 40.0 Weight g 125.0 more info »
	32690.W0137	Locking	Steel	16	M24 x 2	33	78.5	20	38	12	27	13.0	54.0	220
£ 42.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 42.55 0% 5-9 £ 38.30 10% 10-19 £ 36.17 15% 20-49 £ 31.91 25% 50+ £ 27.66 35% Type Locking Material Steel d1 -0.02|-0.04 16 d2 M24 x 2 d3 33 l1 78.5 l2 min. 20 l3 38 l4 12 A/F 27 Spring load F1 ≈ N 13.0 Spring load F2 ≈ N 54.0 Weight g 220 more info »
	32690.W0223	Locking	Stainless	4	M 8x1,0	16	35	4	16	5	10	4.5	12.0	12.0
£ 20.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 20.14 0% 5-9 £ 18.13 10% 10-19 £ 17.12 15% 20-49 £ 15.11 25% 50+ £ 13.09 35% Type Locking Material Stainless d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35 l2 min. 4 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.5 Spring load F2 ≈ N 12.0 Weight g 12.0 more info »
	32690.W0224	Locking	Stainless	4	M 8x1,0	16	35	6	16	5	10	4.0	12.5	12.0
£ 21.05 per unit (click for quantity discounts) Ready to despatch 18 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 21.05 0% 5-9 £ 18.95 10% 10-19 £ 17.89 15% 20-49 £ 15.79 25% 50+ £ 13.68 35% Type Locking Material Stainless d1 -0.02|-0.04 4 d2 M 8x1,0 d3 16 l1 35 l2 min. 6 l3 16 l4 5 A/F 10 Spring load F1 ≈ N 4.0 Spring load F2 ≈ N 12.5 Weight g 12.0 more info »
	32690.W0226	Locking	Stainless	5	M10x1,0	19	40	5	18	6	12	5.0	15.0	20.0
£ 22.72 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 22.72 0% 5-9 £ 20.45 10% 10-19 £ 19.31 15% 20-49 £ 17.04 25% 50+ £ 14.77 35% Type Locking Material Stainless d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40 l2 min. 5 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 15.0 Weight g 20.0 more info »
	32690.W0227	Locking	Stainless	5	M10x1,0	19	40	8	18	6	12	5.0	18.0	20.0
£ 23.74 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 23.74 0% 5-9 £ 21.37 10% 10-19 £ 20.18 15% 20-49 £ 17.81 25% 50+ £ 15.43 35% Type Locking Material Stainless d1 -0.02|-0.04 5 d2 M10x1,0 d3 19 l1 40 l2 min. 8 l3 18 l4 6 A/F 12 Spring load F1 ≈ N 5.0 Spring load F2 ≈ N 18.0 Weight g 20.0 more info »
	32690.W0229	Locking	Stainless	6	M12x1,5	23	48	6	22	6	14	6.5	19.0	31.0
£ 27.06 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 27.06 0% 5-9 £ 24.35 10% 10-19 £ 23.00 15% 20-49 £ 20.30 25% 50+ £ 17.59 35% Type Locking Material Stainless d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48 l2 min. 6 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.5 Spring load F2 ≈ N 19.0 Weight g 31.0 more info »
	32690.W0230	Locking	Stainless	6	M12x1,5	23	48	9	22	6	14	6.0	25.0	33.0
£ 28.28 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 28.28 0% 5-9 £ 25.45 10% 10-19 £ 24.04 15% 20-49 £ 21.21 25% 50+ £ 18.38 35% Type Locking Material Stainless d1 -0.02|-0.04 6 d2 M12x1,5 d3 23 l1 48 l2 min. 9 l3 22 l4 6 A/F 14 Spring load F1 ≈ N 6.0 Spring load F2 ≈ N 25.0 Weight g 33.0 more info »
	32690.W0232	Locking	Stainless	8	M16x1,5	28	58	8	26	8	17	8.5	26.0	65.0
£ 38.30 per unit (click for quantity discounts) Ready to despatch 4 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 38.30 0% 5-9 £ 34.47 10% 10-19 £ 32.56 15% 20-49 £ 28.73 25% 50+ £ 24.90 35% Type Locking Material Stainless d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58 l2 min. 8 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 26.0 Weight g 65.0 more info »
	32690.W0233	Locking	Stainless	8	M16x1,5	28	58	12	26	8	17	8.5	28.0	68.0
£ 38.30 per unit (click for quantity discounts) Ready to despatch 13 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 38.30 0% 5-9 £ 34.47 10% 10-19 £ 32.56 15% 20-49 £ 28.73 25% 50+ £ 24.90 35% Type Locking Material Stainless d1 -0.02|-0.04 8 d2 M16x1,5 d3 28 l1 58 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 8.5 Spring load F2 ≈ N 28.0 Weight g 68.0 more info »
	32690.W0235	Locking	Stainless	10	M16x1,5	28	58	12	26	8	17	9.5	38.0	69.0
£ 38.30 per unit (click for quantity discounts) Ready to despatch 9 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 38.30 0% 5-9 £ 34.47 10% 10-19 £ 32.56 15% 20-49 £ 28.73 25% 50+ £ 24.90 35% Type Locking Material Stainless d1 -0.02|-0.04 10 d2 M16x1,5 d3 28 l1 58 l2 min. 12 l3 26 l4 8 A/F 17 Spring load F1 ≈ N 9.5 Spring load F2 ≈ N 38.0 Weight g 69.0 more info »
	32690.W0236	Locking	Stainless	12	M20x1,5	33	67	15	33	10	22	11.5	40.0	125.0
£ 53.14 per unit (click for quantity discounts) Ready to despatch 103 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 53.14 0% 5-9 £ 47.83 10% 10-19 £ 45.17 15% 20-49 £ 39.86 25% 50+ £ 34.54 35% Type Locking Material Stainless d1 -0.02|-0.04 12 d2 M20x1,5 d3 33 l1 67 l2 min. 15 l3 33 l4 10 A/F 22 Spring load F1 ≈ N 11.5 Spring load F2 ≈ N 40.0 Weight g 125.0 more info »
	32690.W0237	Locking	Stainless	16	M24 x 2	33	78.5	20	38	12	27	13.0	54.0	220
£ 77.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 14 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 77.45 0% 5-9 £ 69.71 10% 10-19 £ 65.83 15% 20-49 £ 58.09 25% 50+ £ 50.34 35% Type Locking Material Stainless d1 -0.02|-0.04 16 d2 M24 x 2 d3 33 l1 78.5 l2 min. 20 l3 38 l4 12 A/F 27 Spring load F1 ≈ N 13.0 Spring load F2 ≈ N 54.0 Weight g 220 more info »
