32712 Index Plunger - Pull Grip

Name: 32712.W0710
Brand: WC
SKU: 32712.W0710
Price: 86.03 EUR
Availability: InStock

locking - all stainless, material: Stainless Steel

Article properties

Order No.

32712.W0710

Type

Locking

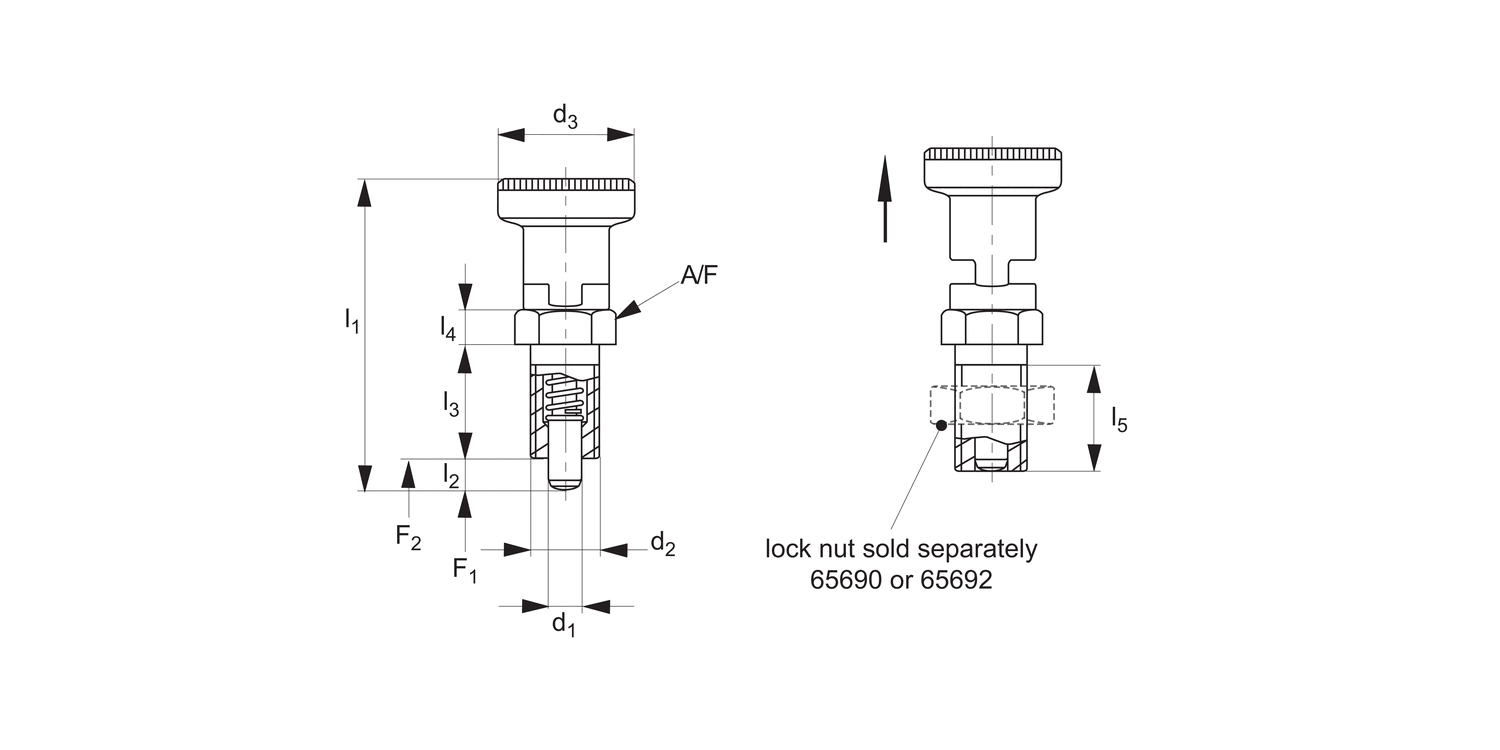

d₁ -0.02|-0.04

d₂

M20x1,5

d₃

l₁ ≈

91.0

l₂ min.

l₃

l₄

l₅

A/F

Spring load F₁ ≈ N

28.0

Spring load F₂ ≈ N

Weight g

202

See full product selection

£ 86.03 per unit (click for quantity discounts)

Ready to despatch 3
Need more? Manufactured within 7 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 86.03	0%
5-9	£ 77.43	10%
10-19	£ 73.13	15%
20-49	£ 64.52	25%
50+	£ 55.92	35%

Download product datasheet

Download FREE CAD

Technical & Application

Material

All Stainless Steel Type-
Body: stainless steel 1.4305 (AISI 303).
Pin: stainless steel 1.4305, nickel plated.
Grip: stainless steel 1.4305 (AISI 303).
Spring: stainless steel 1.4310 (AISI 301).

Technical Notes

"Locking" type- enable pin to be held in retracted/non-projecting position; pull back grip, turn 90° to engage 'locking' on a notched catch.
Thread recess on body allows full engagement of thread length. Hexagon collar improves leverage for secure installation.
Temperature resistance from -30° to +80°C.
Distance collars no. 32750 can be used to adapt screw length.
Lock nuts sold separately. See Products 65690 and 65692

Tips

Complete stainless steel construction designed with specific demands of food processing, pharmaceutical and water treatment industries in mind. Grip non-removable.
Spring Loads* = statistical average.
