Index Plunger
simple, with grip
32740 Index Plunger - Pull Grip
non-locking, material: Steel or Stainless Steel
Order No.
32740.W0465
Type
No Grip
Material
Stainless
d1
-0.02|-0.04
5
d2
M10x1,0
d3
-
d4
M 5
l1
≈
-
l2
min.
5
l3
22
l4
6
Spring load F1
≈
N
6.0
Spring load F2
≈
N
14
Weight
g
12
£ 17.62 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 17.62 | 0% |
| 5-9 | £ 15.86 | 10% |
| 10-19 | £ 14.98 | 15% |
| 20-49 | £ 13.22 | 25% |
| 50+ | £ 11.45 | 35% |
Technical & Application
Material
Free Cutting Steel Type-
Body: free cutting steel, blackened.
Pin: steel, hardened.
Grip: thermoplastic PA6, black.
Stainless steel type -
Body: stainless steel 1.4305 (AISI 303).
Pin: stainless steel 1.4305 (AISI 303), nickel plated.
Grip: thermoplastic PA6, black.
Technical Notes
"Non Locking" type- pin simply springs back when pull ring released.
Plungers without grip enable your own adaptation with actuation grip/lever to your own design. Installation requires use of specific assembly tool, see data table.
Without grip temperature resistance up to 250°C.
Lock nuts sold separately. See Products 65690 or 65692.
Tips
Grip non-removable.
Spring loads * = statistical average.
Product Datasheets
CAD files

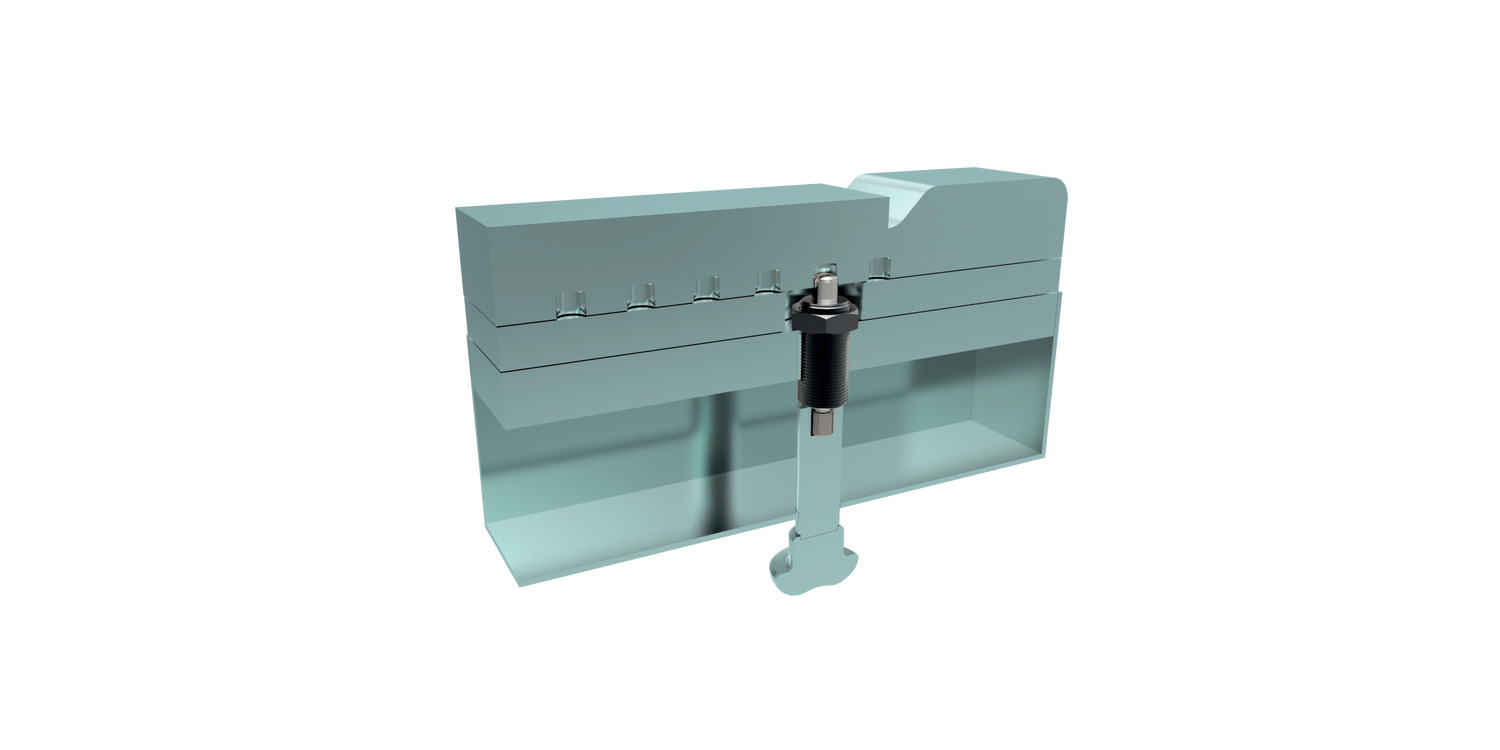

Application images
