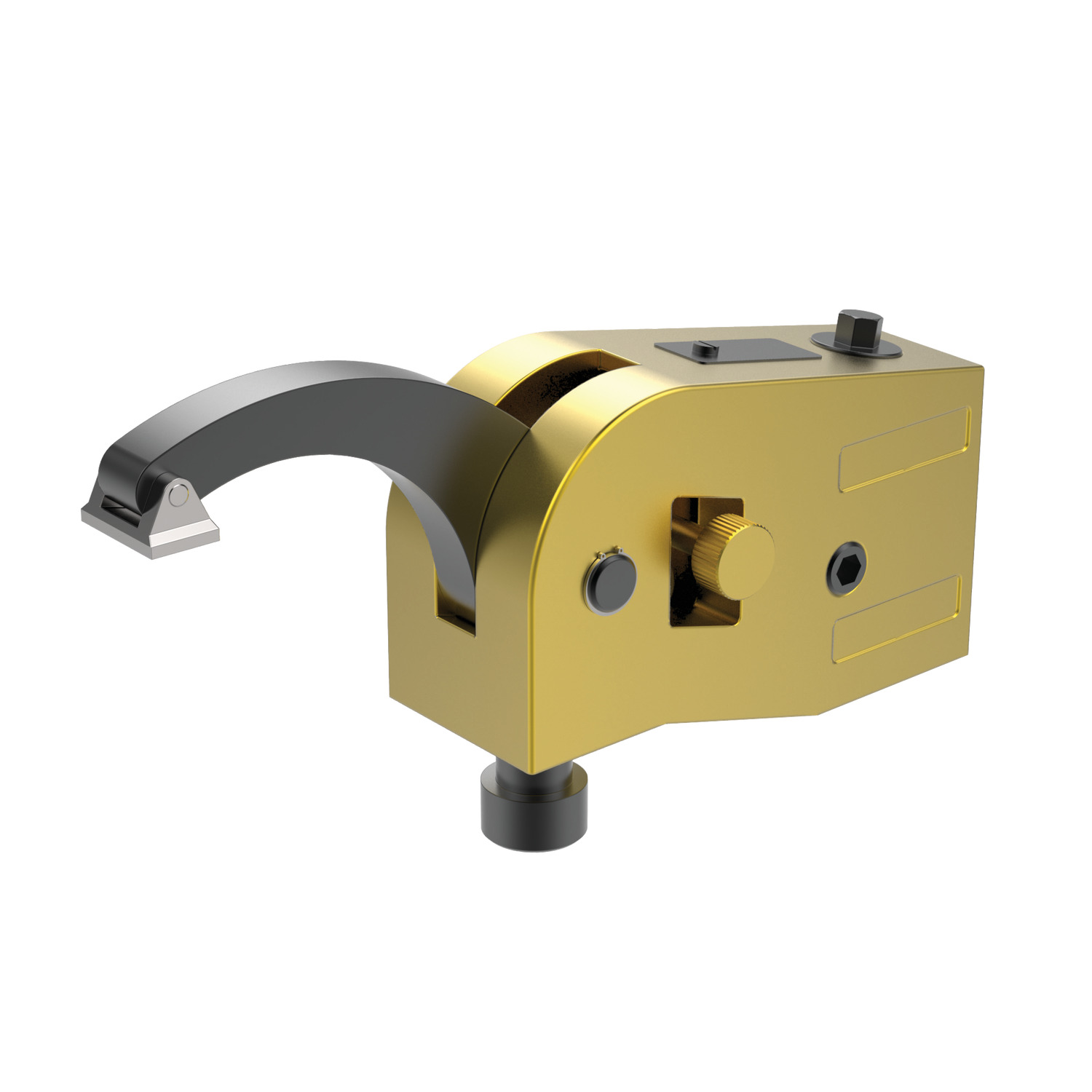

Mono Bloc Clamps
10661 Big Block Clamps
material: Aluminium
Alternative products you may wish to consider
Description
Short

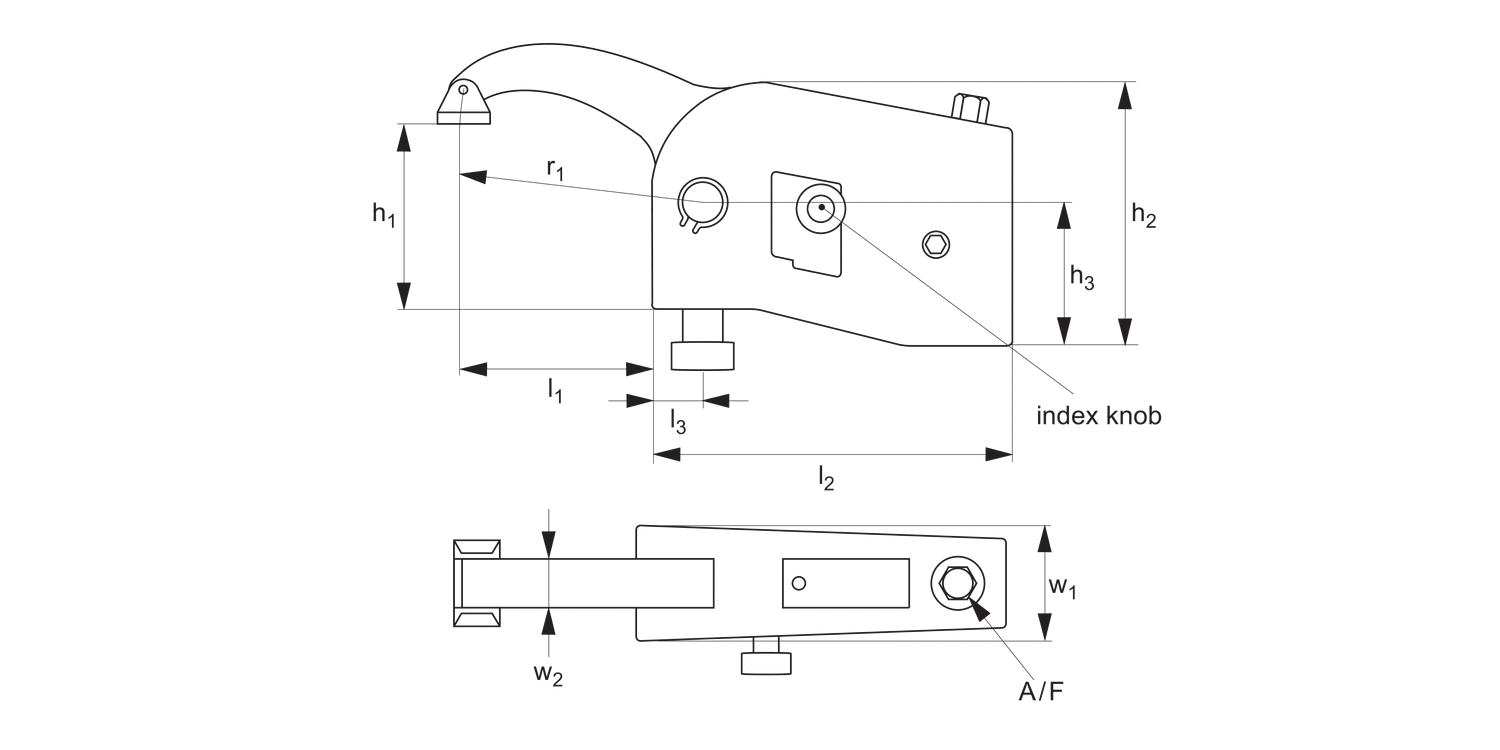

Clamp reach l1
50
Clamping force
max.
kN
40
Clamping height h1
min.|max.
12 to 80
h2
105
h3
60
l2
162
l3
25
r1
r 75
w1
60
w2
30
A/F
11
Torque to
max.
Nm
70
£ 976.89 per unit (click for quantity discounts)
Description
Standard
Clamp reach l1
95
Clamping force
max.
kN
28
Clamping height h1
min.|max.
-12 to 100
h2
105
h3
60
l2
162
l3
25
r1
r120
w1
60
w2
30
A/F
11
Torque to
max.
Nm
70
£ 1,000.14 per unit (click for quantity discounts)
Description
Long
Clamp reach l1
145
Clamping force
max.
kN
20
Clamping height h1
min.|max.
-18 to 135
h2
105
h3
60
l2
162
l3
25
r1
r170
w1
60
w2
30
A/F
11
Torque to
max.
Nm
70
£ 1,025.77 per unit (click for quantity discounts)
Description
Extra Long
Clamp reach l1
245
Clamping force
max.
kN
14
Clamping height h1
min.|max.
-50 to 155
h2
105
h3
60
l2
162
l3
25
r1
r270
w1
60
w2
30
A/F
11
Torque to
max.
Nm
70
£ 1,123.45 per unit (click for quantity discounts)
Description
Clamp reach l1
Clamping force
max.
kN
Clamping height h1
min.|max.
h2
h3
l2
l3
r1
w1
w2
A/F
Torque to
max.
Nm
| Price & Availability | Article | Description | Clamp reach l1 | Clamping force max. kN | Clamping height h1 min.|max. | h2 | h3 | l2 | l3 | r1 | w1 | w2 | A/F | Torque to max. Nm | |||||||||||||||
| 10661.W0020 | Short | 50 | 40 | 12 to 80 | 105 | 60 | 162 | 25 | r 75 | 60 | 30 | 11 | 70 | ||||||||||||||||
£ 976.89 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Description Short Clamp reach l1 50 Clamping force
max.
kN 40 Clamping height h1
min.|max. 12 to 80 h2 105 h3 60 l2 162 l3 25 r1 r 75 w1 60 w2 30 A/F 11 Torque to
max.
Nm 70 | |||||||||||||||||||||||||||||
| 10661.W0030 | Standard | 95 | 28 | -12 to 100 | 105 | 60 | 162 | 25 | r120 | 60 | 30 | 11 | 70 | ||||||||||||||||
£ 1,000.14 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Description Standard Clamp reach l1 95 Clamping force
max.
kN 28 Clamping height h1
min.|max. -12 to 100 h2 105 h3 60 l2 162 l3 25 r1 r120 w1 60 w2 30 A/F 11 Torque to
max.
Nm 70 | |||||||||||||||||||||||||||||
| 10661.W0035 | Long | 145 | 20 | -18 to 135 | 105 | 60 | 162 | 25 | r170 | 60 | 30 | 11 | 70 | ||||||||||||||||
£ 1,025.77 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Description Long Clamp reach l1 145 Clamping force
max.
kN 20 Clamping height h1
min.|max. -18 to 135 h2 105 h3 60 l2 162 l3 25 r1 r170 w1 60 w2 30 A/F 11 Torque to
max.
Nm 70 | |||||||||||||||||||||||||||||
| 10661.W0038 | Extra Long | 245 | 14 | -50 to 155 | 105 | 60 | 162 | 25 | r270 | 60 | 30 | 11 | 70 | ||||||||||||||||
£ 1,123.45 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Description Extra Long Clamp reach l1 245 Clamping force
max.
kN 14 Clamping height h1
min.|max. -50 to 155 h2 105 h3 60 l2 162 l3 25 r1 r270 w1 60 w2 30 A/F 11 Torque to
max.
Nm 70 | |||||||||||||||||||||||||||||
Technical & Application
Material
Aluminium body, steel arm and screw. Aluminium thrust product.
Technical Notes
Quick and easy clamping of different clamping heights. The index pin knob allows rapid adjustment to five set positions. Can be used with stackable riser elements to achieve required clamping heights. See part 10662.
Supplied with clamping key.
Product Datasheets

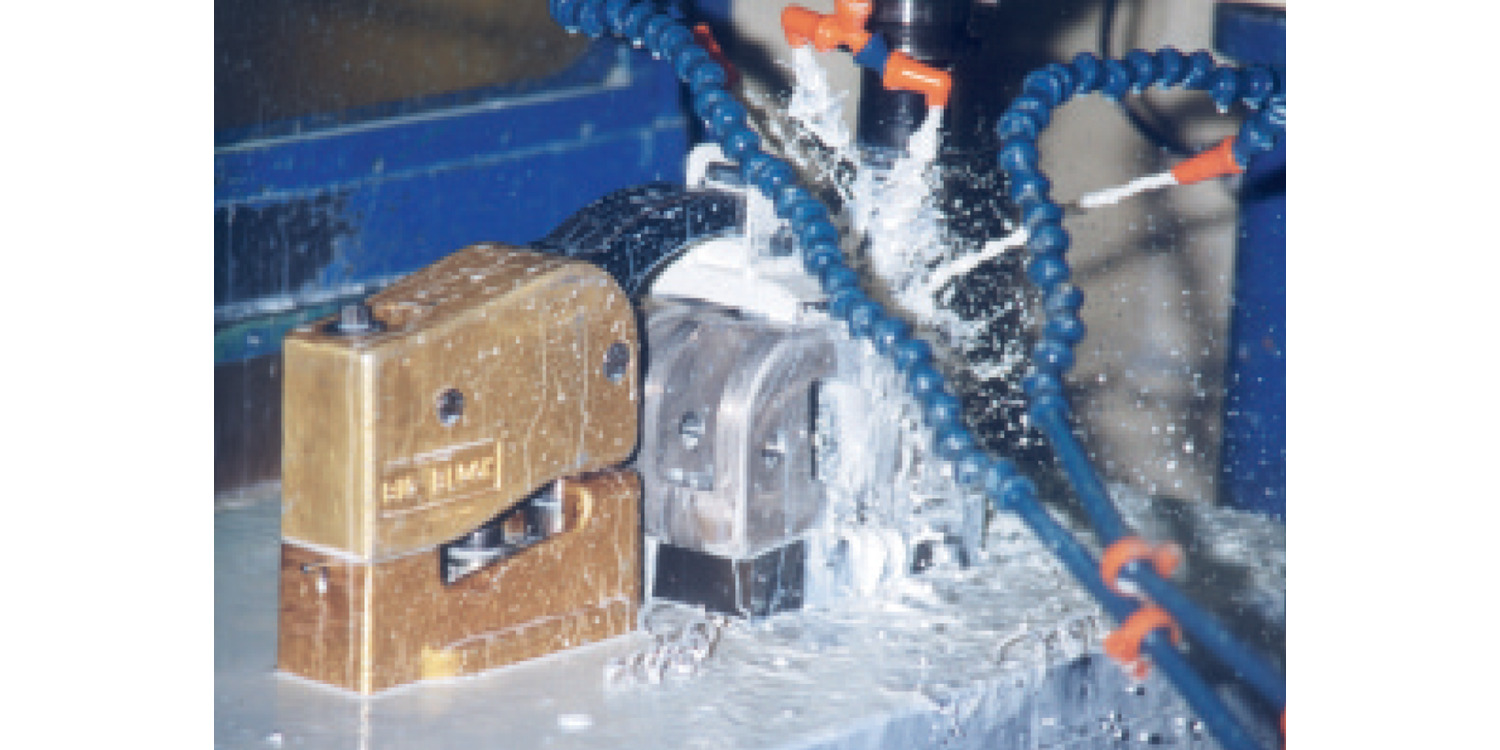

Application images
