Downhold Clamps
cranked clamping lever
12420 Downhold Clamps
small footprint, material: Case Hardened steel
Alternative products you may wish to consider

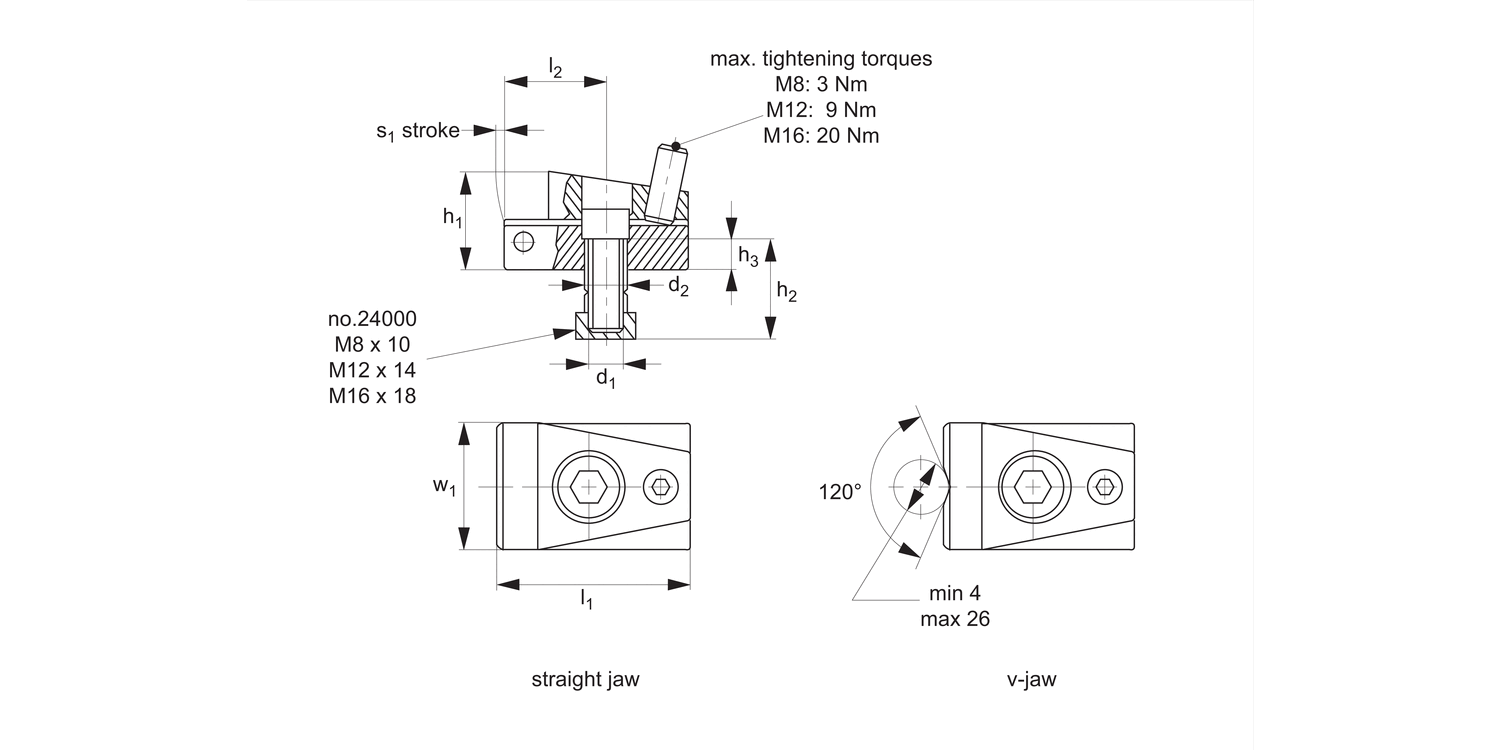

For T-slot
10
Type
Straight Jaw
h1
24
h2
20
h3
8
l1
52
l2
28.0
d1
M 8
d2
8.4
Stroke s1
3
w1
32
Clamping force horizontal
max.
kN
7.0
Torque to
max.
Nm
3
Weight
g
276
£ 214.62 per unit (click for quantity discounts)
For T-slot
14
Type
Straight Jaw
h1
37
h2
30
h3
11
l1
72
l2
40.0
d1
M12
d2
12.5
Stroke s1
4
w1
48
Clamping force horizontal
max.
kN
15.0
Torque to
max.
Nm
9
Weight
g
831
£ 241.20 per unit (click for quantity discounts)
For T-slot
18
Type
Straight Jaw
h1
47
h2
35
h3
13
l1
86
l2
41.0
d1
M16
d2
16.5
Stroke s1
7
w1
68
Clamping force horizontal
max.
kN
21.5
Torque to
max.
Nm
20
Weight
g
1749
£ 307.84 per unit (click for quantity discounts)
For T-slot
10
Type
V-Jaw
h1
24
h2
20
h3
8
l1
52
l2
28.0
d1
M 8
d2
8.4
Stroke s1
3
w1
32
Clamping force horizontal
max.
kN
7.0
Torque to
max.
Nm
3
Weight
g
266
£ 205.38 per unit (click for quantity discounts)
For T-slot
14
Type
V-Jaw
h1
37
h2
30
h3
11
l1
72
l2
40.0
d1
M12
d2
12.5
Stroke s1
4
w1
48
Clamping force horizontal
max.
kN
15.0
Torque to
max.
Nm
9
Weight
g
833
£ 241.20 per unit (click for quantity discounts)
For T-slot
18
Type
V-Jaw
h1
47
h2
35
h3
13
l1
86
l2
41.0
d1
M16
d2
16.5
Stroke s1
7
w1
68
Clamping force horizontal
max.
kN
21.5
Torque to
max.
Nm
20
Weight
g
1730
£ 294.58 per unit (click for quantity discounts)
For T-slot
Type
h1
h2
h3
l1
l2
d1
d2
Stroke s1
w1
Clamping force horizontal
max.
kN
Torque to
max.
Nm
Weight
g
| Price & Availability | Article | For T-slot | Type | h1 | h2 | h3 | l1 | l2 | d1 | d2 | Stroke s1 | w1 | Clamping force horizontal max. kN | Torque to max. Nm | Weight g | ||||||||||||||||||
| 12420.W0501 | 10 | Straight Jaw | 24 | 20 | 8 | 52 | 28.0 | M 8 | 8.4 | 3 | 32 | 7.0 | 3 | 276 | |||||||||||||||||||
£ 214.62 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 10 Type Straight Jaw h1 24 h2 20 h3 8 l1 52 l2 28.0 d1 M 8 d2 8.4 Stroke s1 3 w1 32 Clamping force horizontal
max.
kN 7.0 Torque to
max.
Nm 3 Weight
g 276 | |||||||||||||||||||||||||||||||||
| 12420.W0521 | 14 | Straight Jaw | 37 | 30 | 11 | 72 | 40.0 | M12 | 12.5 | 4 | 48 | 15.0 | 9 | 831 | |||||||||||||||||||
£ 241.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 14 Type Straight Jaw h1 37 h2 30 h3 11 l1 72 l2 40.0 d1 M12 d2 12.5 Stroke s1 4 w1 48 Clamping force horizontal
max.
kN 15.0 Torque to
max.
Nm 9 Weight
g 831 | |||||||||||||||||||||||||||||||||
| 12420.W0541 | 18 | Straight Jaw | 47 | 35 | 13 | 86 | 41.0 | M16 | 16.5 | 7 | 68 | 21.5 | 20 | 1749 | |||||||||||||||||||
£ 307.84 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 18 Type Straight Jaw h1 47 h2 35 h3 13 l1 86 l2 41.0 d1 M16 d2 16.5 Stroke s1 7 w1 68 Clamping force horizontal
max.
kN 21.5 Torque to
max.
Nm 20 Weight
g 1749 | |||||||||||||||||||||||||||||||||
| 12420.W0502 | 10 | V-Jaw | 24 | 20 | 8 | 52 | 28.0 | M 8 | 8.4 | 3 | 32 | 7.0 | 3 | 266 | |||||||||||||||||||
£ 205.38 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 10 Type V-Jaw h1 24 h2 20 h3 8 l1 52 l2 28.0 d1 M 8 d2 8.4 Stroke s1 3 w1 32 Clamping force horizontal
max.
kN 7.0 Torque to
max.
Nm 3 Weight
g 266 | |||||||||||||||||||||||||||||||||
| 12420.W0522 | 14 | V-Jaw | 37 | 30 | 11 | 72 | 40.0 | M12 | 12.5 | 4 | 48 | 15.0 | 9 | 833 | |||||||||||||||||||
£ 241.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 14 Type V-Jaw h1 37 h2 30 h3 11 l1 72 l2 40.0 d1 M12 d2 12.5 Stroke s1 4 w1 48 Clamping force horizontal
max.
kN 15.0 Torque to
max.
Nm 9 Weight
g 833 | |||||||||||||||||||||||||||||||||
| 12420.W0542 | 18 | V-Jaw | 47 | 35 | 13 | 86 | 41.0 | M16 | 16.5 | 7 | 68 | 21.5 | 20 | 1730 | |||||||||||||||||||
£ 294.58 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
For T-slot 18 Type V-Jaw h1 47 h2 35 h3 13 l1 86 l2 41.0 d1 M16 d2 16.5 Stroke s1 7 w1 68 Clamping force horizontal
max.
kN 21.5 Torque to
max.
Nm 20 Weight
g 1730 | |||||||||||||||||||||||||||||||||
Technical & Application
Material
Steel, ground, case-hardened and blackened.
Technical Notes

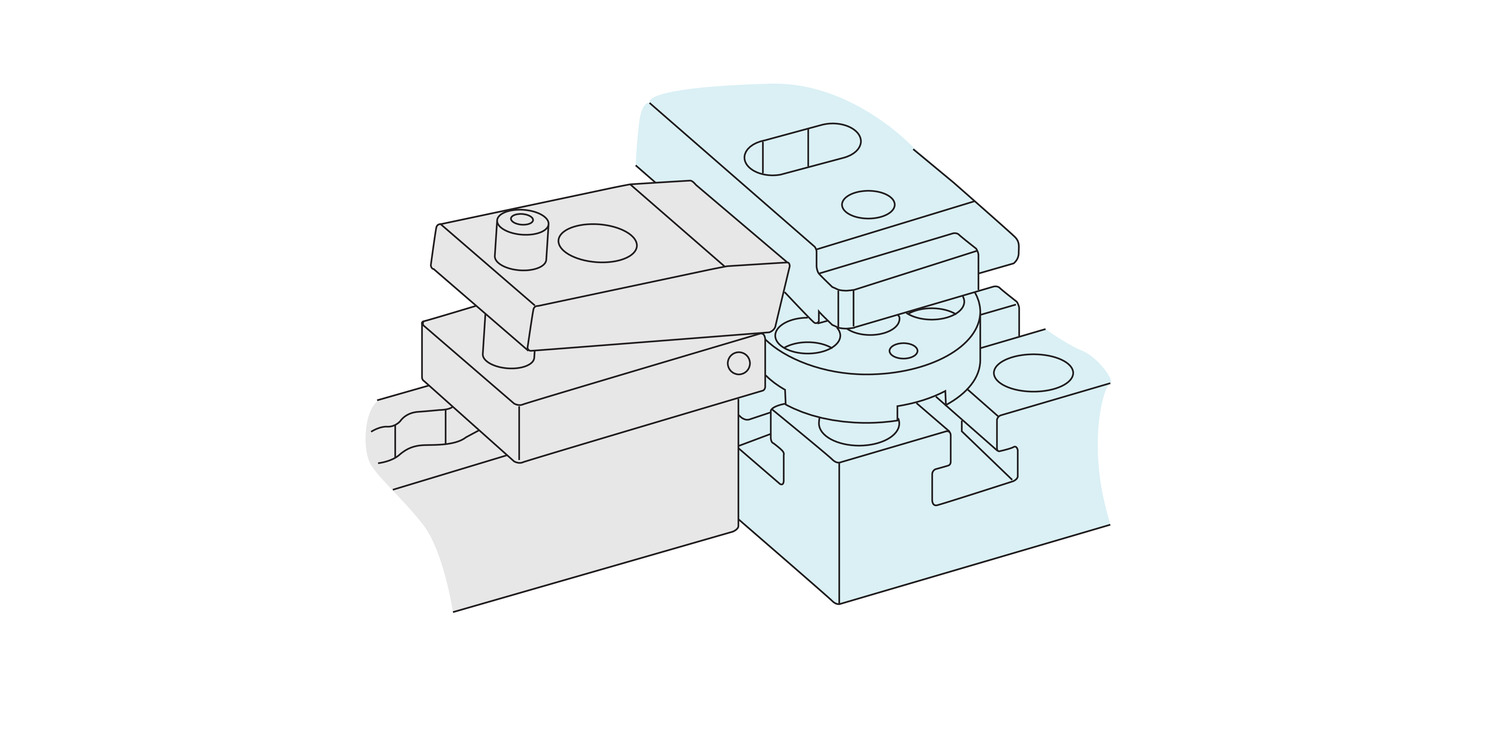

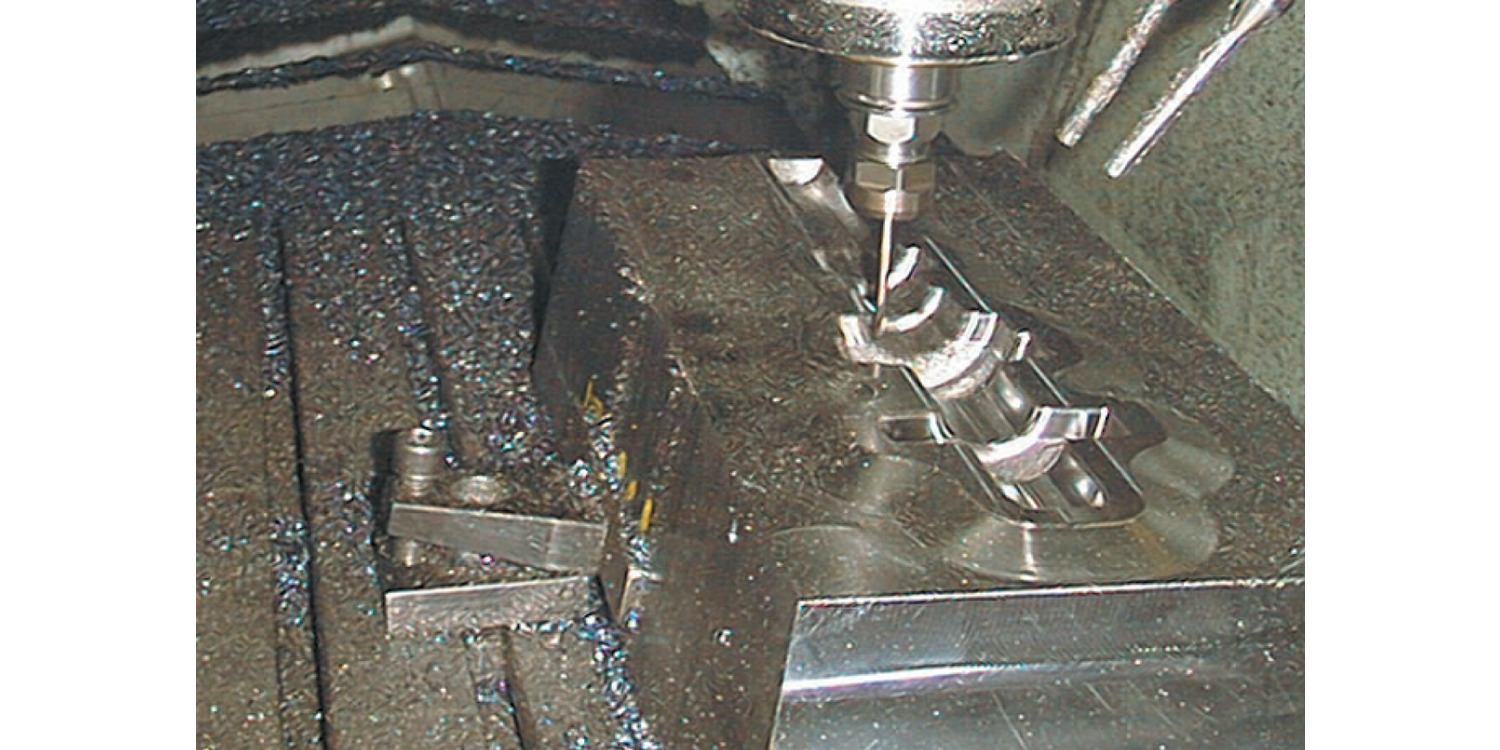

Actuate by self-aligning screw on top, rear of the clamp. Extremely high clamping forces, as the clamp pivots forwards and downwards to securely hold the workpiece. T-nuts no. 24000 allow the clamps to be used in a variety of T slot sizes.
Tips
Do not over torque clamping screw as this can result in the stripping of the thread. For recommended torques - please see table.
May be used with holding plate no. 12410.
