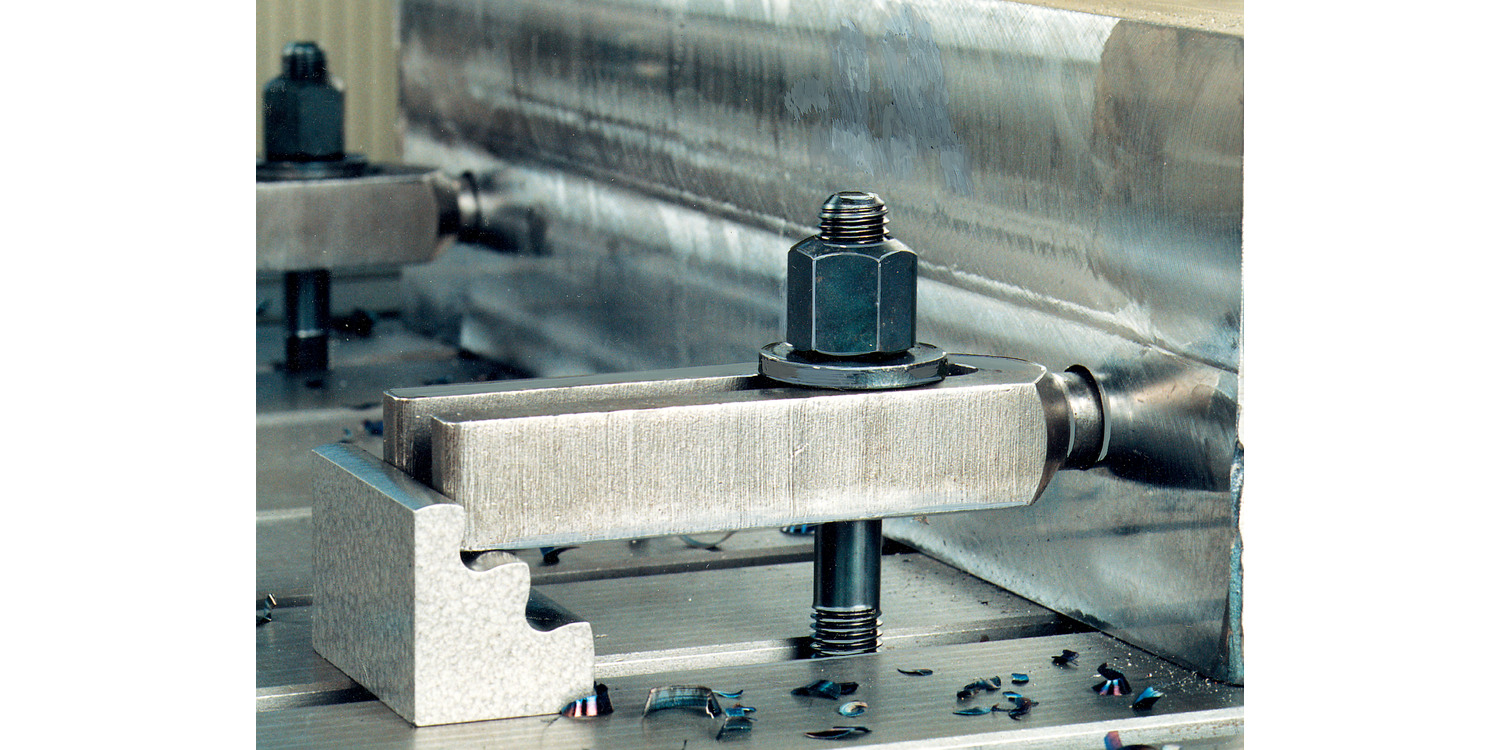

10120 Forked Clamps

with pin end, material: Tempered steel

Download product datasheet

Download FREE CAD

Alternative products you may wish to consider

Plain Clamps

Step Clamps

Forked Clamps

Forked Clamps
with pin end

Forked Clamps
with shoe

Narrow Nose Clamps

Finger Clamps

Goose-Neck Clamps

Stepped Clamps
long slot

Double Goose Neck

Stepped Clamp
with adjusting support screw

Stepped Clamp
with adjusting support screw

Plain Clamps
with self-aligning support

Straight Clamps

Straight Clamp
long slot

Clamp With Stop Pin

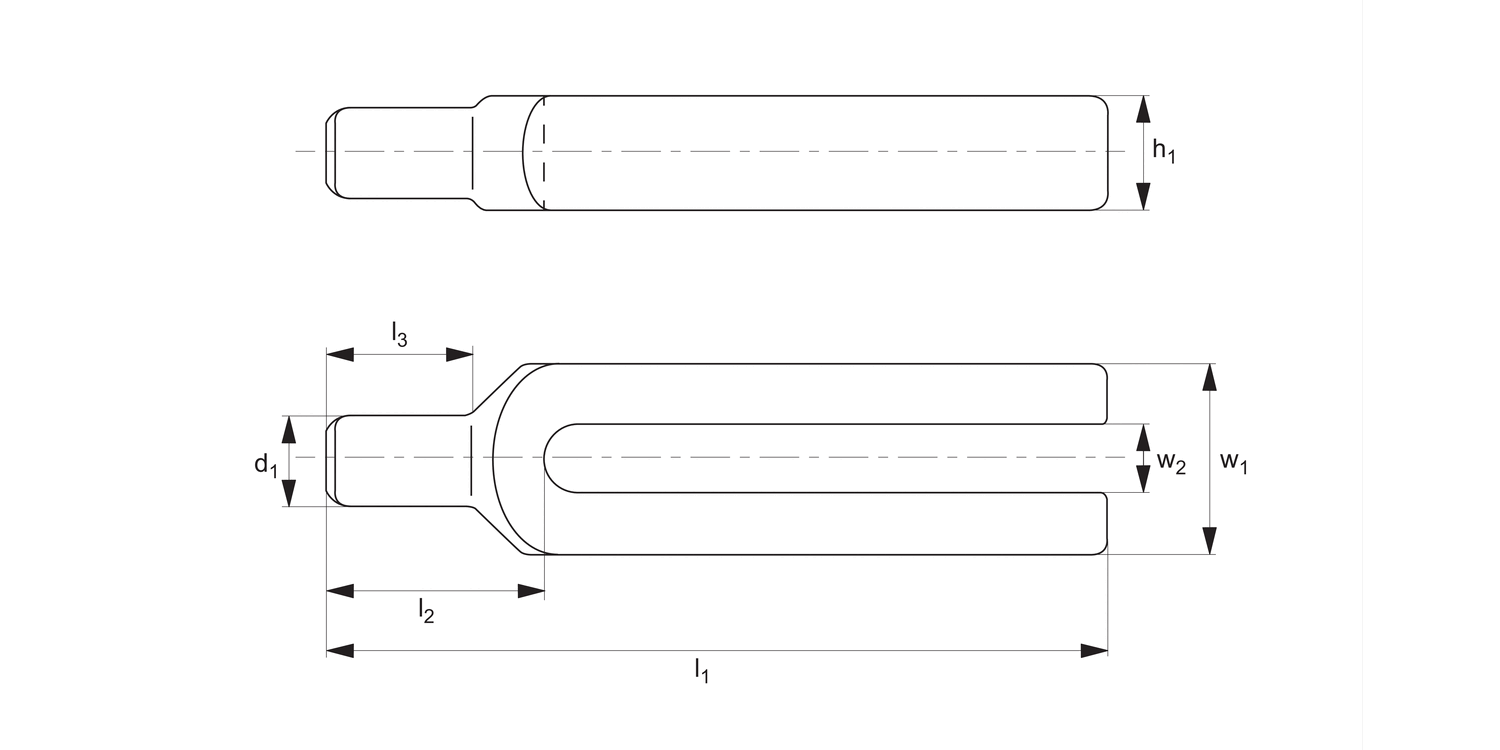

Forked Clamps - Tempered Steel 9 - 100 - M 8 - 5/16

10120.W0009

For bolt

M 8

For bolt inch

5/16"

l₁

100

l₂

30

l₃

18

w₁

30

w₂

9

h₁

15

d₁

12

Weight g

220

£ 56.96 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 11 - 125 - M10 - 3/8

10120.W0011

For bolt

M10

For bolt inch

3/8"

l₁

125

l₂

36

l₃

24

w₁

30

w₂

11

h₁

20

d₁

16

Weight g

350

£ 64.61 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 160 - M12, M14 - 1/2

10120.W0014

For bolt

M12, M14

For bolt inch

1/2"

l₁

160

l₂

45

l₃

30

w₁

40

w₂

14

h₁

25

d₁

20

Weight g

750

£ 63.52 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 200 - M12, M14 - 1/2

10120.W0015

For bolt

M12, M14

For bolt inch

1/2"

l₁

200

l₂

45

l₃

30

w₁

40

w₂

14

h₁

25

d₁

20

Weight g

950

£ 64.15 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 200 - M16, M18 - 5/8

10120.W0018

For bolt

M16, M18

For bolt inch

5/8"

l₁

200

l₂

55

l₃

36

w₁

50

w₂

18

h₁

30

d₁

24

Weight g

1400

£ 85.73 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 250 - M16, M18 - 5/8

10120.W0019

For bolt

M16, M18

For bolt inch

5/8"

l₁

250

l₂

55

l₃

36

w₁

50

w₂

18

h₁

30

d₁

24

Weight g

1750

£ 88.79 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 250 - M20, M22 - 3/4

10120.W0022

For bolt

M20, M22

For bolt inch

3/4"

l₁

250

l₂

65

l₃

45

w₁

60

w₂

22

h₁

40

d₁

30

Weight g

2700

£ 127.04 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 315 - M20, M22 - 3/4

10120.W0023

For bolt

M20, M22

For bolt inch

3/4"

l₁

315

l₂

65

l₃

45

w₁

60

w₂

22

h₁

40

d₁

30

Weight g

3400

£ 146.20 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 250 - M24 - 1

10120.W0026

For bolt

M24

For bolt inch

1"

l₁

250

l₂

80

l₃

56

w₁

70

w₂

26

h₁

40

d₁

38

Weight g

3200

£ 146.97 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 315 - M24 - 1

10120.W0027

For bolt

M24

For bolt inch

1"

l₁

315

l₂

80

l₃

56

w₁

70

w₂

26

h₁

40

d₁

38

Weight g

4100

£ 156.91 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 315 - M30 - 1-1/4

10120.W0034

For bolt

M30

For bolt inch

1-1/4"

l₁

315

l₂

85

l₃

56

w₁

80

w₂

33

h₁

50

d₁

45

Weight g

5700

£ 226.55 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 400 - M30 - 1-1/4

10120.W0035

For bolt

M30

For bolt inch

1-1/4"

l₁

400

l₂

85

l₃

56

w₁

80

w₂

33

h₁

50

d₁

45

Weight g

7000

£ 307.68 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 9 - 100 - M 8 - 5/16

10120.W0009

For bolt

M 8

For bolt inch

5/16"

l₁

100

l₂

30

l₃

18

w₁

30

w₂

9

h₁

15

d₁

12

Weight g

220

£ 56.96 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 11 - 125 - M10 - 3/8

10120.W0011

For bolt

M10

For bolt inch

3/8"

l₁

125

l₂

36

l₃

24

w₁

30

w₂

11

h₁

20

d₁

16

Weight g

350

£ 64.61 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 160 - M12, M14 - 1/2

10120.W0014

For bolt

M12, M14

For bolt inch

1/2"

l₁

160

l₂

45

l₃

30

w₁

40

w₂

14

h₁

25

d₁

20

Weight g

750

£ 63.52 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 14 - 200 - M12, M14 - 1/2

10120.W0015

For bolt

M12, M14

For bolt inch

1/2"

l₁

200

l₂

45

l₃

30

w₁

40

w₂

14

h₁

25

d₁

20

Weight g

950

£ 64.15 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 200 - M16, M18 - 5/8

10120.W0018

For bolt

M16, M18

For bolt inch

5/8"

l₁

200

l₂

55

l₃

36

w₁

50

w₂

18

h₁

30

d₁

24

Weight g

1400

£ 85.73 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 18 - 250 - M16, M18 - 5/8

10120.W0019

For bolt

M16, M18

For bolt inch

5/8"

l₁

250

l₂

55

l₃

36

w₁

50

w₂

18

h₁

30

d₁

24

Weight g

1750

£ 88.79 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 250 - M20, M22 - 3/4

10120.W0022

For bolt

M20, M22

For bolt inch

3/4"

l₁

250

l₂

65

l₃

45

w₁

60

w₂

22

h₁

40

d₁

30

Weight g

2700

£ 127.04 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 22 - 315 - M20, M22 - 3/4

10120.W0023

For bolt

M20, M22

For bolt inch

3/4"

l₁

315

l₂

65

l₃

45

w₁

60

w₂

22

h₁

40

d₁

30

Weight g

3400

£ 146.20 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 250 - M24 - 1

10120.W0026

For bolt

M24

For bolt inch

1"

l₁

250

l₂

80

l₃

56

w₁

70

w₂

26

h₁

40

d₁

38

Weight g

3200

£ 146.97 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 26 - 315 - M24 - 1

10120.W0027

For bolt

M24

For bolt inch

1"

l₁

315

l₂

80

l₃

56

w₁

70

w₂

26

h₁

40

d₁

38

Weight g

4100

£ 156.91 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 315 - M30 - 1-1/4

10120.W0034

For bolt

M30

For bolt inch

1-1/4"

l₁

315

l₂

85

l₃

56

w₁

80

w₂

33

h₁

50

d₁

45

Weight g

5700

£ 226.55 per unit (click for quantity discounts)

Forked Clamps - Tempered Steel 33 - 400 - M30 - 1-1/4

10120.W0035

For bolt

M30

For bolt inch

1-1/4"

l₁

400

l₂

85

l₃

56

w₁

80

w₂

33

h₁

50

d₁

45

Weight g

7000

£ 307.68 per unit (click for quantity discounts)



Select all

For bolt

For bolt inch

l₁

l₂

l₃

w₁

w₂

h₁

d₁

Weight g

Price & Availability	Article	For bolt	For bolt inch	l1	l2	l3	w1	w2	h1	d1	Weight g
	10120.W0009	M 8	5/16"	100	30	18	30	9	15	12	220
£ 56.96 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 56.96 0% 5-14 £ 51.26 10% 15-24 £ 48.42 15% 25+ £ 45.57 20% For bolt M 8 For bolt inch 5/16" l1 100 l2 30 l3 18 w1 30 w2 9 h1 15 d1 12 Weight g 220 more info »
	10120.W0011	M10	3/8"	125	36	24	30	11	20	16	350
£ 64.61 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 64.61 0% 5-14 £ 58.15 10% 15-24 £ 54.92 15% 25+ £ 51.69 20% For bolt M10 For bolt inch 3/8" l1 125 l2 36 l3 24 w1 30 w2 11 h1 20 d1 16 Weight g 350 more info »
	10120.W0014	M12, M14	1/2"	160	45	30	40	14	25	20	750
£ 63.52 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 63.52 0% 5-14 £ 57.17 10% 15-24 £ 53.99 15% 25+ £ 50.82 20% For bolt M12, M14 For bolt inch 1/2" l1 160 l2 45 l3 30 w1 40 w2 14 h1 25 d1 20 Weight g 750 more info »
	10120.W0015	M12, M14	1/2"	200	45	30	40	14	25	20	950
£ 64.15 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 64.15 0% 5-14 £ 57.74 10% 15-24 £ 54.53 15% 25+ £ 51.32 20% For bolt M12, M14 For bolt inch 1/2" l1 200 l2 45 l3 30 w1 40 w2 14 h1 25 d1 20 Weight g 950 more info »
	10120.W0018	M16, M18	5/8"	200	55	36	50	18	30	24	1400
£ 85.73 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 85.73 0% 5-14 £ 77.16 10% 15-24 £ 72.87 15% 25+ £ 68.58 20% For bolt M16, M18 For bolt inch 5/8" l1 200 l2 55 l3 36 w1 50 w2 18 h1 30 d1 24 Weight g 1400 more info »
	10120.W0019	M16, M18	5/8"	250	55	36	50	18	30	24	1750
£ 88.79 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 88.79 0% 5-14 £ 79.91 10% 15-24 £ 75.47 15% 25+ £ 71.03 20% For bolt M16, M18 For bolt inch 5/8" l1 250 l2 55 l3 36 w1 50 w2 18 h1 30 d1 24 Weight g 1750 more info »
	10120.W0022	M20, M22	3/4"	250	65	45	60	22	40	30	2700
£ 127.04 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 127.04 0% 5-14 £ 114.34 10% 15-24 £ 107.98 15% 25+ £ 101.63 20% For bolt M20, M22 For bolt inch 3/4" l1 250 l2 65 l3 45 w1 60 w2 22 h1 40 d1 30 Weight g 2700 more info »
	10120.W0023	M20, M22	3/4"	315	65	45	60	22	40	30	3400
£ 146.20 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 146.20 0% 5-14 £ 131.58 10% 15-24 £ 124.27 15% 25+ £ 116.96 20% For bolt M20, M22 For bolt inch 3/4" l1 315 l2 65 l3 45 w1 60 w2 22 h1 40 d1 30 Weight g 3400 more info »
	10120.W0026	M24	1"	250	80	56	70	26	40	38	3200
£ 146.97 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 146.97 0% 5-14 £ 132.27 10% 15-24 £ 124.92 15% 25+ £ 117.58 20% For bolt M24 For bolt inch 1" l1 250 l2 80 l3 56 w1 70 w2 26 h1 40 d1 38 Weight g 3200 more info »
	10120.W0027	M24	1"	315	80	56	70	26	40	38	4100
£ 156.91 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 156.91 0% 5-14 £ 141.22 10% 15-24 £ 133.37 15% 25+ £ 125.53 20% For bolt M24 For bolt inch 1" l1 315 l2 80 l3 56 w1 70 w2 26 h1 40 d1 38 Weight g 4100 more info »
	10120.W0034	M30	1-1/4"	315	85	56	80	33	50	45	5700
£ 226.55 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 226.55 0% 5-14 £ 203.90 10% 15-24 £ 192.57 15% 25+ £ 181.24 20% For bolt M30 For bolt inch 1-1/4" l1 315 l2 85 l3 56 w1 80 w2 33 h1 50 d1 45 Weight g 5700 more info »
	10120.W0035	M30	1-1/4"	400	85	56	80	33	50	45	7000
£ 307.68 per unit (click for quantity discounts) Ready to despatch 0 Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout. Buy more & save with our quantity discounts Units Price/unit after discount Applied Discount 1-4 £ 307.68 0% 5-14 £ 276.91 10% 15-24 £ 261.53 15% 25+ £ 246.14 20% For bolt M30 For bolt inch 1-1/4" l1 400 l2 85 l3 56 w1 80 w2 33 h1 50 d1 45 Weight g 7000 more info »
