Mono Bloc Clamps

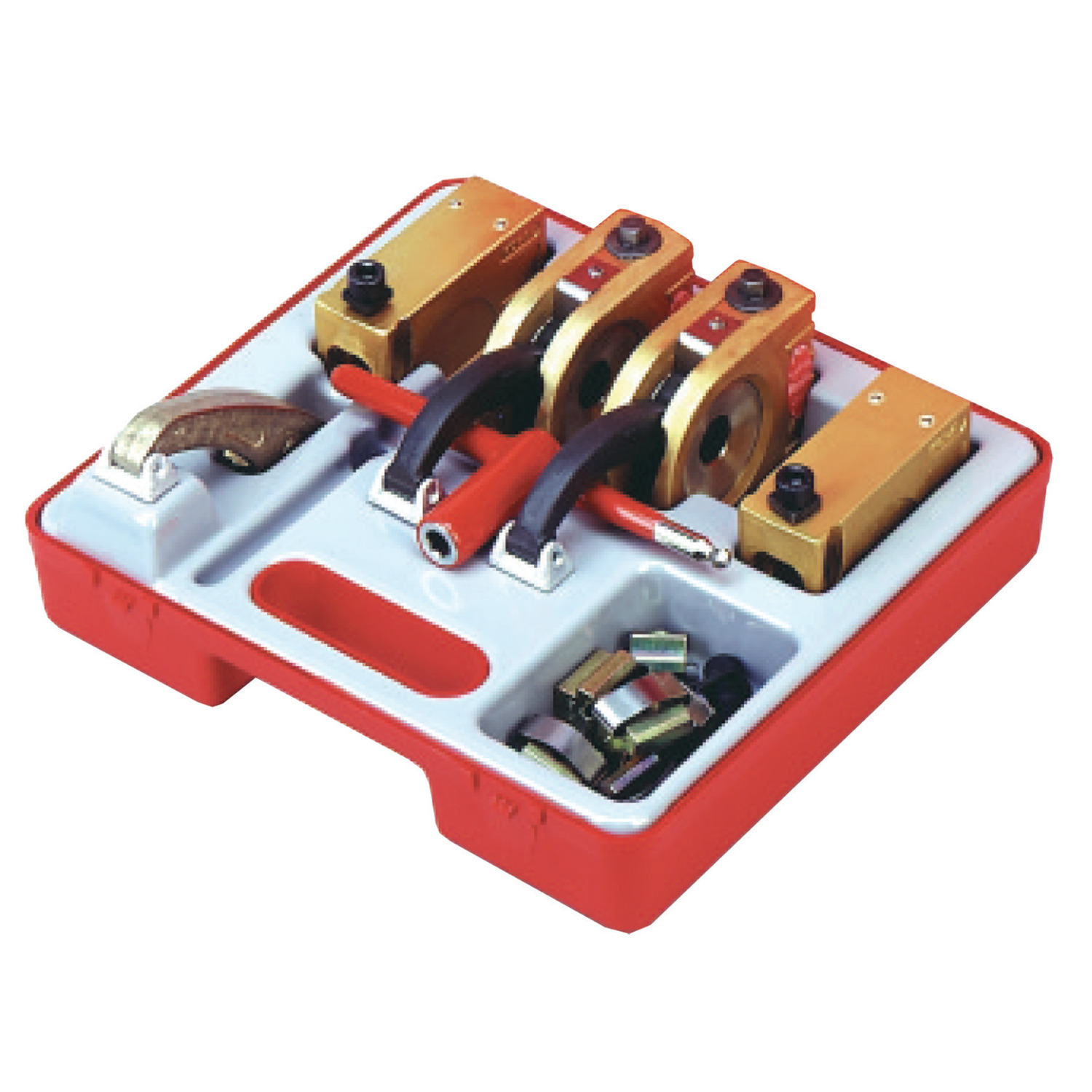

10653 Monobloc Clamp Sets
material: Aluminium
Order No.
10653.W0110
Description
Short Arm Set
Clamp reach
33
Clamping force
max.
kN
16
Clamping height
min.|max.
0 to 154
£ 1,437.28 per unit (click for quantity discounts)
Ready to despatch 1
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 1,437.28 | 0% |
| 5-9 | £ 1,365.42 | 5% |
| 10-19 | £ 1,293.55 | 10% |
| 20+ | £ 1,221.69 | 15% |
Technical & Application
Technical Notes

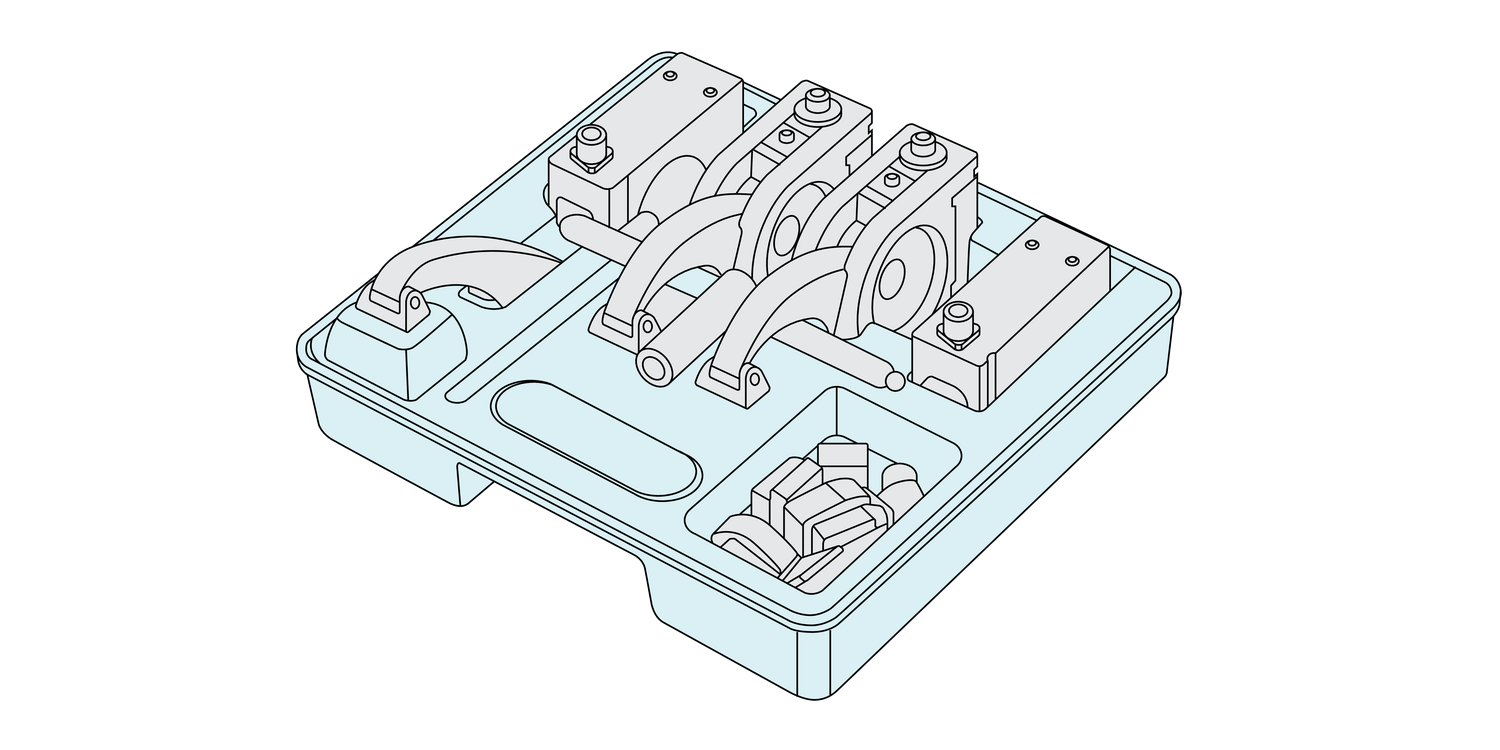

Comprises of two monobloc clamps (short 10650.W0020 and long 10650.W0030), two spacer elements (2 x 10651.W0050), one clamping key (10651.W0160 or 10651.W0325), one extra long arm (available with clamp in 10650.W0035), 4xM10 screws (10654.W0080 and 10654.W0085) and 6xM10 T-nuts (with spring) for 14, 16 and 18mm slots.
Tips
Clamp heights shown with the use of the riser blocks.
