2.2 Ton Clamp
movable jaw & smooth face

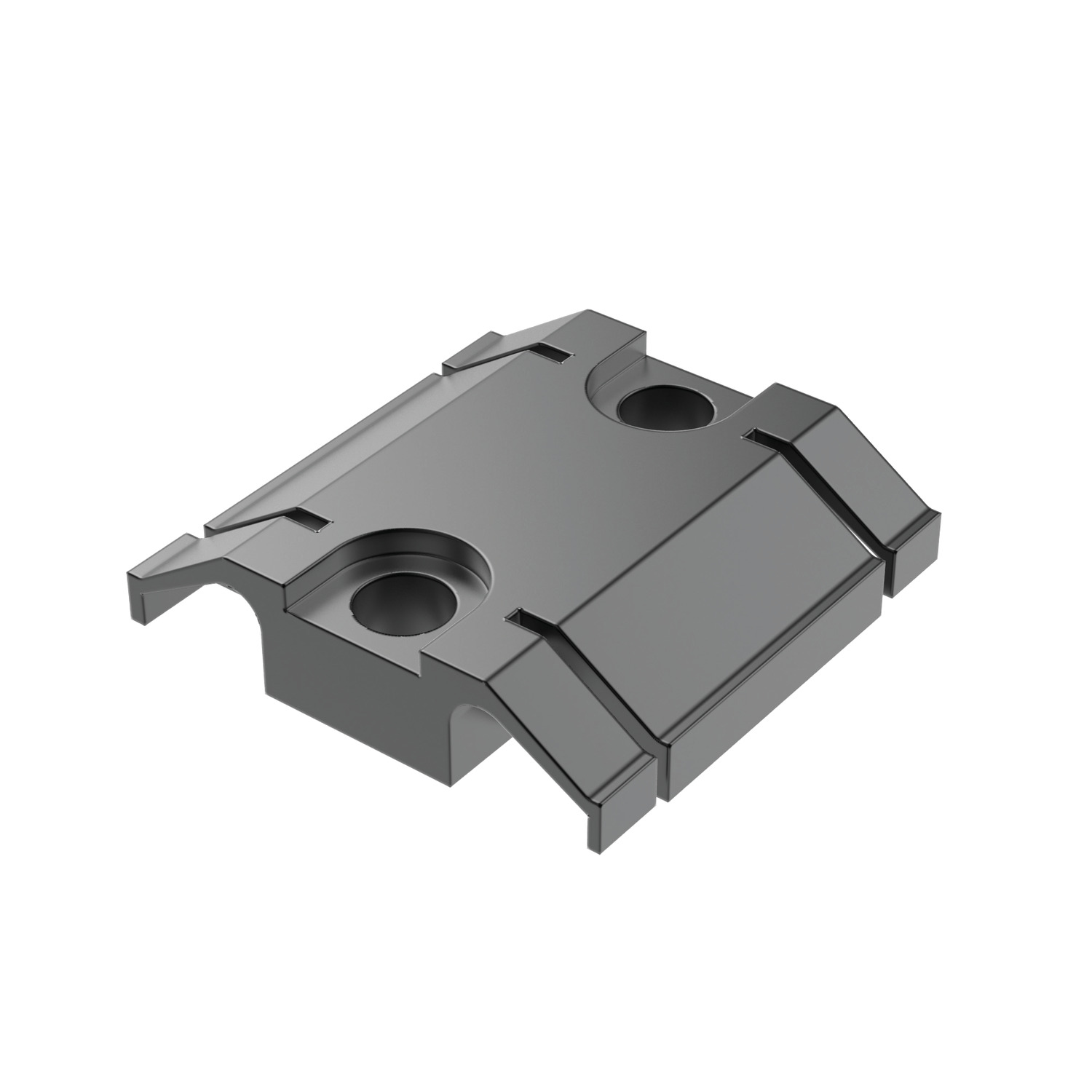

11041 2.2 Ton Finger Clamp - Fixed Stop
smooth face, material: Spring steel
Order No.
11041.W0082
Type
Double

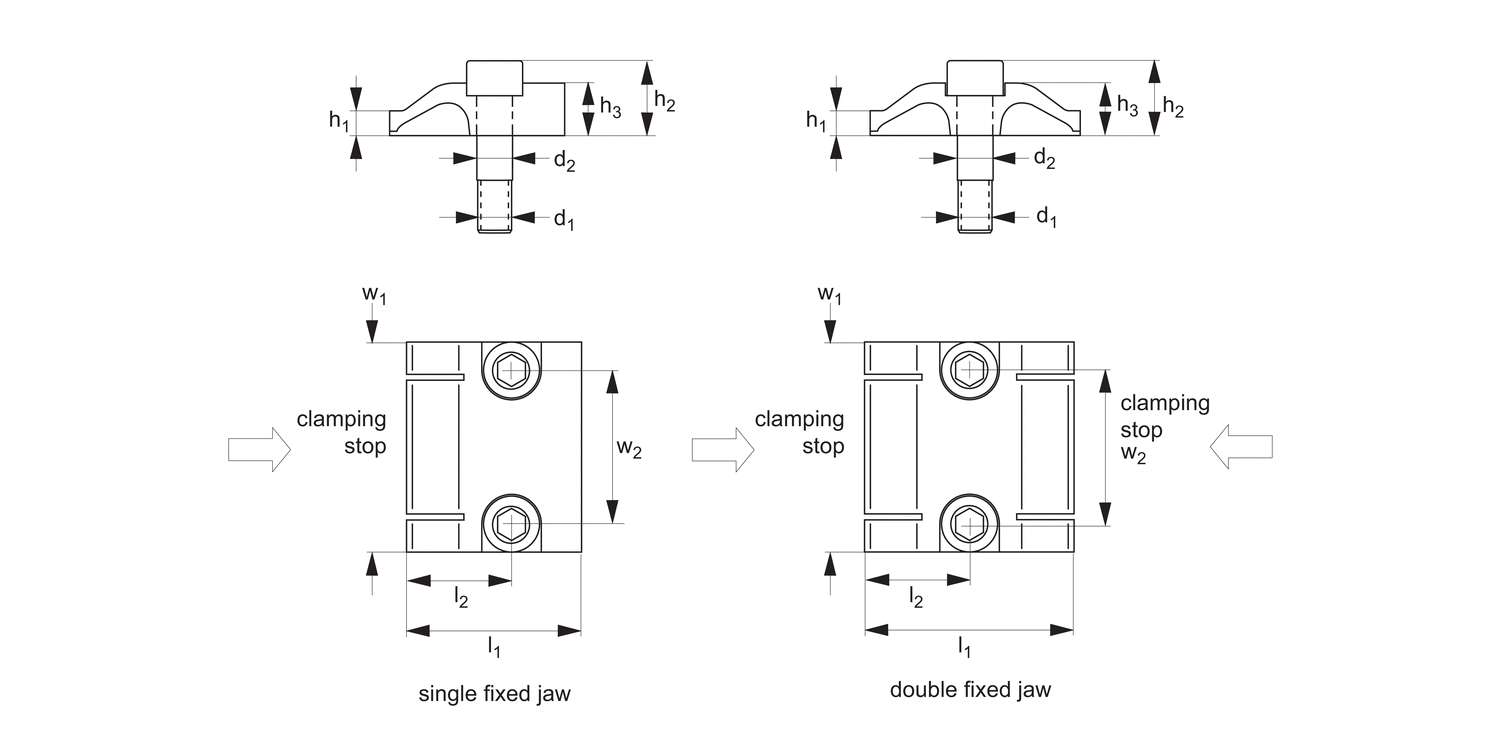

Clamping height h1
7
d1
M10
d2
tol. h6
10.2
h2
22
h3
15
l1
60
l2
30
w1
60
w2
44
£ 259.73 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.95. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-4 | £ 259.73 | 0% |
| 5-9 | £ 246.74 | 5% |
| 10-19 | £ 233.76 | 10% |
| 20+ | £ 220.77 | 15% |
Technical & Application
Material
Spring steel.
Technical Notes
These stops have a unique sideways and downwards action.
Tips
Provided with specially ground location bolts Ø10,2 - M10, allowing for precise positioning. Precision of the screws also allows dimension l2 to be used as a useful clamping datum. For mounting there are 2 tapped holes at 44,00 ±0,005mm centres, M10, with depth of 28mm, counterbore 10,2 (H6), with depth of 14mm.
Product Datasheets
Application images
