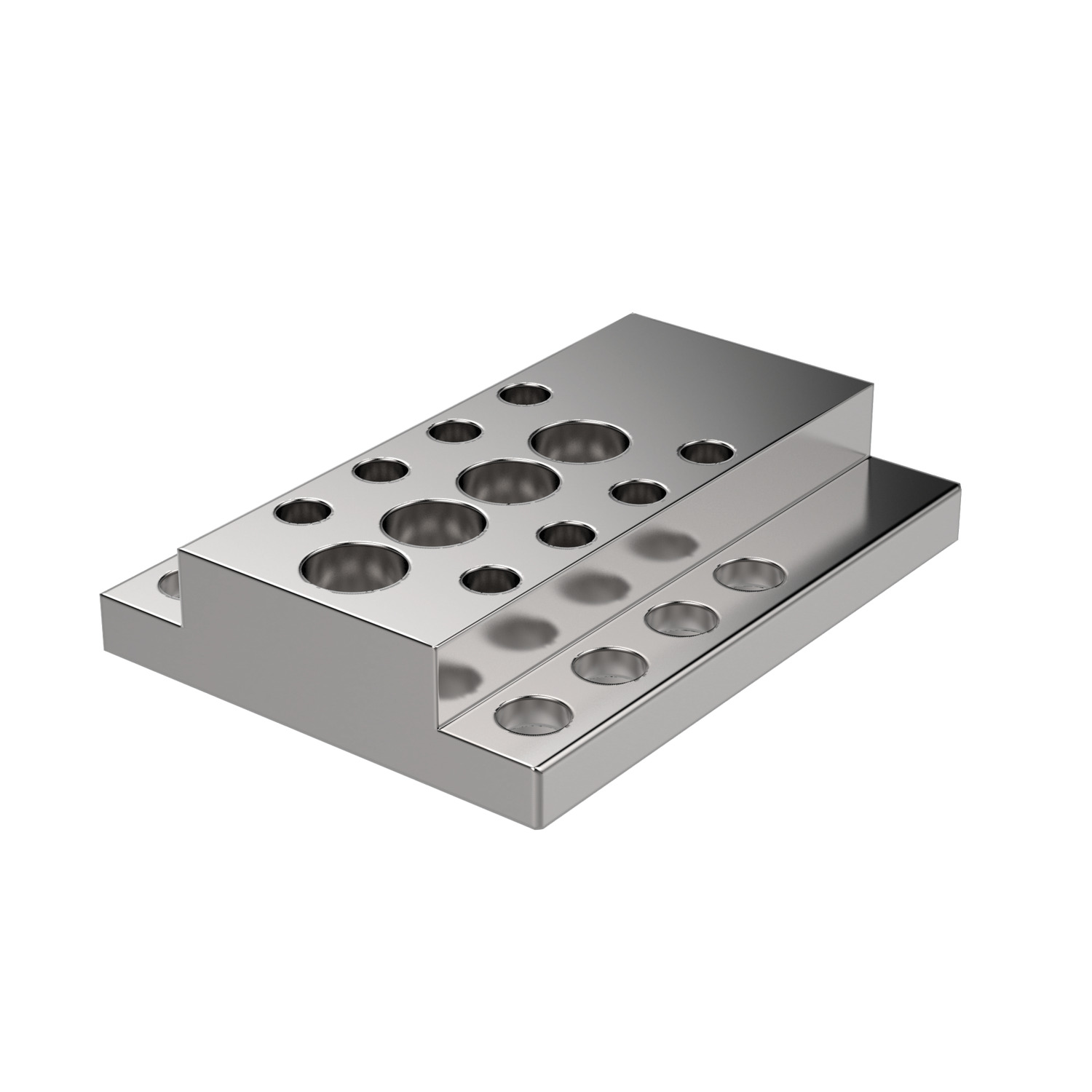

11045 Base Plates Finger - Short

Name: 11045.W0016
Brand: WC
SKU: 11045.W0016
Price: 776.2 EUR
Availability: InStock

for 2.2 ton clamps, material: Steel

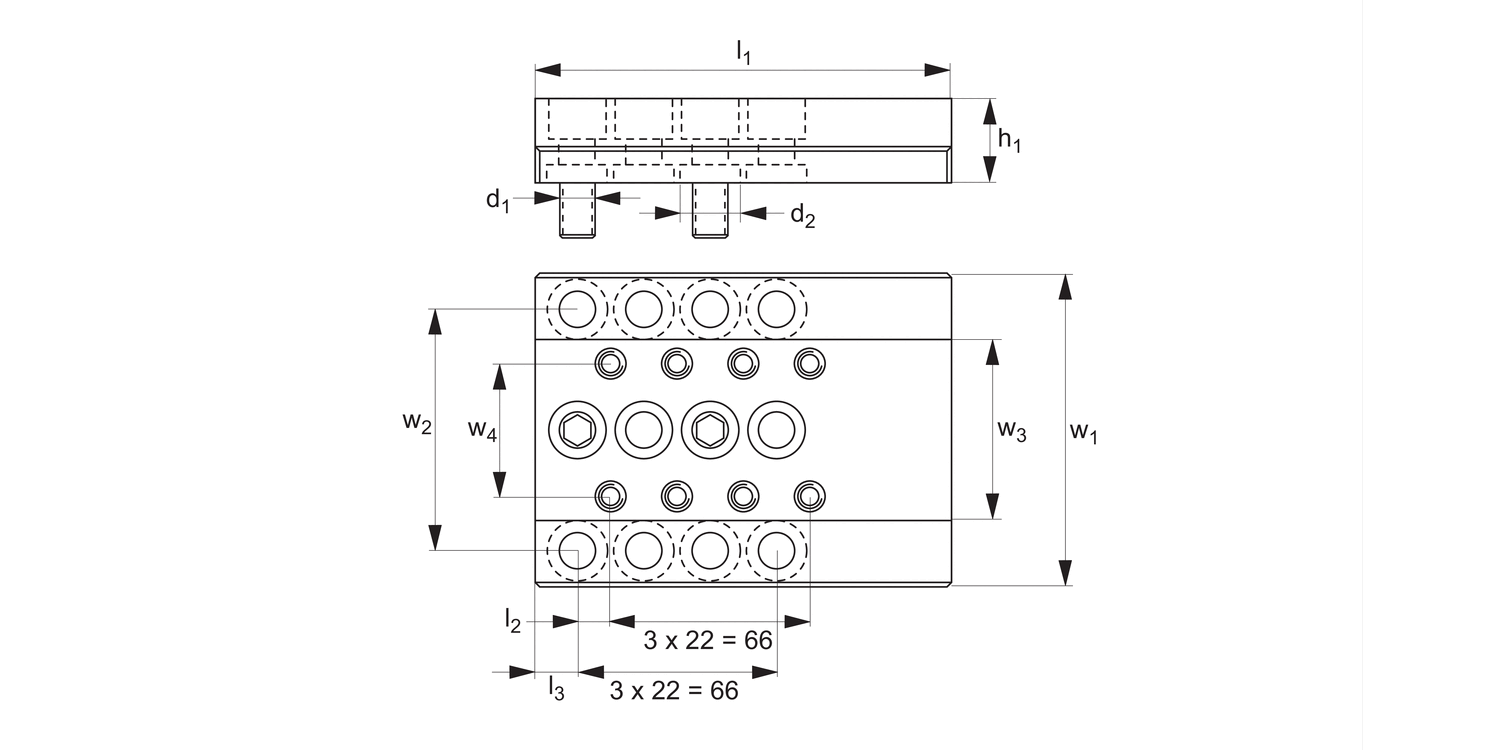

Article properties

Order No.

11045.W0016

d₁

M12

d₂

h₁

l₁

138

l₂

l₃

w₁

104

w₂

w₃

w₄

See full product selection

£ 776.20 per unit (click for quantity discounts)

Ready to despatch 1
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 776.20	0%
5-9	£ 737.39	5%
10-19	£ 698.58	10%
20+	£ 659.77	15%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Steel, hardened, with ground faces.

Technical Notes

For T-slot tables and fixture plates.

Tips

Provided with 3 x M12 fixing screws and centring locator.
For use with parts 11040-11043.
