Downhold Clamps
cranked clamping lever

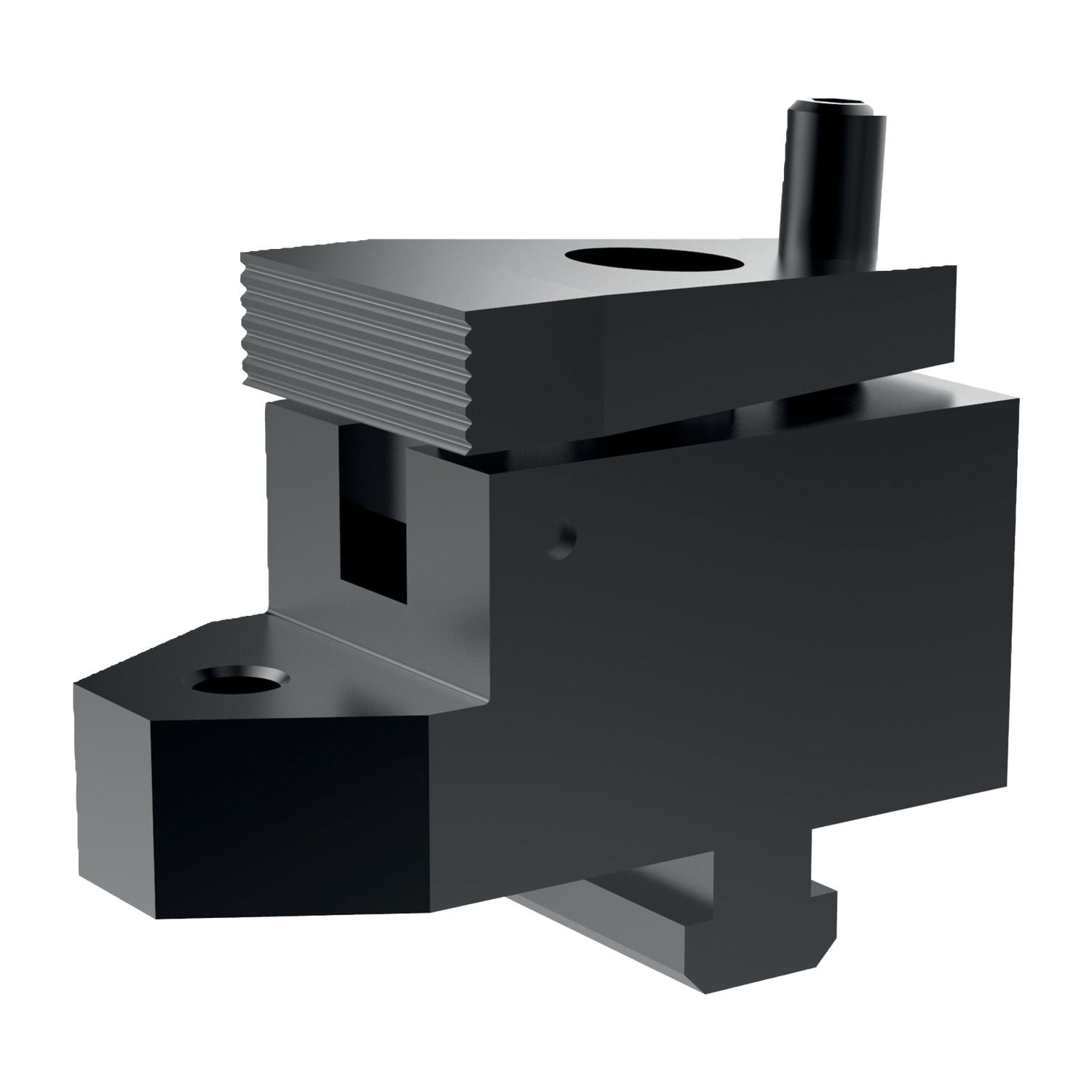

12422 Downhold Clamps
with support ledge, material: Steel
Order No.
12422.W0052
For T-slot
10
Jaw type
V- Jaw
h1
44
h2
±0.01
15
h3
≈
40
h4
≈
28
l1
52
l2
28
Weight
g
553
l3
72.5
l4
38
d1
M 8
d2
8.4
d3
M 8
Stroke s1
3
w1
32
w2
12.1
Clamping force horizontal
max.
kN
7.0
Tightening torque
max.
Nm
3
£ 318.81 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 21 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 318.81 | 0% |
| 10-19 | £ 286.93 | 10% |
| 20-49 | £ 270.99 | 15% |
| 50-99 | £ 255.05 | 20% |
| 100+ | £ 223.17 | 30% |
Technical & Application
Material
Steel, case-hardened, blackened, ground.
Technical Notes

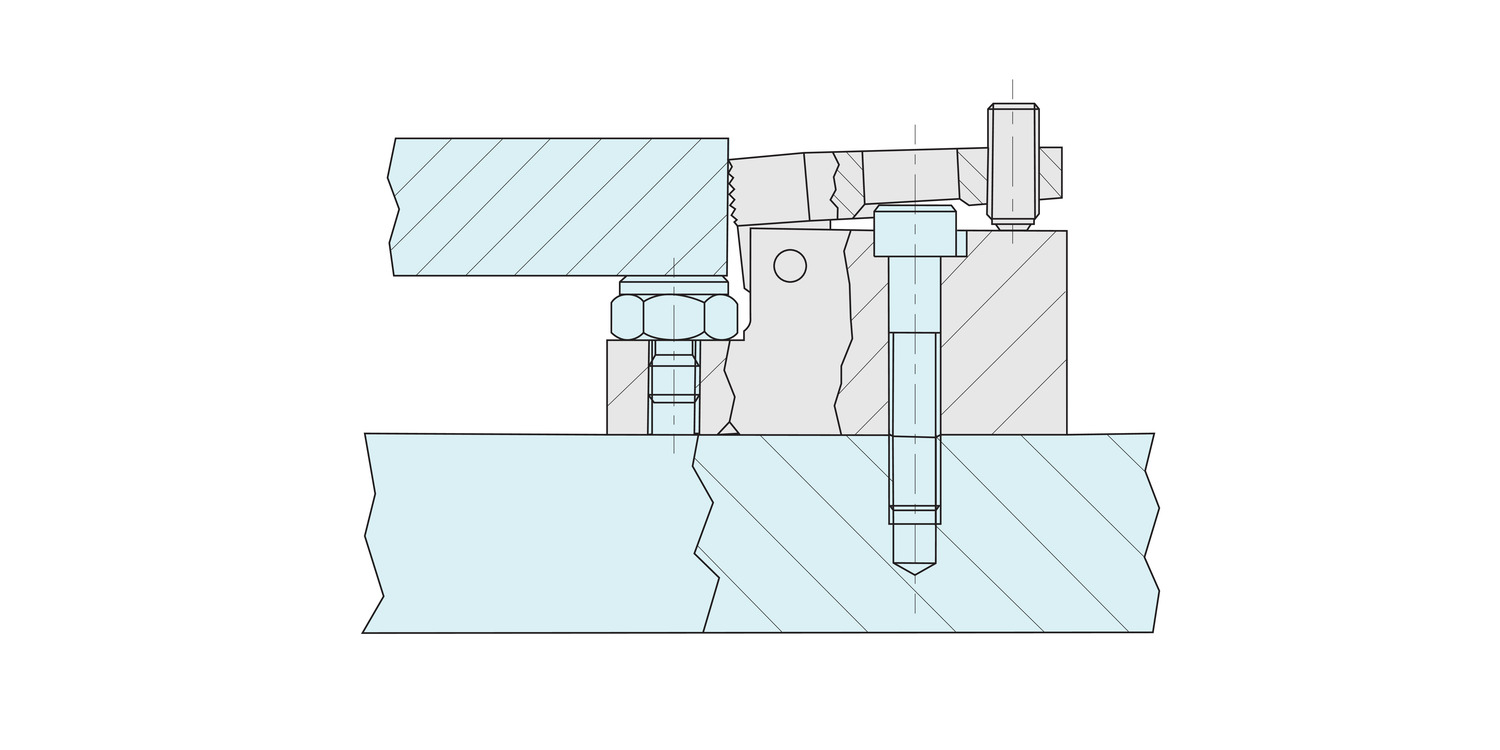

By tightening the ball-ended thrust screw the workpiece is simultaneously pressed towards the stops and fixture plate.This pivoting action enables high horizontal clamping forces. The integrated support has a thread suitable for rest buttons.
Tips
Do not over torque clamping screw as this can result in the stripping of the thread. For recommended torques - please see table.
May be used with holding plate no. 12410.
Product Datasheets
Application images
