Downhold Clamps
cranked clamping lever

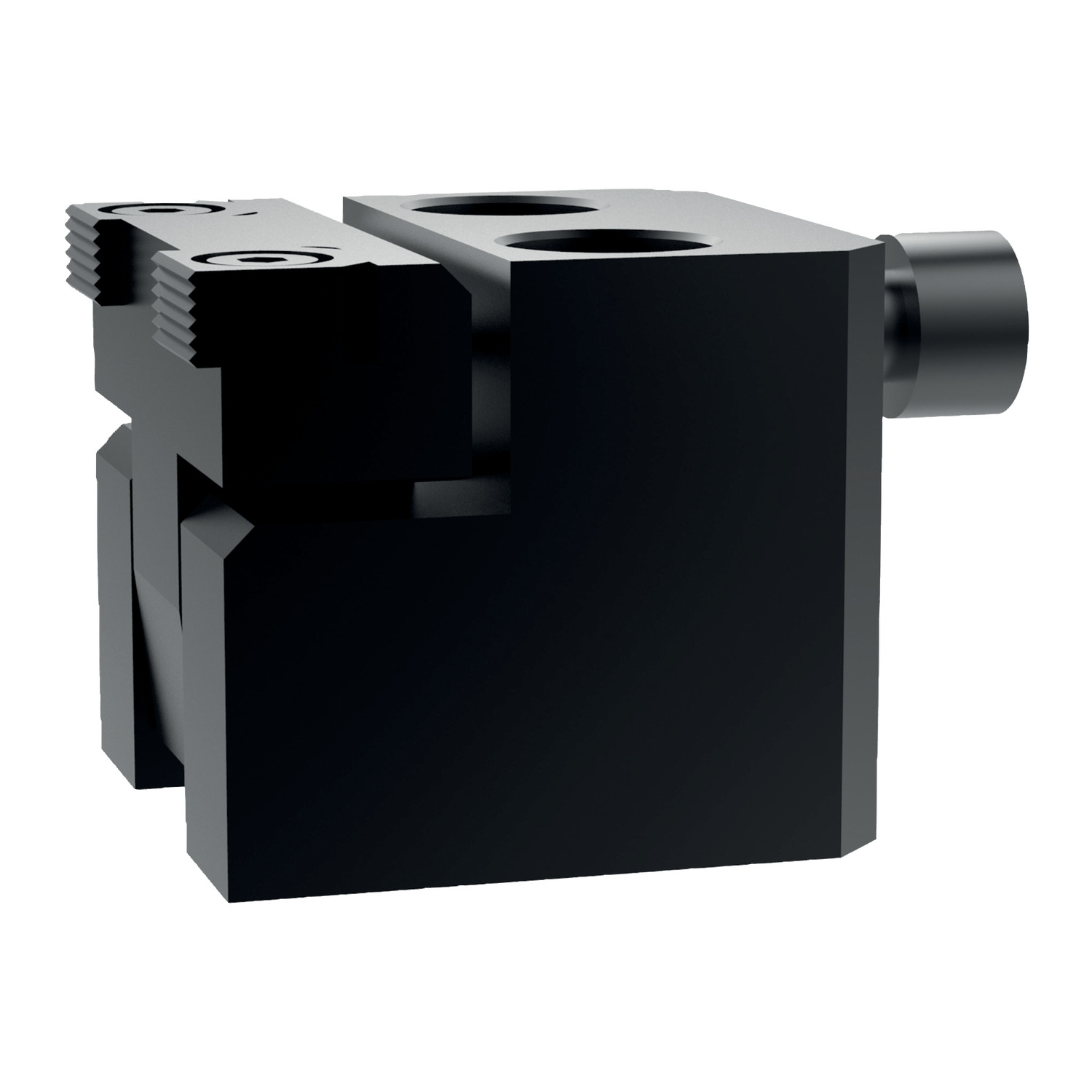

12428 Wide-Jaw Side Clamps
material: Steel

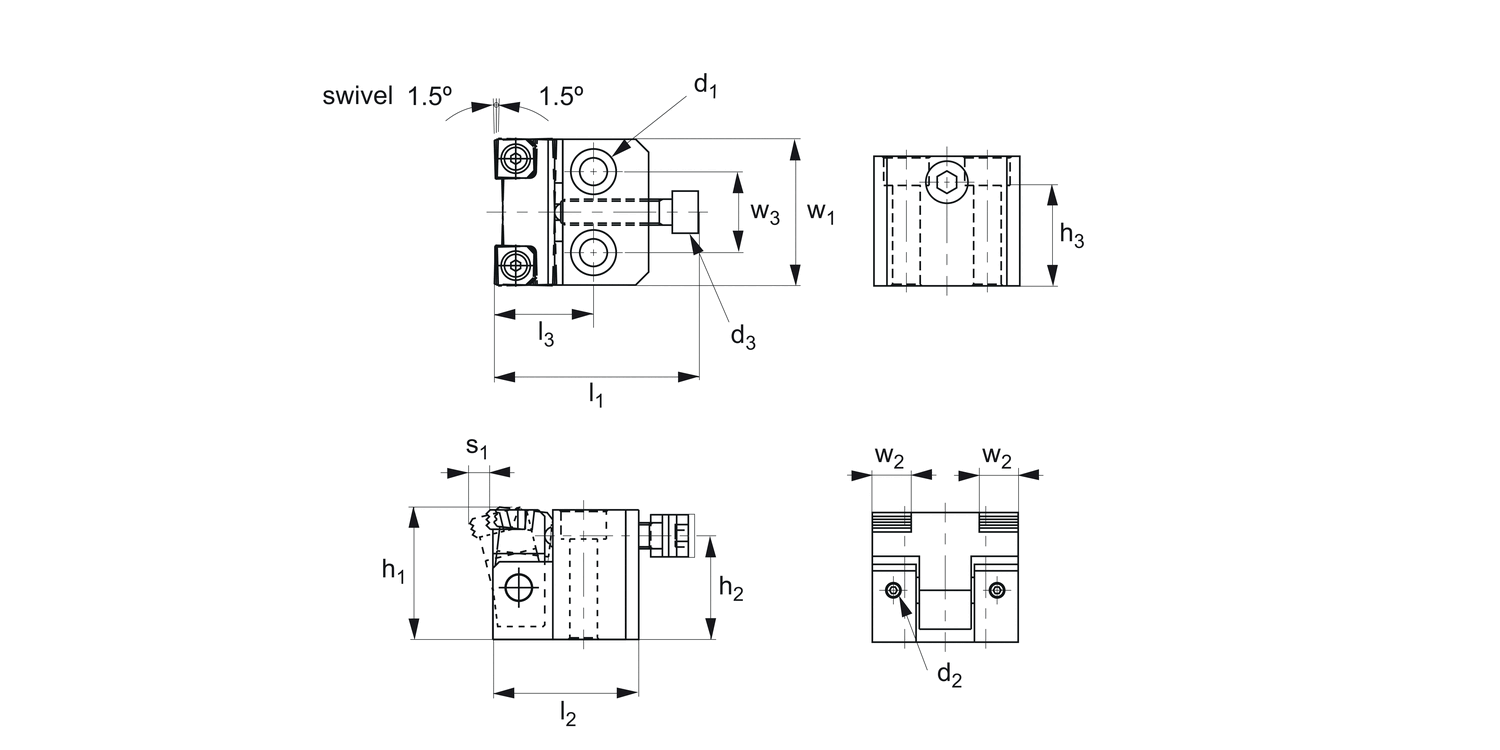

Order No.
12428.W0012
h1
40
h2
32
h3
31
l1
62.5
l2
45
l3
30
d1
M 8
d2
M 4x4
d3
M 8x35
Stroke s1
5.3
w1
45
w2
12
w3
25
Clamping force
max.
kN
15
Torque to
max.
Nm
25
Weight
g
0.6
£ 428.30 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 428.30 | 0% |
| 10-19 | £ 385.47 | 10% |
| 20-49 | £ 364.06 | 15% |
| 50-99 | £ 342.64 | 20% |
| 100+ | £ 299.81 | 30% |
Technical & Application
Material
Body: steel (C45), black oxide finish.
Arm: steel (C45), tempered and black oxide finish.
Jaw: steel (SKH51), tempered and black oxide finish.
Technical Notes

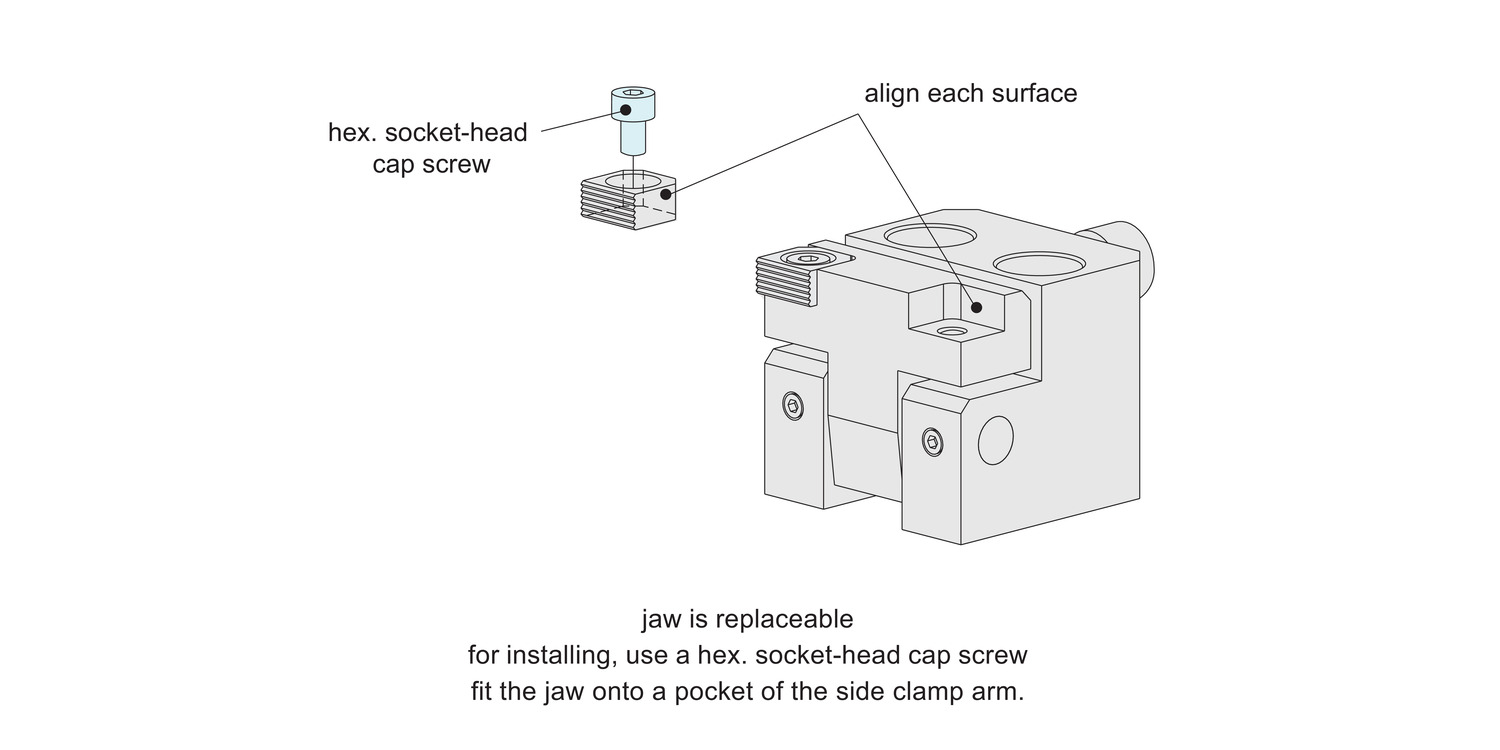

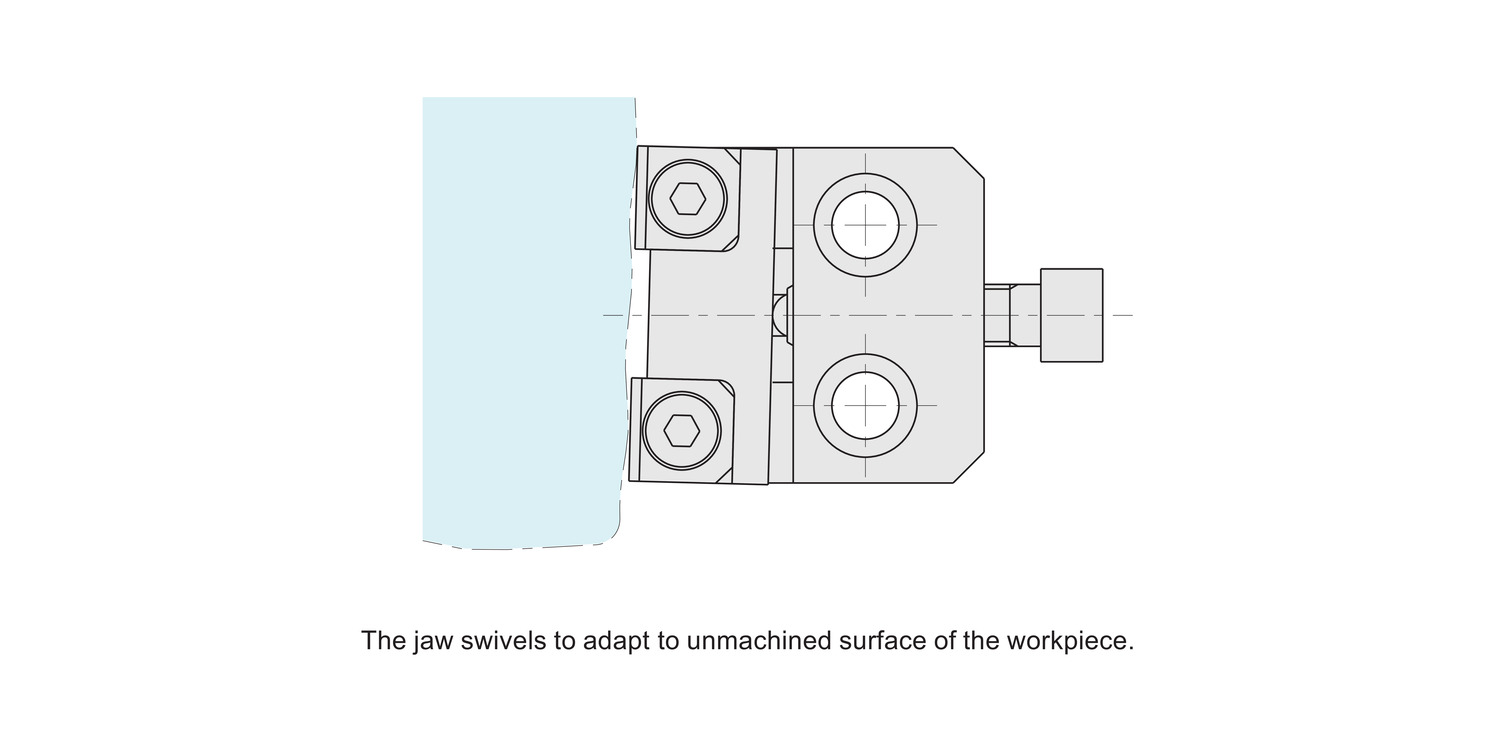

The jaw swivels to align to an unmachined surface of the workpiece. The jaw is replaceable.
For mounting, use a cap screw to suit d1
Tips
For replacement jaws, see part nos. 35520.W0303, 35520.W0306 and 35520.W0310.
