Spring Plungers
smooth model, with collar

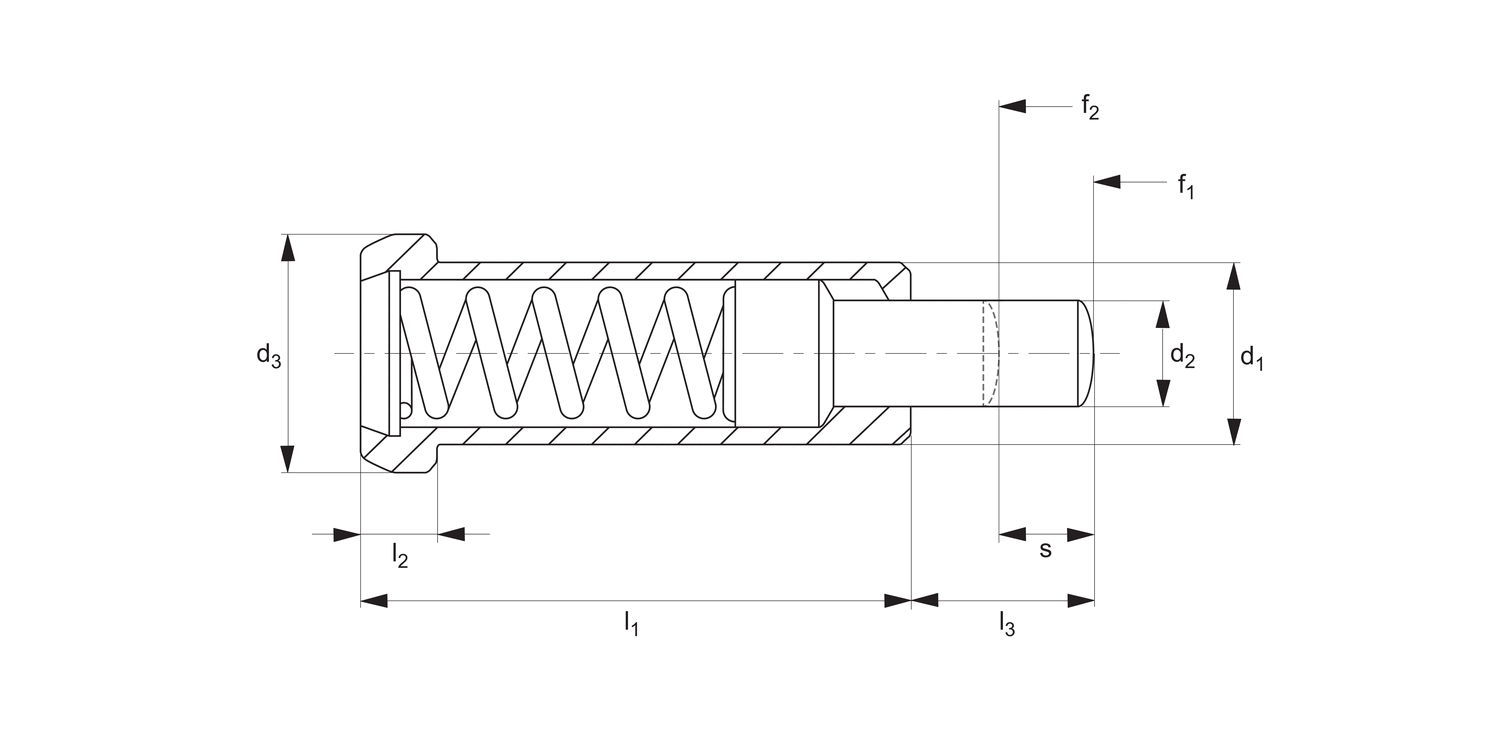

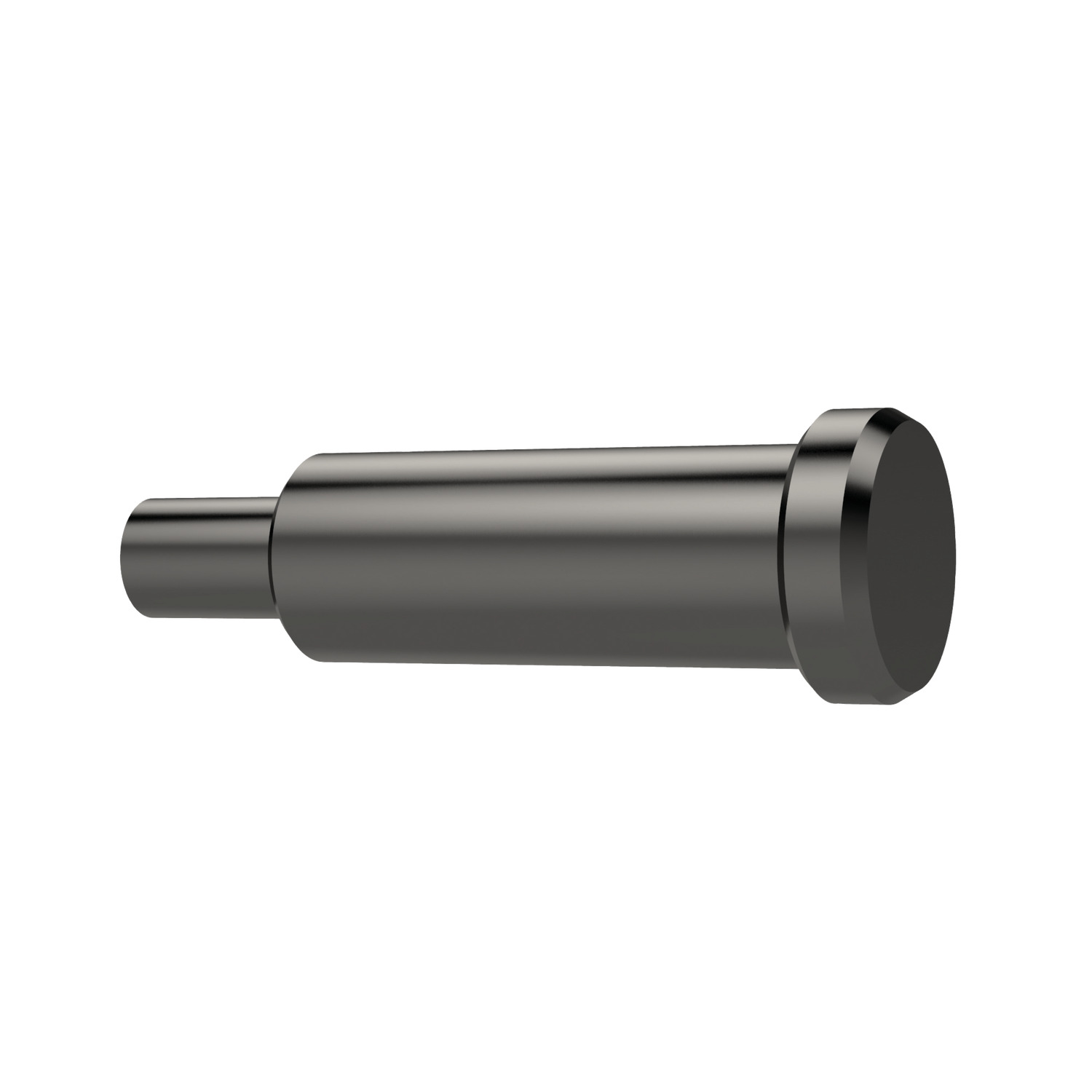

32400 Spring Plungers
smooth model, long, material: Steel
Order No.
32400.W0008
d1
0|-0.05
8
d2
3.9
d3
10
l1
24
l2
3.2
l3
8
Spring load F1
≈
N
30
Spring load F2
≈
N
88
s spring range
4.5
Weight
g
7.7
£ 10.77 per unit (click for quantity discounts)
Ready to despatch 30
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 10 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-19 | £ 10.77 | 0% |
| 20-49 | £ 9.69 | 10% |
| 50-99 | £ 9.15 | 15% |
| 100-499 | £ 8.08 | 25% |
| 500+ | £ 7.00 | 35% |
Technical & Application
Material
Body: free cutting steel, blackened.
Pin: case hardened steel, blackened.
Spring: stainless steel.
Technical Notes
Used as pulling off pins and spring stops in tool making. No part of the spring plunger can come out of the retaining bore. Recommended installation hole tolerance H7.
Temperature range up to 250°C.
Spring load * = statistical average values.
Tips
Do not push pin beyond spring range 's', as this will damage spring and result in reduction of spring load.
Special types available on request.
