32495 Index Plungers - Pull Grip

Name: 32495.W0310
Brand: WC
SKU: 32495.W0310
Price: 40.77 GBP
Availability: OutOfStock

Rapid locking head, material: Free cutting steel

Article properties

Order No.

32495.W0310

Type

Stainless

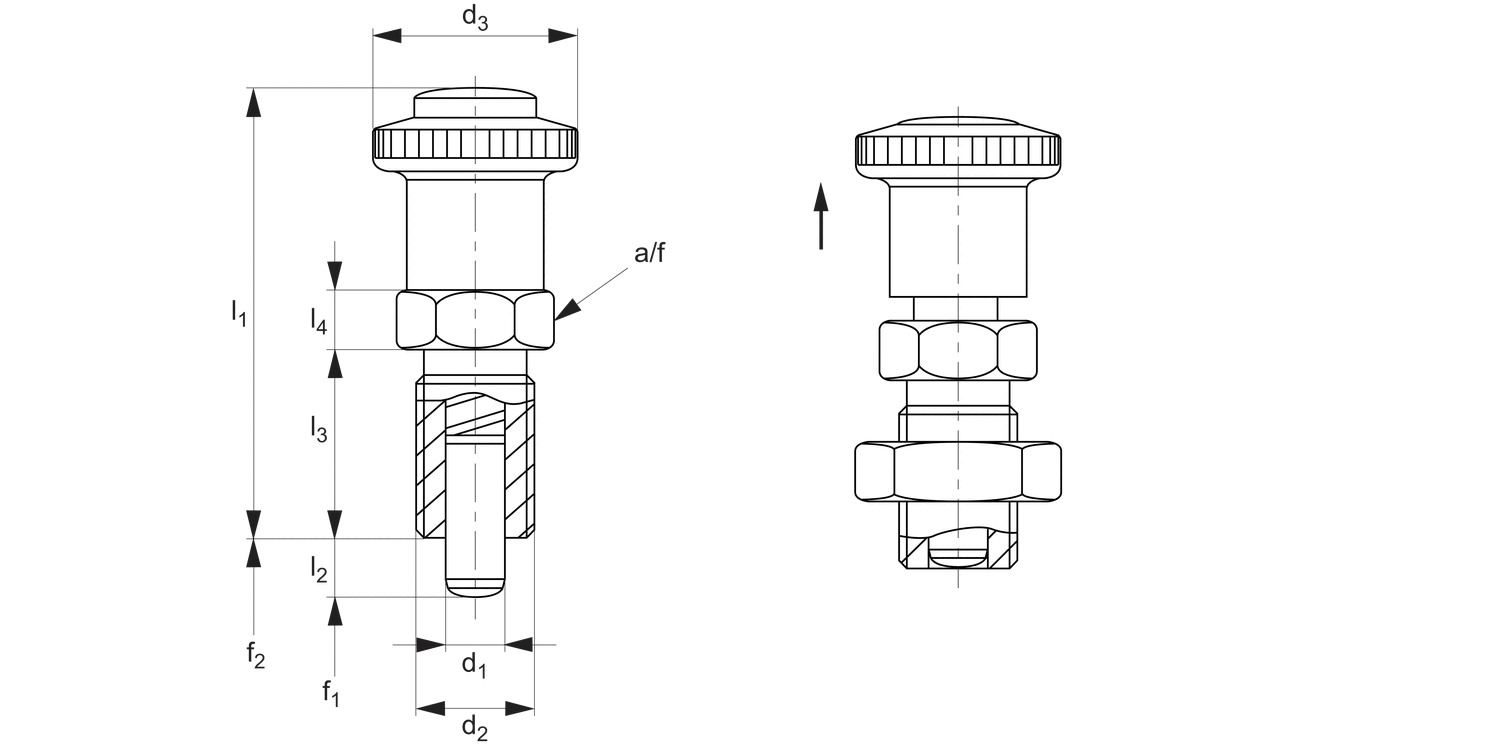

d₁ -0.02|-0.04

d₂

M 12x1.5

d₃

l₁ ≈

53.5

l₂ min.

l₃

l₄

A/F

Spring load F₁ ≈ N

6.0

Spring load F₂ ≈ N

Weight g

See full product selection

£ 40.77 per unit (click for quantity discounts)

Ready to despatch 0
Need more? Manufactured within 14 working days from order.
Typical UK delivery charge: £14.37.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-4	£ 40.77	0%
5-9	£ 38.73	5%
10-19	£ 36.69	10%
20+	£ 34.65	15%

Download product datasheet

Technical & Application

Material

Body: Steel, blackened.
Knob: Thermoplastic PA 6, black-grey, matt.
Press Button: Thermoplastic POM, red.
Locking pin: Steel, hardened.

Technical Notes

Pull knob up, red button flush = pin locked.
Press red button, red button out = pin unlocked.
Temperature range -30 to +80 ºC.

Tips

Knob is non removable.
Lock nuts available separately.

Used with:
32510 Mounting blocks.
32700 Lock nut .
32750 Distance collars.
32752 Locating bushes.
32753 Locating bushes.
