33270 Retaining Bead Chain

Name: 33270.W0500
Brand: WC
SKU: 33270.W0500
Price: 3.49 EUR
Availability: InStock

stainless steel, material: Stainless steel

Article properties

Order No.

33270.W0500

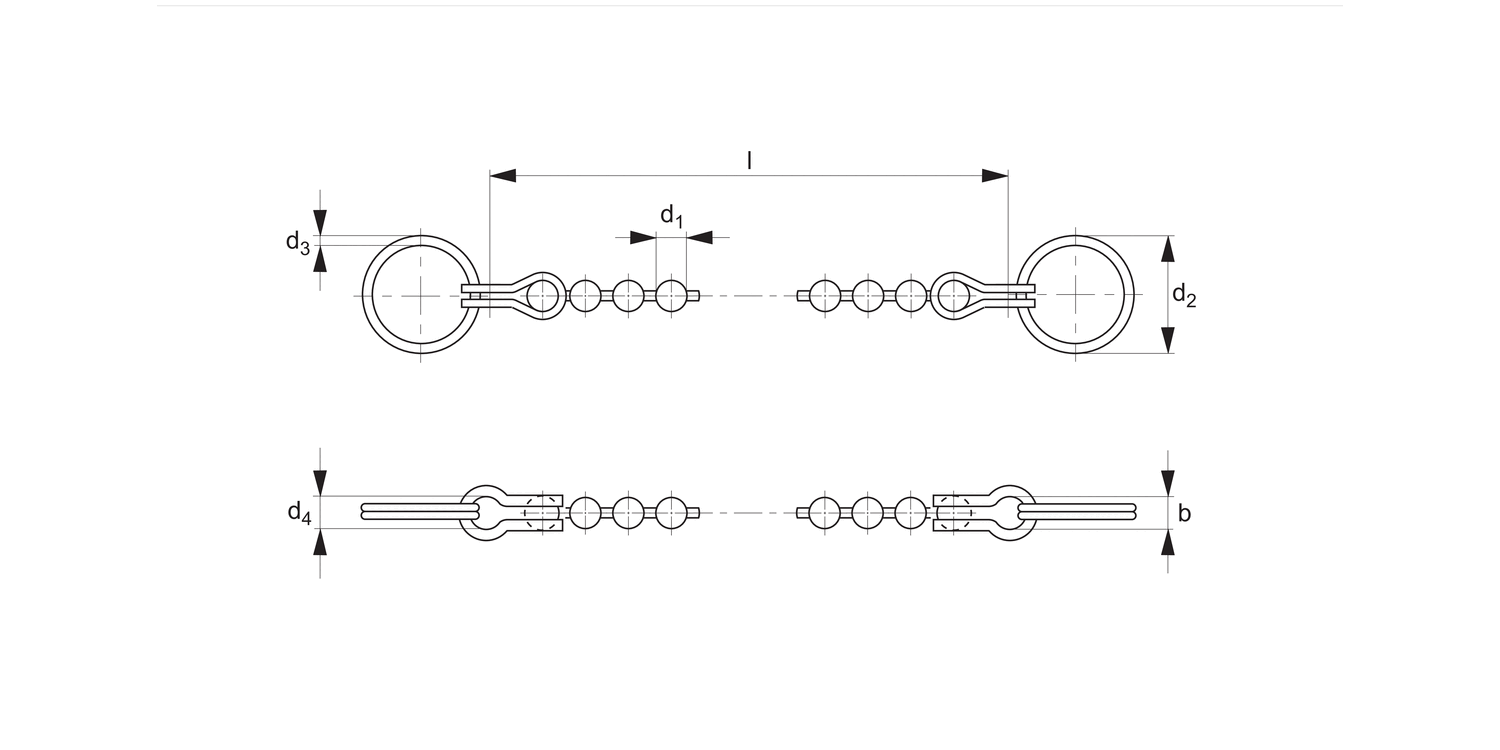

Length l

500

d₁

3.2

Breaking strength min. kg

d₄

3.5

Ring thickness d₃

1.52

Ring dia. d₂

See full product selection

£ 3.49 per unit (click for quantity discounts)

Ready to despatch 10
Need more? Manufactured within 10 working days from order.
Typical UK delivery charge: £13.50.
Confirmed at checkout.

Buy more & save with our quantity discounts

Units	Price/unit after discount	Applied Discount
1-9	£ 3.49	0%
10-19	£ 3.14	10%
20-49	£ 2.97	15%
50-99	£ 2.79	20%
100+	£ 2.62	25%

Download product datasheet

Download FREE CAD

Technical & Application

Material

Bead chain: stainless steel AISI 304, polished.
End attachments: brass, nickel plated.
Split rings: stainless steel.

Technical Notes

Retaining chains secure single-acting ball lock pins against possible loss.
Other chain lengths available on request.
