Thrust Screws - Ball Ended
headless - round ball - metal
34053 Thrust Screws - Ball Ended
headless - fine thread - flat faced ball - metal, material: Steel or stainless steel
Order No.
34053.W0854
Material
Stainless
Type
Flat, Plain
d1
M 8x1,0
d2
4.5
d3
5.5
l1
20.0
A/F
4
Static load
max.
kN
-
Weight
g
5.3
£ 12.27 per unit (click for quantity discounts)
Ready to despatch 0
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
Need more? Manufactured within 7 working days from order. Typical UK delivery charge: £13.50. Confirmed at checkout.
| Units | Price/unit after discount | Applied Discount |
| 1-9 | £ 12.27 | 0% |
| 10-19 | £ 11.04 | 10% |
| 20-49 | £ 10.43 | 15% |
| 50-99 | £ 9.82 | 20% |
| 100+ | £ 9.20 | 25% |
Technical & Application
Material
Steel type-
Body: steel, heat-treated, 1200 ±100 N/mm².
Ball: ball bearing steel, hardened.
Stainless steel type-
Body: stainless steel (AISI 303, 1.4305).
Ball: stainless steel, hardened.
Technical Notes
For clamping, tightening or supporting surfaces that are not exactly parallel.
These ball ended thrust screws have a fine thread, for precise adjustment.
Tips
Ball not secured against rotation. It is possible for the flat faced ball to flip and expose the spherical face of the ball. For other types see following pages.
Important Notes
*Max static load relates to steel version only.
Product Datasheets
CAD files

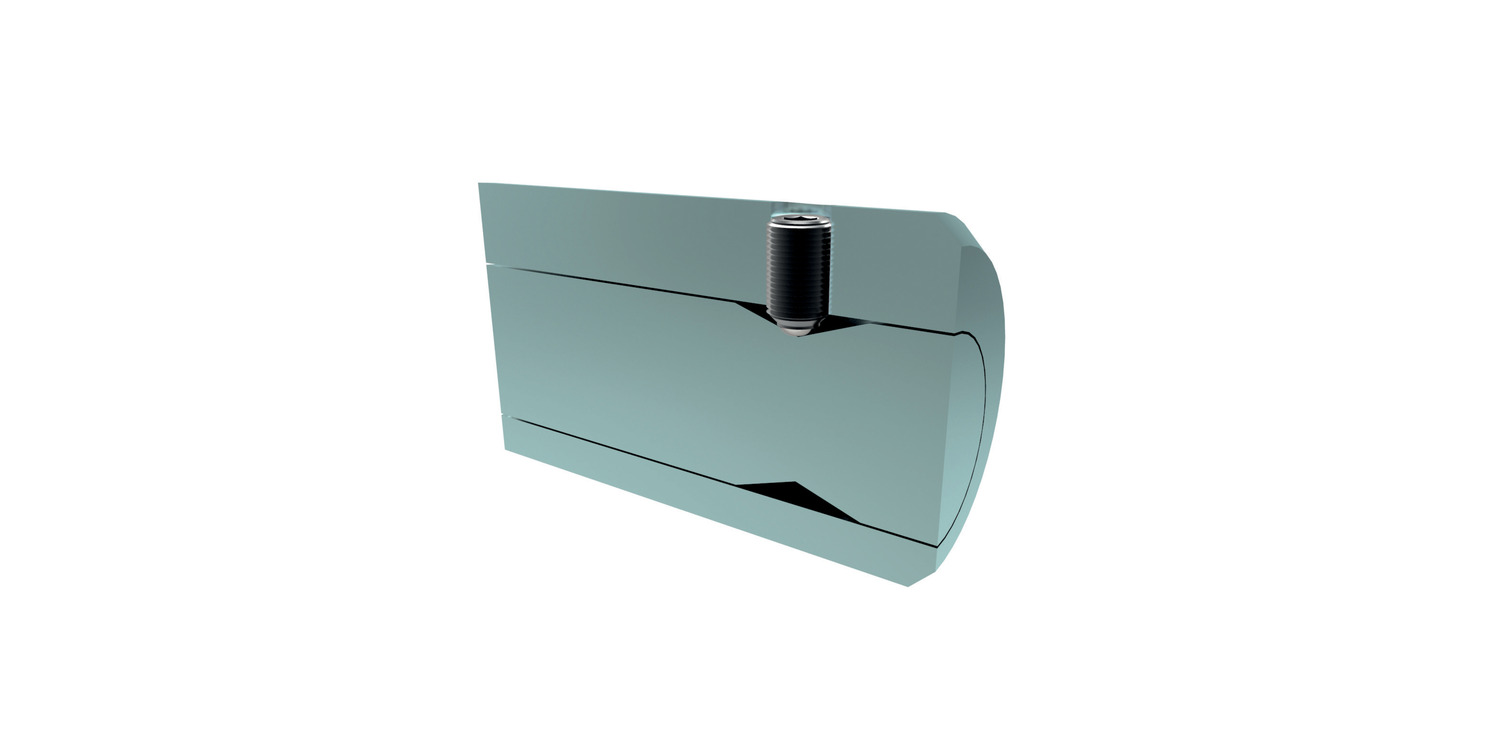

Application images
